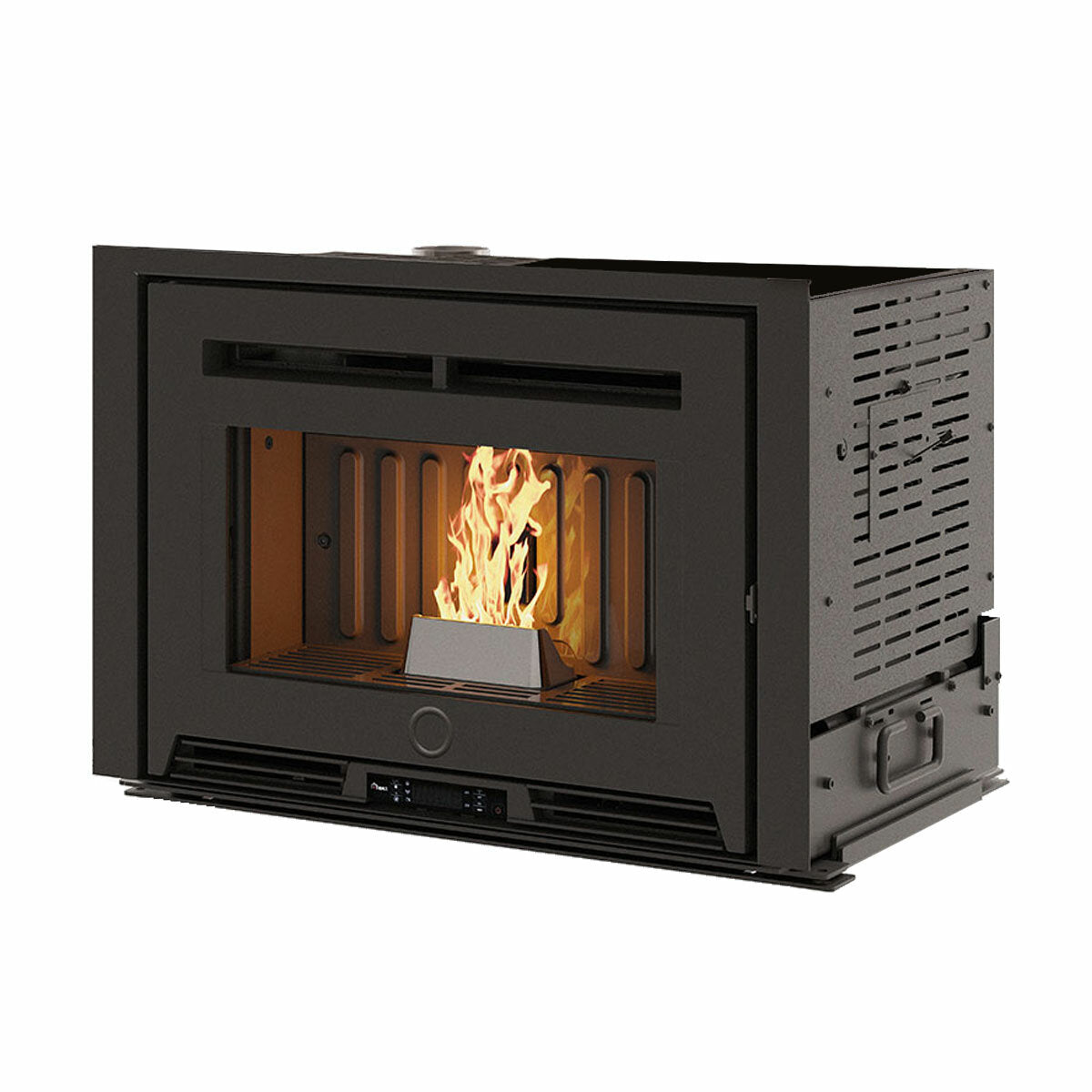

Pellet fireplace insert PELLEK100+ EVO2 EK63 - Edilkamin group - 10 kW with ducted air, WiFi

Pellet fireplace insert PELLEK110+ EVO2 by EK63 - Edilkamin group - 10 kW with ducted air and WiFi

EK63 is the Edilkamin brand created to offer modern and economical solutions without sacrificing efficiency and quality, just like in the case of the Pellek110+ EVO2 pellet insert.

The EK63 Pellek110+ EVO2 pellet insert is ideal for restoring an old open fireplace or creating a new, technological and stylish one. Furthermore, ducted air pellet stoves are certainly the best solution for those who need to integrate or replace the traditional heating system of medium-sized homes, as they are able to excellently heat the rooms in which they are installed and also additional rooms, even on different floors, through special ducts (Pellek110+ EVO2 can duct air to a second room in addition to the one in which it is installed).

The Pellek110+ EVO2, the latest, greener and higher-performance version of its predecessor, the Pellek 100+, is the perfect combination of practicality, style, and power. It is a smart, environmentally friendly investment thanks to its use of pellets, an economical and environmentally friendly fuel, which will bring immediate savings in consumption and management costs, as well as a comfortable environment without temperature fluctuations.

DESIGN

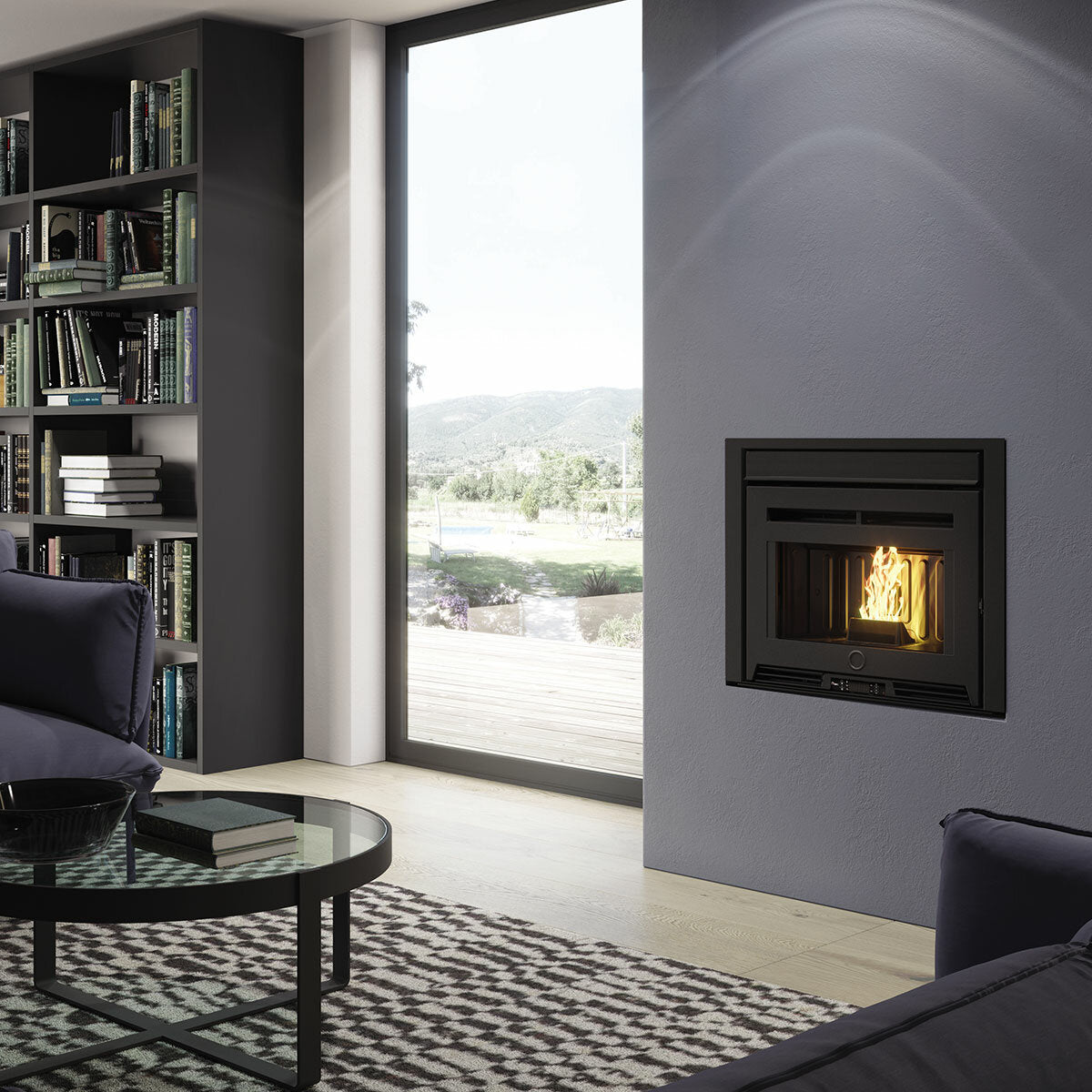

The EK63 Pellek110+ EVO2 pellet insert is truly aesthetically pleasing, with a linear design that enhances any space with a distinctive touch of modernity and style. Square lines create defined geometries enriched by small details such as the large combustion chamber with its bold contours. When the insert is lit, it creates a lively, enveloping flame capable of creating evocative atmospheres in any home, evoking the same sensations of a traditional fireplace in a modern key.

TECHNOLOGY, COMFORT AND SAVINGS

The EK63 PELLEK110+ EVO2 pellet insert is a concentration of efficiency and practicality, in fact it guarantees Class A+ energy performance.

Numerous technical features make this pellet insert one of the most interesting and innovative, perfect for both heating and furnishing your spaces with style. It features a highly resistant and durable cast iron firebox; a ceramic spark plug; front hot air ventilation, a Ø 8 cm M upper flue outlet, and a Ø 6 cm hot air outlet for ducting.

The EK63 PELLEK 100+ EVO2 features a convenient front display for easy automatic or manual management and monitoring of the various functions and temperature. There are also many other features and programmable functions to discover, simplifying its general use and making it accessible to any user. These include the option of daily and/or weekly programming; the Easy Timer function, which simplifies programming delayed on/off; the Relax function, which allows you to deactivate the hot air ventilation; the Fire Control function, which automatically modulates combustion to avoid waste; the Comfort Clima function, which ensures that the stove turns off when the desired temperature is reached; the Autoclean function automatically cleans the combustion chamber; and the Cold Autocheck function , which allows you to identify any problems. Further functions and technical features can be discovered and explored in greater depth in the user, installation, and maintenance manual provided with the product.

Particularly silent and manageable from your smartphone by downloading the SmartEK63 App as it is equipped as standard with the E-Smart system with integrated Wi-Fi and the possibility of remote management via Smart radio control (optional).

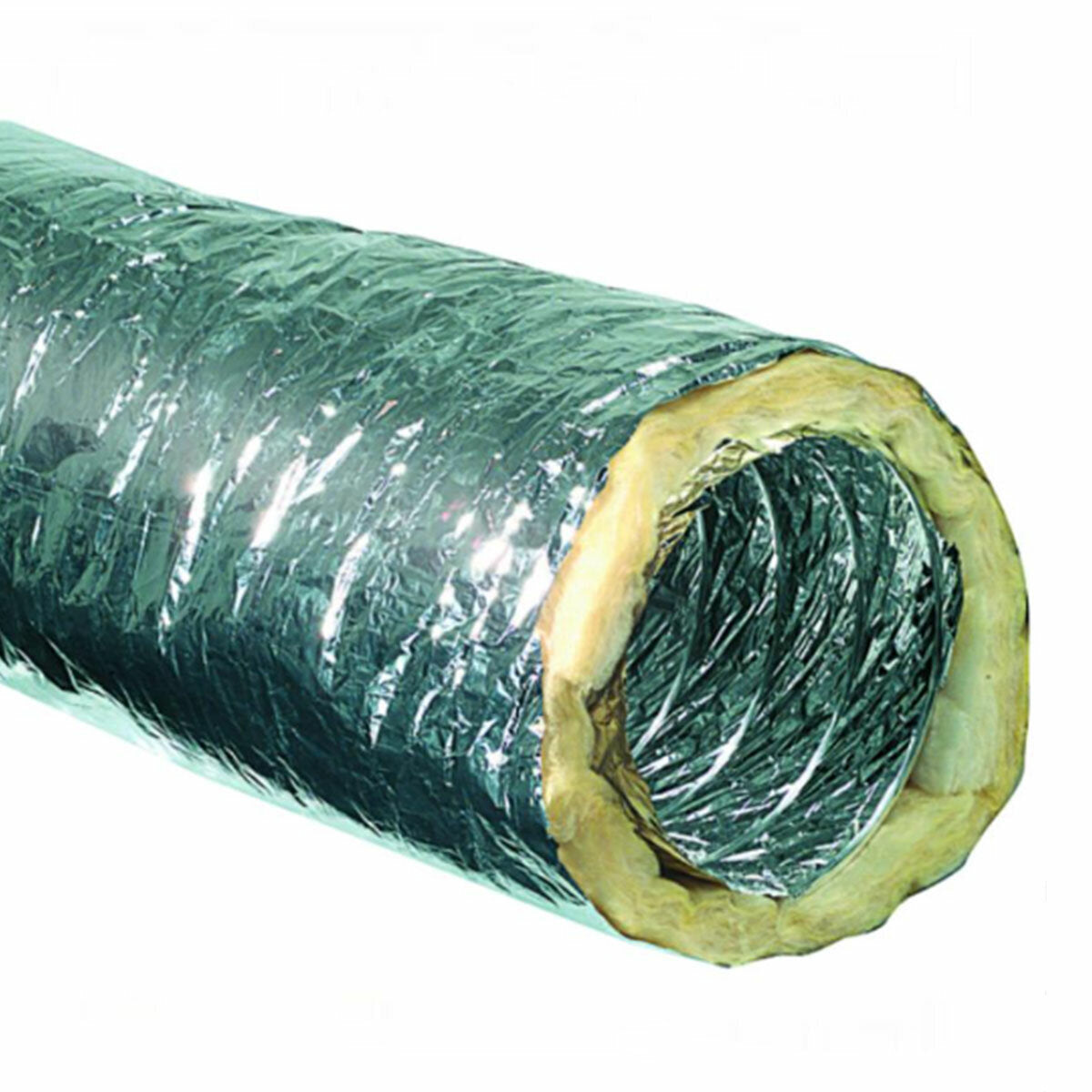

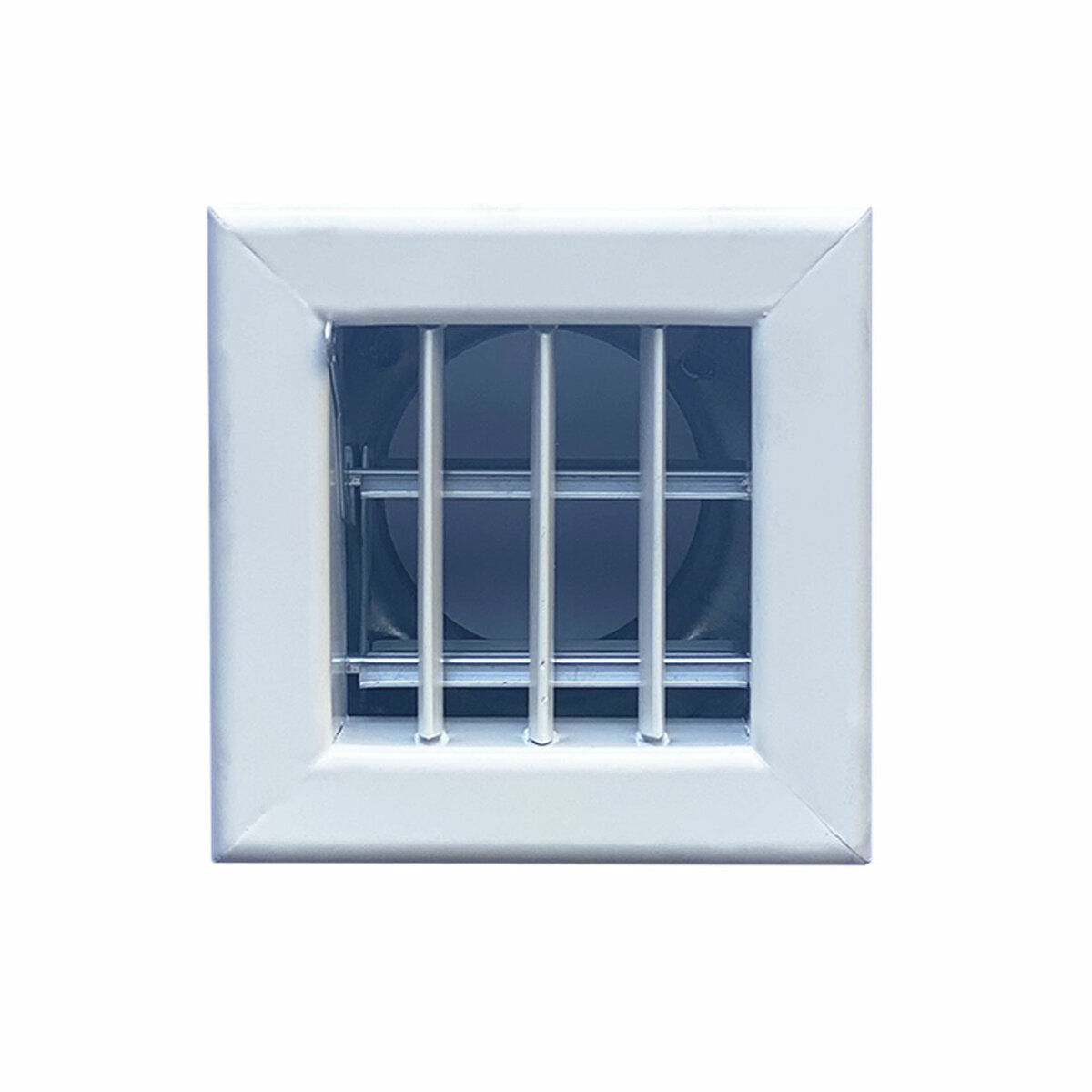

Pellet loading is done by extracting the switched-off insert from its seat, while to load the pellets with the insert switched on without having to remove it, it is necessary to install one of the front drawer loading kits or, alternatively, the trapdoor loading kit with chute (all optional and to be purchased separately). Also to be purchased separately on Climamarket is   the air ducting kit consisting of: 3 m extension, insulated pipe Ø 6.5 cm and C5 nozzle, Ø 6 cm connection.

Installation must be carried out by authorised and qualified technical personnel.

The EK63 Pellek 100+ EVO2 pellet insert has obtained CE, EN 14785, ECODSIGN 2022.

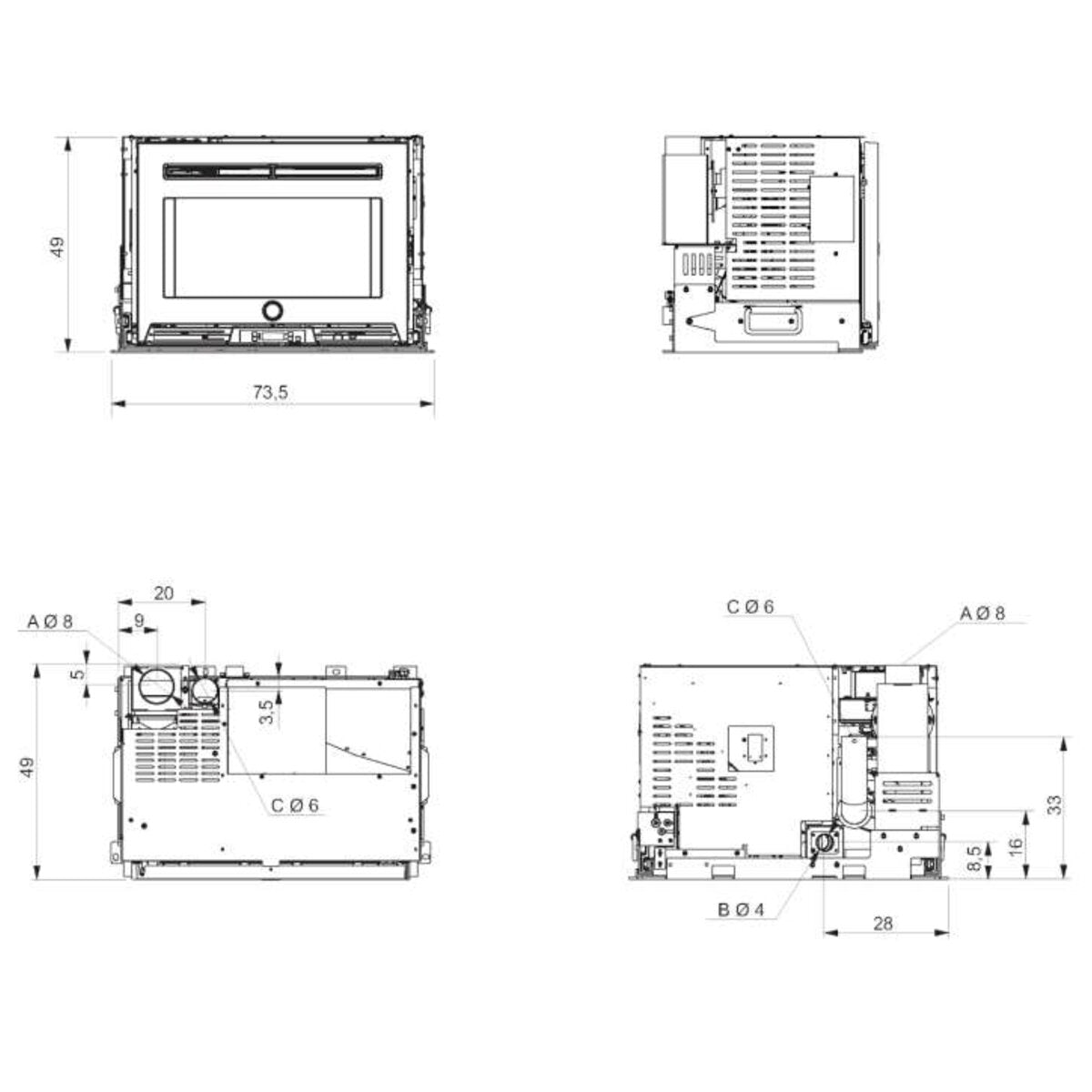

TECHNICAL CHARACTERISTICS

- Smoke outlet Ø 8 cm top M

- Useful power: 4 – 10 kW

- Yield: 90.9%

- Fuel consumption: 0.9 – 2.3 kg/h

- Tank capacity: 11 kg

- Battery life: 5 – 12 hours

- Ø smoke outlet: 8 cm

- Air intake Ø: 4 cm

- Ø ducted hot air outlet: 6 cm

- Heatable volume: 260 m³.

WARRANTY

The guarantee is the official EK63 Edilkamin one and lasts 2 years.
