Air-water heat pump Ferroli Omnia ST 3.2 12 kW Split 240 Lt R32 Inverter A++

Air-water heat pump Ferroli Omnia ST 3.2 12 kW Split 240 Lt R32 Inverter A++

Ideal for 120m2 units with an average height of 2.7m

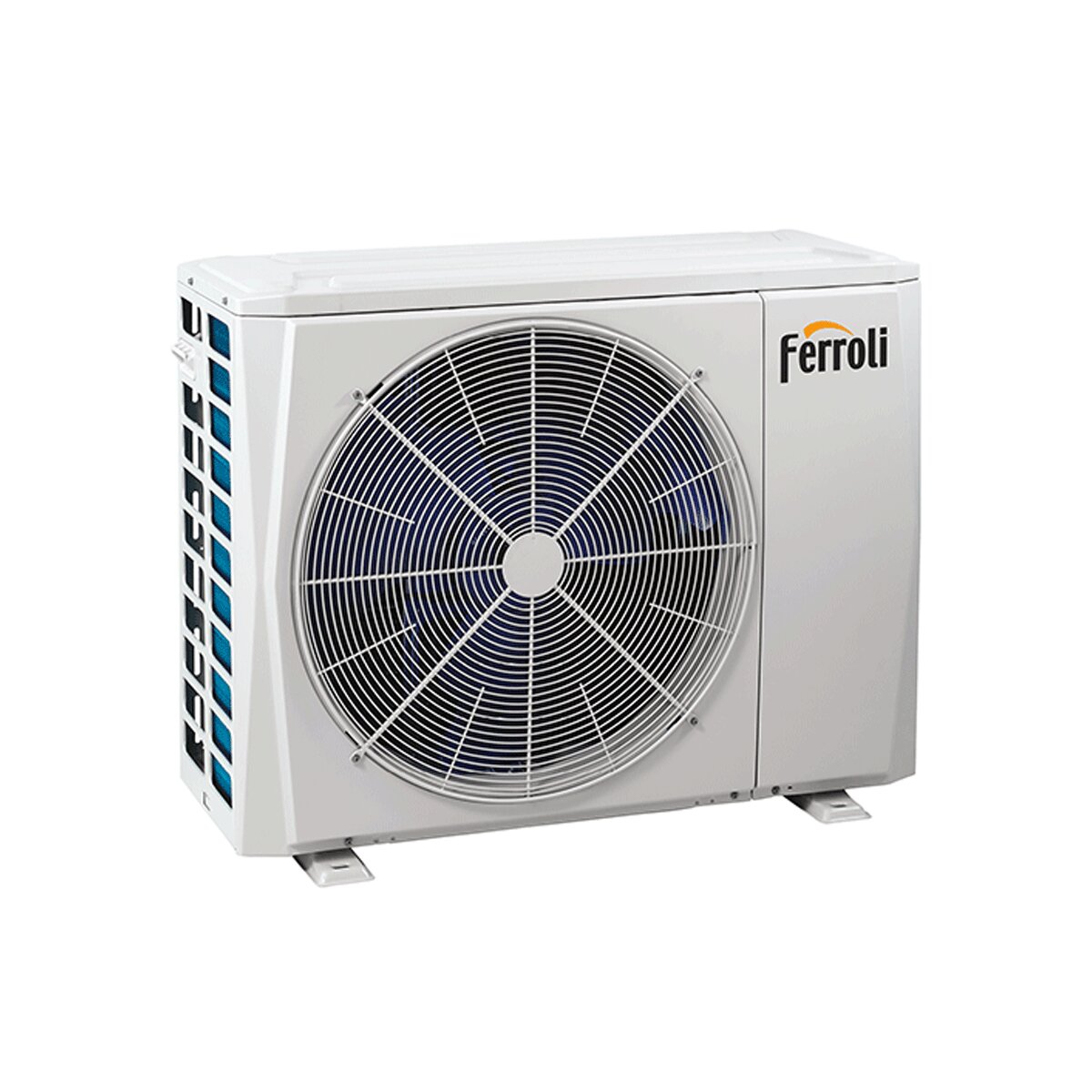

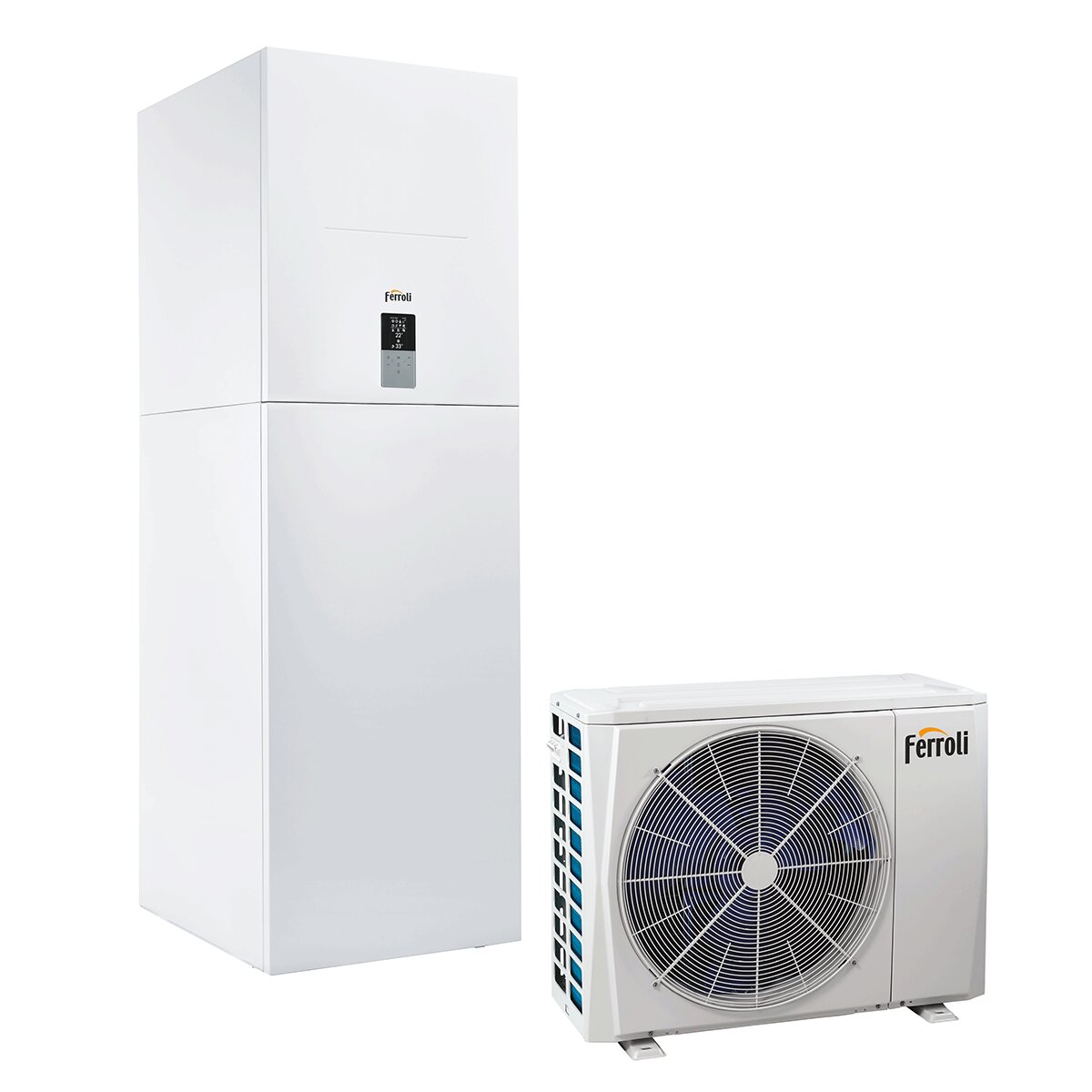

The Ferroli Omnia ST 3.2 heat pump is a real gem in the panorama of Full Inverter split heat pumps . It consists of an external unit at the heart of the refrigeration circuit (compressor, fan with air-side exchanger) which connects to the internal unit via refrigerant gas pipes, while the latter represents the heart of the hydraulic circuit with all the main components pre-installed (high-efficiency circulator, expansion vessel).

This 12 kW version is equipped with a 240L domestic hot water tank, which can be integrated with an electric heater (optional) or with a solar thermal system (supplied separately) . Split heat pumps have the undeniable advantage of avoiding the problem of freezing, in particular Omnia ST 3.2 thanks to its wide operating range allows the system to work down to -25°C external and produce hot water up to 65°C in nominal conditions, which makes it suitable for practically all heating systems, whether radiant, fan coil or radiator.

TECHNOLOGY, EFFICIENCY, COMFORT AND SAVINGS GUARANTEED

The Ferroli Omnia ST 3.2 heat pump features Full Inverter technology : this means that the compressor, fan and pump use DC Inverter modulations that allow the power supplied to be modulated, optimising thermal load, efficiency and energy savings; this also leads to reducing starting currents, avoiding surges and ensuring the longevity of the individual components. Furthermore, it guarantees energy performance up to class A+++/A++ (35°C/55°C) .

A series of features make this pump extremely versatile, practical and technological: HEATING AND COOLING with the single generator heat pump; production of domestic hot water (DHW); additional energy sources (boiler or electric resistance): the heat pump can activate these additional sources in Integration or Substitution, based on customizable parameters, in addition to these settings, the call can be made in an emergency, where the heat pump is in an anomaly; ANTI-LEGIONELLA FUNCTION: allows you to set weekly anti-legionella cycles; ECO : setpoint can also be set for time slots; ANTI-FREEZE PROTECTION with the heat pump operating in heating mode with the circulator ON and the possible electric booster; weekly or daily time programming (the latter with optional Connect CRP); ON/OFF and HOT/COLD from external contact (e.g. from the zone thermostat); SMART GRID INPUT FROM PHOTOVOLTAIC AND GRID: the unit is equipped with 2 digital inputs for managing an input from a photovoltaic system and from the electricity grid, these are the famous Smart Grid contacts, for optimising consumption and costs.

Extremely silent , it is equipped with a silent mode which reduces the compressor power and the fan speed to significantly reduce noise. 2 different levels are available, programmable on daily time slots (e.g. night).

Manageable via a multilingual user interface on board the machine , with a 2.8 graphic display, equipped with Capsense technology that allows the user an easy and intuitive approach. This interface communicates with the new intelligent Connect CRP systems (optional) , which can manage up to 8 thermostats (7 Connect Evo Zone + 1 Connect CRP which has all the functions of a chronothermostat in turn) divided into 2 zones, one direct and one mixed. It can also be managed via WiFi , by conveniently downloading the appropriate app, available for iOS and Android with the use of the Connect CRP (optional).

Installation must be performed by expert and authorized technical personnel . Further information regarding installation methods, functionality and technical specifications are contained in the user manual supplied with the product.

DIMENSIONS

Internal unit

Width 596 mm_Height 2110_Depth 700

Storage capacity: 240 litres

External unit

Width 1118 mm_Height 865 mm_Depth 523 mm

Gross weight: 114 kg

WARRANTY

The warranty is the official Ferroli one and lasts 2 years.
