Ariston Nuos Plus R290 S2 WiFi A+ 150 Liter heat pump water heater
Nuos Plus R290 by Ariston is an air-water heat pump water heater which is used to produce hot water for domestic use , therefore at a temperature lower than the boiling point, in domestic and similar environments. It must be appropriately connected to the sanitary water network and to the electricity supply and can use ventilation ducts for the inlet and outlet of the treated air. Heat pump technology allows you to significantly reduce electricity consumption to the bare minimum ; its efficiency is measured by the COP performance coefficient expressed by the ratio between the energy self-produced by the water heater and the electrical energy consumed, which means that a COP value equal to 3 indicates that for 1 kWh of electrical energy consumed, the heat pump will provide 3 kWh of heat to the vehicle to be heated, of which 2 kWh have been extracted from the free source.
This water heater is among the best of its kind with excellent performance up to energy class A+ and with high COP levels to guarantee maximum efficiency .
THE ADVANCED, COMFORTABLE AND ATTENTIVE TO YOUR NEEDS WATER HEATER

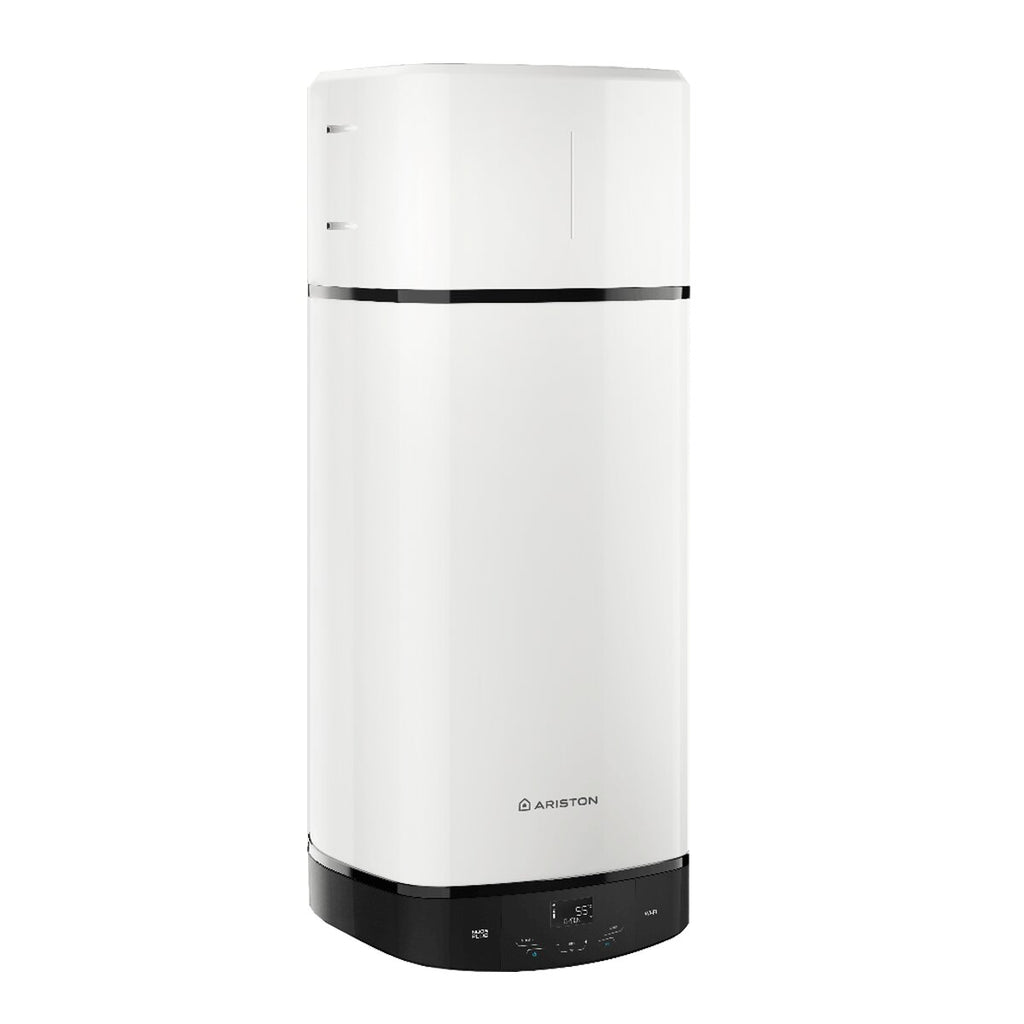

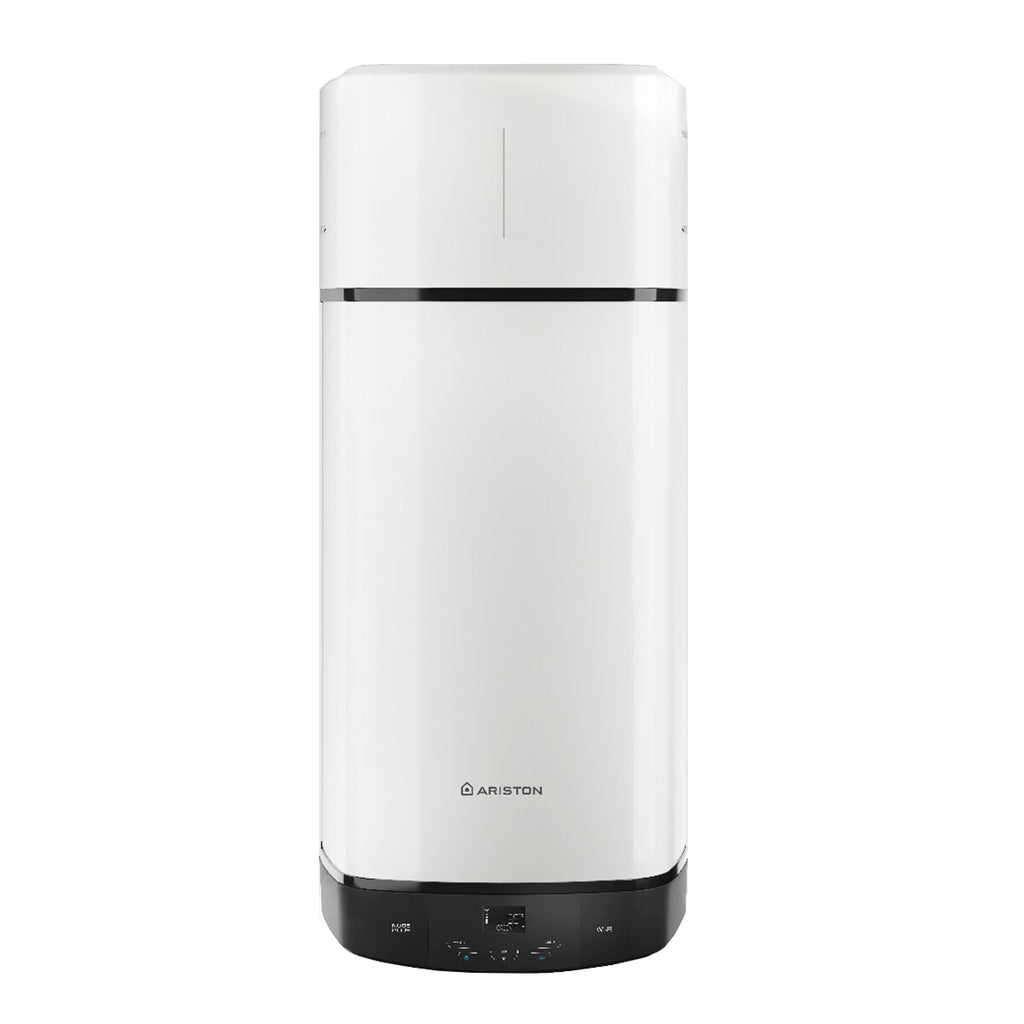

Elegant and sober design that is easy to fit into any environment, it consists of an upper block containing the heat pump unit and storage tank in the lower part. Front touch control panel equipped with LCD display through which you can manage the settings simply and intuitively. Its efficiency can also be seen in the heating times which are among the lowest in its category and it works very well even in harsh climatic situations considering that the heat pump has a GREEN working range that ranges between -10 and 42 ° C. The Ariston Nuos Plus R290 water heater also uses the latest generation ecological refrigerant, R290 (propane) gas , which has very low GWP levels, with a view to eco-sustainability and environmental protection.
NUOS PLUS R290 presents a series of technical features and incredible functions: I-Memroy function which memorizes the user's habits over the last 4 weeks in order to activate the water heater only according to the real needs of the user and his routine, producing hot water only when required; GREEN mode in which the water heater uses only the heat pump ensuring maximum efficiency and the electric resistance is activated only for safety functions; COMFORT mode in which the heat pump works more reactively and in possible automatic integration with the electric resistance; FAST mode: in this mode (permanent BOOST) the water heater uses the heat pump and resistance integration simultaneously to reach the desired temperature in the shortest possible time, giving priority to the heating time; PHOTOVOLTAIC function for possible integration with domestic photovoltaic systems; compatibility with BridgeNET BUS system; SILENT mode which allows you to reduce sound power levels to the benefit of rest and serenity in the environment; HOLIDAY mode to be activated during a period of absence and many other special functions conceived with a view to absolute comfort and which can be found in the instruction booklet in which they are explained and indicated in detail.
Further functions and specifications guarantee the safety and reliability of the product: think of the double anode , active anode (protech) + magnesium anode to give double resistance to corrosion; the ANTI-LEGIONELLA function which automatically activates the thermal disinfection cycle; ANTIFREEZE and DEFROST functions which protect the appliance in the event of drops in temperature and ERROR DIAGNOSTICS which signals any anomalies or irregularities.
The Ariston Nuos Plus R290 water heater can be managed manually via an advanced interface or via WiFi using the Ariston Net App downloadable from Google Play or App Store.
Ariston Nuos Plus R290 is a monobloc wall-mounted water heater whose installation requires highly qualified and expert technical personnel. The appliance must be stored in a room without continuously operating sources of ignition (open flames, an operating gas appliance, or an operating electric heater). In the case of installation without ducting, check that the installation room has a volume of no less than 20 m³, with adequate air exchange. In any case, information on the correct installation methods is contained in the user manual duly supplied with the product.
ACCESSORIES SUPPLIED AS STANDARD
- Nr.2 1/2'' dielectric joints;
- Device against overpressure (8 bar);
NB: this accessory DOES NOT CORRESPOND to the NF EN 1487 standard. For the purposes of the mandatory installation of a safety group according to CIRCULAR 26 March 2003, n.9571, this accessory is available on Climamarket cod. 526152 .
- Condensate water drain pipe connector and safety valve drain water;
- Nr.1 wall support bracket;
- 2 screws, 2 plugs, 2 rubbers for the wall bracket (additional plugs for the 110 and 150 l versions);
- Nr.2 air ducting tube adapters (110/125 mm).
DIMENSIONS
- Width 506 mm_Height 1659 mm_Depth 520 mm
- Weight 115 kg
- Storage capacity: 150 litres
WARRANTY
The warranty is the official Ariston one and lasts 2 years.
