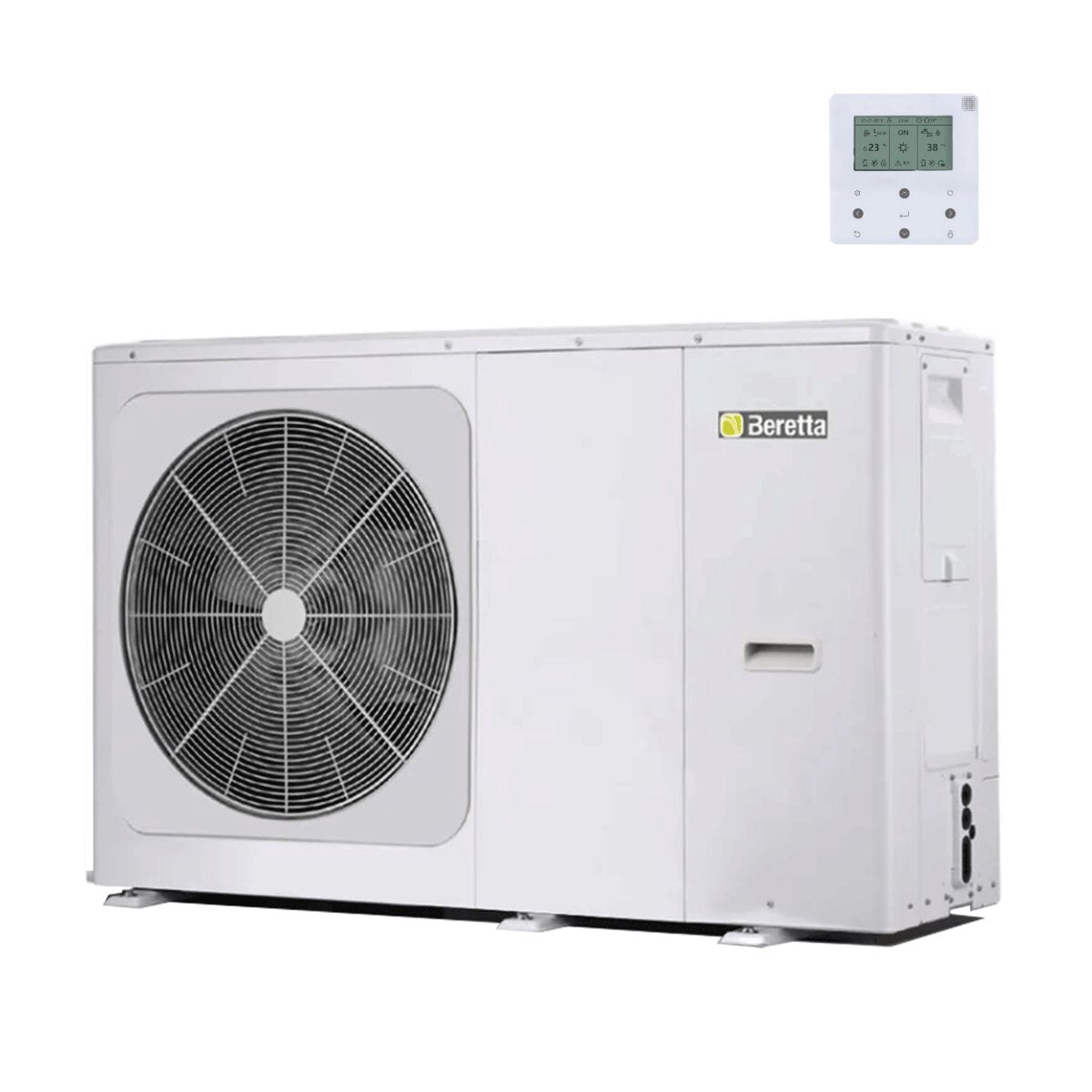

Beretta Hydro Unit M air-water heat pump 12 kW Monobloc Single-phase Inverter R32 A++
Ideal for units of approximately 120 m2 with an average height of 2.7 m
The Hydro Unit M heat pump is the new Beretta gem that perfectly satisfies any need for winter and summer air conditioning and also for the production of domestic hot water. Designed to help users in the ordinary management of the product in a simple and intuitive way, making it easy to constantly monitor the settings and their energy expenditure.
This 12 kW heat pump is monobloc , single-phase , equipped with Inverter technology and environmentally friendly by virtue of the use of R32 gas with low environmental impact; capable of excellent performance, it reaches energy class A++ for the production of water at 55ºC and A+++ for water produced at 35°C, taking air from the outside and using it as the sole source of energy for the production of heat, avoids the use of any type of fuel, requiring only a minimum energy contribution.
This outdoor monobloc unit features DC-Inverter control and MITSUBISHI Twin Rotary compressor for all sizes to guarantee greater dynamic balance and reduce vibrations, with continuous modulation from approximately 40% to 120%.
TECHNOLOGY, EFFICIENCY AND SAVINGS GUARANTEED

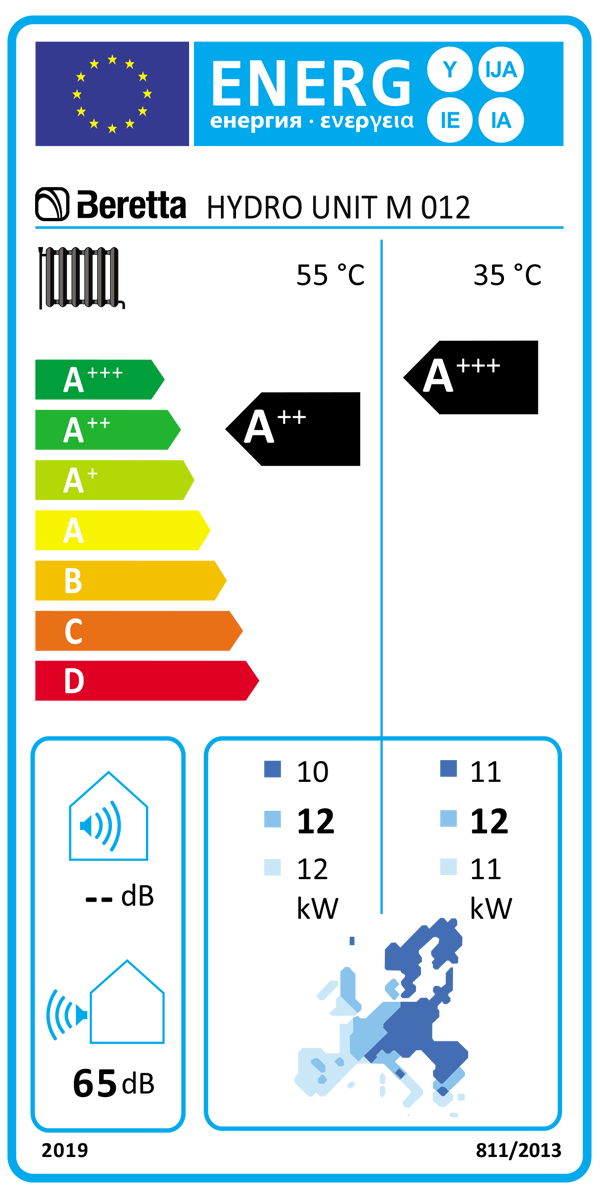

The Beretta Hydro Unit M heat pump is ideal for creating all types of systems. In fact, in heating mode it can supply water at 60°C up to -15°C externally, in cooling mode water at 7°C up to 43°C externally and can produce domestic hot water using fixed coil boilers or instantaneous preparers (to be purchased separately ) as it can deliver delivery water at 55°C up to 43°C externally . Performance reigns supreme when it comes to a product with these standards: up to A+++ for low temperatures and A++ for medium temperatures in the temperate zone according to EN 14825_2016. All performances have been certified HP Keymark, MCS .
Built in compliance with the European Ecodesign regulations which set the requirements required by the ERP (Energy related Products) regulation to improve energy efficiency, this pump is equipped with a high efficiency DC Inverter Mitsubishi Twin Rotary compressor . Compressor and brushless DC motor guarantee high levels of silence, further enhanced by the presence of a double compressor protection screen for sound insulation . Inverter technology combines two electronic control logics: go modulation (PAM) and pulse width modulation (PWM) , so as to guarantee optimized operation of the compressor in all operating conditions, minimize temperature fluctuations, and provide perfect regulation of comfort and, all while significantly reducing energy consumption.
The external coil presents an innovative component solution which brings numerous and significant improvements, such as the lengthening of the frost formation times , a more efficient defrosting phase thanks to the improvement of the water flow on the fins which consequently also improves the operation in heating mode and the standard blue coating treatment which provides greater resistance and durability of the battery to corrosive agents.
All Beretta Hydro Unit M components comply with high quality standards: single variable speed Brushless DC fan motor , electronic expansion valve which allows working even with very low condensing pressures avoiding the risk of overheating, selenoid valve which allows work the compressor at always optimal temperature levels, source side exchanger with the special Blue-Fin hydrophilic and anti-corrosion treatment as standard and integrated hydronic group. The hydronic module is always present and is supplied with a variable speed circulation pump, flow switch, 3 bar safety valve, expansion vessel and inlet and outlet water temperature probes; in domestic applications it is possible to connect the inertial storage directly under the unit in such a way as to reduce the space occupied inside the inhabited environments to a minimum.
There are many functions that can be set on the Beretta Hydro Unit M heat pump, so innovative and practical that they make this product among the most functional and multitasking. Weekly programming in environmental comfort mode both in hot and cold; weekly programming in domestic hot water mode and anti-legionella function with the thermal disinfection method; possibility of multiple system layouts: through optional accessories, for example it is possible to manage a solar system with up to two zones, one of which is mixed, sanitary recirculation; management of up to 6 units in cascade also of different powers , of which one master and 5 slaves, in this case the master unit can be dedicated to the production of domestic hot water; possibility of connecting the unit to BMS systems with Modbus protocol ; USB port available for updating the technical data sheet software and availability of a clean input dedicated to smart grid functions.
Extremely quiet , with reduced noise levels thanks to the silent mode that can be activated by users, for the benefit of their own comfort and that of their neighbors.
Operation is guaranteed with at least 40 liters of water in the system and is supplied as standard with an advanced wired control , multilingual and with display, from which it is possible, among other things, to manage the units in cascade and programmed functions such as Antifreeze, Holidays etc...
External installation must be carried out by authorized and qualified technical personnel . Further specifications regarding installation methods and/or other technical characteristics are contained in the user manual supplied with the product.
ACCESSORIES SUPPLIED AS STANDARD
- Wired control
WARRANTY
The warranty is the official Beretta Italia one and lasts 2 years. FIRST STARTING COMPULSORY and FREE by contacting the Beretta Technical Assistance Center.
