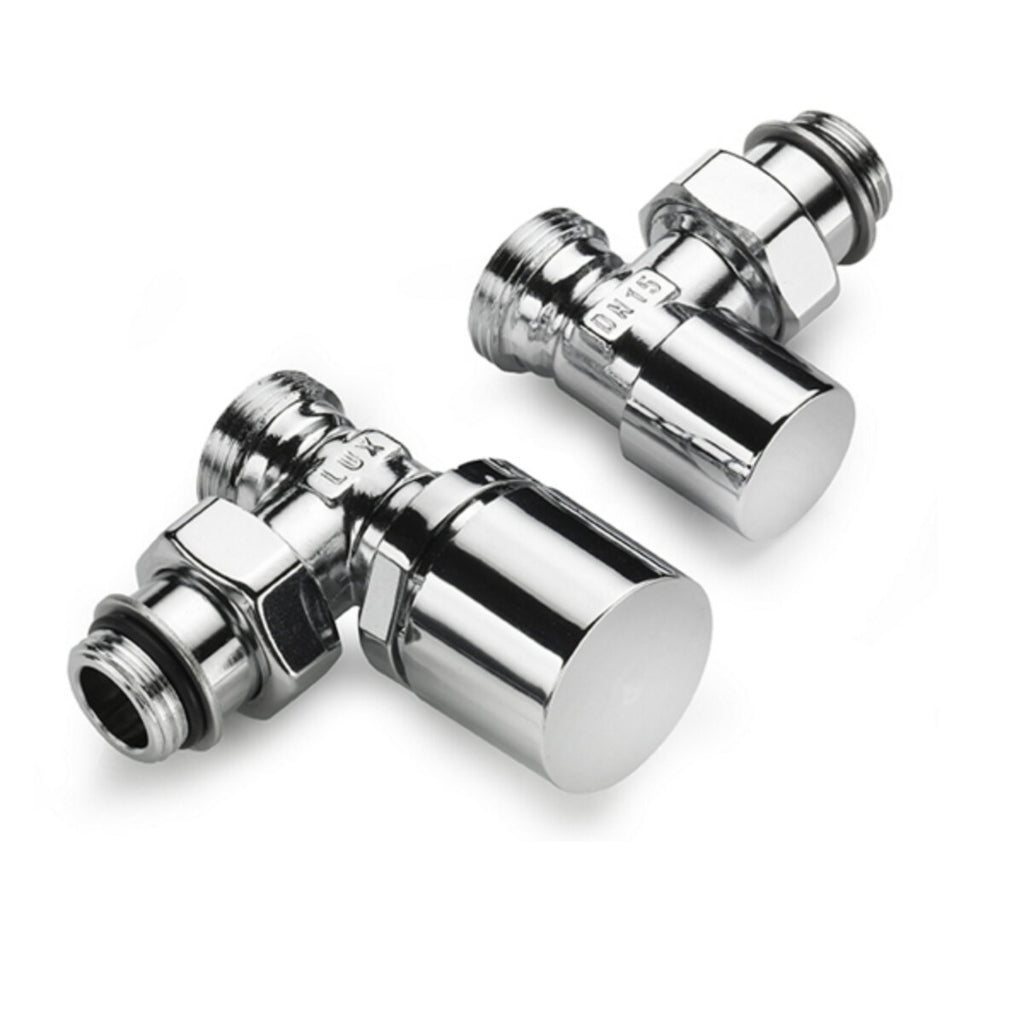

THERMOSTATIC CHROME ERCOS ANGLE VALVE WITH EUROCONE CONNECTION 1/2" X 3/4" CONNECTIONS FOR RADIATORS
The ERCOS chrome-plated thermostatic valve has a modern and elegant design; its lines make it adaptable to any type of radiator, the shiny chrome color gives it a unique elegance.

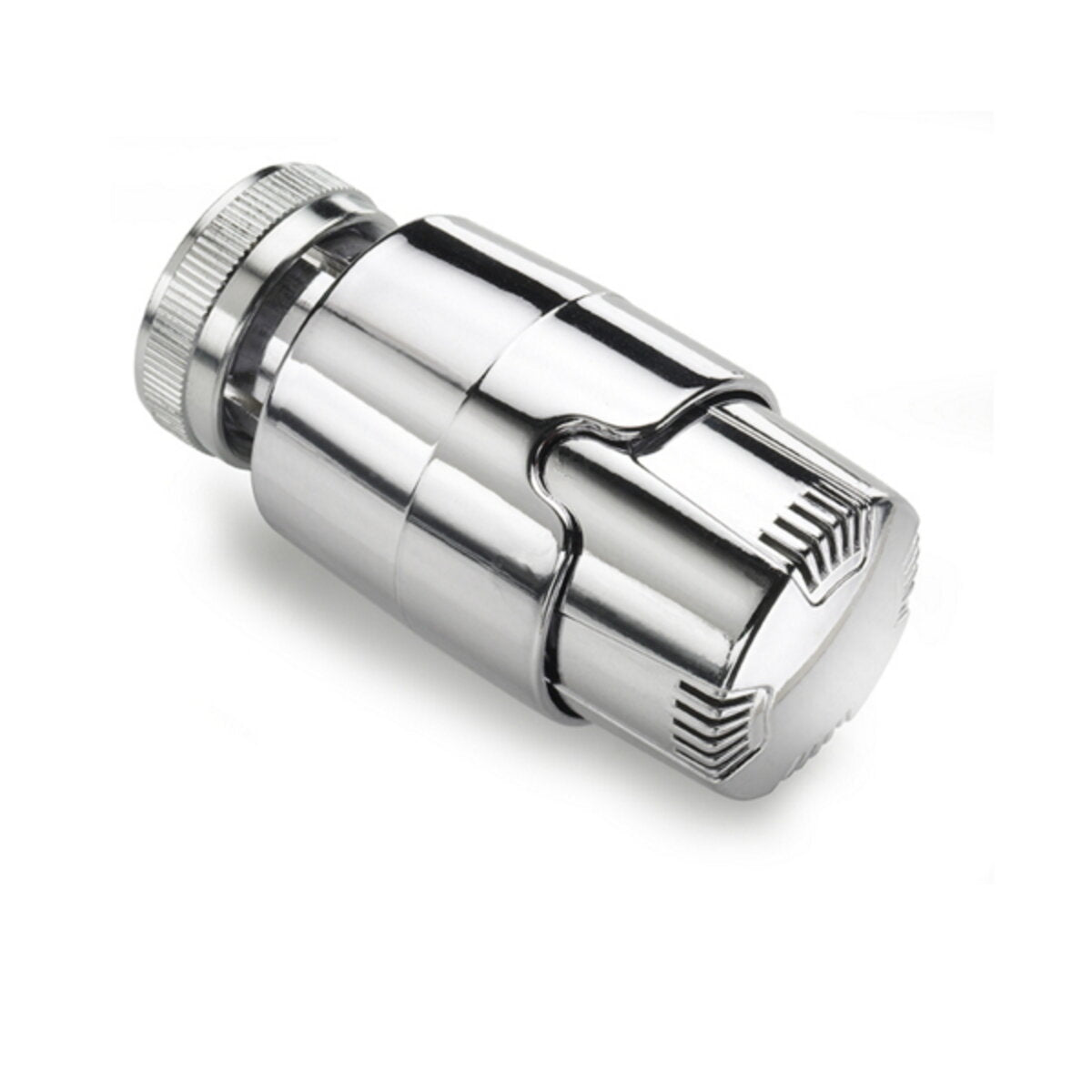

It can be integrated easily and at any time with the ERCOS Thermostatic Control for precise temperature regulation and concrete energy savings.
ERCOS Commands are certified according to European standards, CERTIFICATION DIN EN 215:2007-11
GUARANTEED SAVINGS AND HIGH COMFORT
The ERCOS chrome-plated angle valve with thermostatic option is designed and manufactured with particular care.
The square shape allows it to be installed in all cases where the pipes are positioned on the same fixing wall as the radiator, the dimensions of the valve body allow it to be installed on all radiator models.
The valve body is in chrome-plated brass, the obturator control stem is in stainless steel for particular efficiency and durability, the hydraulic seals already incorporated are in EPDM, the coupling union to the radiator connection thread it is complete with a rubber ring which allows it to be fixed without using additional gaskets or hydraulic hemp, the control knob and the cap are in chromed ABS.
It can be used with ambient temperatures with a maximum limit of 50°C, carrier fluid temperature range from 5 to 100°C and max operating pressure: 10 bar.
Installation is also quick because it does not require additional elements such as gaskets or hydraulic hemp; the dimensions are very small.
The installation must be completed with the appropriate fitting for multilayer pipes or for copper pipes.
DIMENSIONS
Length: 60.9 mm – Radiator valve connection diameter: 1/2” – System valve connection diameter: 3/4”
WARRANTY
The guarantee is the official ERCOS one and has a duration of 2 years .
ERCOS SQUARE CHROME LOCK HOLDER WITH 1/2" X 3/4" CONNECTIONS FOR RADIATORS
The ERCOS square chromed lockshield is mounted on the lower part of the radiators and is the device that regulates the outlet flow of the water flowing through the system.
The ERCOS Square Lockshield has a really pleasant design, which makes it perfectly adaptable to any type of radiator and environment; it exactly reflects the ERCOS canons carefully chosen on the basis of continuous updates in terms of technology , design , prices and installation methods ; the shiny chrome color gives it great elegance.
GUARANTEED SAVINGS AND HIGH COMFORT
The ERCOS Square Lockshield is exactly comparable to a tap, through which it is possible to regulate the flow of water which must leave the circuit to return to the boiler. For installation it does not require further connections or fittings as it is already prepared for fixing ; the heating system connection is in threaded chromed brass while the components inside are in stainless steel, guaranteeing impeccable efficiency and durability over time. For installation, it must be completed with the special fitting for multilayer pipes or for copper pipes.
DIMENSIONS
Length: 47 mm - Radiator valve connection diameter: 1/2” – System valve connection diameter: 3/4”
WARRANTY
The guarantee is the official ERCOS one and has a duration of 2 years .
