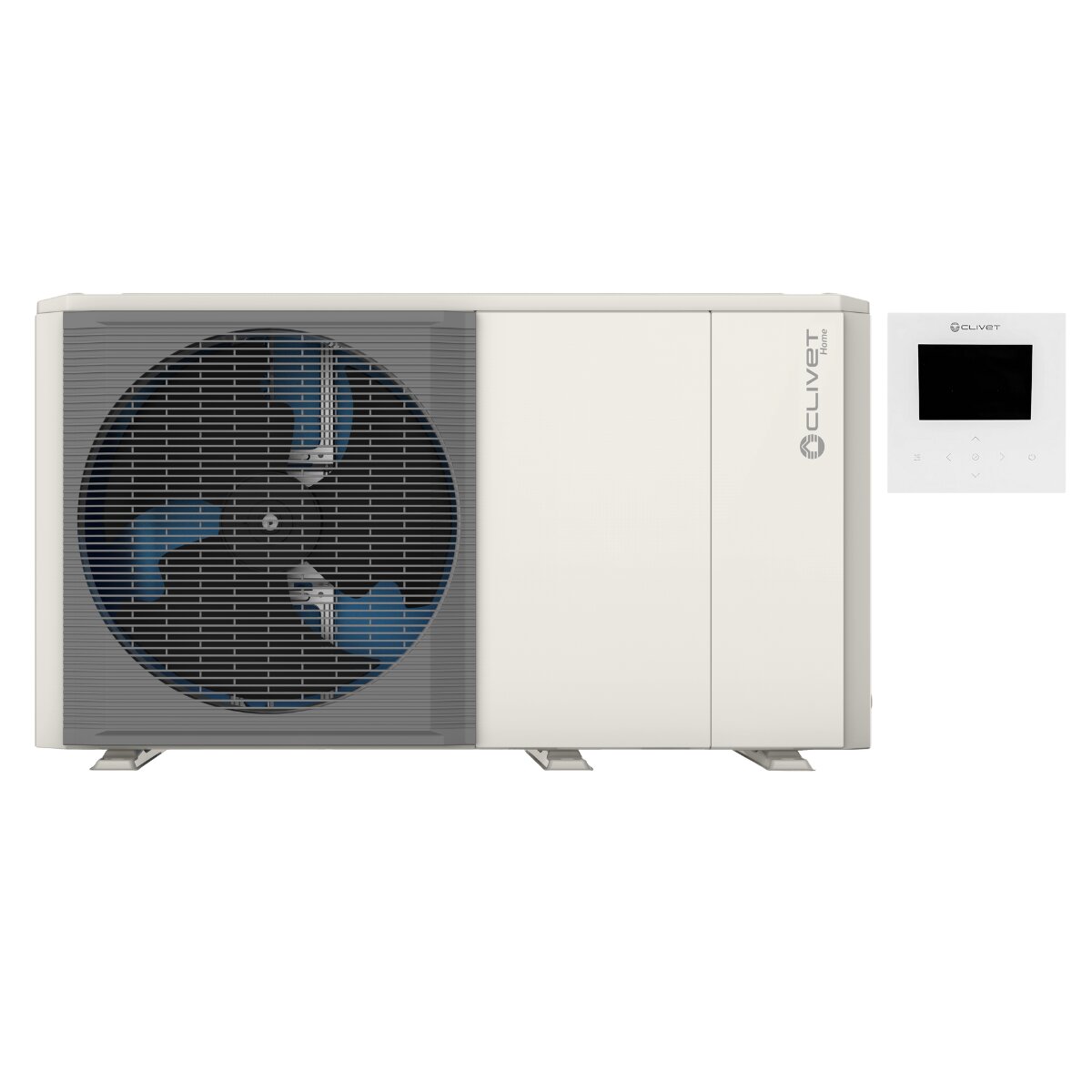

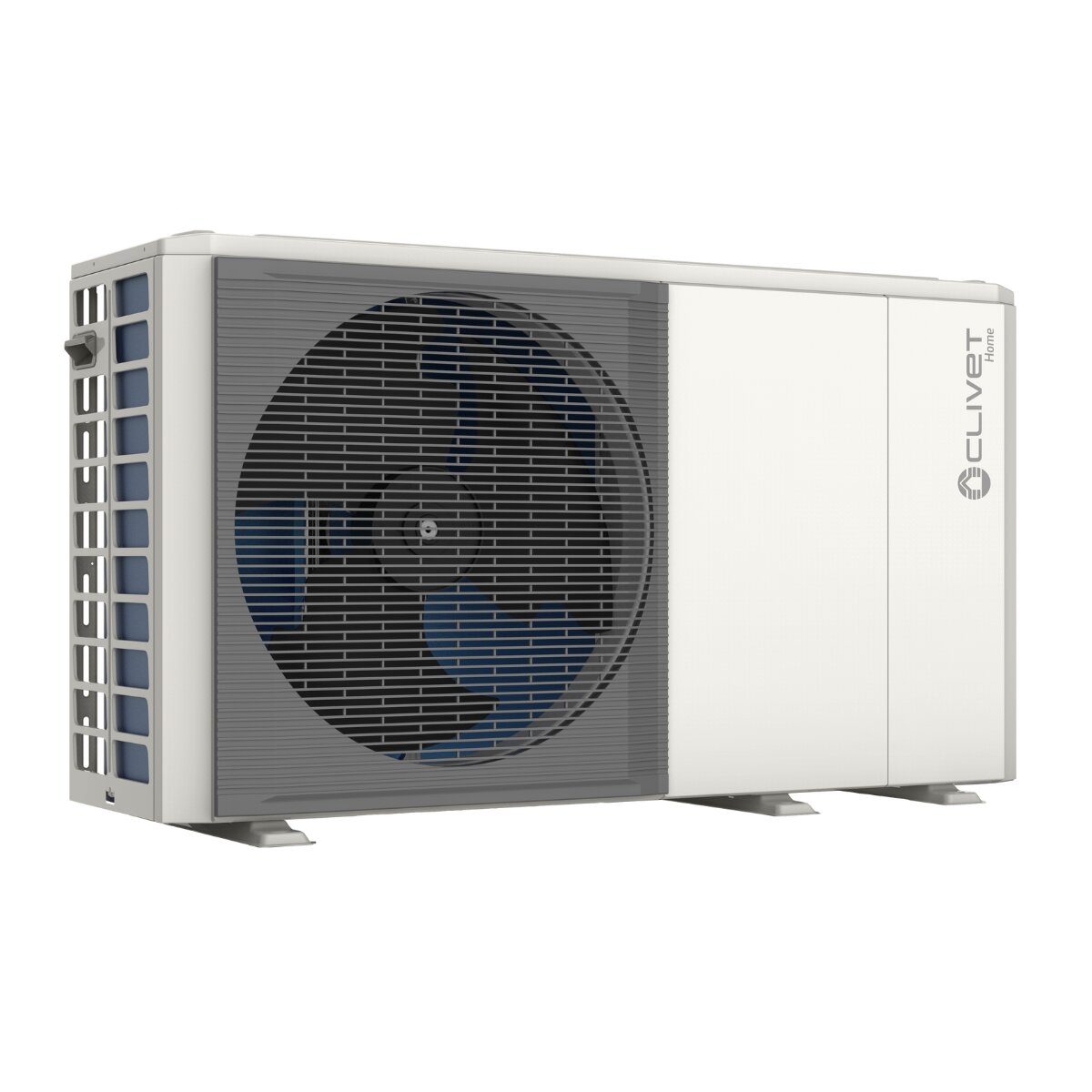

Clivet Edge EVO 2.0 EXC 10 kW R32 Inverter WiFi A+++ Air-to-Water Heat Pump - SINGLE-PHASE MONOBLOCK
Ideal for units of approximately 100 m2 with an average height of 2.7 m
The Clivet Edge EVO 2.0 - EXC WISAN-YME1S5.1 air-to-water heat pump is the latest model from the Veneto-based company, a leader in the air conditioning sector thanks to its thirty years of experience and an alliance with the Midea group that has enabled it to offer an even wider range of solutions for all residential, commercial and industrial air conditioning needs.
The new Edge EVO 2.0 - EXC series of air-to-water heat pumps is of the monoblock type; a single space-saving component for outdoor installation that performs all functions: heating, cooling and producing domestic hot water . This new Clivet heat pump model is even single-fan up to the 16 kW size, making it lighter, easier to install and with truly compact dimensions .
The Clivet dge EVO 2.0 - EXC heat pump has many strong points: designed to offer excellent performance in the coldest climates , it is able to produce hot water even in winters down to -25°C; it allows high temperature distribution, producing water up to 65°C; it is equipped with advanced connectivity that allows for remote management via App or Modbus as standard, it can be combined in cascade up to 6 units offering power up to 180 kW.
The model presented here is the one with a nominal power of 10 kW single-phase , ideal for units up to 100 m2.
GUARANTEED SAVINGS AND HIGH COMFORT
The energy efficiency of Clivet Edge EVO 2.0 - EXC heat pumps is extremely high, resulting in a significant reduction in consumption and energy classes up to A+++ when used with low-temperature systems.
In these machines, everything is geared towards absolute quality ; the choice of materials combined with careful construction guarantee the best efficiency and maximum durability over time. The Twin Rotary compressors use Full DC Inverter technology that modulates speed and power based on the actual needs of the environment and the moment; they also modulate the water flow based on the load and pressure drops of the system, ensuring maximum user comfort, faster start-ups and fewer On/Off cycles. The coil , with internally grooved copper tubes and aluminum fins, is hydrophilic , i.e. treated to facilitate water drainage, prevent freezing and increase the component's resistance to corrosion. The electronic thermostatic valve optimizes compressor operation by adapting quickly and precisely to actual thermal needs. The structure, base and paneling are made of galvanized steel sheet painted with a special epoxy powder treatment for high resistance to corrosion. Clivet has even optimized the profile of the fans to increase their efficiency and silence. The heat pump has an integrated hydronic module consisting of a DC circulator, expansion vessel, and flow switch. The integrated temperature sensor for thermostat functionality, which comes standard, allows you to set 16 climate curves for climate compensation.
Clivet Edge EVO 2.0 - EXC heat pumps guarantee maximum performance , both in cooling with an external temperature of up to +46°C and in heating with 80% performance at an external temperature of -7°C; they are also capable of producing domestic hot water with external temperatures as low as -25°C. They can also be integrated with an electric resistance for maximum efficiency even in the most extreme conditions.
The Clivet Edge EVO 2.0 - EXC air-to-water heat pump is equipped with R32 gas , the most ecological on the market with a Global Warming Potential (GPW) 70% lower than R-410A, which also ensures better performance and heat exchange .
Minimal vibrations result in absolutely silent operation and you can even set a Silent and Super Silent Mode .

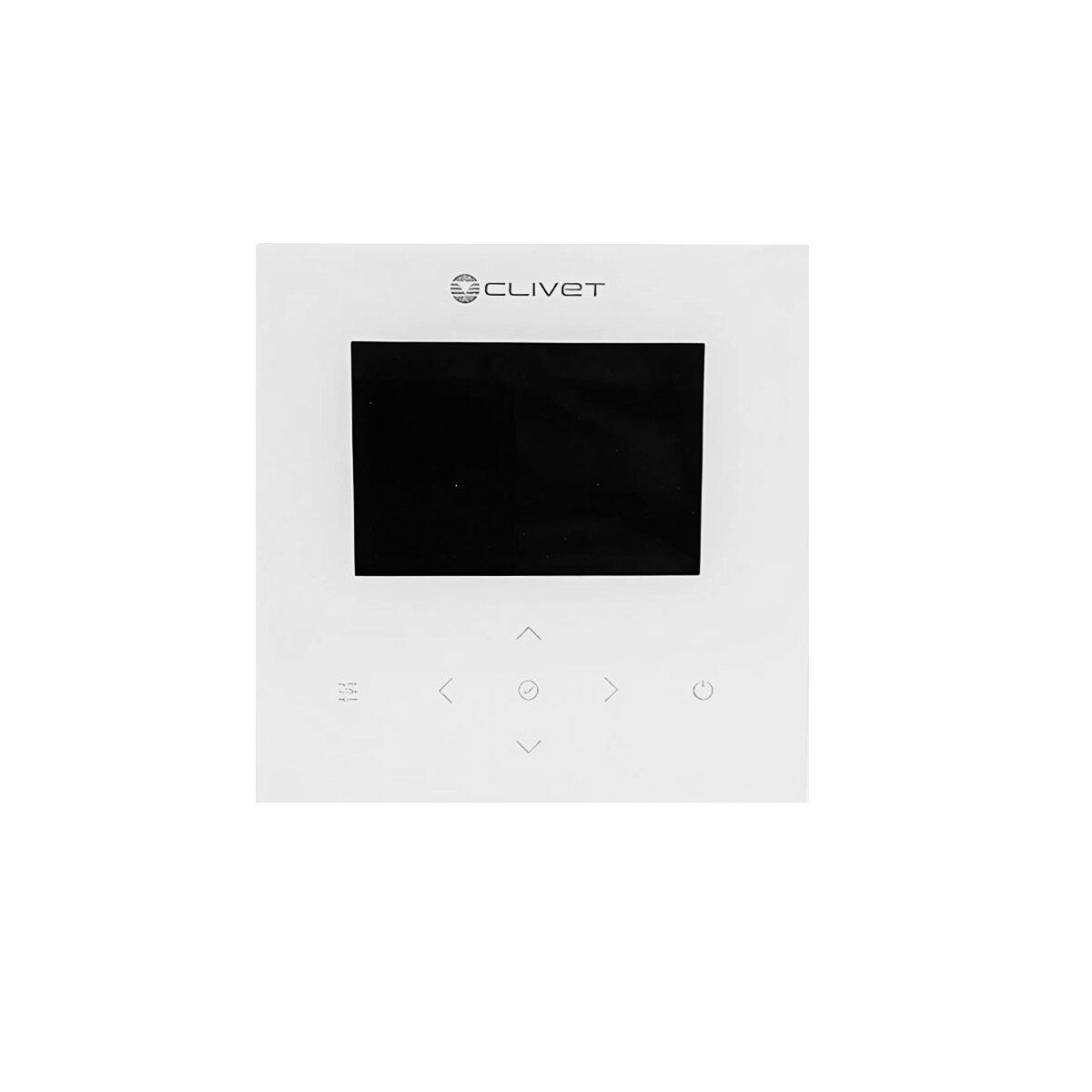

The new Clivet Edge EVO 2.0 heat pumps - EXC They are completed with a truly innovative user interface : a remote control panel with integrated thermostat and LCD display, function keys and multi-level menu through which it is possible to completely manage the system connected to the heat pump, connecting up to 16 units. Among the settable functions , the Cooling Operation Priority , the Space Heating Operation Priority and the DHW Operation Priority to prioritize the heating, cooling or domestic hot water mode depending on needs; also the AUTO , Holiday , Comfort , ECO and even Disinfect , anti-legionella modes. All aimed at providing the maximum possible comfort in every situation.
GREAT MODULARITY OF INSTALLATION AND USE
Clivet Edge EVO 2.0 - EXC heat pumps can be combined with floor-standing systems , fan coils and fan coils , can replace traditional boilers or, in the hybrid version, integrate seamlessly into existing radiator systems; they can also be integrated with the most modern solar systems for maximum efficiency and energy savings.
Thanks to their truly compact dimensions , the Clivet Edge EVO 2.0 - EXC heat pumps allow for easy installation and take up little space.
Even if the heat pump is equipped with a hydronic module, it is advisable to integrate it with a heat pump storage tank to create systems for the production of domestic hot water.
DIMENSIONS
Length: 1385 mm - Height: 864 mm - Depth: 523 mm
Weight: 105 kg.
ACCESSORIES SUPPLIED AS STANDARD
- User interface / Wired control.
WARRANTY
The warranty is the official Clivet one and lasts 24 months.
