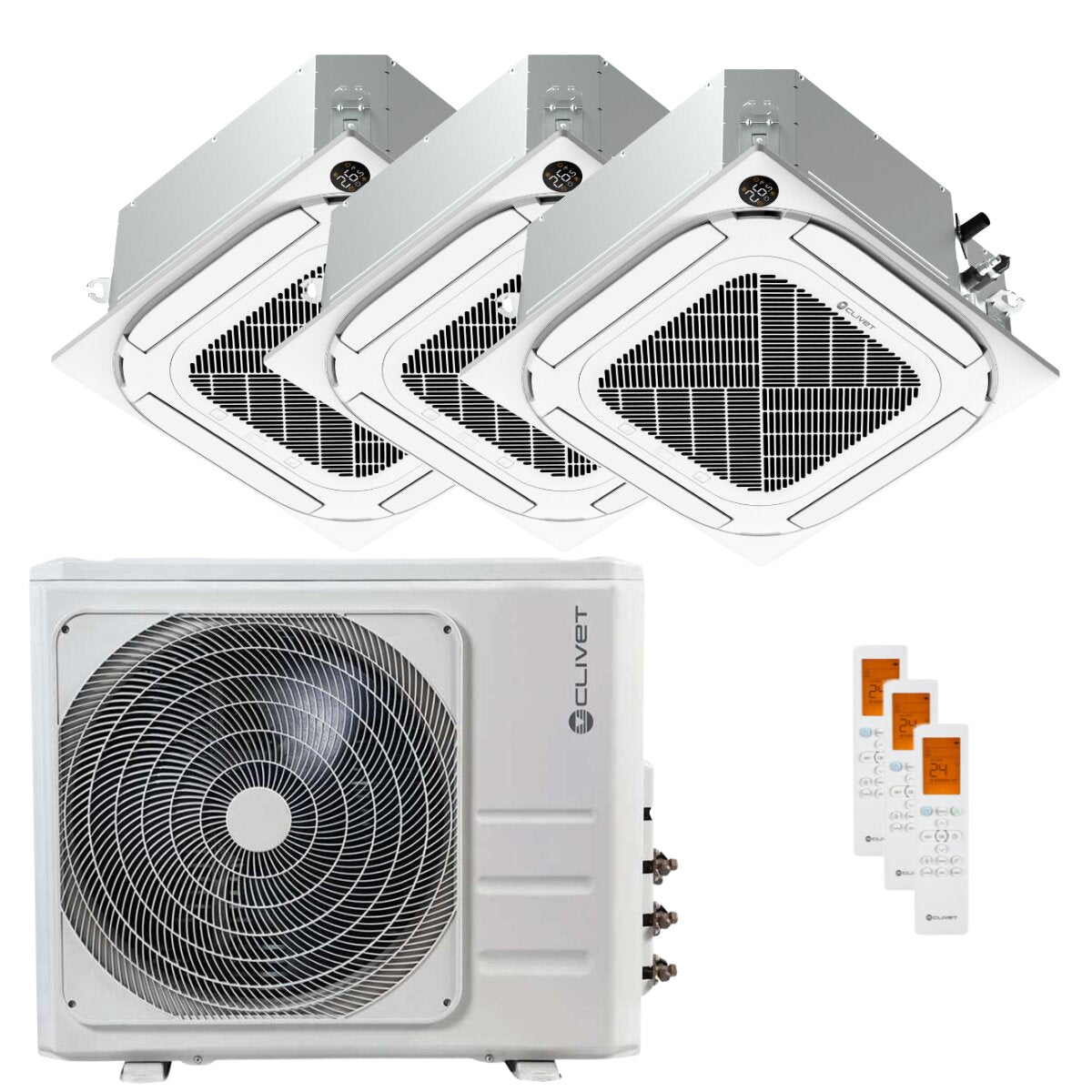

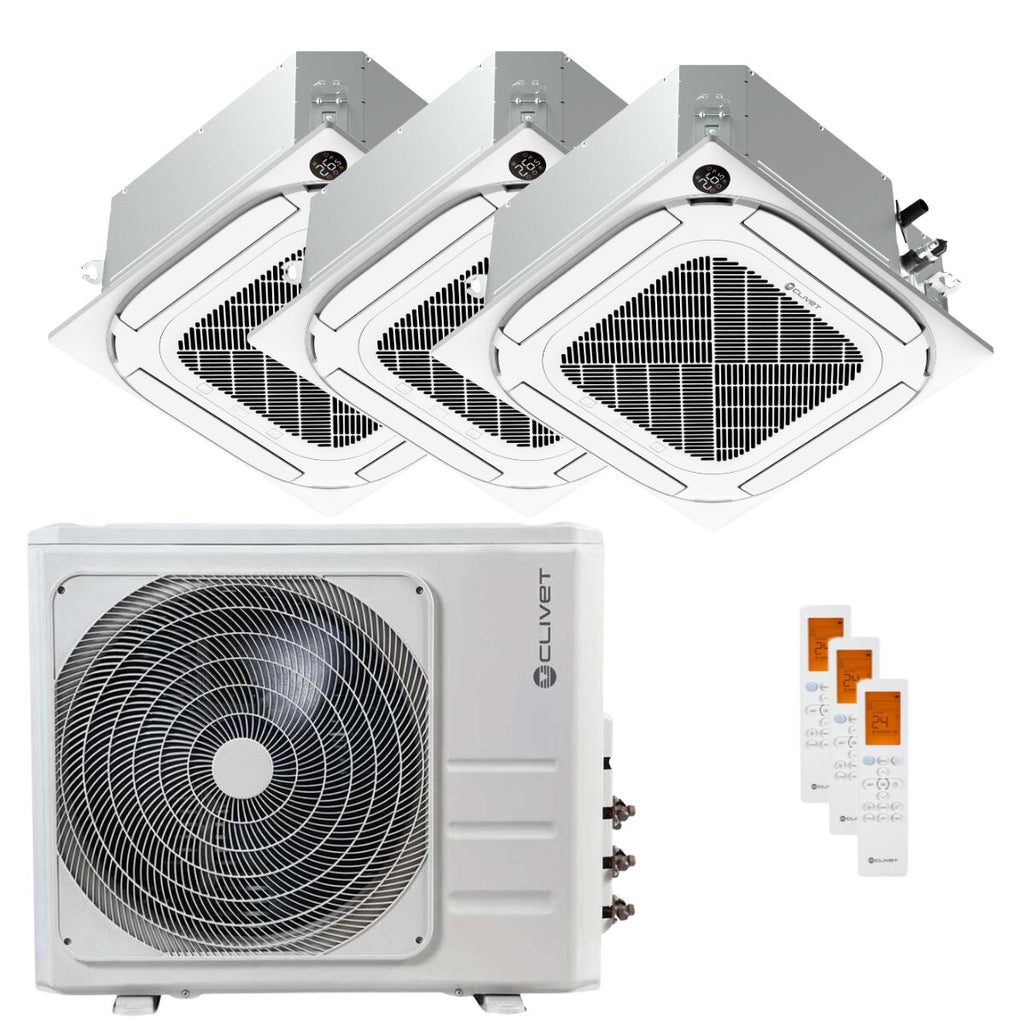

Clivet IBA1-Y 4-way compact cassette air conditioner, split 12,000+12,000+18,000 BTU inverter, A++ wifi, external unit, 10.5 kW The air conditioner kit is equipped with the following indoor units:
- 2 x 12000 BTU - Ideals for rooms from 25 to 40 sqm with an average height of 2.7 m
- 1 x 18000 BTU - Ideal for rooms from 50 to 60 sqm with an average height of 2.7 m

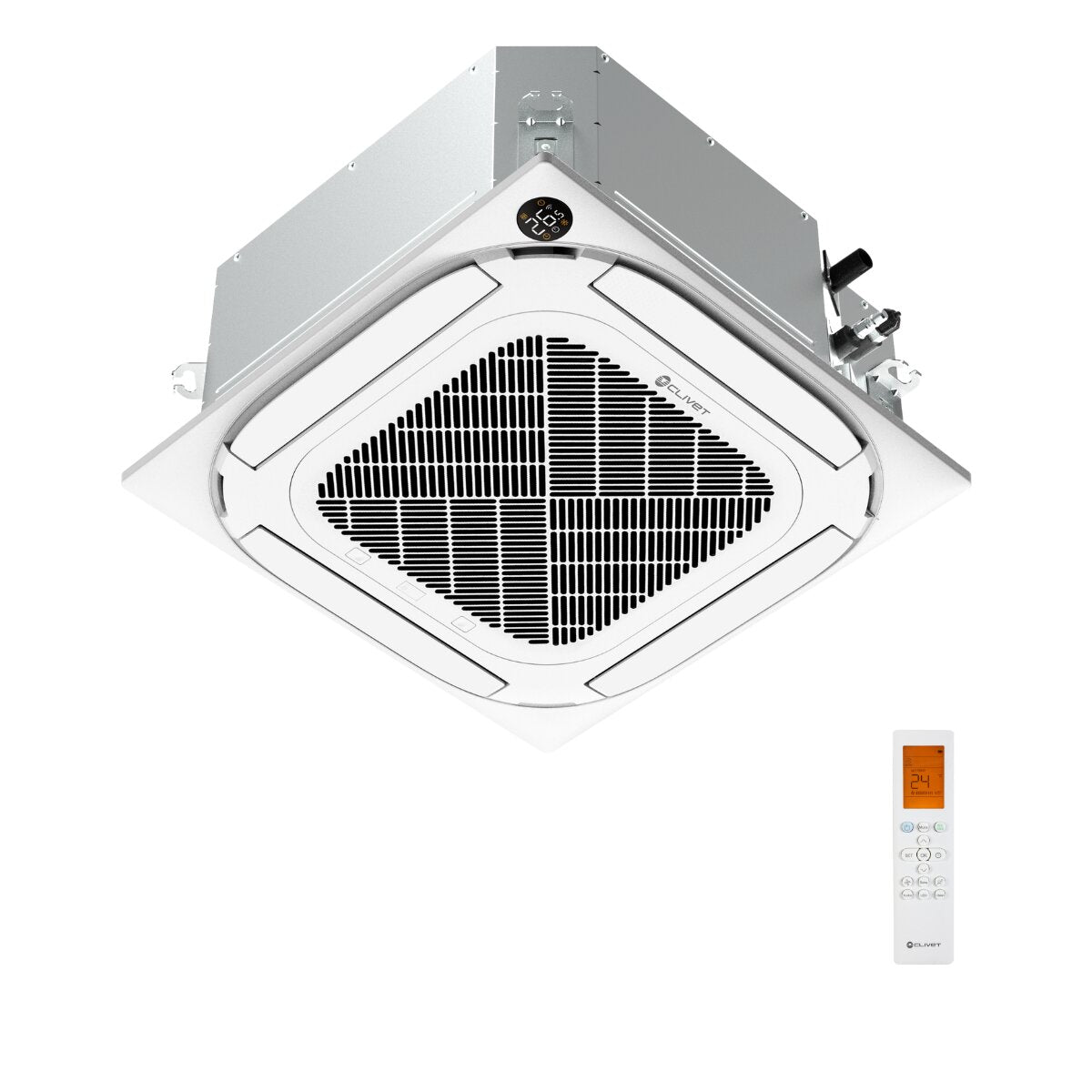

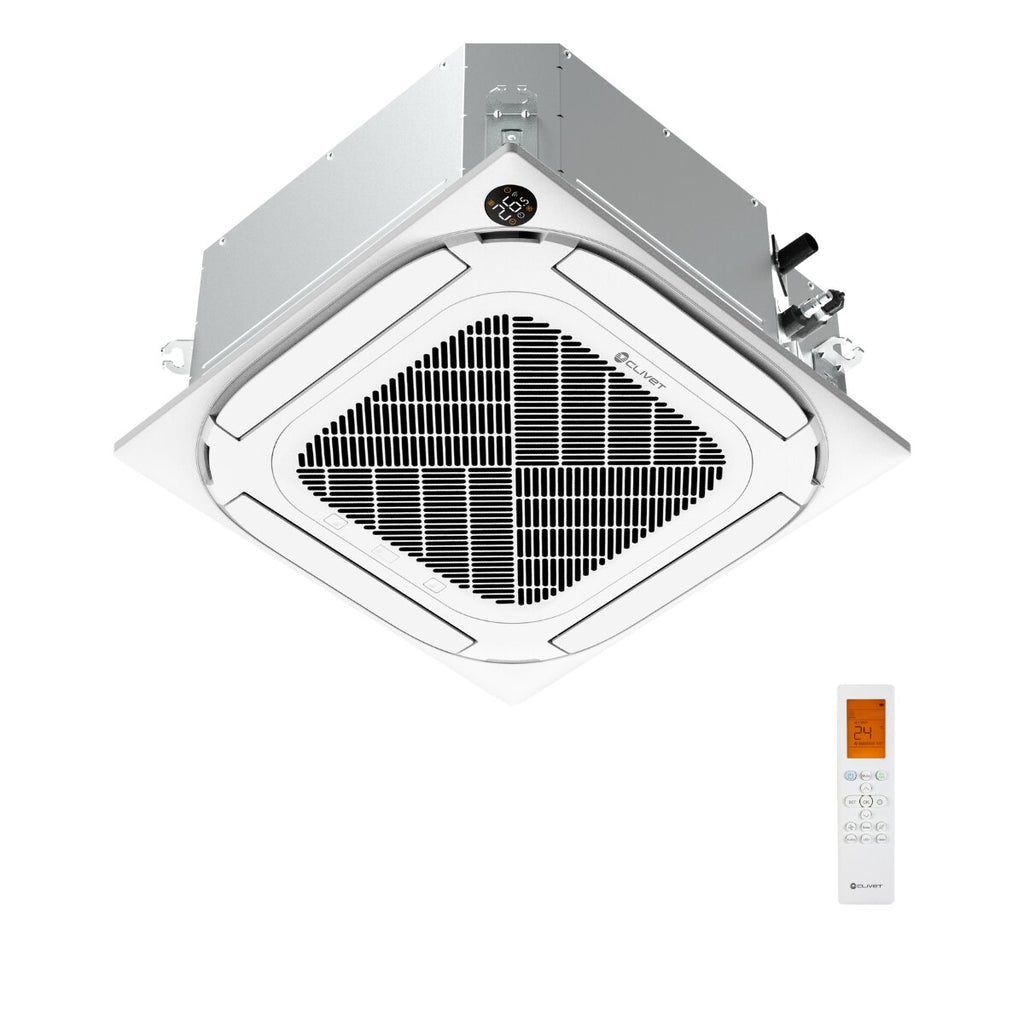

The Clivet 4-way compact cassette for Multisplit and Light Commercial systems represents a professional solution for the air conditioning of residential and commercial environments, designed to offer maximum efficiency, uniform comfort and total aesthetic integration .

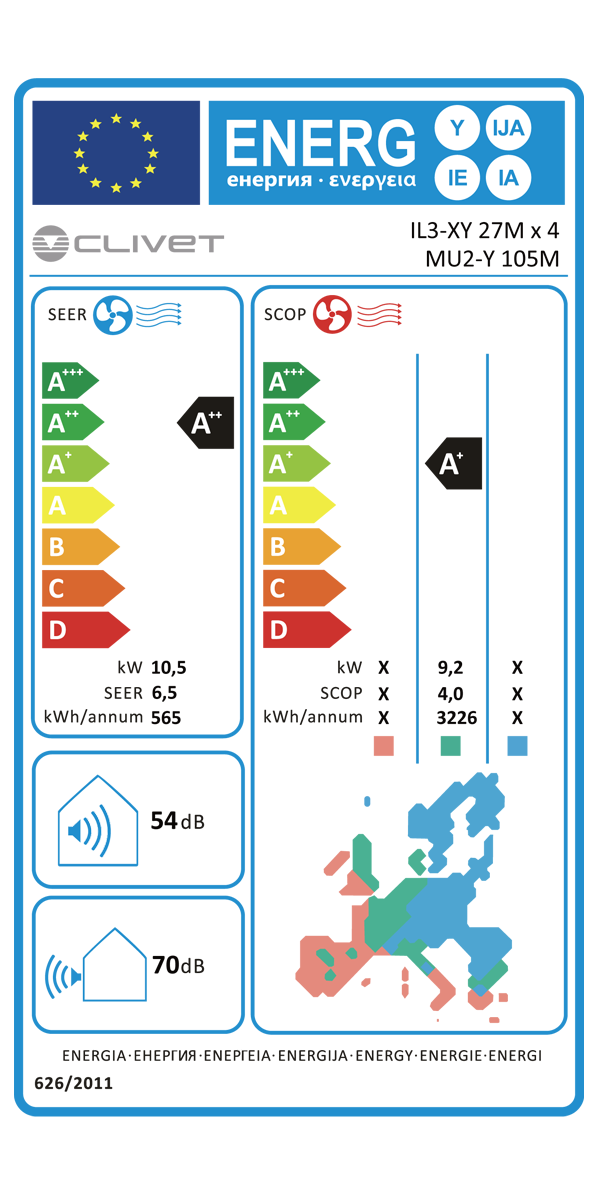

Thanks to Inverter technology and the use of R32 refrigerant gas, the system guarantees low consumption and high energy performance, reaching high energy classes up to A++ in cooling and A+ in heating.
Overall, the Clivet 4-way compact cassette technology is designed to offer uniform comfort, intelligent management, operational safety and great system adaptability , with a complete package of functions suitable for both advanced residential applications and light commercial contexts.
DESIGN AND AIR QUALITY
The Clivet 4-way compact cassette is designed to offer a clean, modern aesthetic that is fully integrated into the environment , making it the ideal solution for those looking for a discreet yet high-performance air conditioner.

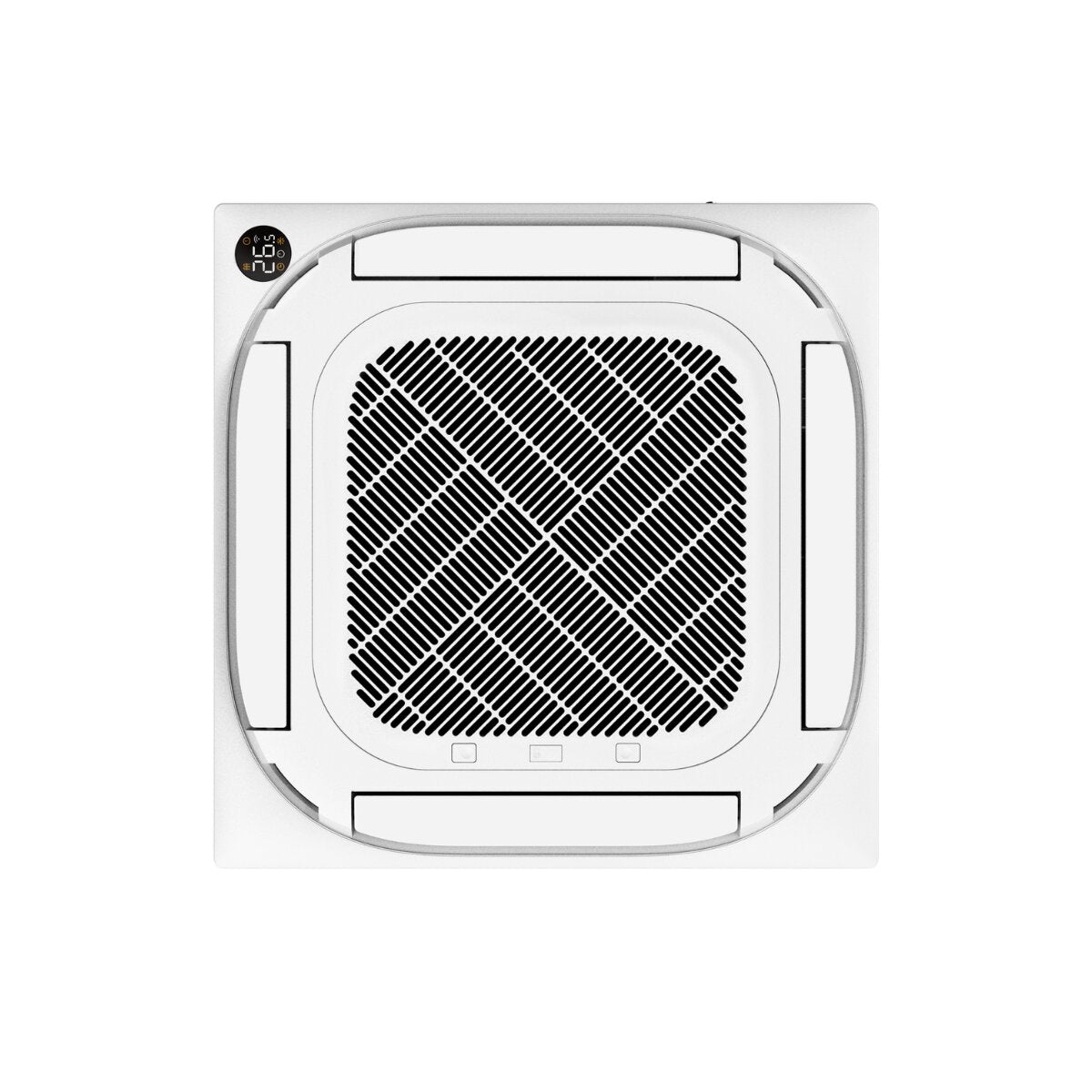

Thanks to its compatibility with 600x600 mm modular false ceilings, this cassette is easily installed inside the ceiling, leaving only the elegant and minimal front panel visible. The result is a minimal visual impact, perfect for offices, shops, hotels and contemporary residential environments .
The aesthetic panel, featuring clean lines and refined finishes, blends harmoniously with any architectural style, while the 360° air flow ensures uniform distribution without obstructing walls or floors. This allows for space optimization and improved comfort and livability.
The ultra-compact dimensions ( 570x570 mm ) make installation simple even in suspended ceilings with limited space, offering great design flexibility. Furthermore, the presence of the integrated condensate drain pump eliminates the need for external components, helping to maintain a tidy and clean aesthetic.
ADVANCED TECHNOLOGY AND CUSTOM COMFORT
The Clivet 4-way compact cassette is designed to offer high and consistent comfort throughout the year, thanks to a series of intelligent features that optimize air distribution, simplify unit management, and increase system reliability. The 4-way distribution allows for uniform air conditioning throughout the room, with even air diffusion that improves the perceived well-being throughout the room. Added to this is particularly quiet ventilation, with very low noise levels of just 29 dB(A) , for discreet comfort even in environments where maximum tranquility is required.
In heating mode, the Anti-Cold Air system activates, delaying the start of ventilation until the internal exchanger has reached an adequate temperature. This prevents the unpleasant sensation of cold air during start-up and ensures increasingly pleasant air delivery consistent with the set mode. During nighttime operation, the Sleep function automatically adjusts the air conditioning parameters to create a more comfortable and quiet environment, adapting the unit's operation to your sleep needs.
To enhance everyday convenience, the unit is equipped with a Timer , useful for programming automatic on and off times, and an Auto-restart function, which in the event of a power outage automatically restores the settings active at the time of the blackout, allowing the system to resume operation without the need for further manual intervention. The Auto-defrost function improves winter performance by automatically managing the cycles necessary to maintain the unit's efficiency under more demanding operating conditions.
The Clivet cassette also integrates functions dedicated to system control and safety. Self-diagnosis constantly monitors the unit's status and facilitates the identification of any anomalies, speeding up inspection and maintenance. The remote alarm port also allows any anomalies to be reported to external devices, a particularly useful feature in professional or centralized applications. An on/off contact is also present, allowing the unit to be turned on and off via an external command, offering greater flexibility for integration into advanced systems.
Among the most interesting functions we also find the Rotation & Backup mode, which allows you to manage two units with the same accessory wired control; this is a particularly useful function in environments where it is important to ensure continuity of service: the system can alternate the operation of the units or support reserve management, increasing reliability and operational continuity.
Completing the package is the integrated condensate drain pump , already installed on the unit and capable of offering a head of up to 1000 mm H₂O . This solution simplifies installation, improves condensate drain management, and helps make the unit even more versatile, even in contexts where the drainage path requires greater flexibility.
For advanced management, this unit can be completed with various optional control systems. In addition to the infrared remote control supplied as standard , it is possible to add a wired control , centralized control , Wi-Fi module and integration with BMS systems, all available as accessories based on the system's needs. This allows the box to be adapted to both simple installations and more structured contexts, where centralized supervision or remote control is required.
ACCESSORIES INCLUDED
- Remote control.
WARRANTY
The warranty is the official Clivet one and lasts 2 years.

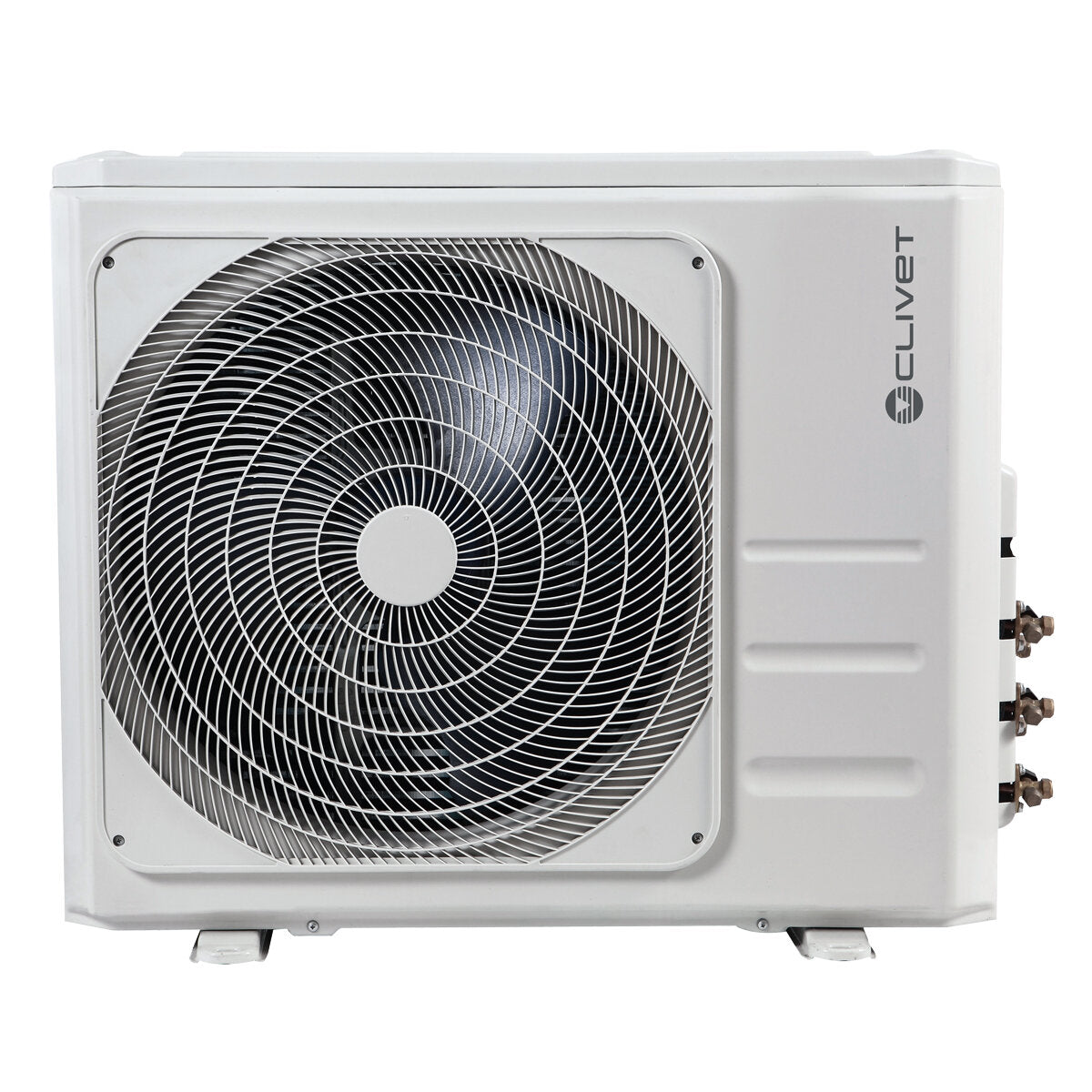

THE OUTDOOR UNIT
The MU2-Y outdoor units for multi-split Clivet air conditioners in the residential range have Inverter and Heat Pump technology and represent the beating heart of the air conditioner. The entire range has been renewed compared to the previous MU1-Y and now boasts better performance, greater simplicity and flexibility in installation, a wide operating range in both cooling and heating. The MU2-Y outdoor units work with the innovative R32 gas, a friend of nature and the consumer because it has a low environmental impact and is more performing and economical than its predecessors.
The multisplit outdoor units offer the great advantage of air conditioning several rooms using only one outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building to be air-conditioned.
The outdoor unit presented here has a nominal power of 10.5 kW (in cooling) and allows you to connect and power up to four Clivet indoor units of any series, even with different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The multi-split outdoor unit for Clivet air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always gives the possibility of installing the air conditioner suitable for the environment to be air-conditioned. It offers high performance and great comfort both when using the air conditioner in cooling and heating; this is possible thanks to the Heat Pump technology they are equipped with. The latest generation inverter system allows for low energy consumption and always high energy savings. The high efficiency compressor has a particularly robust and reliable structure which contributes to maintaining a constant temperature without sudden changes; it is also very quiet, to respect one's sleep and that of others. The fan of this outdoor unit regulates its operation between seven speed levels to help save energy; the unit is equipped with the Emergency function which also allows operation in emergency mode due to malfunction; the Auto Defrost device prevents the formation of ice on the evaporator. Thanks to the particular devices adopted, the external unit of the Clivet multi split air conditioner guarantees the correct functioning of the air conditioner even with very cold external temperatures.
R32 gas, with a global warming potential, GWP, equal to one third of that of R410A gas, not only contributes significantly to respect for nature, but also allows combinations of multi-split air conditioners to always obtain excellent energy classes.
For added safety and quick installation, these outdoor units are equipped with an automatic correction function for piping and wiring errors.
The body of the MU2-Y outdoor units is equipped with a particular anti-corrosion coating which protects them from bad weather, atmospheric agents and salt air. The outdoor unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Clivet one and has a duration of 24 months.
