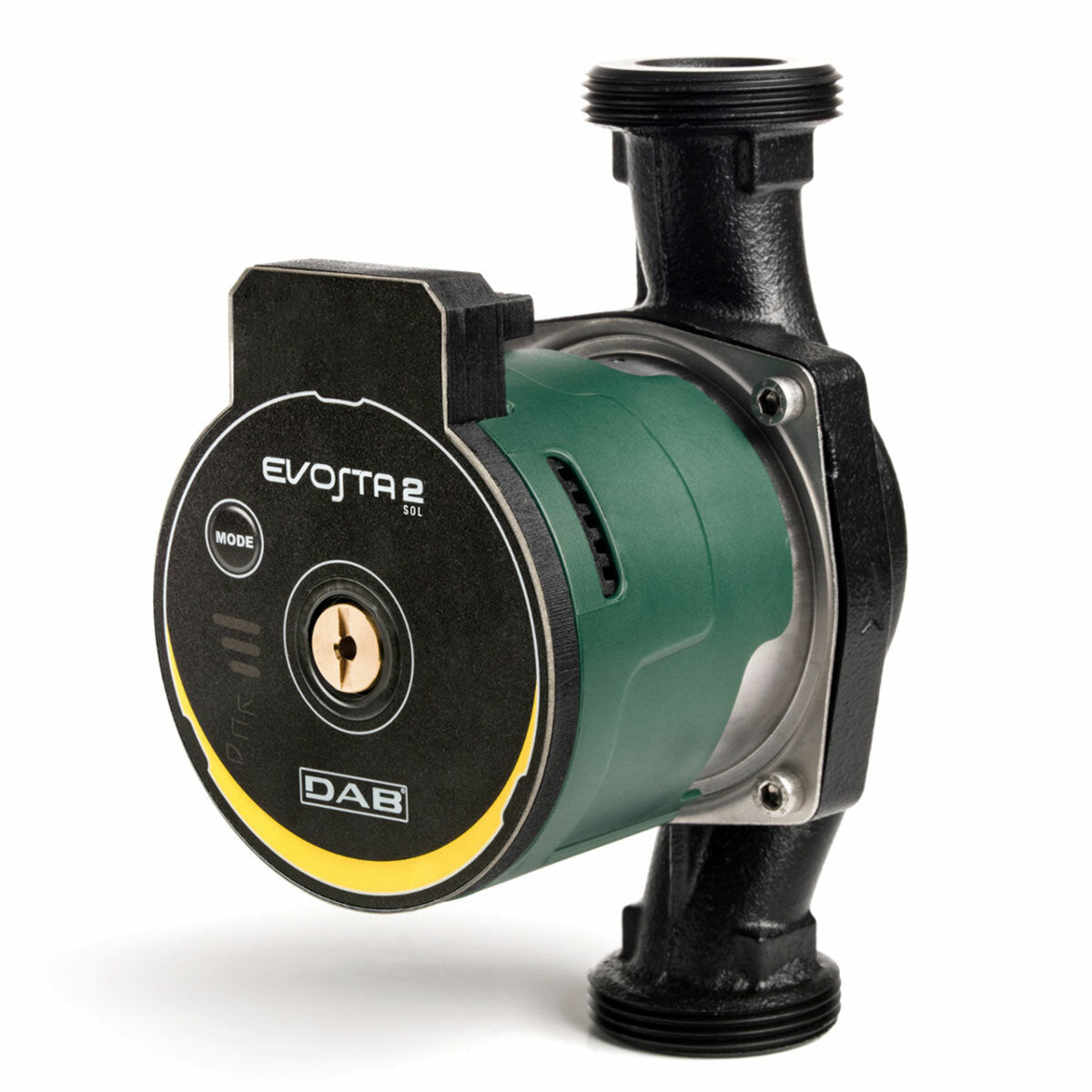

DAB EVOSTA 2 20-75/180 SOL 1" electronic circulator

DAB EVOSTA 2 20-75/180 SOL 1 electronic circulator

Max power 47 W - Flow rate range 8 – 66 l/min. - Head range 7.5 – 0.9 m

The EVOSTA 2 SOL electronic circulators by DAB are high efficiency and low energy consumption electric pumps for the circulation of water in all types of domestic heating systems with solar thermal panels . Thanks to DAB know-how they offer the best in terms of sturdiness and technology. Ideal for replacing old circulators due to their compactness and performance, the EVOSTA 2 SOL electronic circulators are also very simple to set thanks to a single sequential key from which to access the different modes of use. The front breather cap then allows direct access to the crankshaft in the event of a blockage.

Here is the model 20 -75/180 SOL 1 with 180 mm center distance with 1 ½ threaded connections.

TECHNICAL FEATURES

The EVOSTA 2 20-75/180 SOL 1” wet rotor electronic circulator is characterized by its great sturdiness : it is equipped with a permanent magnet synchronous motor, has a cast iron pump body, motor casing, rotor sleeve, stator sleeve and steel closing flange; impeller in technopolymer, thrust ring and motor shaft in ceramic, gaskets in EPDM and breather cap in brass.

It has an IPX5 degree of protection against any water infiltration which guarantees great durability over time.

The pumped liquid must have chemical-physical characteristics close to those of clean water (with max. 50% glycol).

GUARANTEED SAVINGS AND HIGH COMFORT

Thanks to its innovative technology, the permanent magnet synchronous motor and the frequency converter, the EVOSTA 2 20-75/180 SOL 1 electronic circulator is suitable for use in all domestic heating and air conditioning systems, ensuring maximum efficiency and energy savings. . Its inverter electronics are able to detect the variations required by the system and automatically adapt the performance.

GREAT INSTALLATION AND USE MODULARITY

The EVOSTA 2 20-75/180 SOL 1 circulator is ideal for replacing old three-speed circulators thanks to both its compact size and excellent performance.

Its use is easy and intuitive thanks to its single sequential setting button which allows access to the nine different operating modes. Furthermore, thanks to the front vent plug for the degassing of the system and for the possible unlocking of the motor shaft, these operations will be simple and quick to carry out.

The installation must be carried out with the motor axis horizontal.

DIMENSIONS

Wheelbase: 180 mm – Depth: 135 mm – Height: 94 mm – Connections 1 ½

Weight: 2.24kg.

WARRANTY

The warranty is the official DAB Water Technology one and has a duration of 2 years .
