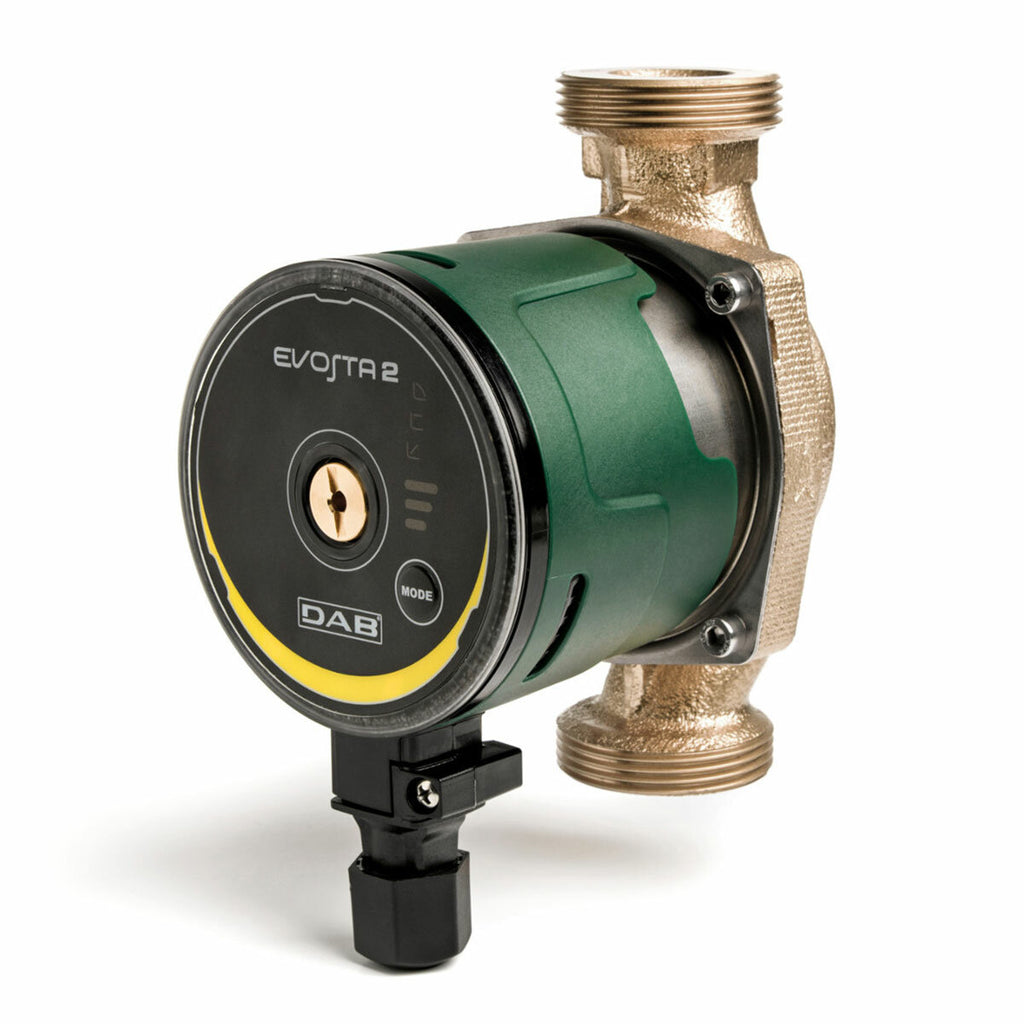

DAB EVOSTA 2 40-70/150 SAN 1 electronic circulator
Max power 35 W - Flow rate range 15 – 60 l/min. - Head range 6.9 – 0.8 m
The EVOSTA 2 SAN electronic circulators by DAB are high efficiency and low energy consumption electric pumps for the circulation of domestic hot water in all types of domestic systems . Thanks to DAB know-how they offer the best in terms of sturdiness and technology. Ideal for replacing old circulators, including those of other brands, the EVOSTA 2 SAN electronic circulators are also very simple to set thanks to a single sequential key from which to access the different modes of use. The front breather cap then allows direct access to the crankshaft in the event of a blockage.
Here is the 4 0 -70/150 SAN 1 model with 150 mm center distance and 1 ½ threaded connections.
TECHNICAL FEATURES
The EVOSTA 2 40-70/150 SAN 1” wet rotor electronic circulator is characterized by its great sturdiness : it is equipped with a permanent magnet synchronous motor, has a bronze pump body, motor casing, stator jacket and closing flange in steel; impeller in technopolymer, thrust ring and motor shaft in ceramic, gaskets in EPDM and breather cap in brass.
It has an IPX5 degree of protection against any water infiltration which guarantees great durability over time.
The pumped liquid must have chemical-physical characteristics close to those of clean water (with glycol max. 30%).
GUARANTEED SAVINGS AND HIGH COMFORT
Thanks to its innovative technology, the permanent magnet synchronous motor and the frequency converter, the EVOSTA 2 40-70/150 SAN 1 electronic circulator is suitable for use in all domestic heating and air conditioning systems, ensuring maximum efficiency and energy savings. . Its inverter electronics are able to detect the variations required by the system and automatically adapt the performance.
GREAT MODULARITY OF INSTALLATION AND USE
The EVOSTA 2 40-70/150 SAN 1 circulator is ideal for replacing old circulators, including those of other brands, thanks to both its compact size and excellent performance.
Its use is easy and intuitive thanks to its single sequential setting button which allows access to the nine different operating modes. Furthermore, thanks to the front vent plug for the degassing of the system and for the possible unlocking of the motor shaft, these operations will be simple and quick to carry out.
The installation must be carried out with the motor axis horizontal.
DIMENSIONS
Center distance: 150 mm – Depth: 134.6 mm – Height: 91 mm – Connections 1 ½
Weight: 2.16kg.
WARRANTY
The warranty is the official DAB Water Technology one and has a duration of 2 years .
