Daikin Multi+ trial split air conditioning and domestic hot water system - Emura 3 white internal units 9000+9000+12000 BTU - 90 l tank

BEST OFFERS -5%
DaikinSKU: 4MWXM52A-2FTXJ25AW-35-EKHWET90BV3 ID: C855A2

Price:
Sale price€7.036,40 Regular price€13.552,98
code
4MWXM52A-2FTXJ25AW-35-EKHWET90BV3
id
C855A2
precodice
DKN
short description

Daikin Multi+ is the system designed by Daikin to cool, heat, dehumidify and produce domestic hot water thanks to the integration of the 90L tank. It can be combined with different series of Daikin air conditioners. Here it is proposed in the trial split version in combination with the white Emura 3 9000+9000+12000 BTU internal units, ideal for 25 and 40 m2 rooms. Managing the Daikin Multi+ system is really simple thanks to the integrated WiFi and management via APP, Google and Alexa voice commands. Energy class A+++ for cooling, A++ for heating, A for the production of hot water.

brand
Daikin
category
Air conditioners
type
3 split air conditioner
btu power
9000+9000+12000 btu
series
Multi+
modes
Cold,Hot,Dehumidifier
pipes liquids connect
0.37 - 9.52
fluorinated gases
true
ideal for environment
40 Mq
inverter
true
rated power
5.2
installation mode
Wall
gas refrigerant
R32
use
Residential
wifi
true
power
Single phase
accumulo
90
airfilt
Filtro antibatterico
heat ec
A+++

Description

Daikin Multi+ system for trial split air conditioning and domestic hot water - Emura 3 internal units 9000+9000+12000 BTU - 90 l tank



The Daikin Multi+ system presented here is offered in combination with the white Emura 3 series indoor units.

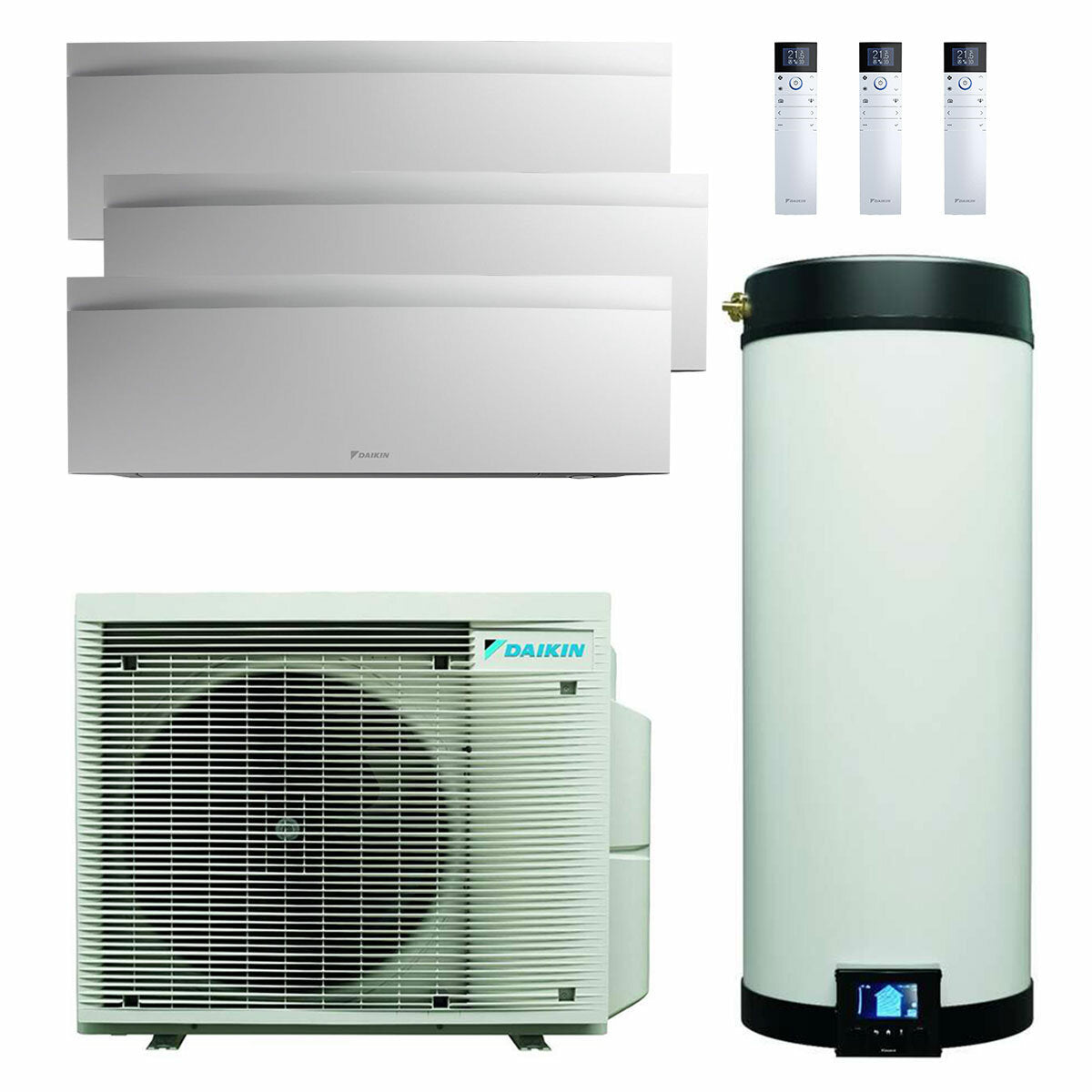

The Kit consists of

  • 1 x 90 liter domestic hot water tank
  • 2 x Daikin Emura 3 9000 BTU - Ideal for rooms from 15 to 25 m2 with an average height of 2.7 m
  • 1 x Daikin Emura 3 12000 BTU - Ideal for rooms from 25 to 40 m2 with an average height of 2.7 m
  • 1 x Multi+ Outdoor Unit 4MWXM52A - 5.2 kW



Daikin Multi+ is the system designed by Daikin to cool, heat and produce domestic hot water in a single solution. As simple as it is revolutionary, Daikin Multi Plus is an efficient multi-split air conditioning system to which a domestic hot water tank has been combined which can thus be produced, for most of the time, by the system's heat pump to the full advantage efficiency and energy and economic savings .

Ideal for replacing old inefficient heating systems and expensive electric water heaters , Daikin Multi+ adapts perfectly to the needs of small to medium families, allowing you to cool and heat up to three rooms and produce domestic hot water in a heat pump, saving on the bill and improving the comfort of the whole family.

The Daikin Multi+ system consists of an external unit with inverter and heat pump technology, to which a 90 or 120 liter tank can be connected to produce domestic hot water and up to three Daikin splits, even of different series (wall, floor, console , ceiling, etc.). Multi+ therefore also satisfies all style and furnishing needs as it can be combined with the most popular Daikin series in terms of design such as Stylish and Emura, in all their color variations.

Thanks to Daikin Multi+ it will be possible to achieve energy savings right from the first use and invest in a greener future for the Planet. Being an all-in-one system, Multi Plus offers a unique solution to the main needs of a modern home and, at the same time, is an affordable, easy-to-install and space-saving investment. The advantage of choosing a Daikin Multi Plus will be not only an air-conditioned home with hot water always ready without spending a fortune, but also the peace of mind of relying on a brand that has always been synonymous with excellent quality, 360° comfort and latest generation technology. at your fingertips thanks to management via the ONECTA APP or via Google and Alexa voice control.

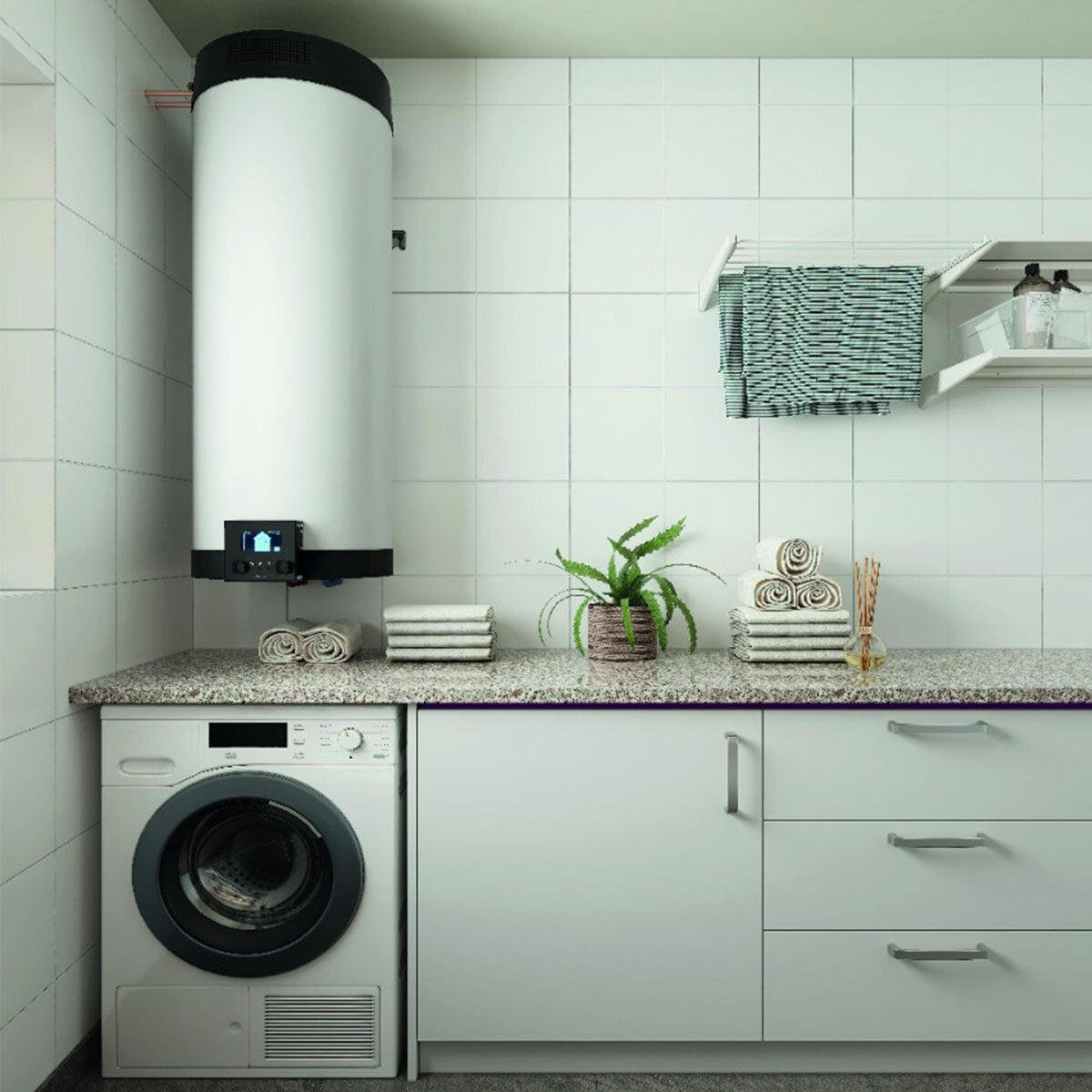

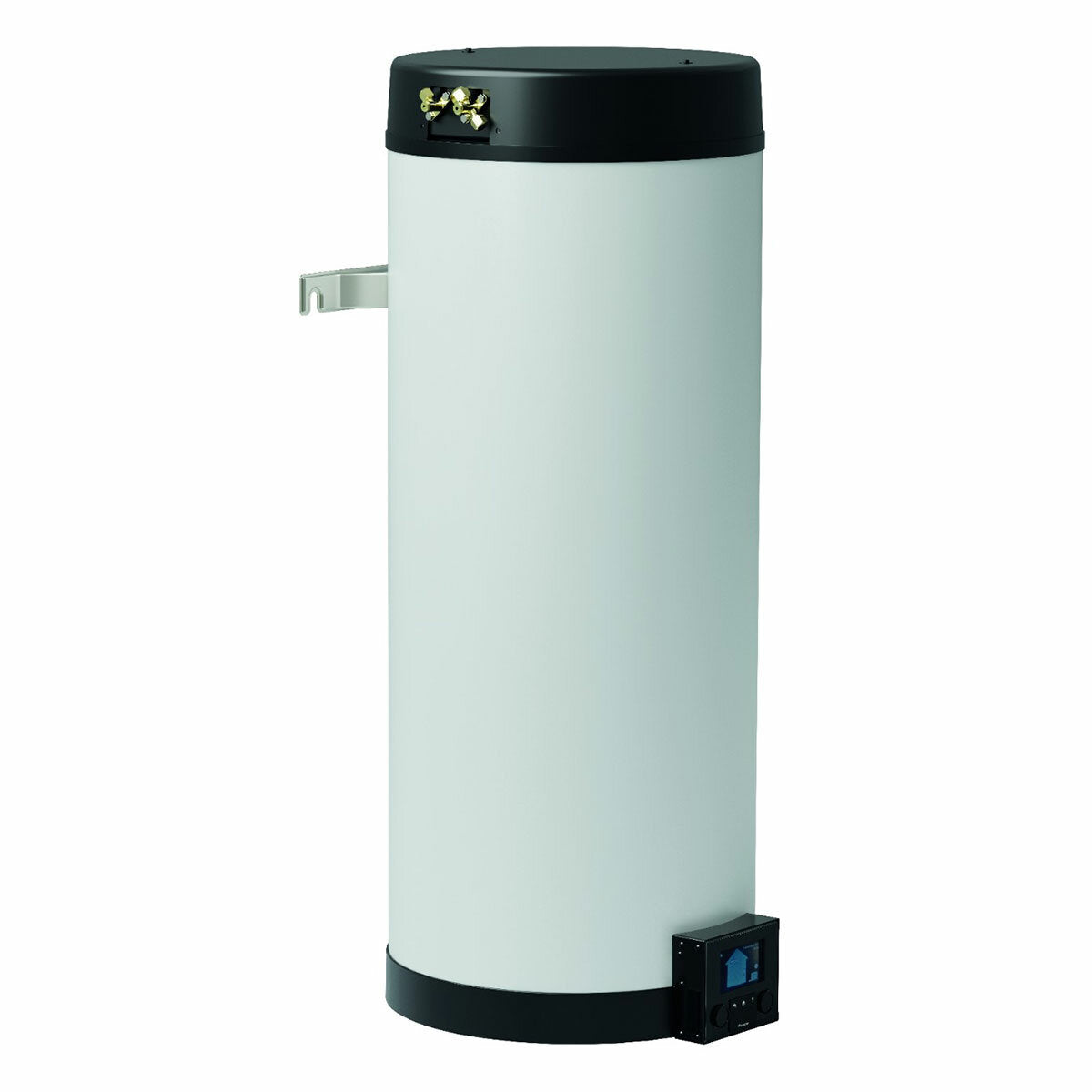

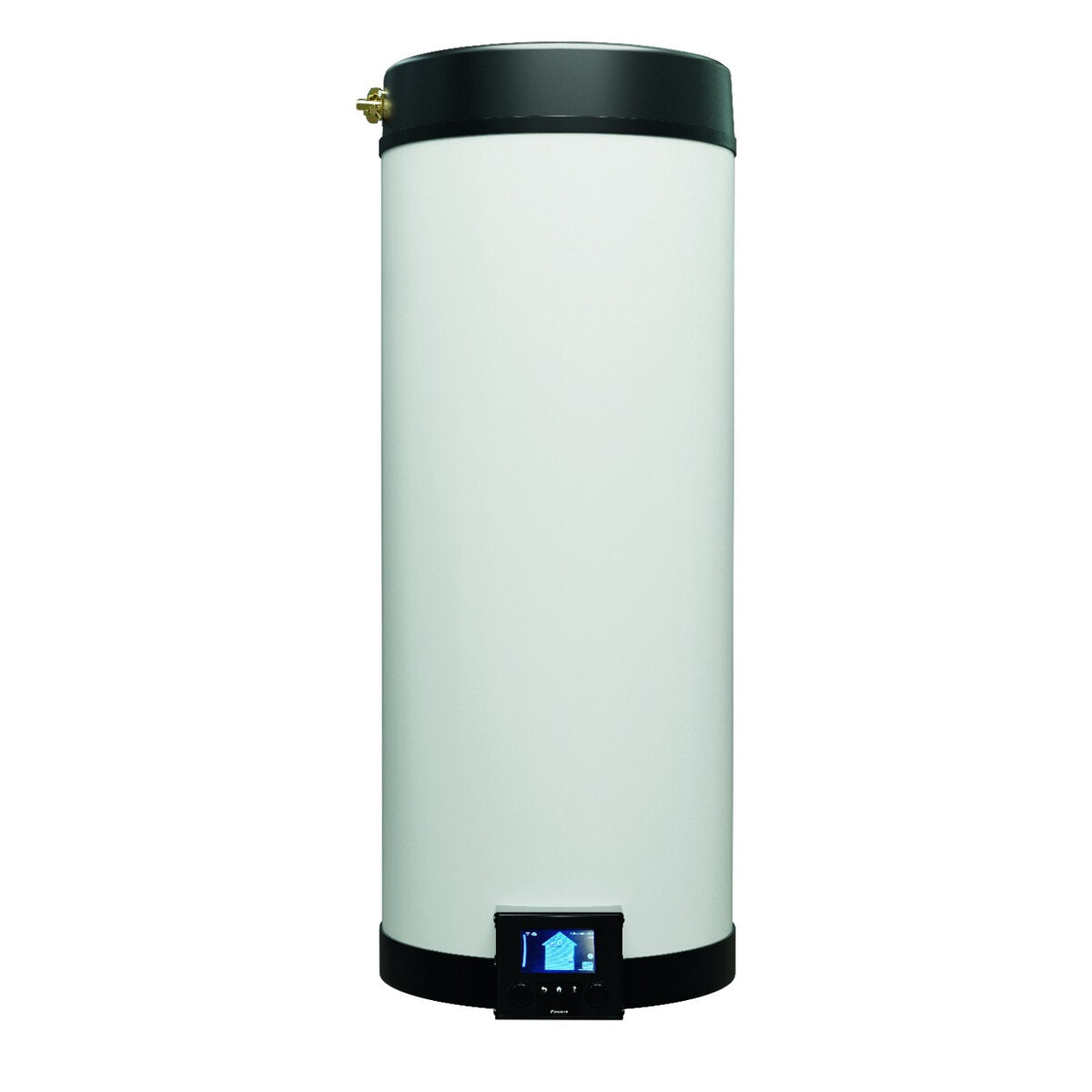

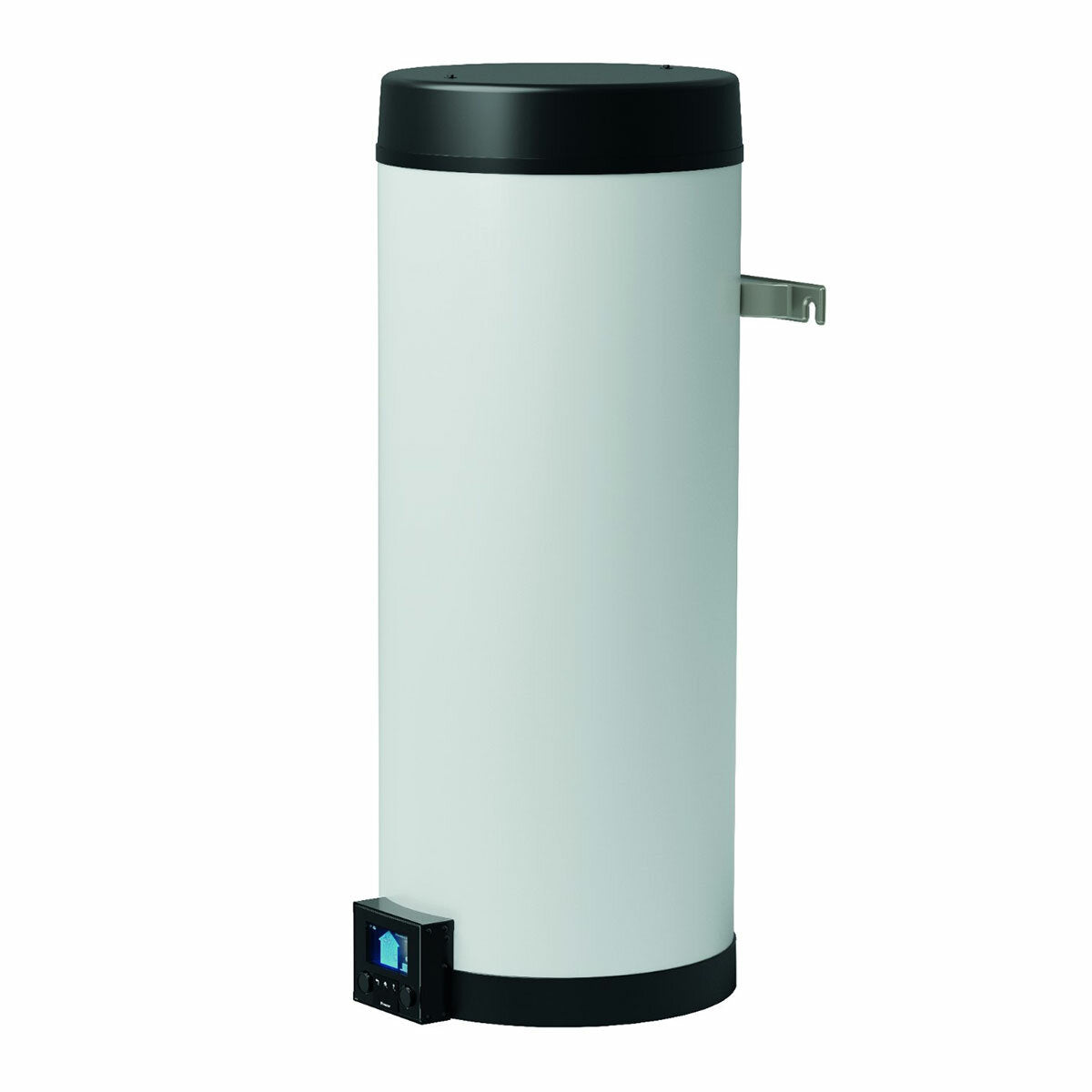

90 L TANK

The domestic hot water tank, together with the outdoor unit, is the main component of Daikin Multi+ . They allow you to produce domestic hot water with Class A energy efficiency.

Steel structure and hot-dip galvanized sheet metal cladding with anti-corrosion treatment guarantee maximum durability of this boiler. Available in 90 or 120 liter sizes , the tank is ideal for the domestic hot water needs of a family of 2/3 people . The tank is equipped with an intuitive interface that allows you to make all settings for the configuration and daily use of the system. The full-text display and simplified preset modes make it easy to use even for less experienced users. By adding the optional WLAN card to the interface it will also be possible to manage and monitor the tank remotely via the Daikin Onecta App, the same one that allows you to manage compatible air conditioners from your smartphone or tablet, wherever you are. Onecta is also compatible with Amazon Alexa and Google Assistant.

With Multi+ the production of domestic hot water can take place according to 3 different modes which exploit the combined action of the heat pump and, possibly, of the additional resistance:

  • Efficient Mode : best mode to optimize consumption
  • Quick Mode : The water temperature is reached 30% faster than in Efficient mode
  • Powerful Mode : the water temperature is reached 50% more quickly than in Efficient mode by activating the integrated electric resistance (more expensive mode in terms of consumption).

The domestic hot water tank and the external unit of Daikin Multi + are perfectly suited : the external unit in fact provides most of the energy used to heat the water inside the tank (the additional electric resistance is activated during requests for DHW greater than those programmed).

  • The system can perform the room heating and domestic hot water functions at the same time in the winter period but in the summer the room cooling and water heating functions cannot be performed simultaneously. Therefore, for daily water heating , it is best to program the unit to start early in the morning or when everyone is away from home. Since the domestic water is heated according to the set schedule, the outdoor unit can switch to Cooling mode as soon as an air conditioner is activated.
  • In the event of a greater need for hot water , simply activate the Powerful function to make the water reach the desired temperature 50% faster than the Efficient mode. The water will be heated via the electric resistance integrated in the tank and at the same time it will be possible to use the Cooling function for the air conditioners connected to the system.
  • In Heating mode , it will be possible to heat both water and rooms simultaneously in a convenient way via the heat pump alone.

The tank is simple to install and maintain: size and weight are reduced, the power and refrigerant connections are located on the top, and the water ones are easily accessible from the bottom. This also allows installation costs to be minimized.

The 90 l tank can be combined with the splits of the other Daikin series. Here the system is proposed in combination with the internal units of the Emura 3 series.

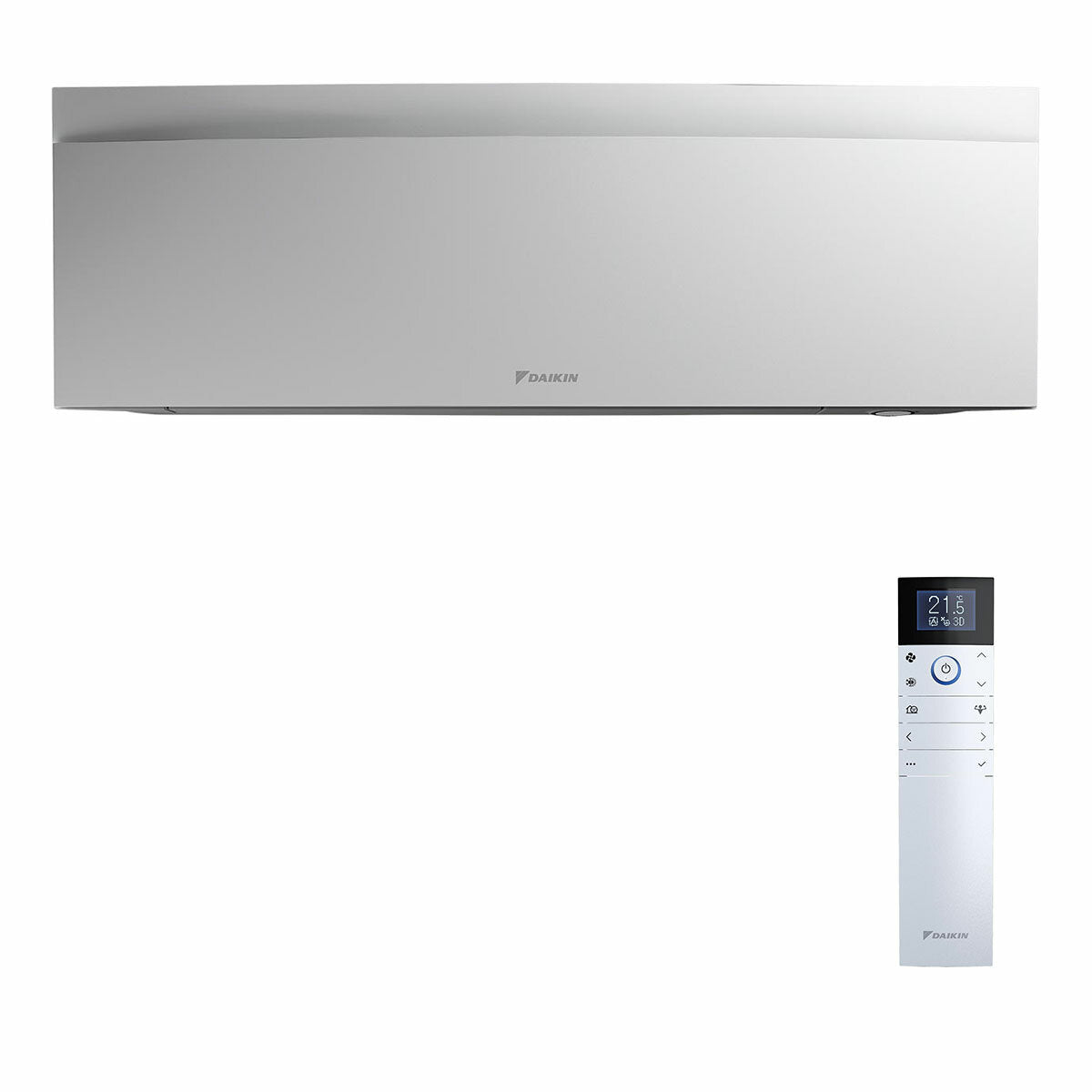

EMURA 3 SERIES WHITE

The design represents one of the strong points of this third generation of the Daikin Emura air conditioner . With just 90 cm in width, the Emura 3 internal units are capable of fitting discreetly into any environment, resulting, when necessary, as minimal as they are seductive in their particular shapes. The curved front and rear panels in fact give a modern and at the same time elegant appearance, giving movement to the entire unit, which is even more attractive when it is opened to allow air to escape. Daikin Emura 3 consists of a titanium apatite deodorizing filter , a silver filter for the removal of allergens and an air filter that allow you to create and maintain a healthy environment in which to live all year round. the air conditioner is equipped with an Intelligent Thermal Sensor which distributes the air, hot or cold, uniformly before directing it towards the areas of greatest thermal relevance, thanks also to the combination of 3D air flow and the movement of the fins. The Emura 3 internal units are equipped with wifi and easily managed via the App. For further details you can view the air conditioners of the Daikin Emura 3 series.

ACCESSORIES SUPPLIED AS STANDARD WITH EACH INDOOR UNIT

- Remote control

- Built-in Wi-Fi card.

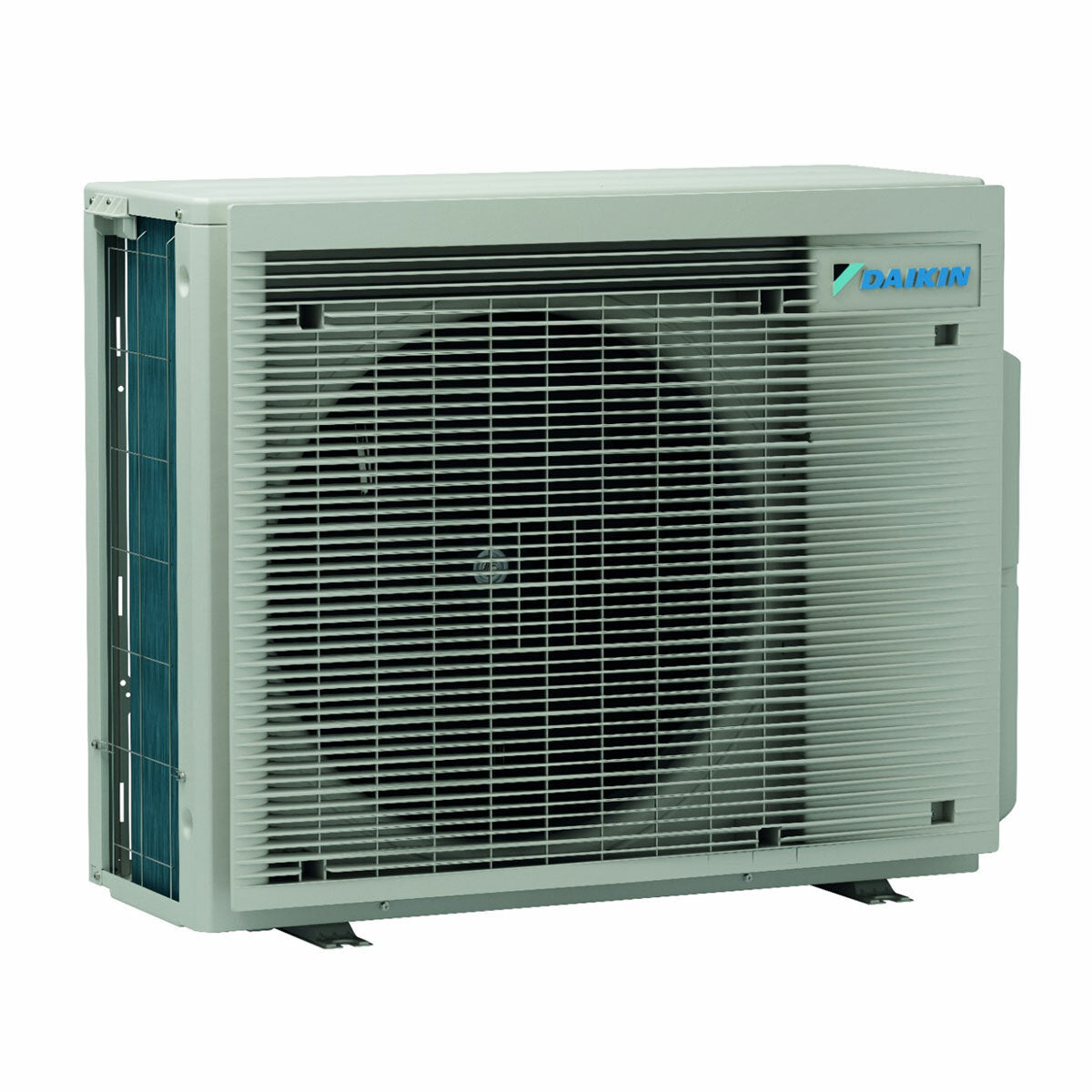

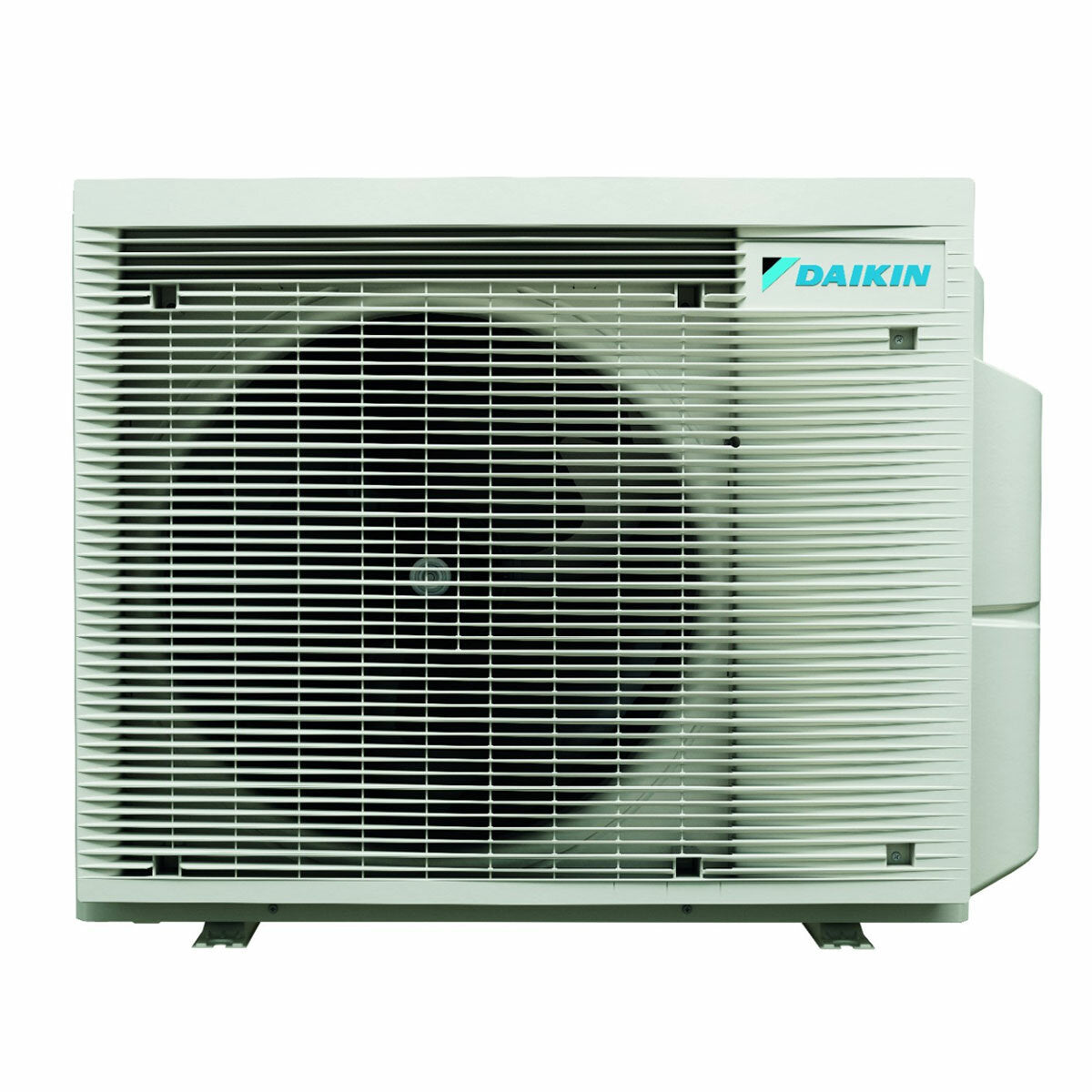

THE OUTDOOR UNIT

The Daikin Multi+ outdoor unit forms the heart of this all-in-one system . Thanks to the Inverter and Heat Pump technology and the use of R32 gas with low environmental impact, it is a concentrate of technology, efficiency and consequent reduction in consumption . The Multi+ outdoor unit offers the great advantage of air conditioning up to three rooms using a single outdoor unit; furthermore, thanks to the provision for connecting the hot water boiler, it allows further savings in space and consumption while keeping all the internal units independent of each other. With the external unit of the Multi+ system, Daikin redefines market standards in terms of efficiency, silence and consumption control. Equipped with a swing -type hermetic compressor , it ensures maximum efficiency by continuously regulating the power based on real needs. Machine stops and starts are drastically reduced, reducing energy consumption by up to 30% and maintaining more stable temperatures . Thanks to the new fan of the Multi+ external unit, whose blades have been redesigned to reduce noise emissions and consumption, acoustic comfort and further savings are ensured. A new ivory front grille elegantly hides the fan. The Multi+ outdoor unit achieves energy efficiency values from Class A+++ in cooling , A++ in heating and A for domestic hot water .



Direct expansion pipe connections

Gas connection pipes: 3/8 - 1/2 - 5/8

Liquid connection pipes: 1/4

Domestic hot water pipe connections

Gas connection pipes: 3/8

Liquid connection pipes: 1/4



WARRANTY

The warranty is the official Daikin one and lasts 24 months.

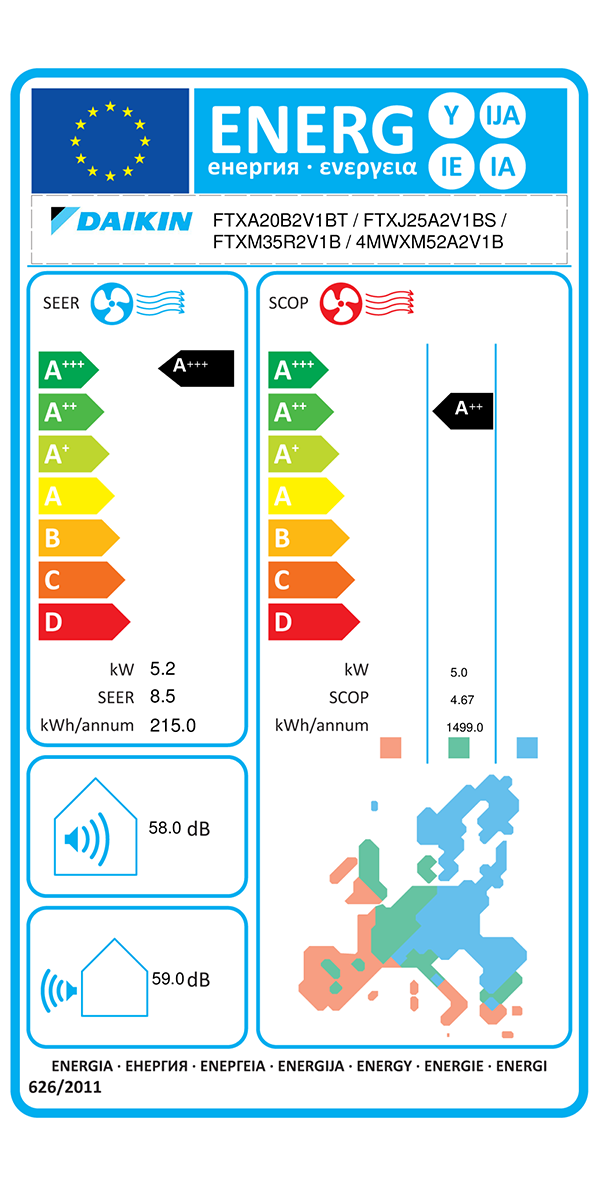

labels
energy cooling
A+++
energy heating
A++
wifi
true
code
kit
4MWXM52A-2FTXJ25AW-35-EKHWET90BV3
internal units
FTXJ25AW, FTXJ35AW, EKHWET90BV3
external units
4MWXM52A
kit features
brand
Daikin
category
Air conditioners
type
3 split air conditioner
btu power
9000+9000+12000 btu
series
Multi+
modes
Cold,Hot,Dehumidifier
pipes liquids connect
0.37 - 9.52
fluorinated gases
true
ideal for environment
40 Mq
inverter
true
rated power
5.2
installation mode
Wall
gas refrigerant
R32
use
Residential
wifi
true
power
Single phase
accumulo
90
airfilt
Filtro antibatterico
heat ec
A+++
cooling
nominal capacity
5200(2400~7200) W
nominal absortion
1040(500~2160) W
nominal current
4.72(2.26~4.72) A
eer cop
5
seer scop
8.5
qce
215
energy rating cold
A+++
capacity a w
1530W
capacity b w
1530W
capacity c w
2140W
heating
nominal capacity
6800(1900~8100) W
nominal absortion
1350(410~2090) W
nominal current
6.12(1.86~9.47) A
eer cop
5.04
seer scop
4.67
qce
1496
energy rating hot
A++
capacity a w
2000W
capacity b w
2000W
capacity c w
2800W
Internal unit FTXJ25AW
brand
Daikin
category
Indoor unit
type
btu power
9000 btu
series
Emura 3
modes
Cold,Hot,Dehumidifier
pipes liquids connect
0.25 - 6.35
pipes gas connect
0.37 - 9.52
width height depth
900X305X212
fluorinated gases
true
ideal for environment
25 Mq
inverter
true
installation mode
Wall
gas refrigerant
R32
use
Residential
wifi
true
airfilt
Filtro antiodoreFiltro antibatterico
heat ec
A+++
Internal unit FTXJ35AW
brand
Daikin
category
Indoor unit
type
btu power
12000 btu
series
Emura 3
modes
Cold,Hot,Dehumidifier
pipes liquids connect
0.25 - 6.35
pipes gas connect
0.37 - 9.52
width height depth
900X305X212
fluorinated gases
true
ideal for environment
40 Mq
inverter
true
installation mode
Wall
gas refrigerant
R32
use
Residential
wifi
true
airfilt
Filtro antibatterico
heat ec
A+++
Internal unit EKHWET90BV3
brand
Daikin
category
Water heaters
type
Electric
series
Multi+
width height depth
510X1032X570
power
Single phase
accumulo
90
External unit 4MWXM52A
brand
Daikin
category
Outdoor unit
type
pipes liquids connect
0.25 - 6.35
width height depth
974X734X401
fluorinated gases
true
inverter
true
rated power
5.2
gas refrigerant
R32
use
Residential
