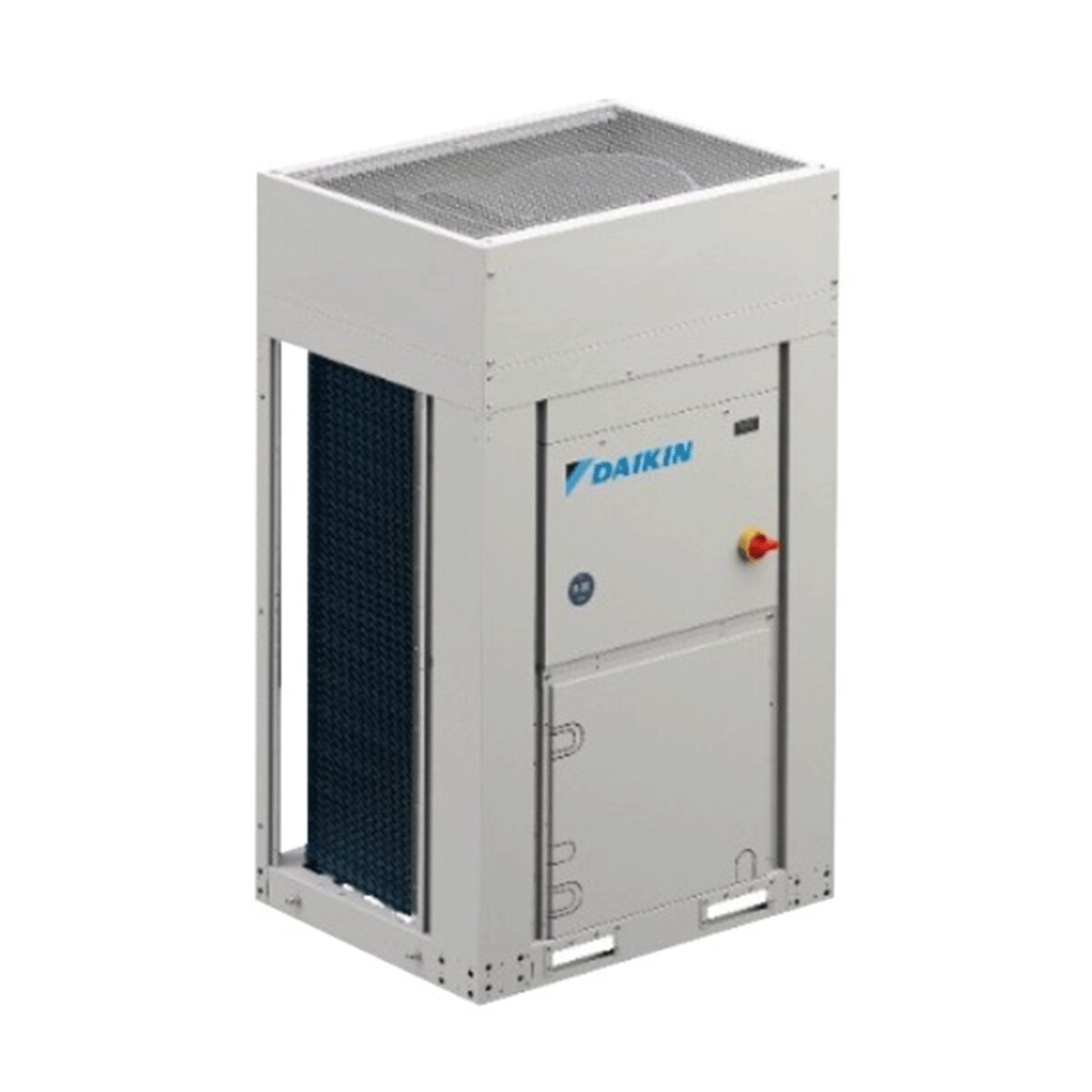

Daikin Small Chiller EWYT-CZP-A1 16 kW Three-phase air/water heat pump
The Daikin Small Chiller EWYT-CZP-A1 heat pump with Hydronic Module and Inverter Technology is innovative and efficient, characterized by a three-phase power supply available for commercial applications and beyond.
Inverter- driven compressors regulate their speed, adapting their operation to actual needs. This allows you to limit stops and starts, reducing energy consumption (up to 30%) while maintaining more stable temperatures.
High efficiency at partial load to reduce operating costs and minimum inrush current, heating guaranteed all year round and production of hot water up to 60°C and cooling from -20°C up to 52°C to meet any need of installation that can be influenced by the temperatures of the place of interest.
The buffer tank is not necessary for standard applications.
TECHNOLOGY, COMFORT AND SAVINGS GUARANTEED
Daikin EWYT-CZP air/water heat pumps guarantee excellent energy efficiency and are extremely silent during operation, being among the units with the lowest sound power levels on the market and responding to the most rigorous requirements in terms of operating temperatures. exercise.
Daikin's EWYT-CZP series provides the lowest levels of CO2 emissions, positioning these heat pumps among the greenest ones thanks to the use of R32 refrigerant, known to be a sustainable refrigerant with reduced global warming potential, in full optic of environmental protection.
This heat pump is equipped with a Daikin Scroll compressor with DC Inverter motor which increases efficiency levels both at full and partial load; Hermetic scroll compressor optimized for R-32 refrigerant and complete with motor over-temperature and over-current protection devices. Scroll compressors are of high quality, designed to optimize performance and guarantee constant reliability and high efficiency throughout their operating life.
The high energy efficiency is also guaranteed by the Inverter axial fans, which make this Daikin series with R32 Inverter an entirely Inverter series. Furthermore, the units are supplied as standard with the fan's Silent mode: this feature allows the user to set a series of detailed time bands to reduce the rotation speed of the fan and consequently the noise emissions in areas where night silence is a binding specification. The average noise reduction is -2dB(A).
Further features include: optimized copper/aluminium condensing coil and low head inverter pump kit.
This heat pump includes the Master/Slave system as standard for perfect system connectivity: it is a type of configuration that allows you to connect up to 4 units capable of operating as a single system. Simple interface with Bacnet, Ethernet TCP/IP or Modbus communication protocols. Connectivity for external BMS communication cod. OPTIONAL EKRSCBMS (Modbus RTU / TCP, Bacnet MSTP / IP); Remote monitoring and system optimization is possible thanks to the proprietary Daikin On Site Cloud platform.
LARGE MODULARITY OF INSTALLATION AND USE
Daikin EWYT-CZP heat pump systems guarantee high performance over a wide temperature range. The units are compact and take up little space; they can also be transported through narrow passages and take up little space in the installation site. Additional information regarding installation methods and technical specifications is given in the user manual supplied with the product.
The installation must be carried out by expert and qualified personnel.
STANDARD ACCESSORIES
- Control on board the machine
DIMENSIONS
- Width 1152 mm_Height 1878 mm_Depth 802 mm
- Weight 261 kg
WARRANTY
The warranty is the official Daikin one and lasts 2 years.
