EPDM gasket diameter Ø 80 mm for condensing boiler fume exhaust

EPDM gasket diameter Ø 80 mm for condensing boiler fume exhaust

Code PAGT 70 D80

This EPDM elastomer gasket is part of the Stabile SMF Flex PP flue system family .

The components of the Flex PP system are created to be used with condensing boilers and, in general, heat generators for which the flue gas discharge temperature does not exceed 120°C . The flexible polypropylene pipe of the Flex PP family can also be used for kitchen hoods and air supply or extraction ducts, as long as the fume expulsion temperature does not exceed 120°C.

The Flex PP System of the SMF Stabile family is an intelligent and economical idea especially for ducting old flues avoiding the use of more complex systems with metal or other types of pipes.

The flexible hose with a nominal diameter of 80 mm has male - female ends for connection to the other components of the exhaust system. The male end has a locking bayonet connection, on the female side it is necessary to purchase the gasket proposed here for connection to other elements or sections of pipe.

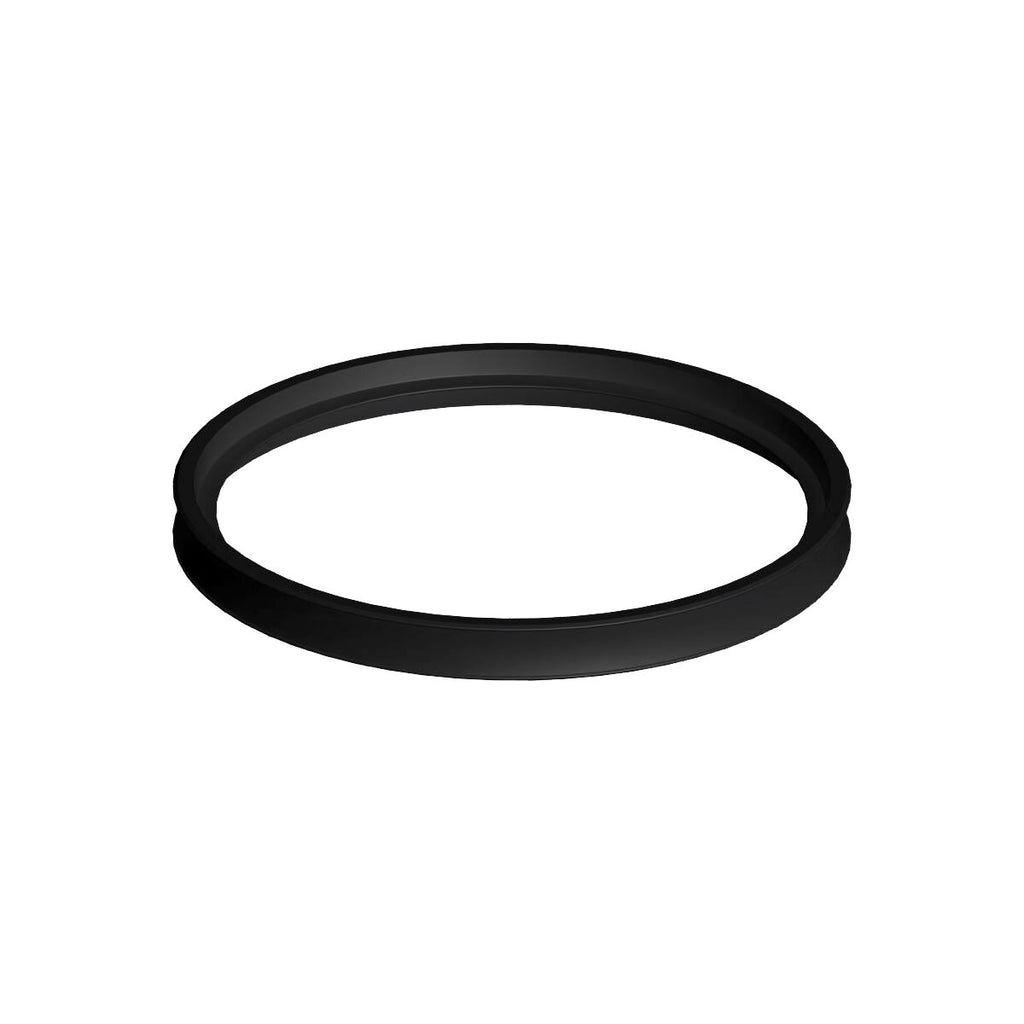

The EPDM PAGT 70 D80 gasket is of the single-lip type, black in color and resistant up to a temperature of 140°C; is certified according to the EN 14241-1 standard.

The installation and maintenance of these systems are fairly simple operations but must always be carried out by qualified personnel and in accordance with current regulations.

DIMENSIONS

Diameter Ø: 80mm.
