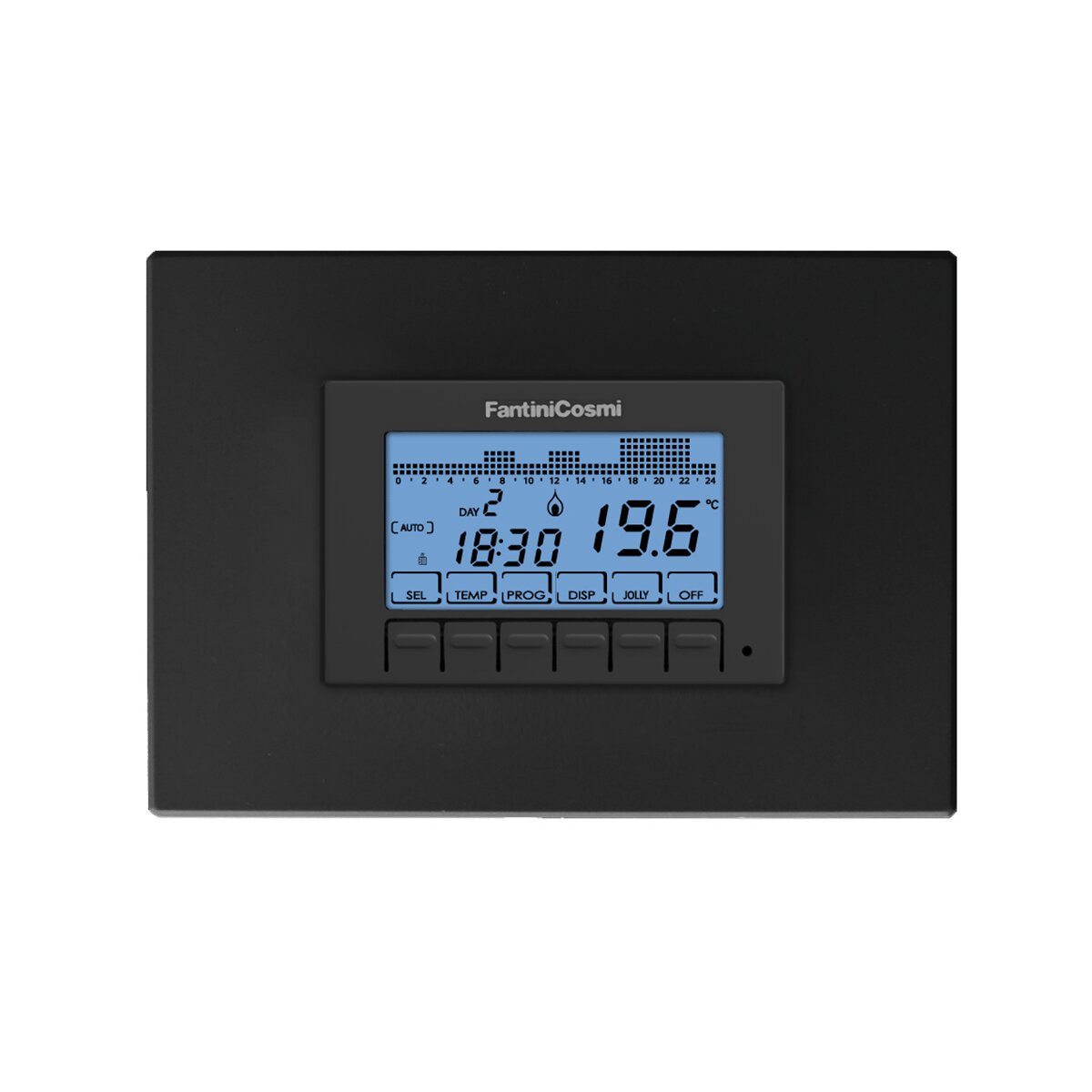

Fantini Cosmi Intellicomfort CH141A built-in electronic microprocessor chronothermostat

Fantini Cosmi Intellicomfort CH141A built-in electronic microprocessor chronothermostat

The CH141A room thermostat is part of the range of accessories for air conditioning and heating designed by the Fantini Cosmi brand in order to make the temperature of the rooms intuitive, stable and as comfortable as possible: this product in fact allows you to keep the temperature of your domestic spaces constant and always perfectly balanced.

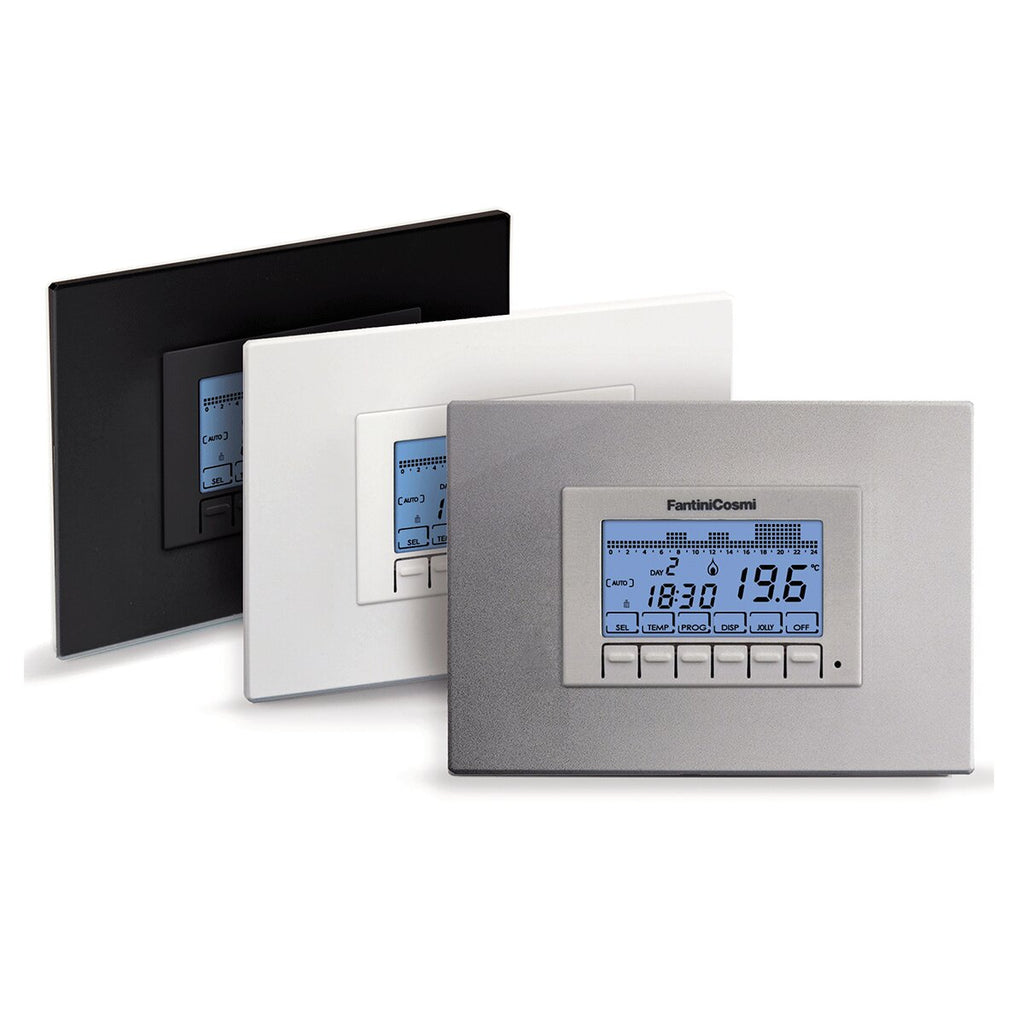

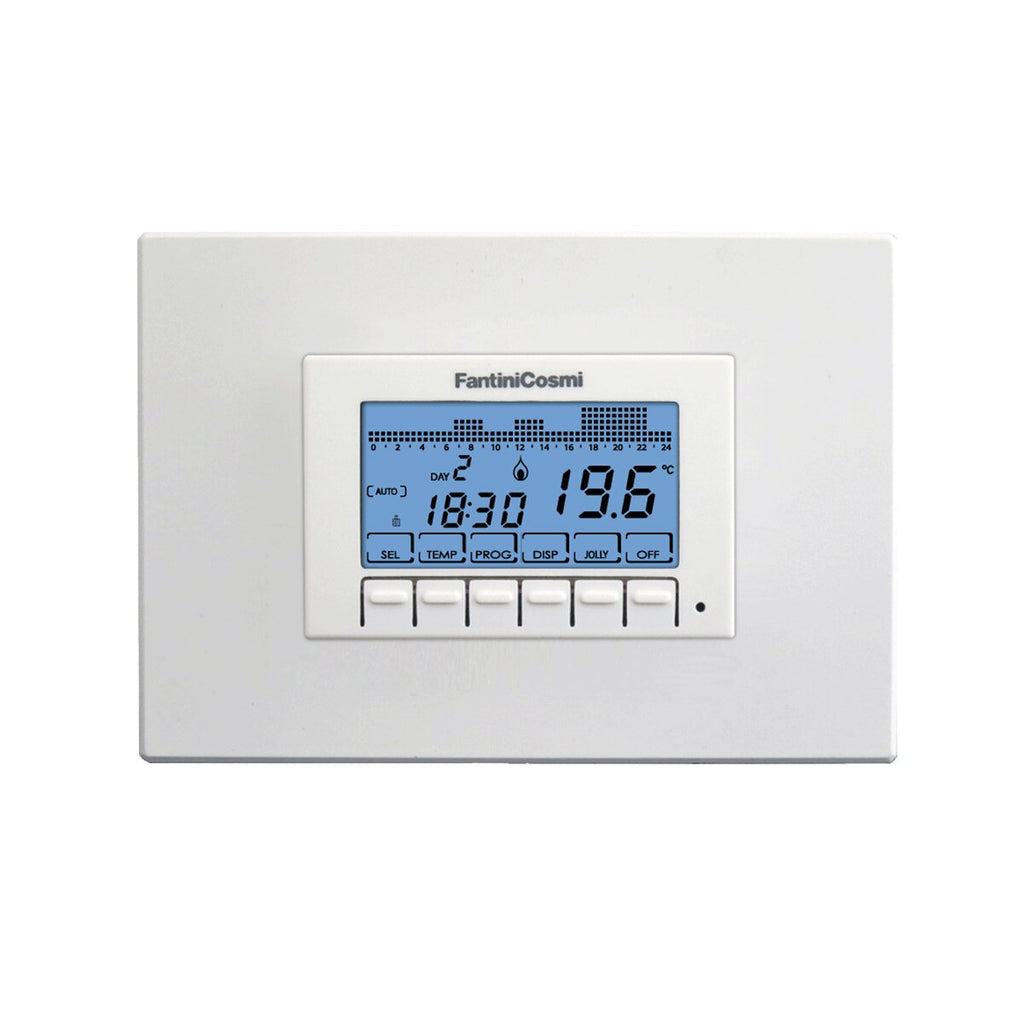

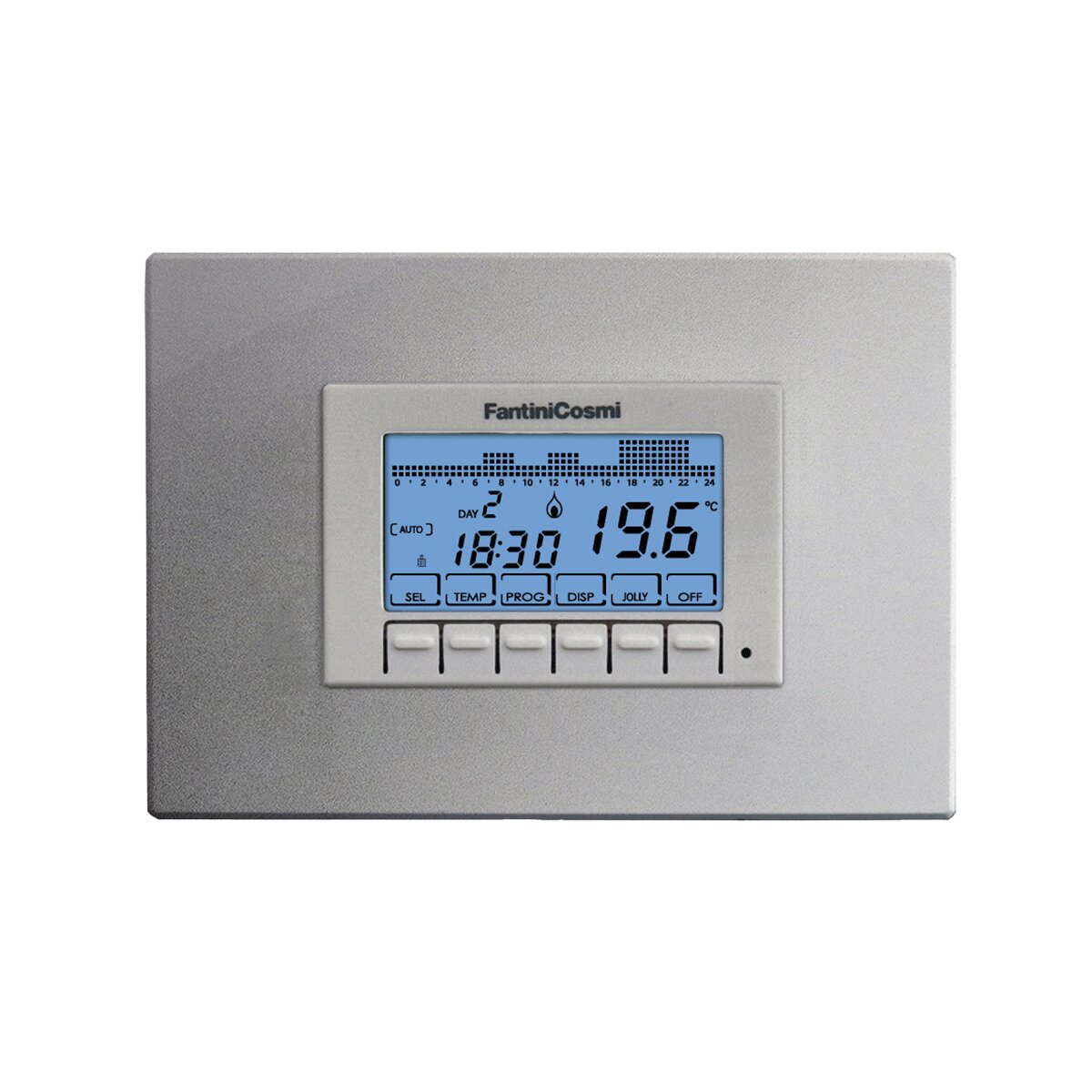

The CH141A Fantini Cosmi room thermostat has a modern and elegant design suitable for any environment thanks to the versatility offered by the supplied multiple-plate kit consisting of: chronothermostat, colored covers (white, silver and anthracite), frames and adapters. It consists of a large mixed LCD display (graphic, symbols and seven-segment digits); adjustable LED backlighting (blue) with the possibility of choosing whether to display the temperature in Celsius or Fahreneit and maximum ambient temperature 45°C; there are also 6 front buttons for precise and punctual programming: from the display it is possible to view the time, the room temperature, the temperature profile displayed via histogram and 6 graphic icons for programming. Power supply without connections to the power line with 2 AAA 1.5V alkaline batteries (not supplied) .

There are many programs that can be set: in the AUTO and HOLIDAY programs it is possible to set four different temperatures and select one for every half hour of the day. Three of these temperatures (T1, T2 and T3) can take on values from 2° to 40°C, while the fourth, T antifreeze (TA), can vary from 2° to 7°C, or be set as “OFF” ( i.e., system turned off). The MANUAL program has its own specific temperature (TMan), as does the JOLLY program (Tj), which are set in the respective screens and which can range from 2° to 40°C.

Further technical specifications concern: measurement/display scale ambient T -35 +60 °C; minimum regulation differential 0.1°C; reference thermal gradient 4K/h; class A software; microdisconnection (1BU); voltage-free switching contact.

The package includes 1 chronothermostat, 4 frames, 3 colored covers type A, 3 colored covers type B, 3 pairs of adapters, 1 pair of special adapters for Bticino Matix, 2 screws and 1 user manual which contains all the information regarding the characteristics techniques, operation and installation methods.

The Fantini Cosmi CH141A chronothermostat is built -in installation by expert and qualified technical personnel.

DIMENSIONS

- Width 68 mm_Height 52 mm_Depth 58 mm

WARRANTY

The guarantee is the official Fantini Cosmi one and lasts 2 years.
