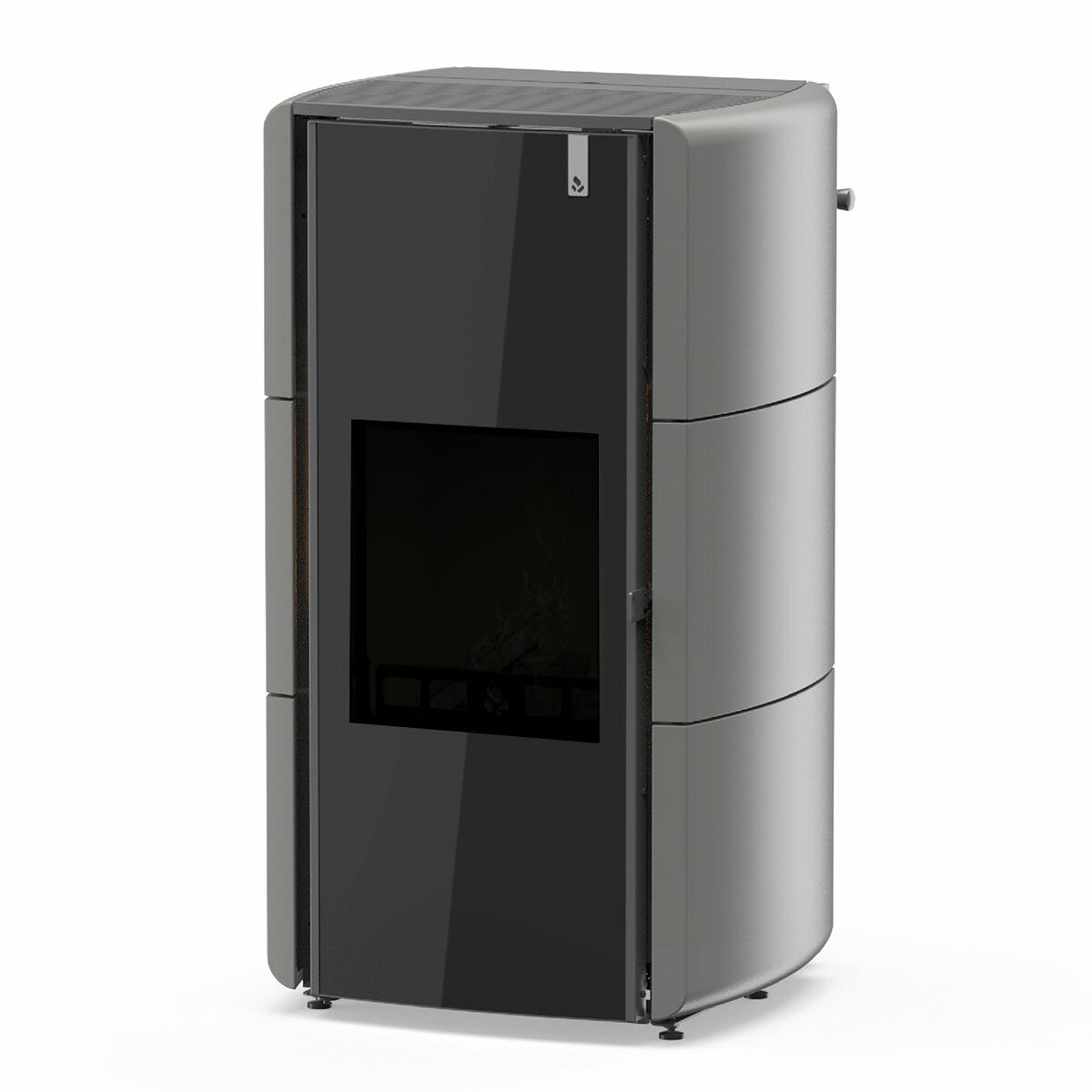

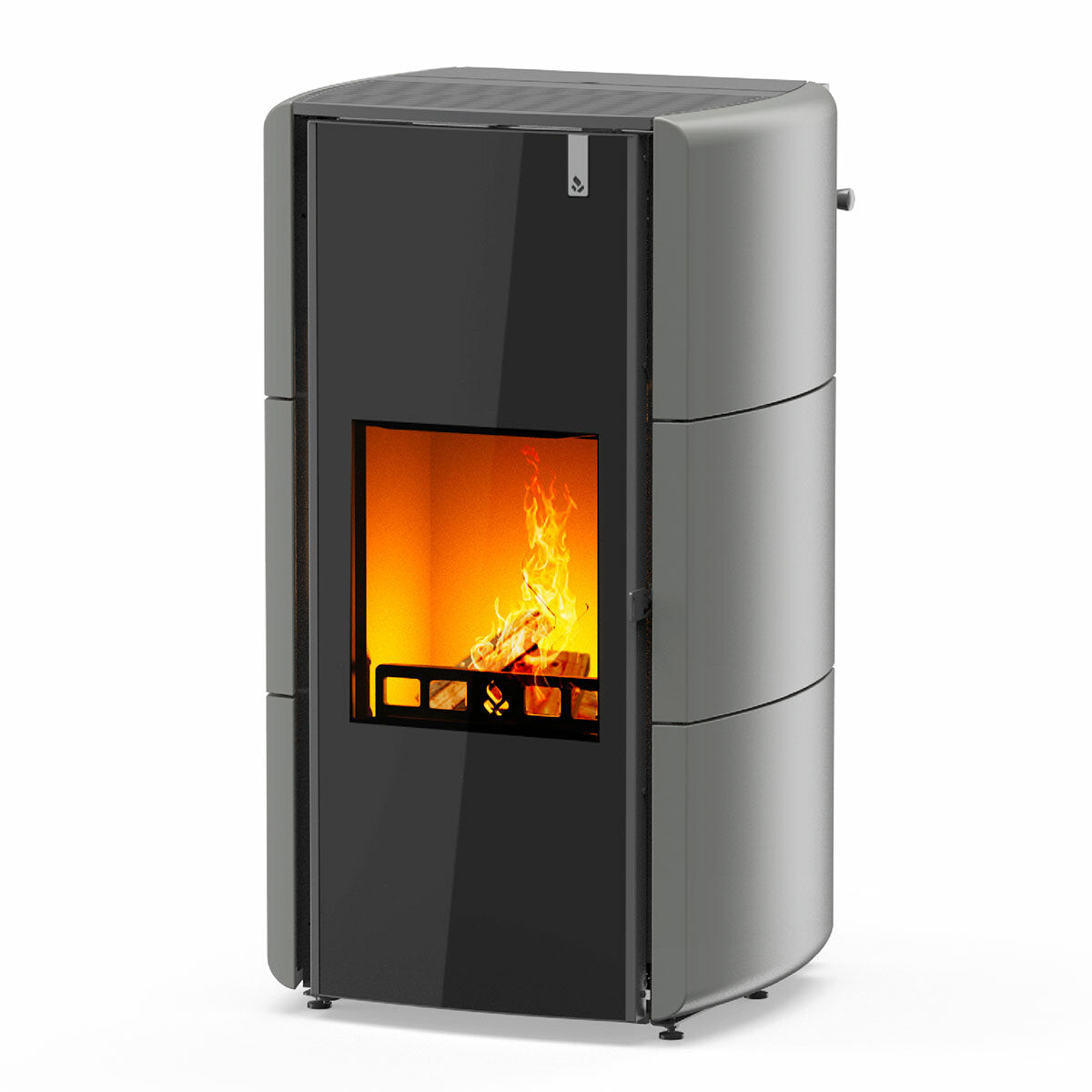

Girolami Edge 22 kW Hydro Multi-Fuel/Hybrid Stove with Hot Water Kit - Grey
Nominal thermal power 22.07 kW (19.09 kW released to water)
Ideal for heating a surface of 200 m2 with an average height of 2.7 m
Girolami products are truly incredible, like the Edge multi-fuel/hybrid stove that combines technology, efficiency, and unmistakable style.
The Girolami Edge stove is a hybrid product, created to be used with many types of fuel such as: wood, pellets, shells, hazelnuts, wood chips; it is configured In all respects, it is a smart and environmentally friendly investment that will bring immediate savings in consumption and management costs and a comfortable environment without sudden temperature changes.
The entire Girolami stove range features advanced technology with a specially designed algorithm that controls the combustion chamber temperature and detects the type of fuel being used, automatically managing the fuel supply and maintaining proper, controlled, and consistent combustion. FUEL CONVERT SYSTEM: thanks to the innovative fuel system, switching from pellets to wood and vice versa is completely automatic and hassle-free.
DESIGN
The Girolami Edge multi-fuel stove is truly one of the brand's flagship products: compact and technologically advanced, it embodies technical expertise combined with the need to optimize space, especially in modern environments. Its unique and unmistakable style features The gray majolica sides add a touch of class and craftsmanship, making this a versatile stove that's truly suited to any setting. This stove, in addition to its distinctive shape, draws attention to its large combustion chamber with curved Cristal Magik glass , which appears completely dark when the flame is off. When the insert is lit, it offers a view of a live, enveloping flame that surpasses that of the competition by more than 50% , highlighting the charm, attention to detail, and passion for fire that has always distinguished this brand.
TECHNOLOGY, COMFORT AND SAVINGS GUARANTEED
Efficiency, innovation and extreme practicality characterise the Girolami Edge multi-fuel thermo stove.
Girolami Edge works just like a boiler: thanks to the hydro system and the complete plumbing kit included, it can heat both technical water and domestic hot water . Equipped with a latest-generation control unit, it can be connected to both traditional and more advanced heating systems; forced ventilation (which can also be deactivated) allows for uniform heating throughout the room where the stove is installed.
The Edge thermo stove boasts a series of truly incredible technical features, designed to facilitate user management and make home heating a simple and sensorial experience. Certainly worthy of priority mention is the innovative self-cleaning fuel system, i.e., bottom-feeding with the patented Girolami system that allows for: NO daily or weekly cleaning , as the pellets rising from the bottom push the ash into the collection compartment located under the brazier; guaranteed ignition at any time, even when the brazier is dirty, ideal for those short on time; the flame is always alive and natural, as no fuel falls from above; low dust emissions thanks to a special system for additional combustion air; and, it should be remembered that this stove is a multi-fuel stove, allowing it to safely burn other certified biomasses and different types of pellets.
Unmistakable style and absolute practicality, all designed to integrate an aesthetically pleasing product into your home, packed with PLUS features in various respects: rear flue outlet Ø 100 mm; rotary valve; mechanical explosion-proof valve; pellet level sensor; daily and weekly programming; and a wide view of the flame that creates evocative atmospheres with a modern twist. Furthermore, it comes standard with a complete plumbing kit consisting of a high-efficiency circulator, anti-condensation valve, automatic filling unit with pressure gauge, 3-bar safety valve, deaerator, membrane expansion vessel, circuit drain valve, domestic hot water system with finned copper coil, and thermal relief valve. Further technical specifications can be found and explored in the user and installation manual provided with the product.
The Girolami Edge stove is managed via an advanced control unit , but it's also possible to manage it remotely using a WiFi remote control device (optional, code 5450). In the latter case, by downloading the dedicated app, it's incredibly easy to set up and monitor the stove's operation, enhancing some of its incredible features, such as the convenience of the self-cleaning brazier, allowing you to activate your home's heating remotely at any time, even when the brazier is dirty.
TECHNICAL CHARACTERISTICS
- Smoke outlet diameter: 100 mm
- Tank capacity: 25 kg
- Rated power: 22.07 kW
- Power output to water: 19.09 kW
- Heatable volume: 551 m³
- Max efficiency: 95.93%
- Source power supply
- Multi-fuel
- Complete hydraulic equipment.
DIMENSIONS
- Product dimensions: Width 66 cm_Depth 65.5 cm_Height 118 cm
- Fire compartment dimensions: Width 35 cm_Depth 20 cm_Height 38 cm
- Weight: 250 kg.
WARRANTY
The guarantee is the official Girolami one and lasts 2 years.
