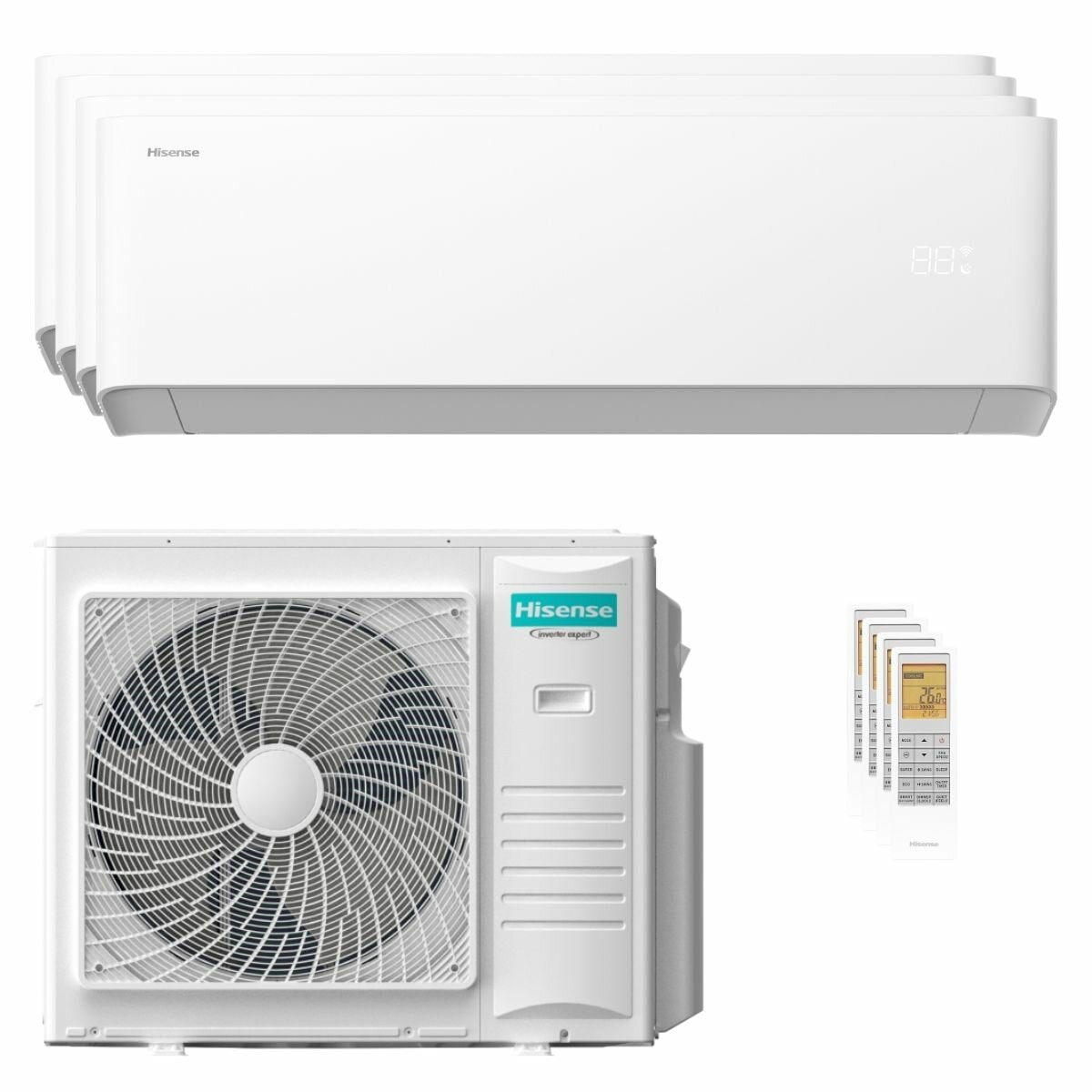

Hisense Uni HB quad split air conditioner 7000+7000+12000+18000 BTU inverter A++ wifi outdoor unit 10 kW The air conditioner kit is equipped with the following indoor units:
- 2 x 7000 BTU - Ideals for rooms from 10 to 15 sqm with an average height of 2.7 m
- 1 x 12000 BTU - Ideal for rooms from 25 to 40 sqm with an average height of 2.7 m
- 1 x 18000 BTU - Ideal for rooms from 50 to 60 sqm with an average height of 2.7 m
The Hisense Uni HB air conditioner represents the evolution of residential monosplit air conditioning: a complete R32 range, designed to offer high performance, low consumption and maximum comfort in every season .
The entire Uni HB range guarantees efficient cooling, heating and dehumidification even in extreme climatic conditions, with energy class up to A+++ , DC Inverter technology, ultra-quiet operation up to 19 dB(A) and Eurovent certification, confirming the real performance declared by the manufacturer.
A complete, reliable, and technologically advanced solution, ideal for modern homes, second homes, and environments where comfort, energy savings, and air quality are a priority.
MODERN DESIGN AND ADVANCED AIR FILTRATION SYSTEM

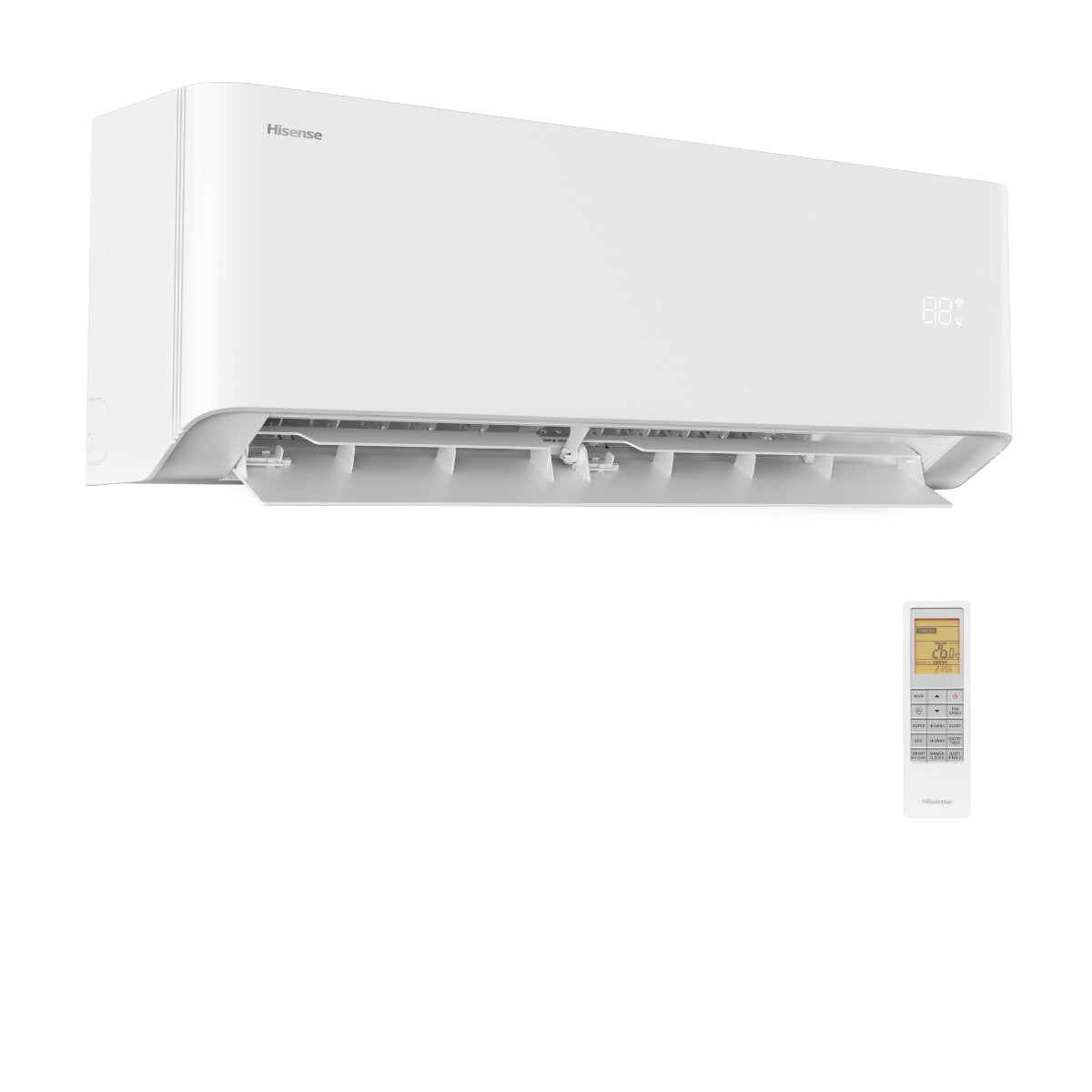

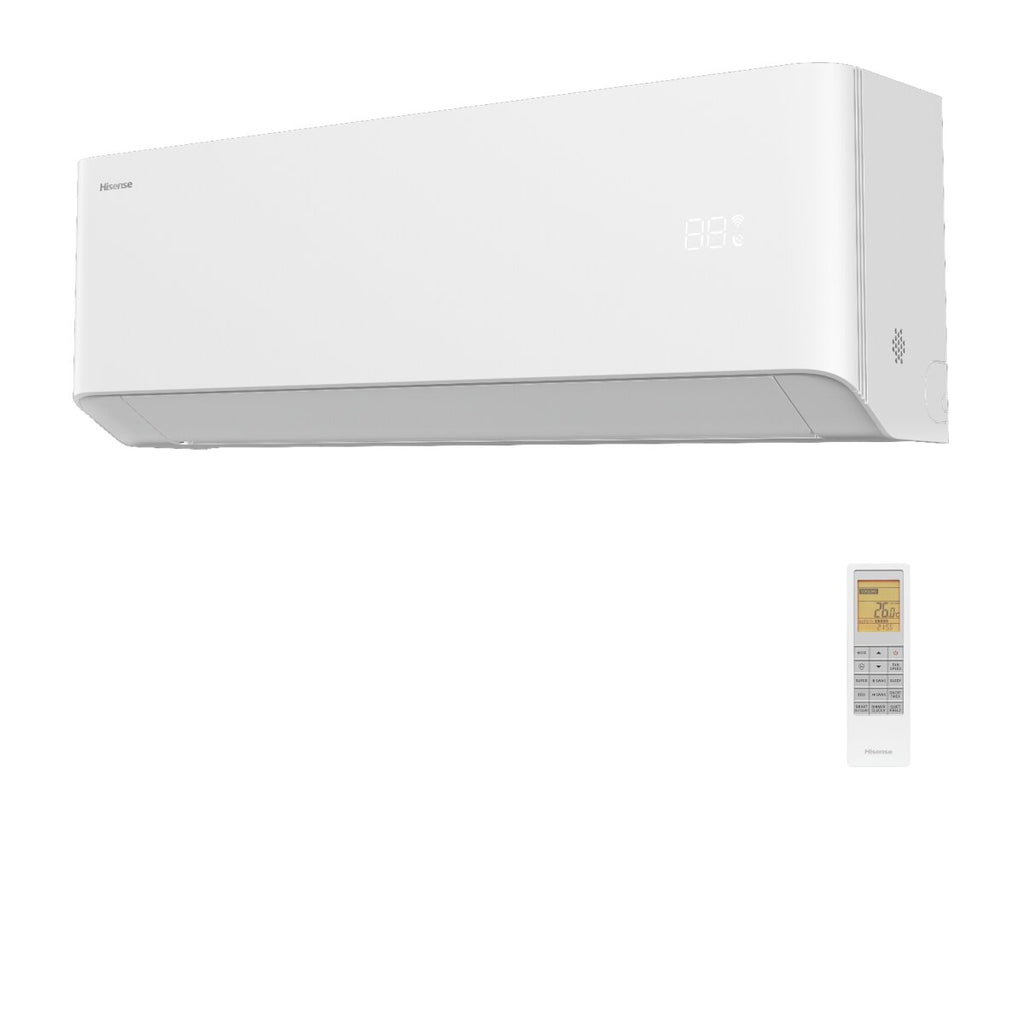

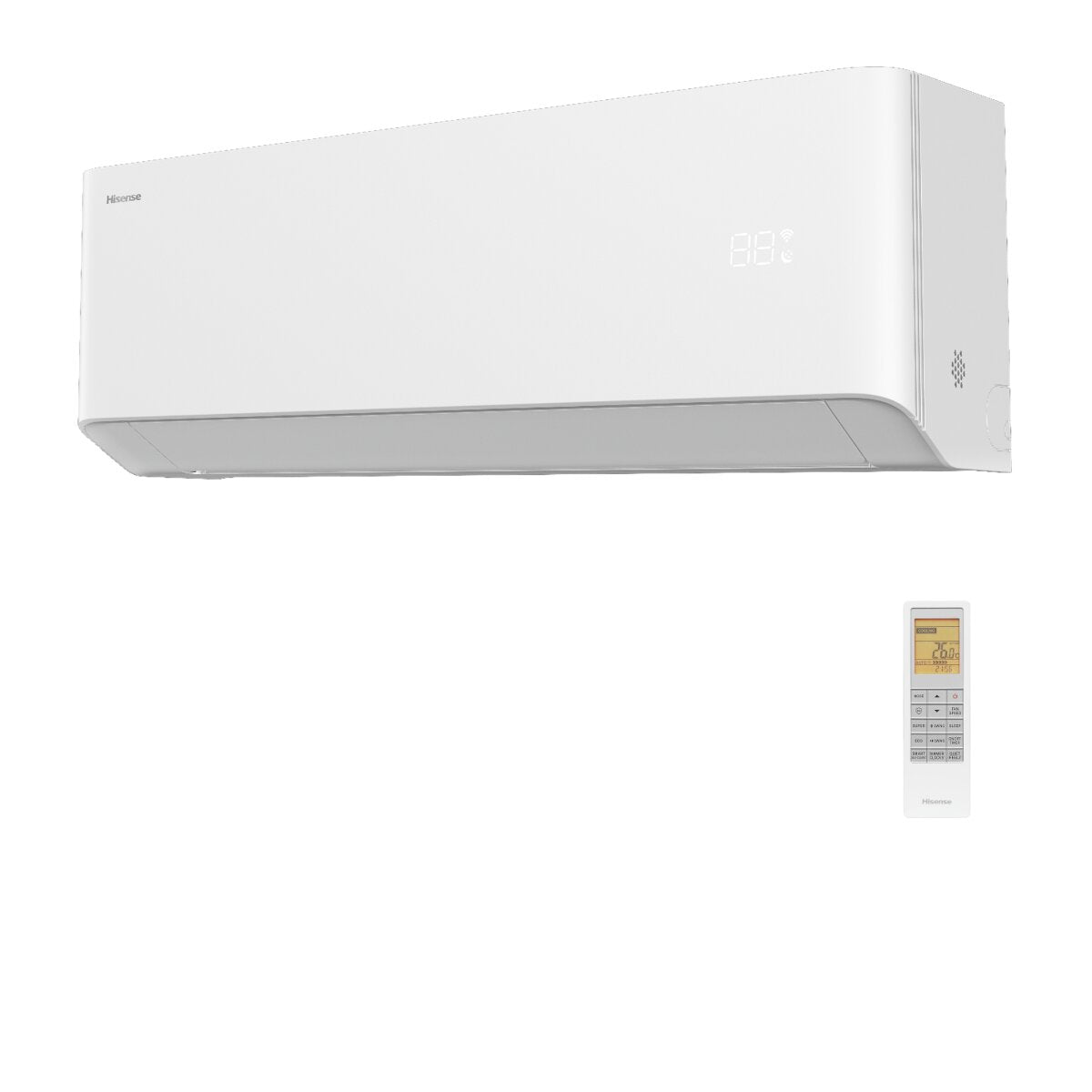

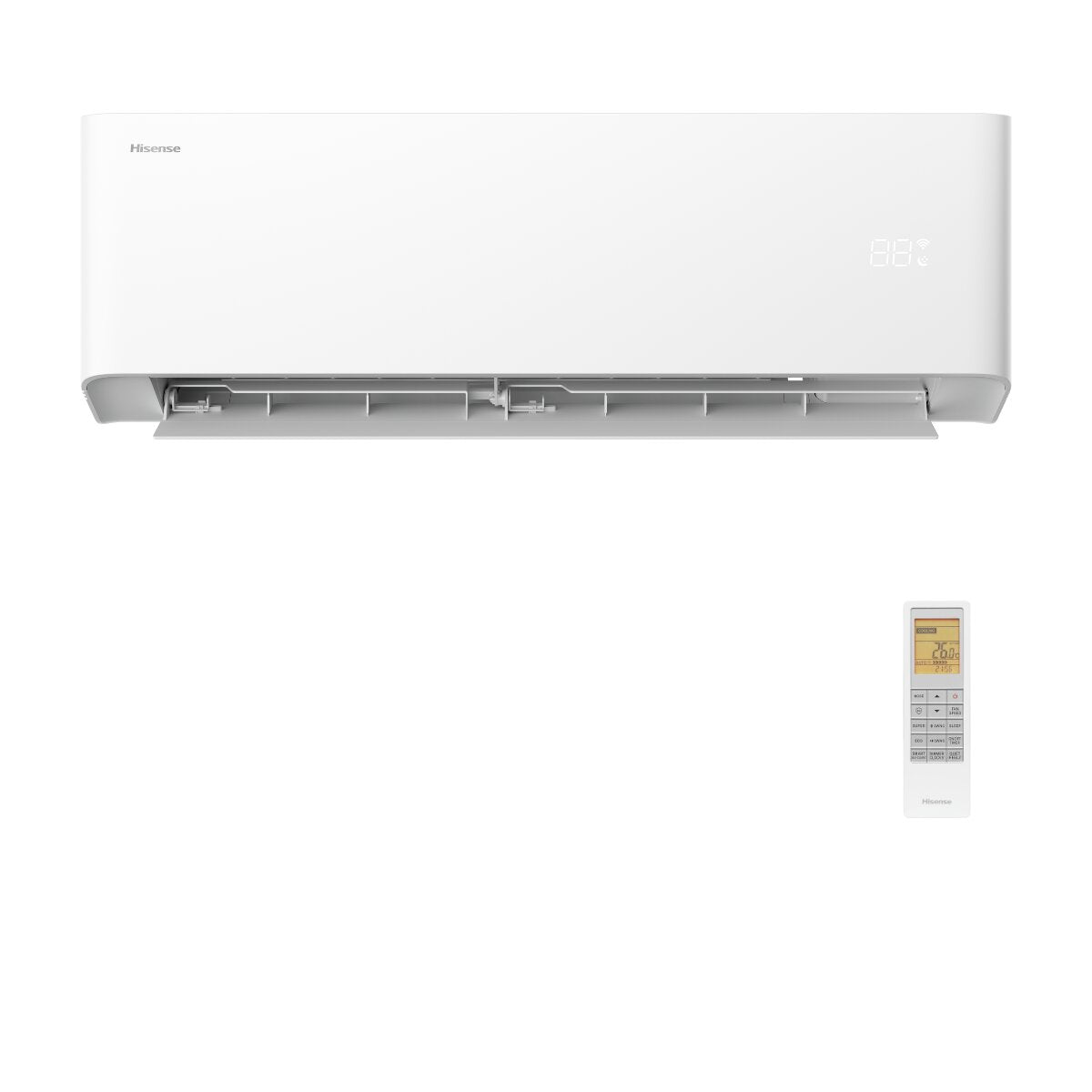

The design of the Uni HB indoor unit is designed to integrate discreetly into any home environment: clean lines, compact profile and integrated LED display with Dimmer function, to eliminate any light disturbance during the night hours.
Great attention is paid to the quality of indoor air , thanks to an advanced treatment system that combines multiple technologies:
-
HI-NANO : active purification system that generates positive and negative ions capable of spreading evenly throughout the environment, helping to reduce viruses, bacteria, allergens, and polluting particles . Tests demonstrate high efficacy even against viruses such as H1N1 and SARS-CoV-2;
-
Anti-mold treatment with hydrophilic aluminum (monosplit models only) : after switching off, the fan continues to run to dry the evaporator, preventing the build-up of humidity, mold and bad odors;
-
Self-Clean : patented self-cleaning system which, through freezing, defrosting and high-temperature drying cycles, keeps the exchanger clean, improving efficiency, hygiene and durability over time;
-
Built-in filter: Located at the top of the AC, it has a higher sealing and better dust prevention.
The result is healthier air, a more comfortable environment, and reduced maintenance over time.
Hisense technology and intelligent functions for tailor-made comfort
The technological heart of the Hisense Uni HB air conditioner is the combination of a DC Inverter compressor , electronic expansion valve and intelligent air flow control, which allows for high performance with extremely low consumption .
The Hisesne Uni HB air conditioner features a series of incredible technological features, making it one of the best new-generation residential air conditioners.
Airflow control and uniform comfort : Adjustable airflow with louvers that can be adjusted to 6 vertical (top/bottom) and 3 horizontal (left/center/right) angles for precise air distribution; Smart Airflow : in cooling mode, the air is directed upwards, in heating mode, downwards, for natural and uniform comfort; Wide air throw of up to 12 meters (sizes 2.5–3.5 kW) and 15 meters (sizes 5–7 kW), ideal even for large rooms.
Smart and customizable functions: I FEEL : the sensor integrated in the remote control detects the actual temperature at the user's location, automatically adjusting the unit's operation for more precise comfort and greater energy savings; 4 Sleep modes : differentiated night programs that modulate temperature and ventilation to promote deep, silent rest; Special Restart at 8°C : anti-freeze function perfect for second homes, which keeps the environment protected during the winter by reducing humidity and consumption; ECO and SUPER modes : to choose between maximum energy savings or rapid cooling/heating when needed; ON/OFF contact (optional): The input port on the PCB can be used to control the unit's on/off switching via the room card or smoke sensor, ideal for hospitality facilities.
Advanced connectivity
-
Integrated Wi-Fi with ConnectLife App, to control the air conditioner remotely, schedule on and off times, monitor energy consumption and manage statistics.
-
Smart Voice voice control , compatible with Amazon Alexa and Google Assistant , for simple and intuitive management even via voice commands.
-
Full-featured infrared remote control , allowing you to manage all main and advanced functions, including airflow, SLEEP mode, HI-NANO, I FEEL and restart at 8°C.
-
For fixed and professional management, it is possible to install OPTIONAL wired wall controls , such as YXE-E01U(E) , YXE-C01U(E) or the centralized control YJE-C01T(E) for the control of multiple units. Furthermore, Hisense Uni HB air conditioners do not have the active Modbus protocol as standard , but can be integrated into a BMS / Modbus system by purchasing a dedicated accessory separately ( BMS interface module (Modbus/BACnet) – Cod. B544(E)). These solutions are particularly suitable for accommodation facilities, hotels, residences, B&Bs and professional environments .
As an example for professional management:
Simple ON/OFF (room card, window contact):
✔️ Wired control
❌ NO BMS module
Centralized management / supervision / Modbus:
✔️ Wired control
✔️ BMS interface module (Modbus/BACnet)
Installation, management and reliability over time
Hisense Uni HB is designed to simplify the installer's work, guarantee the end user a reliable and durable product and lower management costs:
-
Easy Installation Pro : Smart mounting brackets, integrated level, multiple fixing points and ample space for pipe connections, for quick and precise installation.
-
Easy maintenance : lateral housing of the electronic board which reduces intervention times by up to 45%.
-
Self-diagnosis of faults : the system reports any anomalies via codes on the display, facilitating technical assistance.
ACCESSORIES INCLUDED AS STANDARD
- Remote control
- Built-in WiFi
WARRANTY
The warranty is the official Hisense one and lasts 2 years.

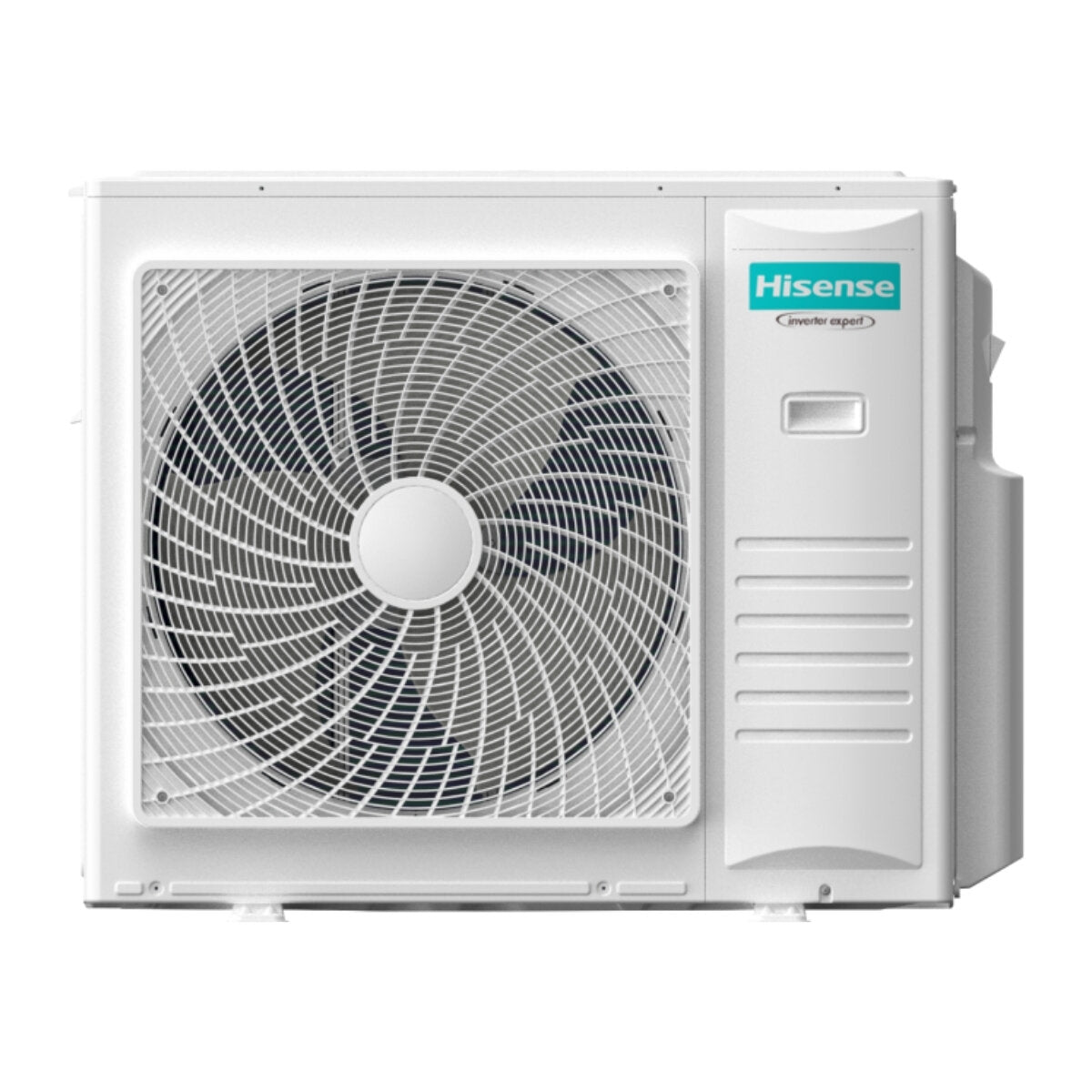

THE EXTERNAL UNIT
The external unit for Hisense Multisplit air conditioners has Inverter and Heat Pump technology and represents the heart of the air conditioner. The unit is equipped with R32 gas and is equipped with the latest generation technology; it guarantees high efficiency and performance, silence and energy savings in every season.
Multisplit external units offer the great advantage of air conditioning multiple rooms using a single external unit and an internal unit for each room ; they are particularly recommended where there is little space for the installation of multiple external units or when you want to reduce the visual impact of this component of the air conditioning on the facade of the building.
The external unit described here has a nominal power of 10 kW and allows you to connect and power up to five Hisense internal units of any series, even of different powers; the internal units will always operate independently and each will be equipped with its own control.
GUARANTEED SAVINGS

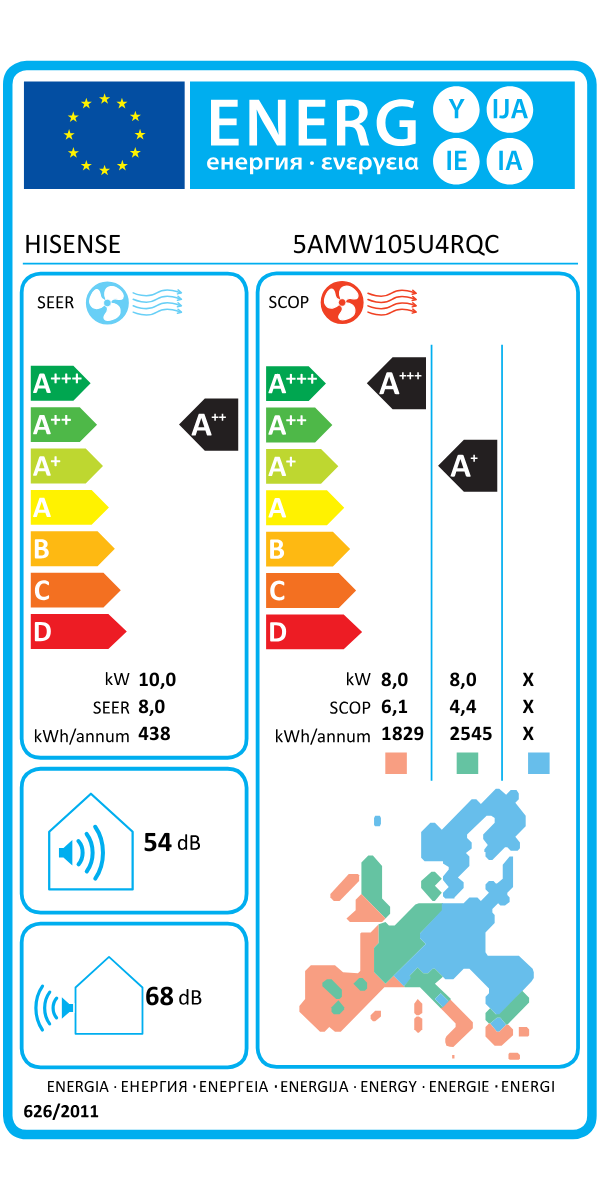

The new Hisense Multisplit outdoor units are equipped with a double rotor BLDC Inverter compressor that allows for better balance and reduction of machine vibrations, with consequent reduction in noise. Therefore, silence is guaranteed and excellent performance and energy efficiency with an A++ class in cooling. All this is also guaranteed by the synergic action of the DC Inverter fan and the electronic expansion valve .
These external units are equipped with Smart Defrost technology which, in heating mode, activates automatic defrosting based on external weather conditions to prevent the unit from freezing and ensure maximum comfort even at temperatures down to -20°C .
The dimensions of these external units are smaller than previous versions to facilitate installation and placement even in small spaces.
WARRANTY
The warranty is the official Hisense one and lasts 2 years.
