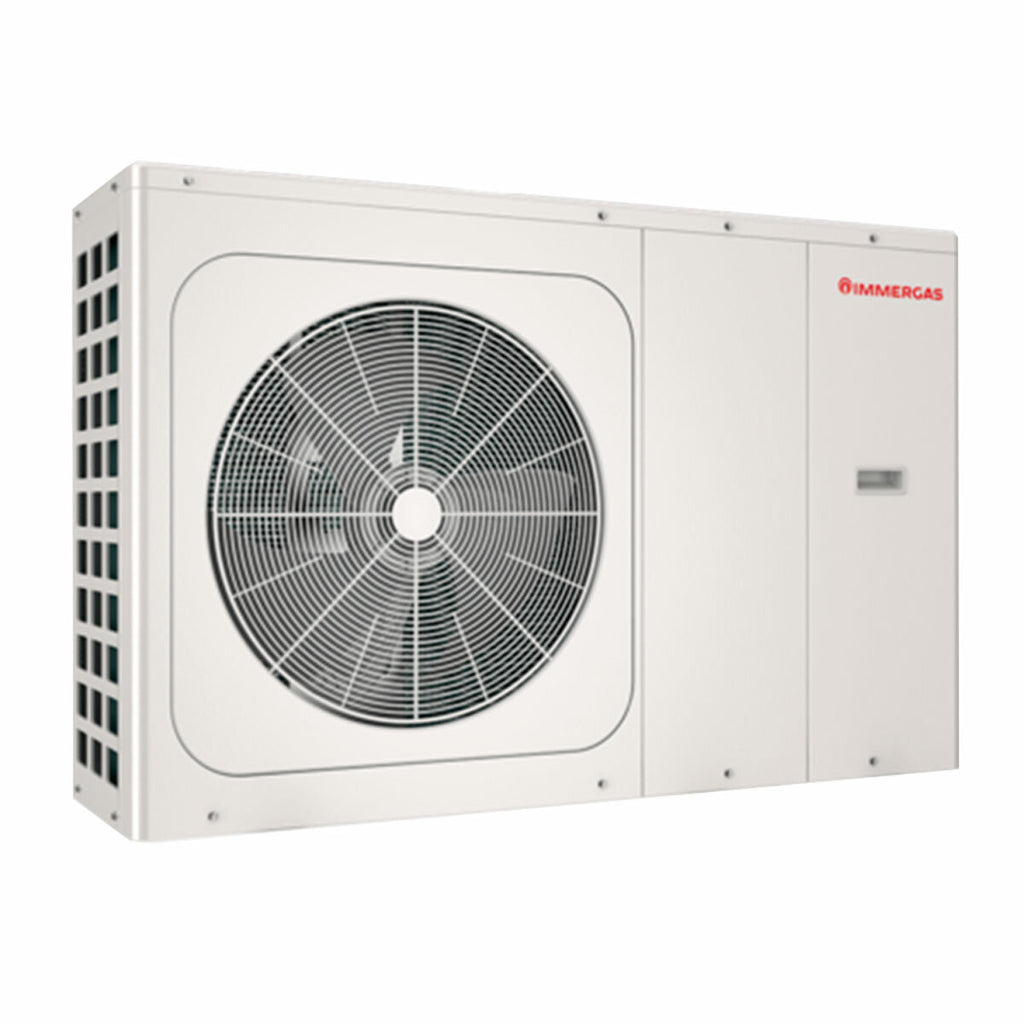

Immergas Magis M8 air-water heat pump 8 kW monobloc single-phase Inverter R32 A++
8 kW- Ideal for units of approximately 80 sqm with an average height of 2.7 m
The Immergas Magis series heat pump is truly surprising: technology, high comfort, savings and excellent performance in a single reversible air/water packaged solution, ideal for supplying the energy needs for both cooling and heating of new homes, offices, shops etc... easy and flexible installation, a single space-saving component for outdoor installation that performs all the functions: heats, cools and produces domestic hot water (in combination with a separate storage tank unit).
Designed to operate optimally even in harsh seasonal conditions with external temperatures of -25 °C in winter and +43 °C in summer, in heating the maximum delivery water temperature set point is 65 °C, temperatures the latter which facilitate their integration into systems with radiators, fan-coils and/or radiant systems. The entire range complies with the requirements of the ErP Directive (2009/125/EC) and ELD (2010/30/EC).
The model presented here is the one with a nominal power of 8 kW single-phase, ideal for real estate units up to 80 sqm.
GUARANTEED SAVINGS AND HIGH COMFORT
The energy efficiency of the Immergas Magis M8 heat pump is very high, electrical absorption and low energy consumption with performance up to energy class A+++ (hot water at 35°) and A++ (hot water at 55°).
This Immergas heat pump has a series of features that make it among the most competitive on the market for various technical and functional aspects. Starting with greater comfort with minimum environmental impact, for example, because this machine is pre-charged with the low GWP ecological R32 refrigerant gas and is hermetically sealed. Metal structure in galvanized steel suitable for outdoor installations. Equipped with a Twin Rotary rotary compressor with inverter drive, acoustically insulated with sound-absorbing materials with crankcase oil electric heater, low consumption and extremely attenuated vibration in all operating conditions, with a system for detecting the maximum and minimum pressure for correct operation of the compressor. Air/refrigerant gas exchanger with hydrophilic treatment on the fins of the external coil to improve the drainage and slippage of the condensation water; metal protection grid of the finned coil; axial fan with variable speed brushless DC motor with three-blade impellers characterized by an innovative design designed to optimize air distribution and reduce noise, to your advantage and that of your neighbours, silence further supported by the Silent Mode function, which can be set to two levels with hourly programming; bi-flow electronic expansion valve, high and low voltage pressure switches and many other technical functions which can be further known and explored in the user manual that is easy and quick to understand, in order to better manage all Immergas technology.

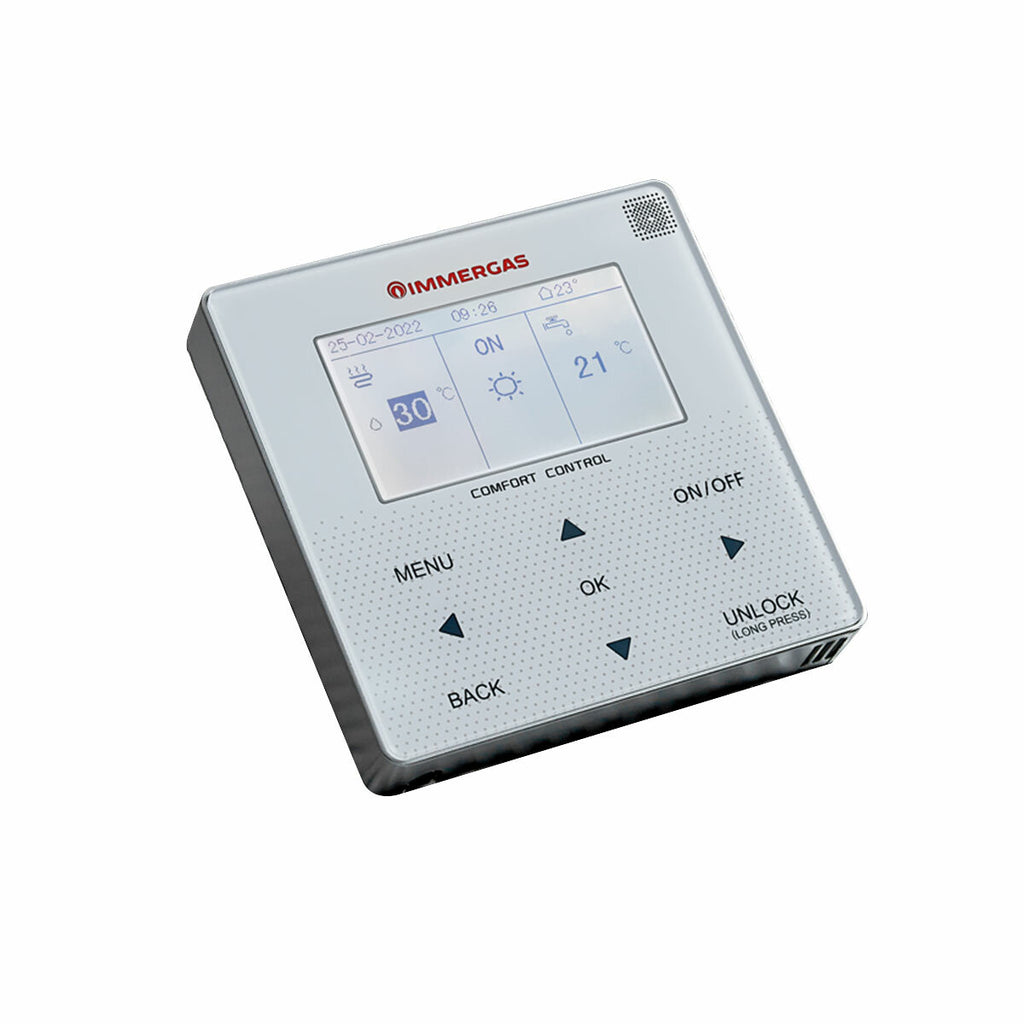

The Immergas Magis M8 heat pump is supplied as standard with a control panel (wired control), which must always be connected, performs programming functions and an On-Off room temperature sensor; it also displays error codes in the event of anomalies and malfunctions.
Magis M8 is equipped with an electronic management system equipped with various sensors located in key positions of the refrigerant circuit to electronically detect the operating status of the system; probes for detecting the temperature of the system delivery and return water and probe for controlling the DHW temperature in combination with a storage tank unit, or alternatively for managing the flow of the system mixed zone, or to control the temperature of a puffer/ thermostated inertial storage tank.
ADVANCED TECHNOLOGY AND FLEXIBLE INSTALLATION
Simplicity of installation and system flexibility are two characteristics of the Immergas Magis M8 air-water heat pump, a packaged unit which thanks to its compact dimensions allows for reduced overall dimensions.
This machine, with multiple possibilities, foresees the use as a single independent generator (Stand alone configuration) having an electronics on board the machine which, combined with the Control Panel (supplied as standard), allows, without having to add other electrical control units , to manage thermal systems distributed over two zones with differentiated temperatures (it is also possible to create simple cascade installations of up to 6 appliances).
Magis M8 by Immergas can also be the ideal solution for a combination within an integrated system, think for example of a system made up of a heat pump, boiler and solar thermal system, perfectly integrable plant solutions with the possibility of obtaining the maximum benefit by their synergy in relation to the respective efficiency parameters; however Immergas recommends, in these circumstances, the use of an intelligent System Manager capable of correctly piloting the plant by opting for the most suitable generator on the basis of certain energy parameters. In applications with System Manager, the Control Panel (standard), must always be connected and acts as a Modbus interface (Gateway) to communicate with the System Manager itself.
The system solutions as well as the additional stand-alone functions can be explored in more detail in the user and installation manual supplied.
Technical features
- Energy class in heating at 55 °C: A++
- Energy class in heating at 35 °C: A+++
- Useful heating power: 8.40 kW
- Useful power in cooling: 8.30 kW
- Refrigerant gas: R32
- COP: 5.15
- EER: 5.05
- Electrical protection: IP24
- Dimensions: HxWxD 865x1385x526 mm
- Weight: 105 kg
Accessories supplied as standard
- Wired control panel
Warranty
The warranty is the official Immergas one and has a duration of 2 years.
