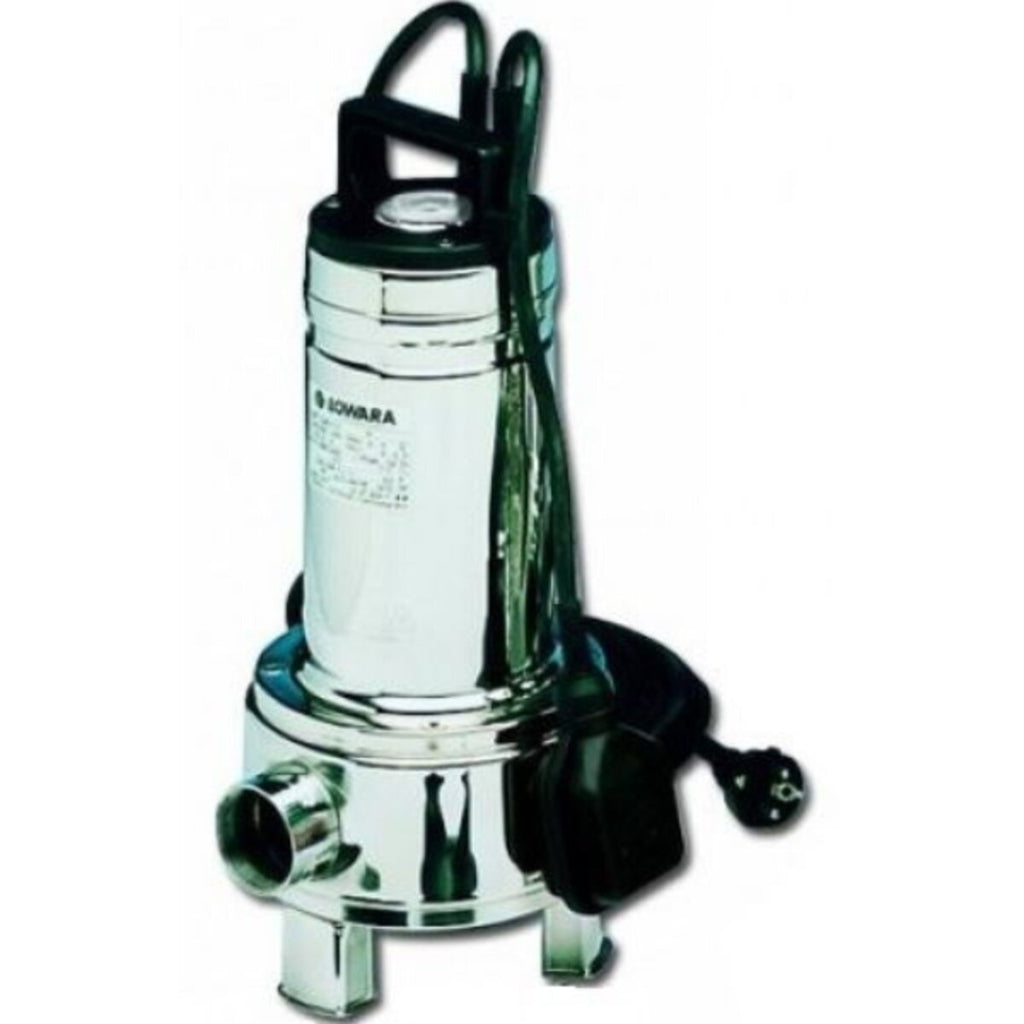

Lowara-Xylem submersible wastewater pump single-phase hp 0.75 kW 0.55 Domo7vx / b series

kW 0.55 HP 0.75 - Flow rate from 80 - 260 lt / min head from 7.1 - 2.0 mt - Delivery 1"½

LOWARA DOMO SERIES SINGLE-PHASE SUBMERSIBLE ELECTRIC PUMP FOR WASTEWATER

The submersible electric pump series DOMO7VX/B can be used for the drainage of dirty water and, in particular the VX version, also with filamentary bodies in suspension.

GREAT MODULARITY OF INSTALLATION AND USE

The DOMO7VX/B electric pump is part of the single-phase version electric pumps category with pre-assembled float for automatic pump operation. The electric pump can be used for the movement of sewage even with filamentous bodies in suspension; emptying of biological pits and domestic wells; emptying of wells and tanks in industrial and ecological applications; emptying of tanks or cistrene; emergency drainage of flooded areas.

The pump body and the impeller are in stainless steel, the elastomers in NBR and the mechanical seal is in silicon carbide-NBR extremely resistant to abrasion and wear.

GUARANTEED SAVINGS AND HIGH COMFORT

The submersible electric pump for waste water is equipped with a pre-assembled float, condenser integrated in the pump and thermal motor protector to cut off the power supply to the pump in case of overheating. The engine is cooled by the pumped liquid. The DOMO7VX/B version features the Rp 1"½ threaded delivery port, 38 mm passage of suspended solids and the vortex impeller in stainless steel. The immersion depth reaches a maximum of 5 m, the temperature of the pumped liquid can reach 35°C with the pump totally immersed.

DIMENSIONS

Height mm. 468 - Width 198 mm - Weight Kg. 13.6

WARRANTY

The warranty is the Official Lowara Xylem Water Solution one and has a duration of 24 months.
