Lowara surface pump series 5HM06 multistage centrifugal IE2

Lowara surface pump series 5HM06 multistage centrifugal IE2

kW 1.1 HP 1.5 - Flow rate from 40 - 120 l/min Head from 62.2 - 23.3 m - Delivery 1" Suction 1"

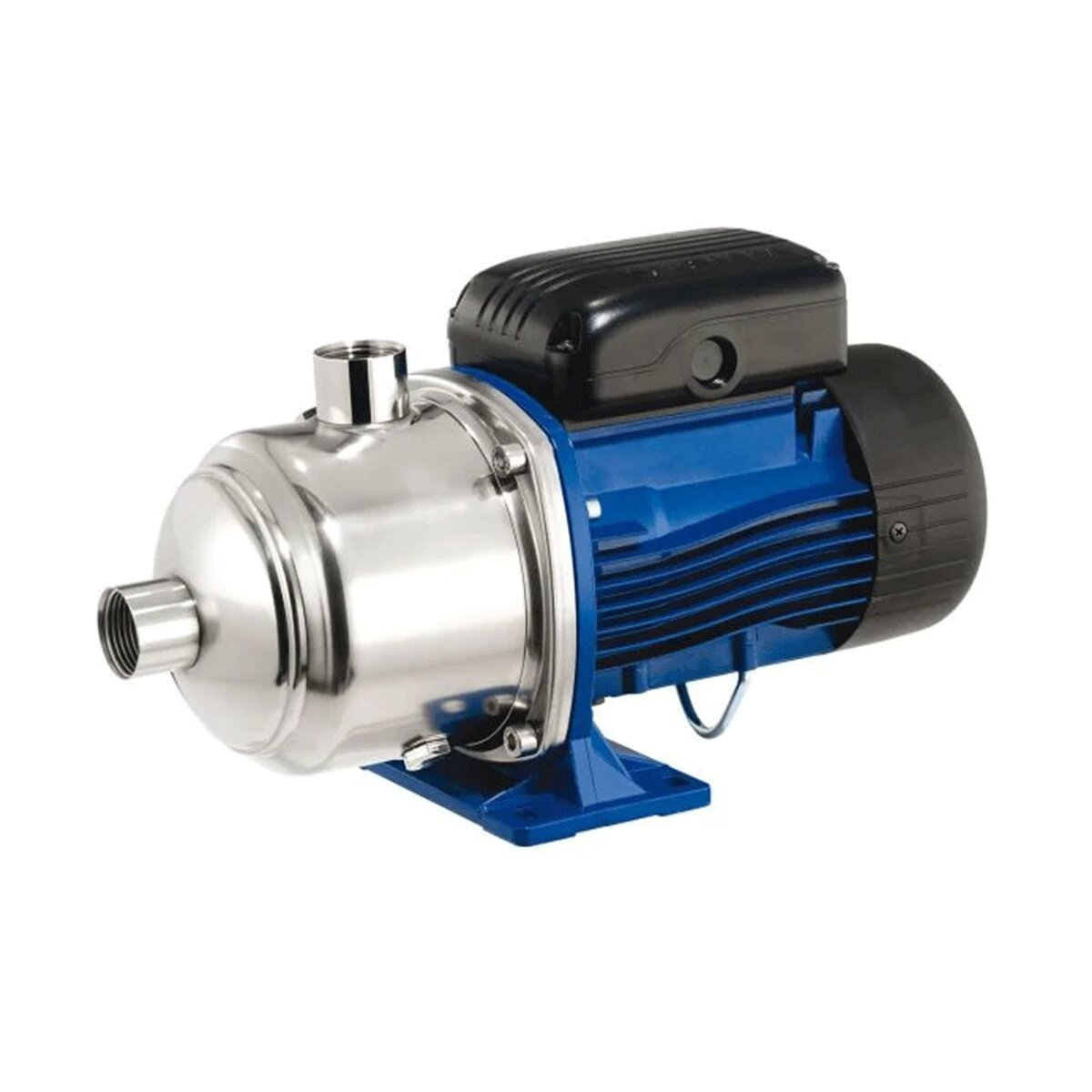

MULTISTAGE HORIZONTAL CENTRIFUGAL ELECTRIC PUMP 5HM06P11M LOWARA

The 5HM06P11M multistage horizontal centrifugal electric pump has been designed to meet multiple needs for moving water.

LARGE MODULARITY OF INSTALLATION AND USE

The 5HM06P11M pump is part of the single-phase horizontal multistage centrifugal electric pumps category. It also has high levels of efficiency for water supply and pressurization systems in offices and shops in small buildings. The pump body is made of AISI304 stainless steel , the impeller is made of noryl, the elastomers are made of EPDM and the mechanical seal is made of ceramic-carbon-EPDM . The centrifugal electric pump has a simple and intuitive installation thanks to the e-HM and Teknospeed combination; the system is supplied with cable, plug and pressure transmitter.

APPLICATIONS

The 5HM06P11M electric pump can be installed both in single private homes and in small/medium sized residential buildings. It is ideal for water supply and pressurization systems in offices and shops in small buildings, but also for small/medium sized irrigation systems.

GUARANTEED SAVINGS AND HIGH COMFORT

The horizontal multi-stage centrifugal electric pump was designed to meet the challenge of energy saving and represents an excellent solution, compact and reliable, to guarantee performance at the highest levels and low energy consumption. Single-phase electric motor with IE2 efficiency class in compliance with the European ERP Ecodesign Directive 2009/125/EC .

Its 6 impellers make it one of the quietest electric pumps in its category. The maximum operating pressure is 10 bar.

DIMENSIONS

- Length mm. 457 – Width mm. 150 – Height mm. 227

- Weight 14 kg

WARRANTY

The warranty is the official Lowara Xylem Water Solution one and lasts 24 months .
