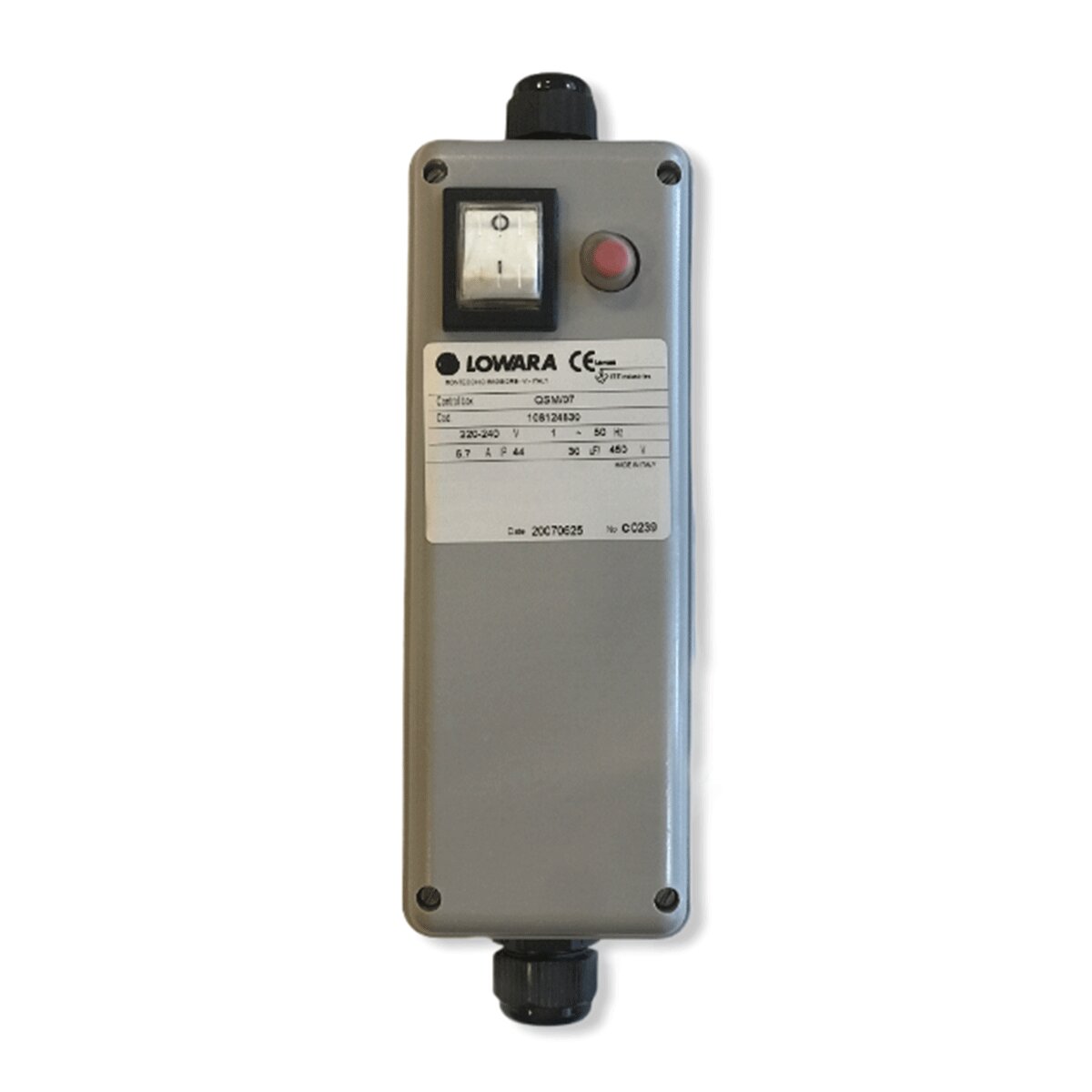

Lowara Xylem QSM/07 Electrical Panel for single-phase submersible electric pump 4 1 HP/0.75 kW
The Lowara QSM series has been specifically designed for the protection and control of a single-phase submersible electric pump 4.
Protective shell in plastic material, this electrical panel has a series of technical features designed to guarantee efficiency, functionality and safety. The presence of the built-in capacitor , for example, ensures stability and coordination with the other electronic components, avoiding the risk of voltage fluctuations and guaranteeing the correct functioning of the system.
But not only that, the Lowara Xylem QSM/07 electrical panel is equipped with a main switch to be started manually, simple even for the less familiar, for direct and safe starting of the motor, also including a motor protector inside the panel aimed at protecting thermal; IP44 protection degree and power supply voltage 1 x 220-240 V ±5%, frequency 50 hZ.
Some precautions are then fundamental: first of all, preliminarily check that the current absorption of the pump is included in the operating range of the panel and that the installation site is suitable with an ambient temperature of -5 to +40 °C and a maximum relative humidity of 50 % at +40 °C as long as there are no condensation phenomena. The QSM series is already equipped with a power cable with plug as standard, taking care to also include the protection devices associated with the power supply itself.
The electrical panel is installed on the wall by expert and qualified personnel ; further information on installation methods and the technical characteristics of the product is contained in the instruction booklet supplied, which we always recommend consulting beforehand.
DIMENSIONS
- Width 80 mm_Height 210 mm_Depth 65 mm
- Weight 0.45 kg
WARRANTY
The warranty is the official Lowara Xylem one and lasts 2 years.
