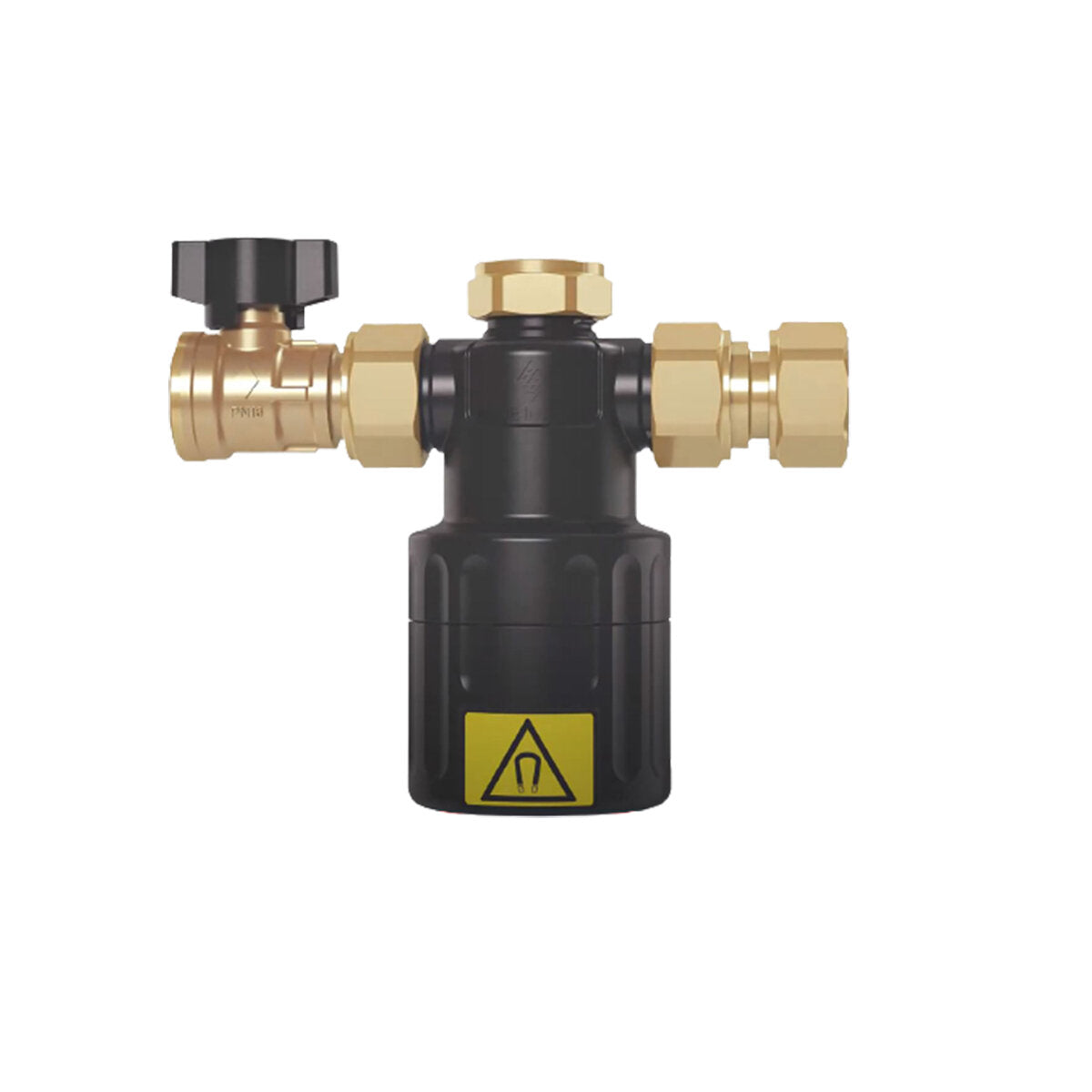

Magnetic dirt separator Rubinetterie Bresciane for condensing boilers

Magnetic dirt separator Rubinetterie Bresciane for condensing boilers

The dirt separator is a device used in heating systems with condensing boilers and performs the important function of protecting the boiler. It is installed on the return of the heating circuit before the water re-enters the boiler and retains the impurities present in the circuit which would otherwise damage the exchanger and the other components of the boiler. In addition to prolonging the life of the boiler, it considerably increases the efficiency of the heating system, improves the efficiency of the whole system, helps keep the valves and radiator holders clean (the use of the dirt separator in association with the valves is recommended thermostatic). The use of the dirt separator therefore makes it possible to obtain considerable savings also on gas consumption because the boiler must always heat clean water. It is recommended to install the dirt separator already in the system activation phase or in any case at the same time as the replacement of an old boiler with a new condensing one.

The Magneto compact dirt separator is the solution, to be installed at the system return to the boiler, to the problem of the presence of impurities inside the system such as: rust, sand and processing residues.

Magneto by Rubinetterie Bresciane is an adjustable dirt separator, designed for installation under wall-mounted boilers on both horizontal and vertical pipes. It is possible to install it in four different positions . Its dimensions are extremely small in order to easily find accommodation even in the smallest spaces. An absolutely versatile item with quick and easy installation.

TECHNICAL DATA

• Operating temperature: from 0°÷90°C
• Maximum working pressure: 3 bar
• Fluids used: water or glycol solutions (max 30% glycol)
• Dirt separator threaded connections: ISO 228 – G 3/4”
• Accessory threaded connections: ISO 228 – G 3/4”.

Warranty

The warranty is the official Rubinetterie Bresciane one and has a duration of 24 months.
