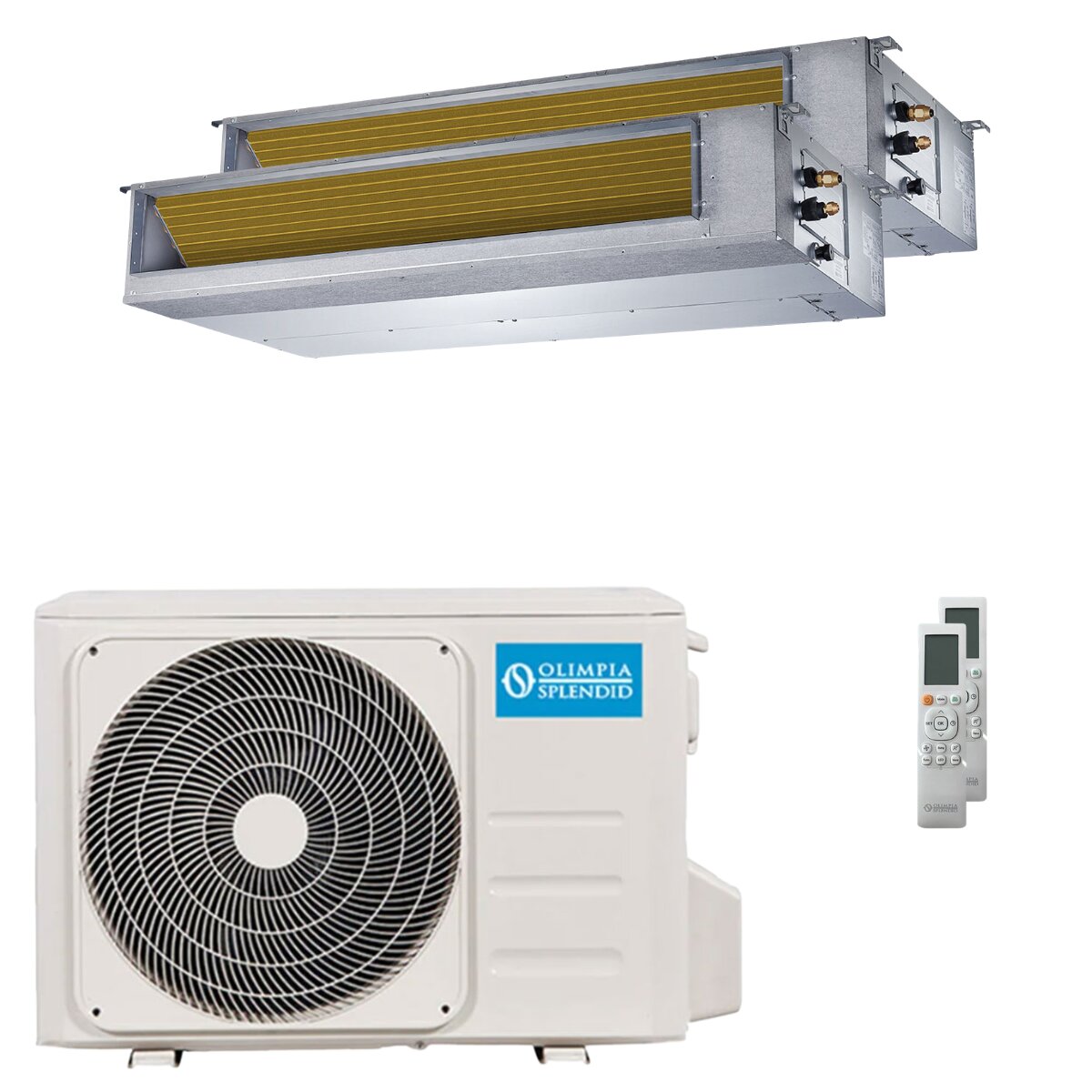

Olimpia Splendid Nexya S6 E Duct dual split air conditioner 12000+12000 BTU inverter A++ external unit 5.3 kW The air conditioner kit is equipped with the following indoor units:
- 2 x 12000 BTU - Ideals for rooms from 25 to 40 sqm with an average height of 2.7 m
The Olimpia Splendid Nexya E Duct [OS5/S6+IS6] range represents the new generation of ducted inverter air conditioners designed for commercial applications and for the air conditioning of large spaces. The system uses high-efficiency DC Inverter technology with eco-friendly , low-GWP R32 refrigerant, ensuring high cooling and heating performance, optimized consumption, and silent operation.
Ducted installation allows for uniform air distribution through ducts and vents, keeping the indoor unit completely concealed in the false ceiling, leaving only the outlet grilles visible. This solution improves the aesthetics of the rooms, ensures uniform comfort even in large spaces, and allows for more discreet and effective air conditioning compared to traditional wall-mounted split systems.
The Nexya E Duct S6 series also stands out for its great installation flexibility thanks to the compact size of the internal units, the reversible air intake and the automated management of the air flow.
Design, air quality and environmental comfort

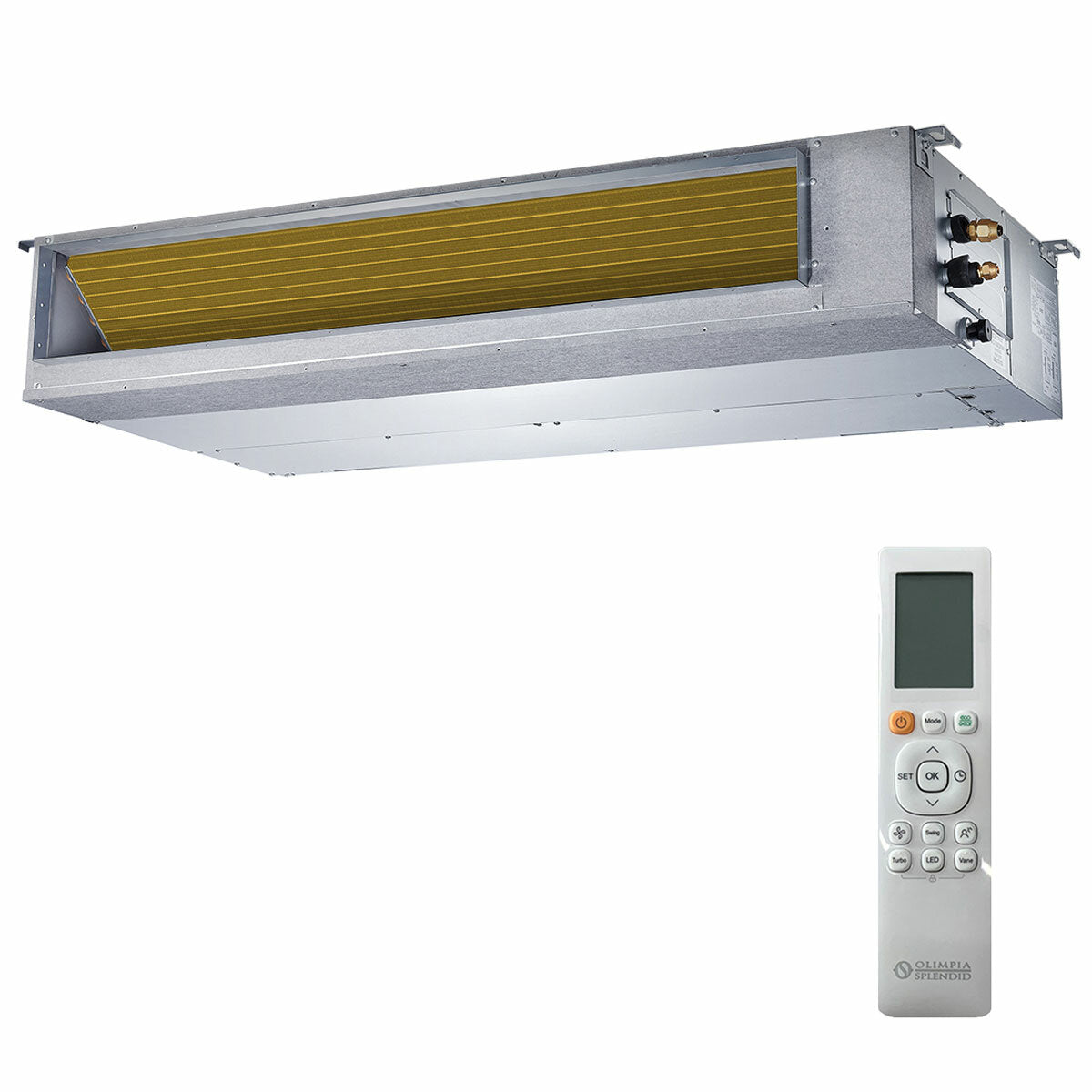

Nexya E Duct S6 indoor units are designed to adapt to different system configurations. The reversible air intake function allows the intake duct to be moved from the rear to the bottom of the unit by simply replacing a sheet metal panel. This allows the system to be installed even in suspended ceilings or utility rooms with limited space or unusual configurations.
The system also integrates an automated air flow function, which automatically adjusts operation based on the ducts connected to the unit, optimising comfort, available pressure and air distribution.
To improve indoor air quality, the units are equipped with:
- dust filtration
- dedicated intakes for external or fresh air
-
Self Clean function, which automatically cleans and dries the evaporator, helping to reduce residual humidity, mold and impurities inside the unit.
The internal units also include:
- integrated condensate lifting pump
- external digital display to improve the reception of remote control signals
- adjustable static pressure up to 160 Pa, ideal even for more complex ducted systems.
Technology, functions and system management
The Nexya E Duct S6 range integrates numerous advanced functions dedicated to climate comfort, intelligent system management and energy optimisation.
The system manages: cooling, heating, dehumidification, ventilation ; Auto Mode: the Auto Mode function automatically selects the most suitable operating mode based on the room temperature, optimizing comfort and consumption; Sleep Mode: the Sleep mode automatically adjusts temperature and ventilation during the night to improve comfort and reduce energy consumption; Silent Mode: the Silent Mode function reduces the noise of the indoor unit to ensure maximum acoustic comfort, particularly useful during night-time operation or in professional environments; Turbo Mode: the Turbo mode allows you to quickly reach the desired temperature by temporarily increasing the power of the air conditioner; Eco Mode: the Eco Mode function optimizes energy consumption while maintaining high performance and reducing electricity consumption during continuous operation; Power Gear: the Power Gear function allows you to select different operating power levels to balance performance and energy consumption based on the needs of the room; Temperature Sensor: the system uses the temperature sensor integrated into the remote control to detect the temperature in the area actually occupied by users more precisely; Self-diagnosis: the self-diagnosis function detects any operating anomalies, facilitating maintenance and technical assistance; Auto-restart: In the event of a power outage, the Auto-restart function automatically restarts the air conditioner, maintaining the last settings stored before the blackout; Timer: The Timer allows you to program the air conditioner to automatically turn on and off according to your daily usage needs.
The system also features:
- terminals for remote ON/OFF control
- alarm contact for synchronization with external systems
- compatibility with Airzone control systems for advanced management of ducted air conditioning.
Management is via the remote control supplied as standard , intuitive and practical, furthermore, the Nexya E Duct S6 Olimpia Splendid series is set up for advanced management of the system via optional accessories to be purchased separately ( 4-wire wireless wall control B1234, wall-mounted wired control B0969, optional Wi-Fi disk kit B0970 for remote control of the air conditioner).
ACCESSORIES INCLUDED AS STANDARD
- Remote control.
WARRANTY
The warranty is the official one from Olimpia Splendid and lasts 2 years.

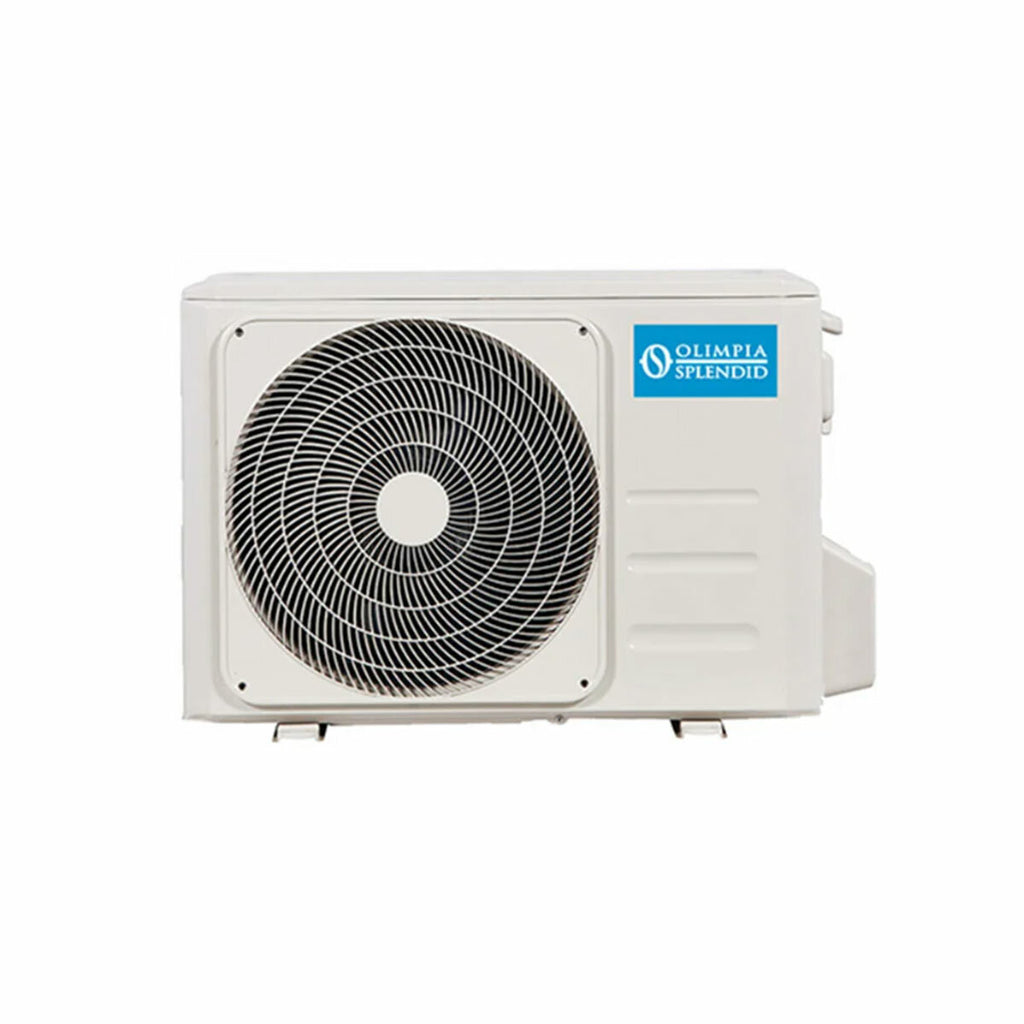

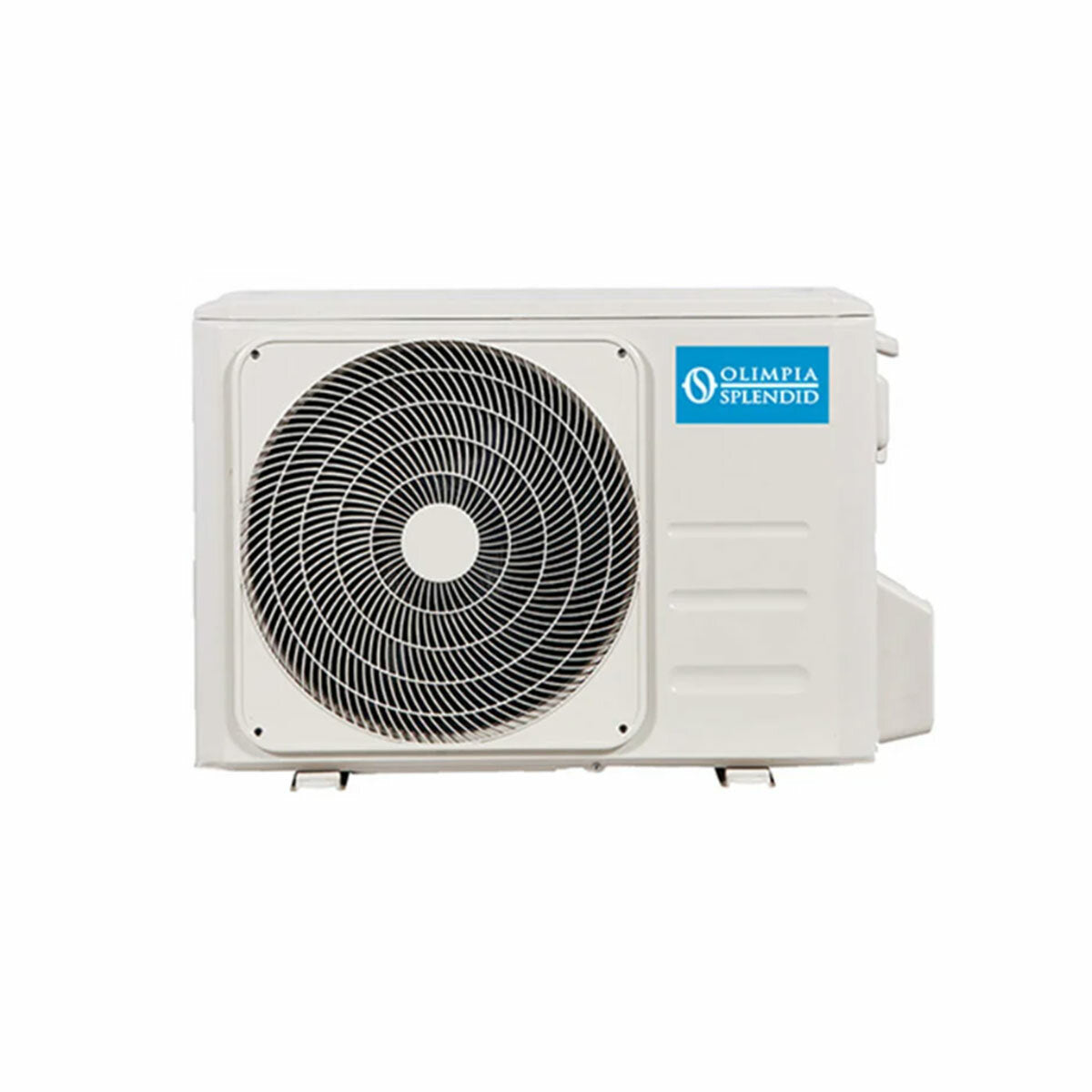

THE OUTDOOR UNIT
The Olimpia Splendid multi-split outdoor unit for air conditioners with two connections is equipped with a heat pump and inverter technology and represents the true heart of air conditioning.
Multisplit outdoor units offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space available for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned. This outdoor unit allows you to connect and power two OLIMPIA SPLENDID indoor units of all compatible series, even of different powers; the indoor units will always operate independently and each will have its own control.
Nexya S5 E Dual Inverter 18 gives the possibility to make the most suitable combinations for one's needs: systems can be designed using wall-mounted, duct or cassette units and selecting the right size based on the thermal load of the system.
GUARANTEED SAVINGS AND COMFORT
The OLIMPIA SPLENDID multi-split outdoor unit for air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment to be air-conditioned. The remarkable performance of the Outdoor Unit allows the connected Indoor Units to offer great comfort to users, both by using the system in the summer cooling function and in the winter heating function. The high-efficiency compressor of the Olimpia Splendid allows you to always obtain high performance up to class A++ in cooling and class A+ in heating with low consumption for optimal management of your energy costs; the Inverter system further promotes energy savings by avoiding annoying sudden changes in temperature and keeping temperatures constant to the full advantage of the pleasure of use. The heat pump allows you to use the air conditioner both in summer for cooling and during winter for heating, thus allowing year-round use in the name of comfort and relaxation.
It offers many advantages in managing the heating system, thanks to the many functions available such as for example the AUTO function which adapts the operating parameters to the room temperature, favoring constant internal comfort and the SLEEP function which gradually modulates the set temperature favoring nocturnal well-being and also that of the neighborhood by virtue of the reduced noise that distinguishes it and places it among the quietest multi-split on the market.
The rotary compressor at its disposal highlights its high silence , only 65 db(A) of sound power.
It uses low environmental impact R32 gas to protect public health and the environment, with reduced energy consumption to the full advantage of bill spending.
The Nexya S5 Dual Inverter 18 outdoor unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The guarantee is the official Olimpia Splendid one and has a duration of 2 years.
