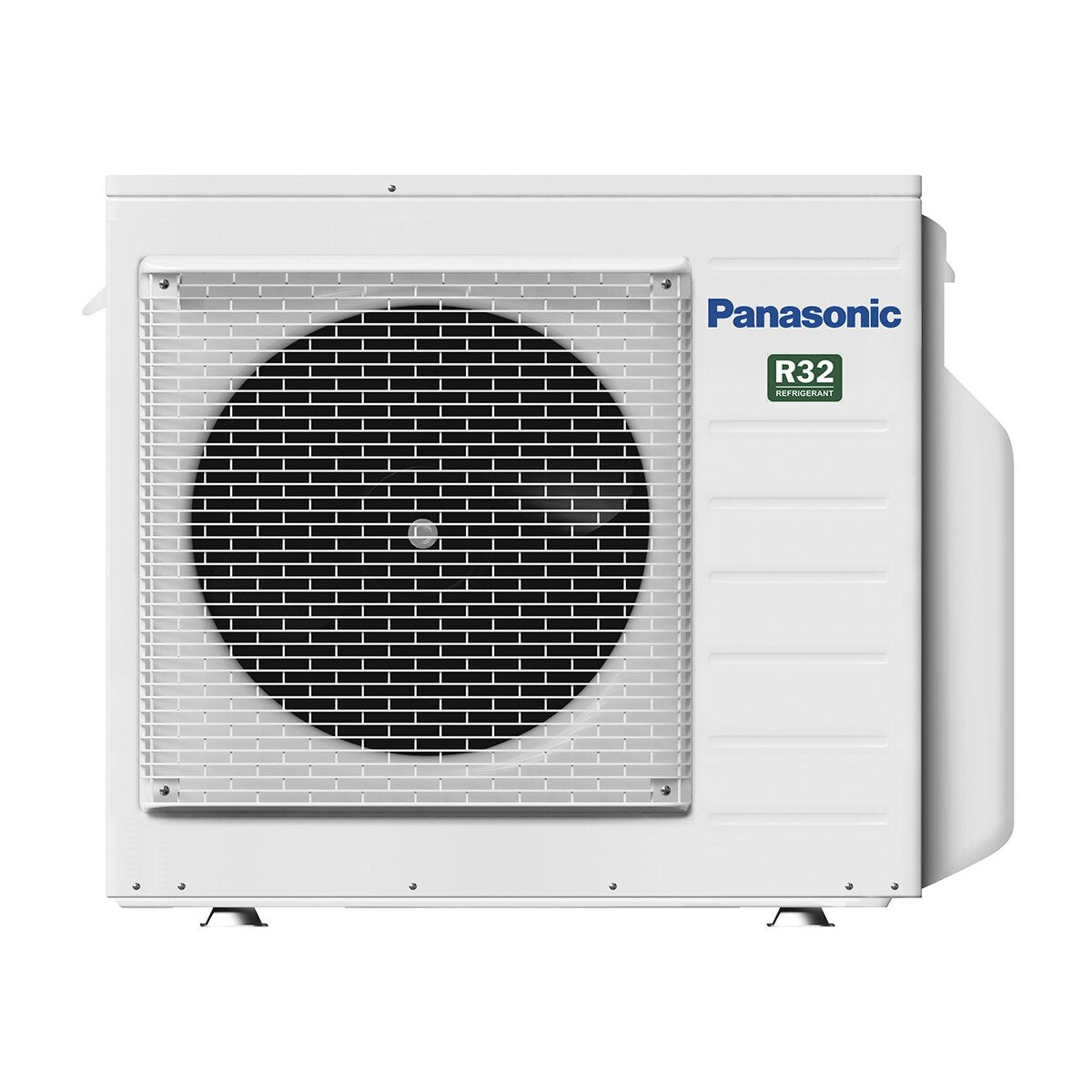

Panasonic Free Multi 5.2/6.8 kW cold/heat split trial outdoor unit

Roll over image to zoom in Click on image to zoom

Panasonic Free Multi 5.2/6.8 kW cold/heat split trial outdoor unit

Name: Panasonic Free Multi 5.2/6.8 kW cold/heat split trial outdoor unit
Brand: Panasonic
SKU: CU-3Z52TBE
Price: 1497.52 EUR
Availability: InStock

Save 60%

PanasonicSKU: CU-3Z52TBE

Price:

€1.497,52 €3.717,34

Quantity:

Share this product

Code: CU-3Z52TBE
ID code: EF9FCD
Pre-code: PAN
Category: Outdoor unit
Type: 3 split air conditioner
Benefits
Operation: Cold,Dehumidification,Hot
Liquid connection piping ø (inch - mm): 1/4 - 6.35
Gas connection piping ø (inch - mm): 3/8 - 9.52
Width x Height x Depth (mm): 875X795X320
Weight (kg): 71
Fluorinated gases: Yes
Inverter: Yes
Nominal power (kW): 5.2
Refrigerant gas: R32
Heating capacity (kW): 6.8
Minimum sound pressure – dB(A): 47
Maximum sound pressure – dB(A): 48
Max total piping length (m): 50
Max piping length per unit (m): 25

THE OUTDOOR UNIT

The Panasonic Multi Free outdoor unit is particularly innovative and very attentive to the environment thanks to the adoption of R32 gas with low environmental impact. In fact, R32 gas has a GWP - Global Warming Potential or Impact on Global Warming, equal to a third compared to that of its predecessor R410A.

The three-connection external unit presented here has inverter and heat pump technology for both cooling and heating operation and represents the heart of the air conditioner.

The external units for multisplits offer the great advantage of air conditioning multiple rooms using a single external unit and one internal unit for each room ; they are particularly recommended where there is little space for the installation of multiple external units or when you want to reduce the visual impact of this air conditioning component on the facade of the property unit to be air conditioned.

This external unit allows you to connect and power three Panasonic internal units , even with different powers; the internal units will always operate independently and each will be equipped with its own control.

GUARANTEED SAVINGS

The strong point is flexibility, because these inverter air conditioners are so flexible that they can vary the rotation speed of the compressor; this allows for significant energy savings, because less electricity is used to maintain the set temperature as well as to air-condition the room more quickly upon start-up. In fact, they are equipped with an R2 rotary compressor which uses rotating piston technology: tested in extreme conditions it is able to offer greater efficiency and high performance. In fact, Panasonic is the leading manufacturer of rotary and residential compressors in the world, with over 200 million compressors produced.

Thanks to the Inverter system, the unit is able to implement correct power modulation resulting in high energy savings, excellent performance and particular attention to the environment . It guarantees the achievement of the highest energy classes and reduces waste to a minimum . This also ensures minimal vibration and noise, placing it among the quietest outdoor units on the market .

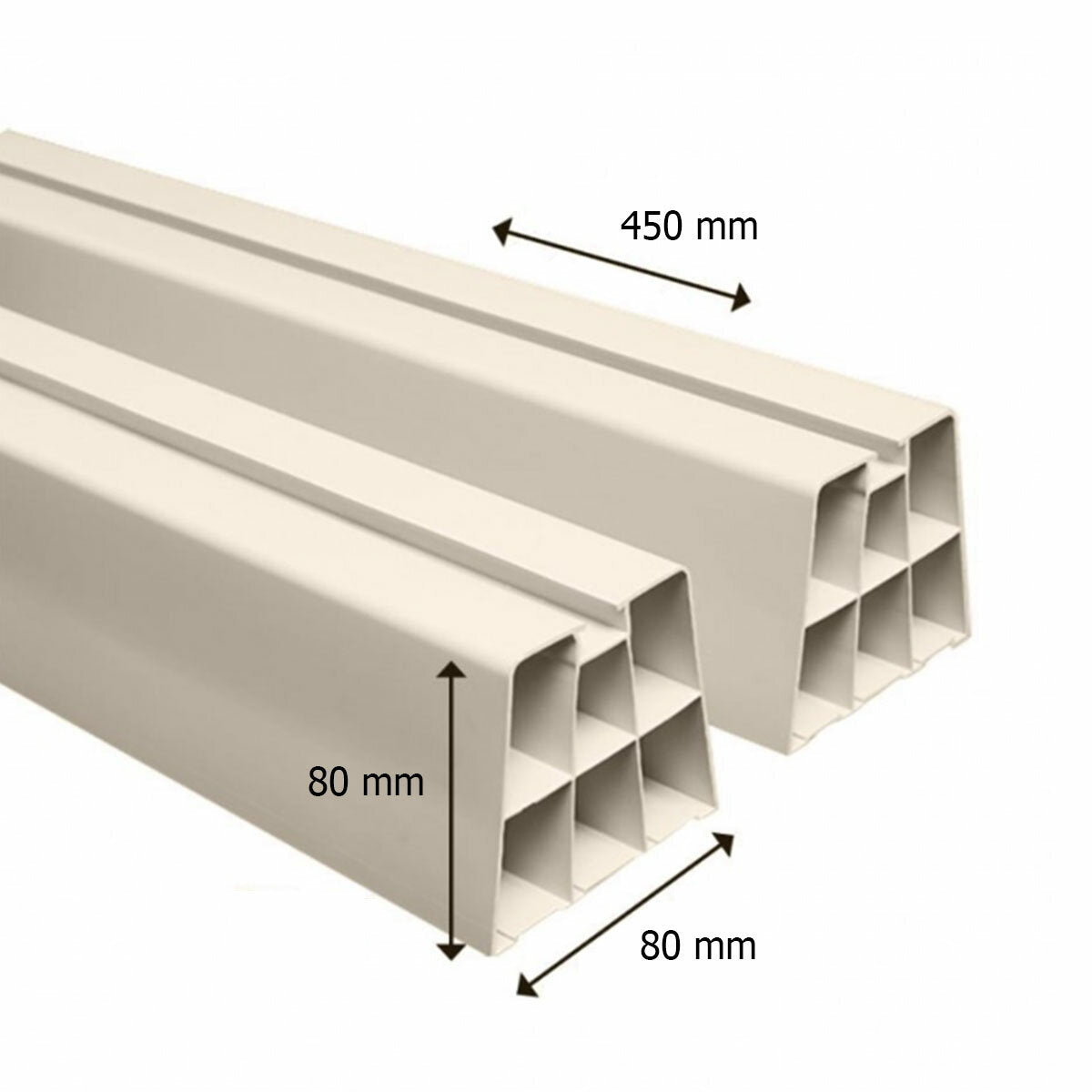

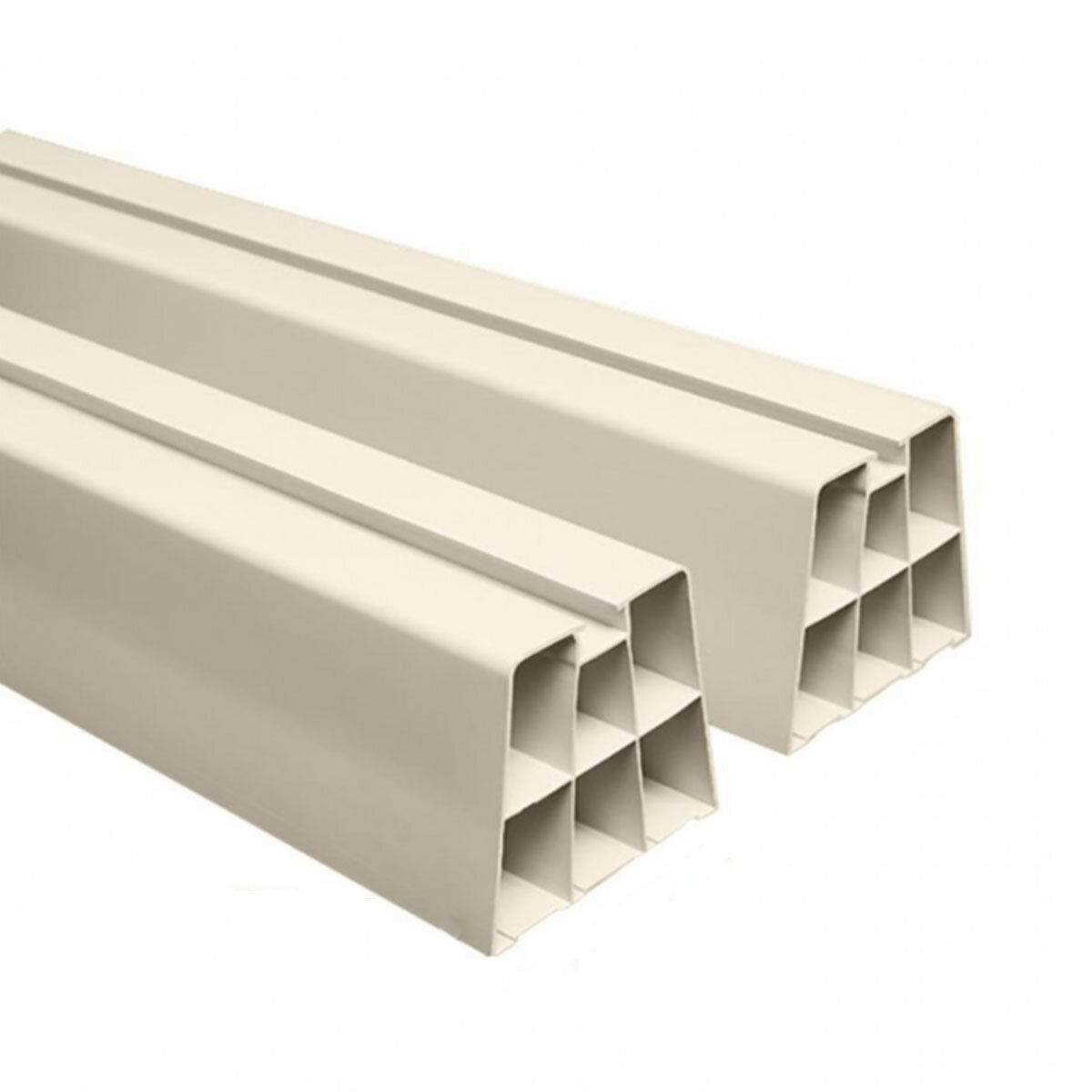

Particularly resistant to bad weather and atmospheric agents, this external unit can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately.

WARRANTY

The warranty is the official Panasonic one and lasts 2 years.
