Panasonic PACi NC Standard Ducted Air Conditioner 24000 BTU R32 Inverter A+/A+

Panasonic PACi NC Standard Ducted Air Conditioner 24000 BTU R32 Inverter A+/A+

The air conditioner kit is equipped with the following internal units:

• 1 x 24000 BTU - Ideal for rooms up to 100 m2 with an average height of 2.7 m

The internal unit of the Panasonic PACi NX series ducted air conditioner is surprising for its innovation and performance! It is mounted in a hidden position, generally in a false ceiling and the air spreads into the room through the appropriate ventilation opening. The ducted air conditioner offers the great advantage of being invisible, in fact, by hiding the internal unit it favors the aesthetics of the rooms and gives the possibility of using the walls for furnishings. It follows that, with the installation of a built-in air conditioner, there is well-being but there is no... air conditioning!

The Panasonic ducted indoor units of the PACi NX Series are used with the specific outdoor units to create combinations of monosplit air conditioners in the range, capable of incredible energy performance up to class A++/A+ with an operating range that ranges up to 43°C in cooling and -15°C in heating.

DESIGN AND CLEAN AIR

The internal unit of the Panasonic PACi NX ducted air conditioner has a linear and modern design adaptable to any working environment such as an office, a commercial business, a hotel etc... but it is also ideal for domestic air conditioning by virtue of its delicate features, for an imperceptible result, almost invisible to the eye, perfectly in harmony with any style and decor. The dimensions have been reduced: the unit is extremely compact and versatile thanks to its height of only 250 mm and a weight that varies from 25 to 39 kg depending on the size chosen, therefore much less than models of the same genre.

But the most interesting innovation introduced by Panasonic concerns the air quality profile. This ductable air conditioner uses NANOE X technology based on the benefits of hydroxyl radicals: hydroxyl radicals (also known as OH- radicals) are able to inhibit certain types of pollutants such as bacteria, viruses, moulds, pollen and other dangerous substances, but their peculiarity lies in their ability to act in depth, thus bringing benefits inside the spaces in which we live by acting on furnishings and furniture. The NANOE X does not require maintenance or replacement because its atomising electrode is enveloped by water during the generation process and is made of Titanium; it is a filter-free solution that improves the healthiness of environments in real terms.

TECHNOLOGY, COMFORT AND FLEXIBILITY GUARANTEED

The Panasonic PACi NX ducted air conditioner contains advanced technologies to guarantee efficiency, energy saving, silence and comfort. It presents a series of top-of-the-category technical features, starting from the use of Inverter technology which allows for higher efficiency and lower costs . The inverter automatically adjusts the operating power, in this way there is more precise control of the desired temperature, a significant saving in electricity and a reduction in noise and vibrations; furthermore, it aims to protect the environment through the use of R32 refrigerant gas with low environmental impact.

It presents the traditional functions that can be set such as Cooling/Heating/Dehumidification and Ventilation , Timer and other functional modes for the comfort of air conditioning systems, but what is truly surprising is the extreme flexibility designed to facilitate installation and adapt it to the most varied architectural needs, without sacrificing the quality of performance which is very high for systems of this kind. In fact, this ducted unit from the PACi NX series lends itself to a double installation , both in a horizontal and vertical position, a possibility that is congenial in the presence of insurmountable architectural barriers; maximum external static pressure up to 150 Pa , sufficient to install the units away from the premises without reducing performance; new drainage tray : the renewed design of the latter allows its adaptability to both vertical and horizontal installations without the need to modify the unit; the air inlet position is selectable : it is possible to choose the air inlet using a removable panel, in order to allow the rear or lower air inlet based on the installation of the duct; drain pump included (drain pump operation available only in horizontal application). This new series has been developed with a 3-wire communication mode which facilitates the replacement of old systems with 3-wire wiring, which is very frequent, therefore it is ideal for the renovations of small/medium commercial premises and beyond.

Another fundamental characteristic is the incredible silence , a necessary feature especially in commercial applications, to allow liveability characterized by acoustic comfort. In fact, this ducted internal unit has very low sound pressure levels starting from 22 dB(A) in the smallest size.

The management of the Panasonic PACi NX ducted air conditioner is entrusted to the wired control code. CZ-RTC5B : this module is equipped with touch controls and a backlit display , the display is via pictograms making both navigation in the menu and the selection of the various settable options very simple and intuitive; it also features the Econavi control function which detects the presence of people in the room, in this way the set temperature is automatically adjusted to optimize the lowest energy consumption. This series is also compatible with CONEX wired controls (optional) with IoT integration (currently not available on Climamarket). Furthermore, management can also take place via optional WiFi (currently not provided by Climamarket) via the Panasonic Comfort Cloud App , specially designed to simplify the management of all system functions from the comfort of your smartphone. Also compatible with BMS connectivity.

ACCESSORIES INCLUDED

- Wired control

WARRANTY

The warranty is the official Panasonic one and lasts 2 years.

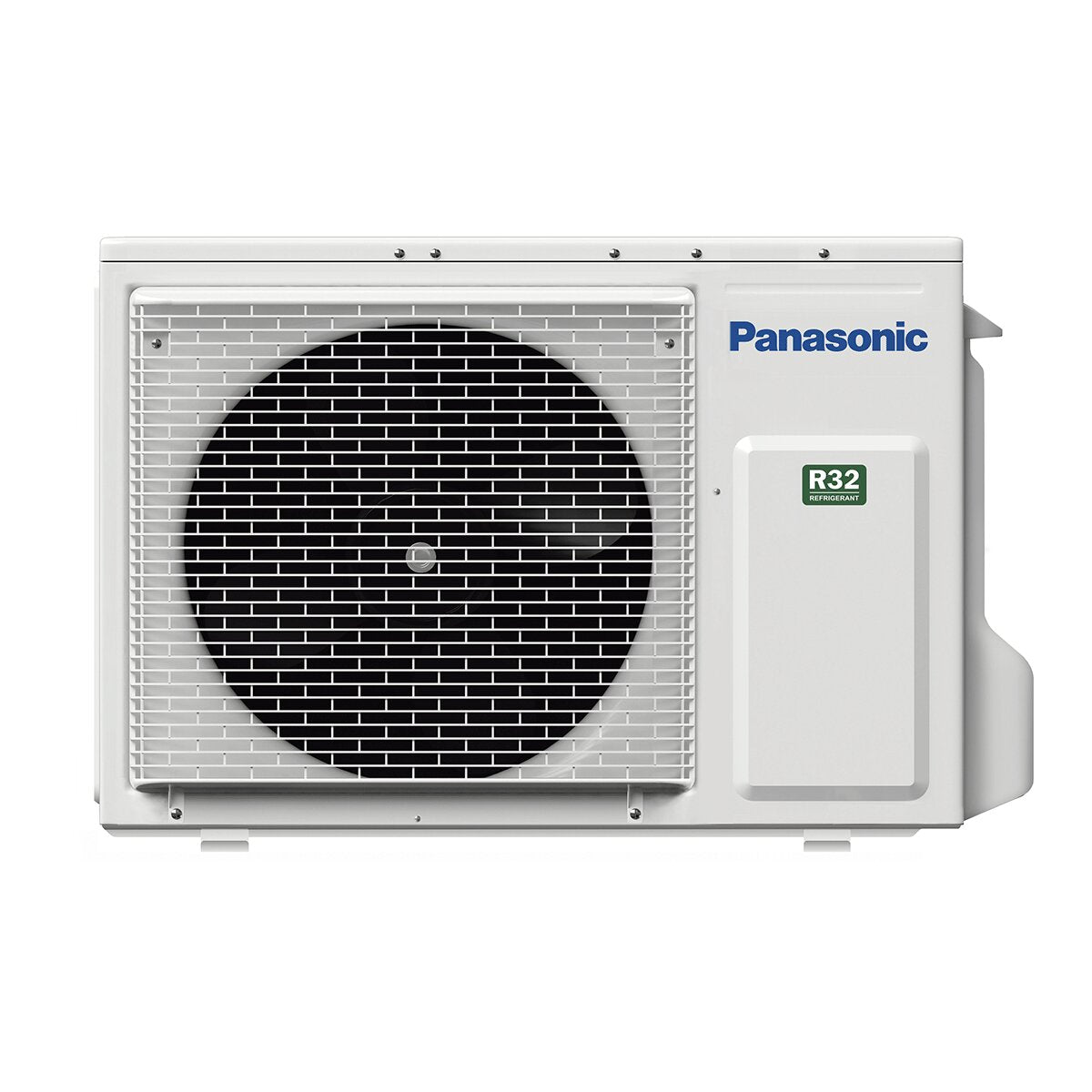

THE OUTDOOR UNIT

Panasonic's objectives include achieving very high efficiency with extremely competitive energy classes , both in cooling and heating (A++).

The external unit is the true beating heart of the air conditioner; it is environmentally friendly by virtue of the use of low GWP R32 gas and offers, thanks to the Inverter technology and the heat pump , always an operating power adequate to the real needs of the moment, both in summer for cooling and in winter for heating.

GUARANTEED SAVINGS

The external unit of the Panasonic PACi NX Series air conditioner always provides a power proportionate to the real air conditioning needs of the environment in which its internal unit is located.

The strong point is flexibility, because these inverter air conditioners are so flexible that they can vary the rotation speed of the compressor; this allows for significant energy savings, because less electricity is used to maintain the set temperature as well as to air-condition the room more quickly upon start-up.

Thanks to the Inverter system, the unit is able to implement correct power modulation resulting in high energy savings, excellent performance and particular attention to the environment .   It guarantees the achievement of the highest energy classes and reduces waste to a minimum . This also ensures minimal vibration and noise, placing it among the quietest outdoor units on the market .

Particularly resistant to bad weather and atmospheric agents, this external unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.

WARRANTY

The warranty is the official Panasonic one and lasts 2 years.
