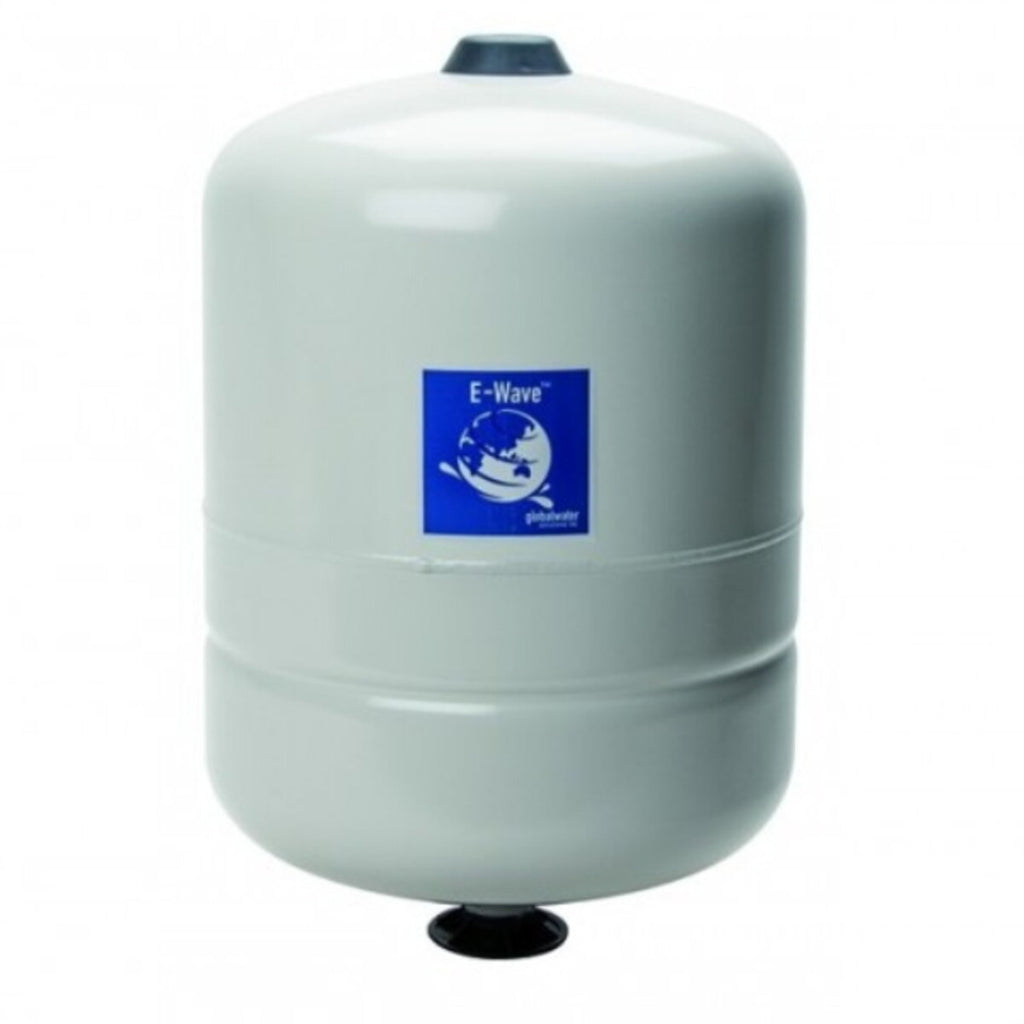

Pressue-wave gws 12 liter expansion vessel for pwb-12lx autoclave

EXPANSION TANK 12 LITERS ATT. 1” WITH FIXED MEMBRANE

The PressureWave™ PWB-12LX tank are ideal for a wide variety of applications including booster systems, artesian wells, sprinkler systems, constant pressure systems, variable frequency electronic systems, thermal expansion, anti-water hammer .

The PressureWave™ PWB-12LX Series is manufactured with an original polypropylene liner combined with a high quality FDA (Food and Drug Administration) approved butyl diaphragm with single diaphragm design; this is pressed to the walls of the tank by a steel closing ring. The hermetically sealed dust cap to protect the pre-charge valve prevents air leakage.

The water enters the tank through a patented hydraulic connection made in stainless steel.

All internal parts, including the air valve, are rounded to prevent the diaphragm from puncturing.

On the outside, the almond-coloured two-component polyurethane paint applied to an epidoxic base coat guarantees high resistance to atmospheric agents and durability over the years.

PressureWave™ tanks undergo quality testing at multiple stages during the manufacturing process to ensure the structural integrity of each tank.

PressureWave ™ tanks represent, to date, the best pressure vessels of superior quality and versatile, suitable for a wide range of applications, do not require any maintenance

TECHNICAL FEATURES

Precharge in the bowl: 1.9 bar / 28 psi

Maximum operating pressure: 10 bar / 150 psi

Maximum liquid temperature: 90°C / 194°F

DIMENSIONS

Height: 367 mm - Width 230 mm - Weight 3.21 kg
