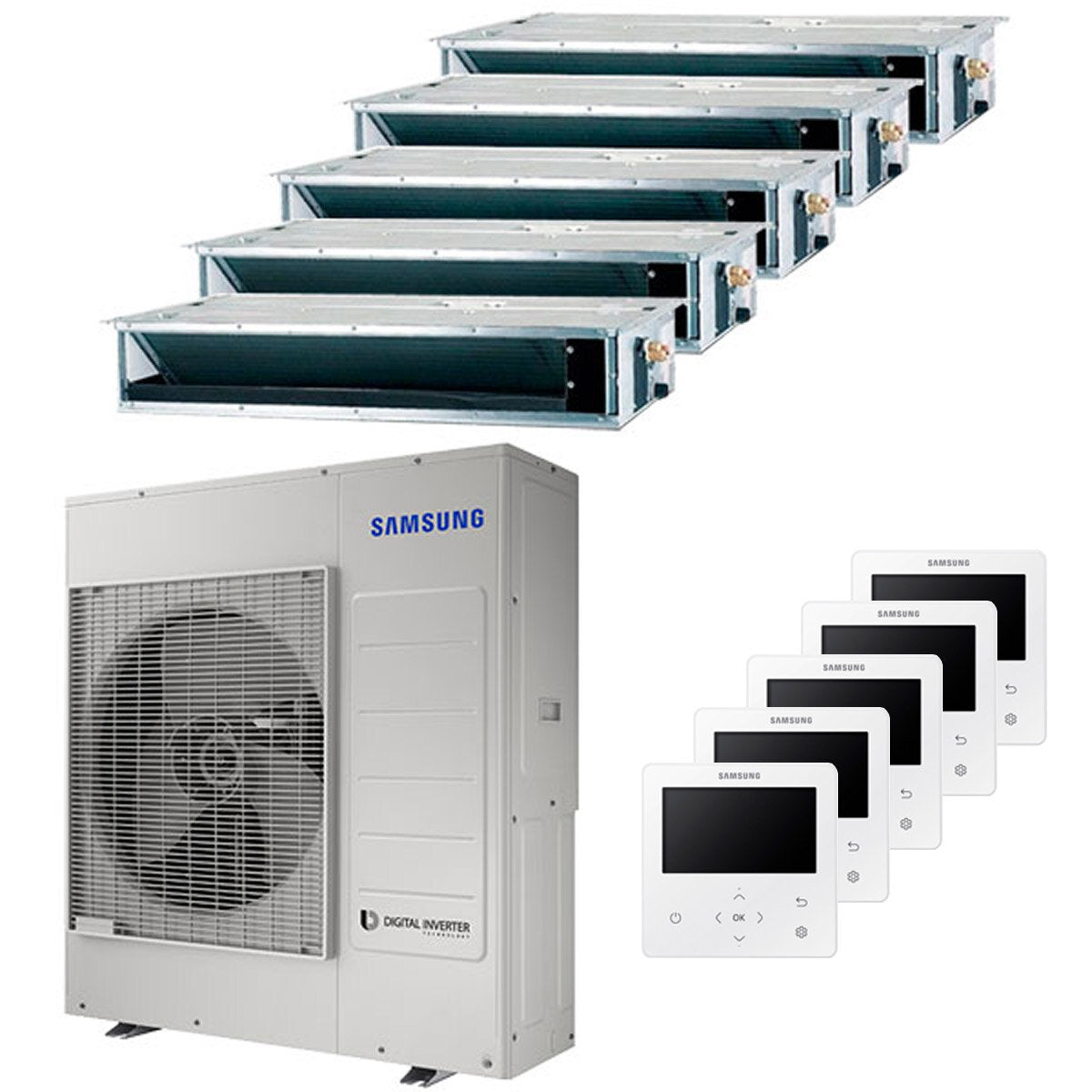

Samsung ducted penta split air conditioner 9000+9000+12000+12000+12000 BTU inverter A++ external unit 10 kWThe air conditioner kit is equipped with the following indoor units:
- 2 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m
- 3 x 12000 BTU - Ideals for rooms from 25 to 40 sqm with an average height of 2.7 m
The internal units of the T series low and medium head ducted Samsung air conditioner are part of the Samsung range which was the first to adopt the innovative NASA communication protocol , faster and more efficient than the traditional RS485.

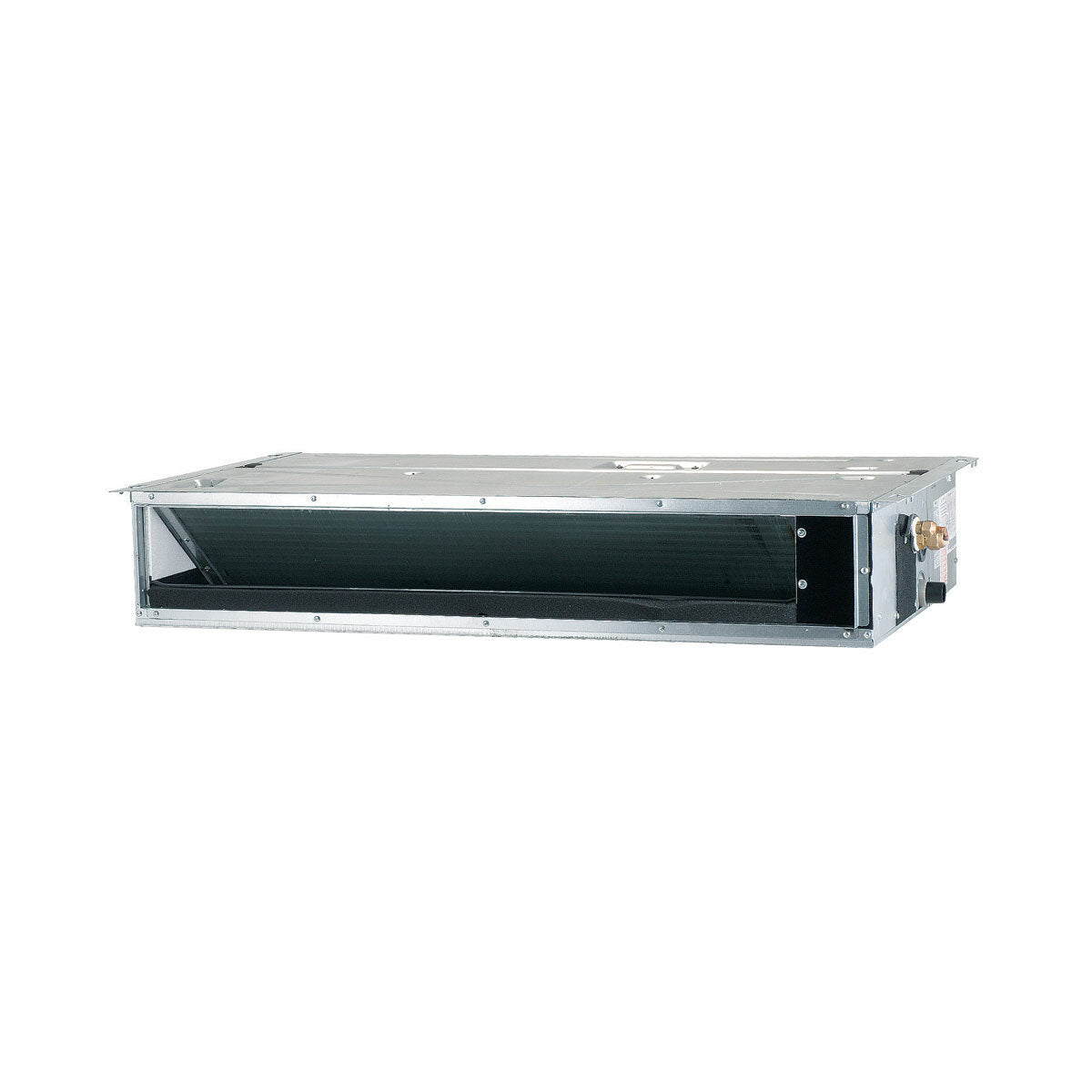

With the Samsung ductable inverter built-in air conditioner, the internal unit is mounted in a hidden position, generally in a false ceiling, and the air spreads into the room through a special ventilation opening. The advantages of ducted air conditioners consist in particular of the possibility of air conditioning the rooms without the internal unit being visible, to the benefit of aesthetics and the possibility of using the walls for furnishings. With the installation of a built-in air conditioner, there is well-being but it is not there. . . the air conditioner! Samsung Ductable is used together with Inverter external units to create many multi-split combinations.
DESIGN
The Samsung ductable air conditioner allows you to use maximum imagination in the architecture of the environments where it is installed. Its "invisible" presence allows rooms to be air conditioned easily thanks also to the small size of the internal units ( only 200 mm thick ) which allows them to be integrated into the most unexpected places in the room. Suitable for installation anywhere, in homes, commercial activities, offices and hotel environments; external units also require very little installation space.
GUARANTEED SAVINGS
The internal unit of the Samsung ducted air conditioner with Low/Medium Pressure (adjustable pressure up to 30 Pa for the low pressure models and up to 60 Pa for the medium pressure models) satisfies many air conditioning needs for which it offers great comfort and excellent performance in both the cooling and heating functions. It is equipped with Samsung's digitally controlled inverter system which allows it to achieve the best energy efficiency classes . It has very low basic energy consumption , which is further reduced thanks to the additional energy saving functions; the unit manages to create superior comfort since the temperature is always kept constant.
In the low head models (codes AJ*TNLPEG/EU) the internal unit is equipped as standard with a condensate drain pump while, for the remaining models, the pump is available as an optional.
BREATHE CLEAN AIR
The dust filter with which these internal units are equipped always ensures clean air and is easily removable for cleaning.
PERFECT CLIMATE AND RELAXATION
The Samsung T series ducted air conditioner quickly reaches and always maintains the set temperature constant, without fluctuations; it offers optimal comfort as it distributes the air extremely silently and in a truly imperceptible way thanks also to the hidden position of the built-in split and the Sirocco Inverter fan which provides greater air flow and better distribution. The Samsung ducted indoor units are also equipped with the air supply temperature control function. They then offer a series of special functions such as Self-diagnosis , the Fan Only Program, the Automatic Fan Regulation , the Step Fan Speed , the Dehumidification Program, the 24 hour Timer , the Weekly Programming , the Automatic Restart in case of absence of electricity, the Away from Home Function.
With just 42 dB(A) of sound pressure, the silence is at the top of the category and contributes to obtaining optimal and long-lasting relaxation.
Compared to traditional ducted units, these Samsung indoor units have a volume and weight reduced by 30% which optimizes assembly and maintenance operations.
WARRANTY
The warranty is the official Samsung one and lasts 24 months.

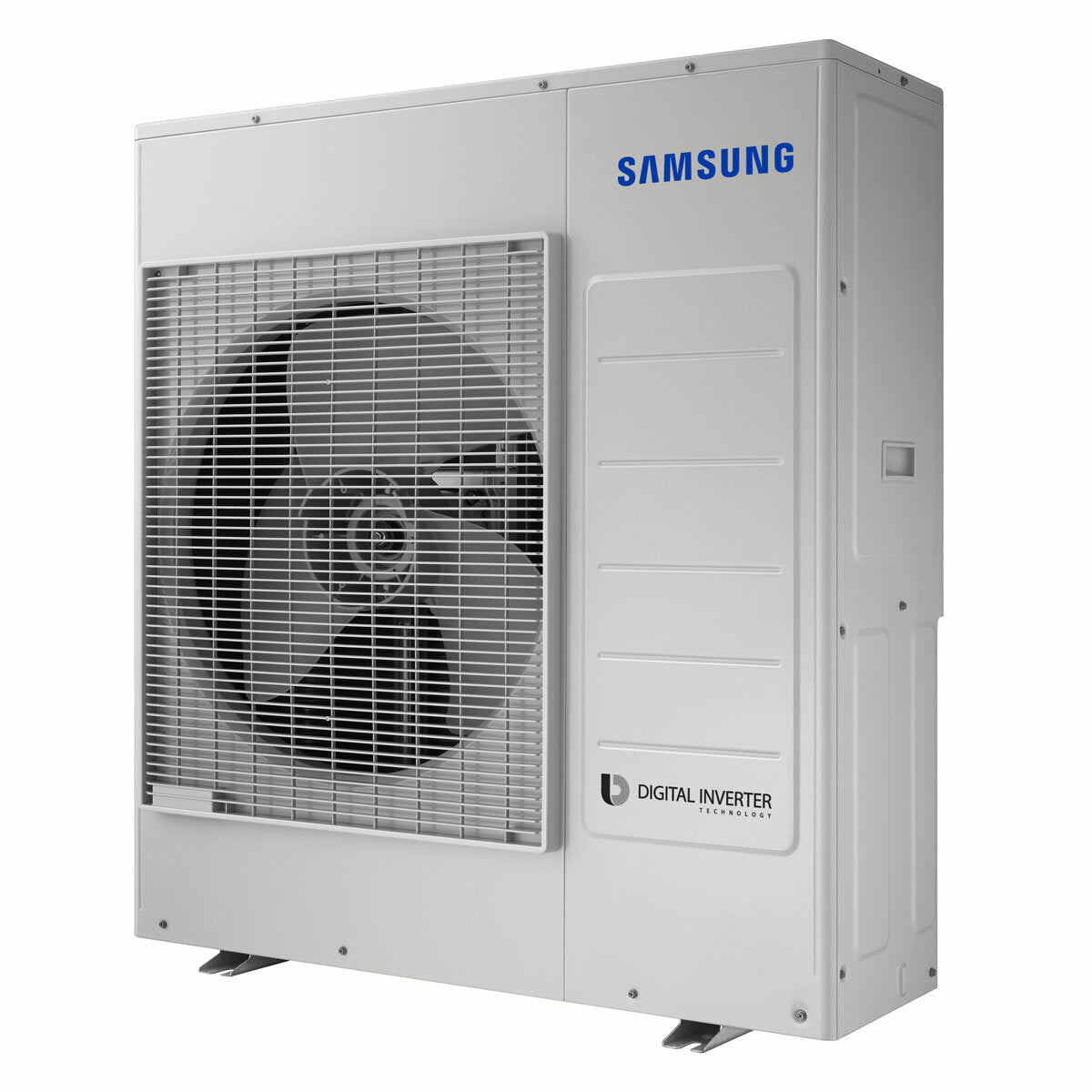

THE OUTDOOR UNIT
In 2020 Samsung updated the range of FJM ( Free Joint Multi ) outdoor units with the T Series : these outdoor units for multi-split air conditioners use R32 gas with low environmental impact, a compressor with Digital Inverter technology and the heat pump , the real beating heart of the air conditioner.
Multisplit air conditioners offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned. The 10 kW outdoor unit presented here allows you to connect and power up to five Samsung indoor units of any Series, even of different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The Samsung FJM outdoor unit for air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment to be air-conditioned. This model offers high performance and great comfort both when using the air conditioner in cooling and heating mode. Thanks to the Digital Inverter system, the outdoor unit allows high energy savings and particular attention to the environment. It guarantees to always obtain the highest energy classes and minimizes waste . The Digital Inverter compressor allows further savings as well as guaranteed well-being thanks to the maintenance of a constant temperature without sudden changes . The heat pump allows you to use the air conditioner both in summer for cooling and during winter for heating.
The compressor is particularly silent in full respect of one's sleep and that of others and has great efficiency ; the innovative construction technology makes it particularly robust to the full advantage of durability over the years.

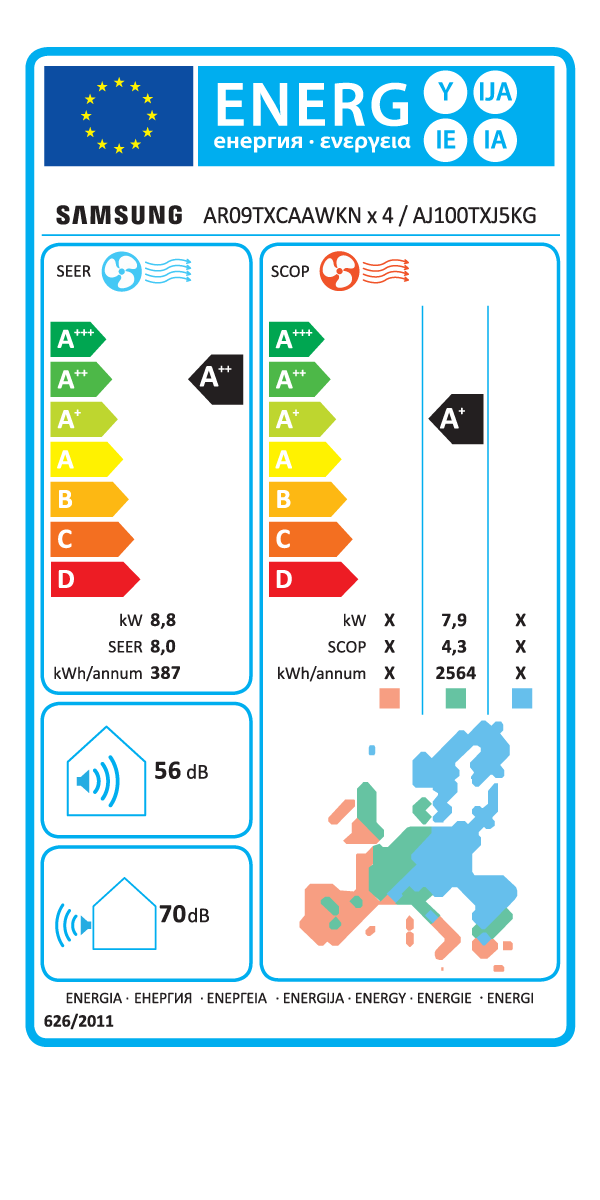

The R32 gas with which these outdoor units are loaded has a very low environmental impact and therefore contributes considerably to respect for nature; it also reduces energy consumption to the full advantage of spending on bills. The 10 kW outdoor unit has energy efficiency class A++ in cooling and A+ in heating.
Particularly resistant to bad weather and atmospheric agents, it can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Samsung one and has a duration of 24 months.

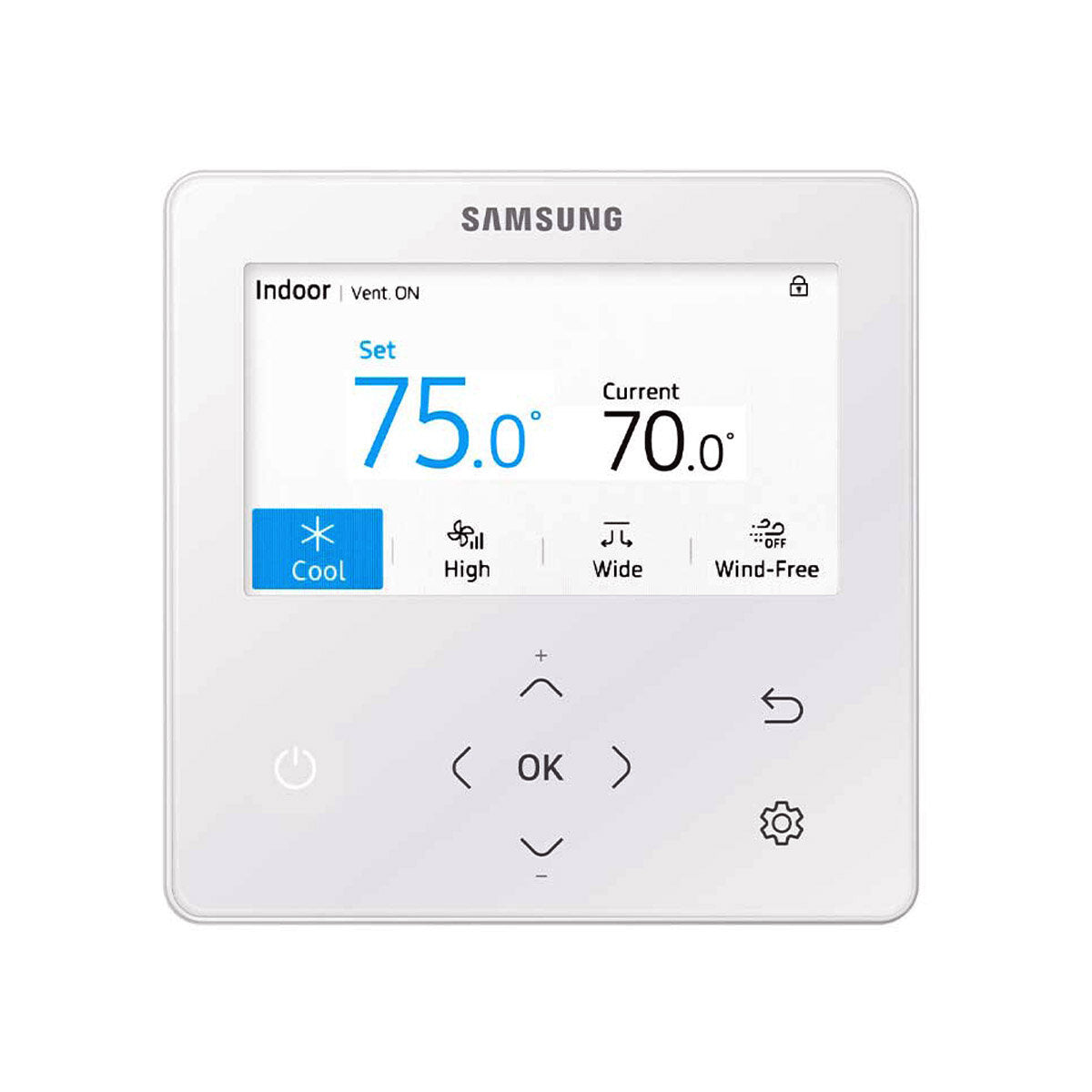

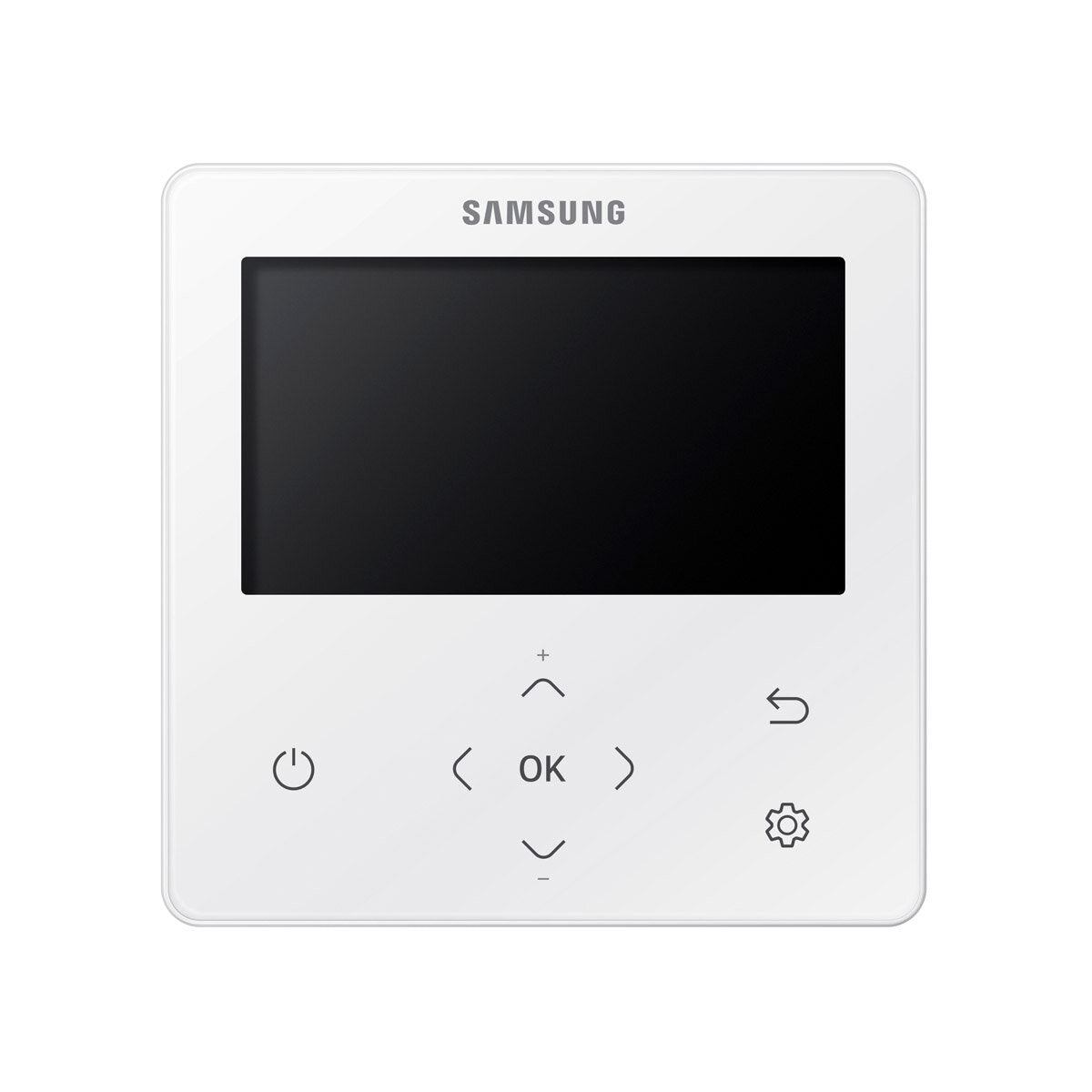

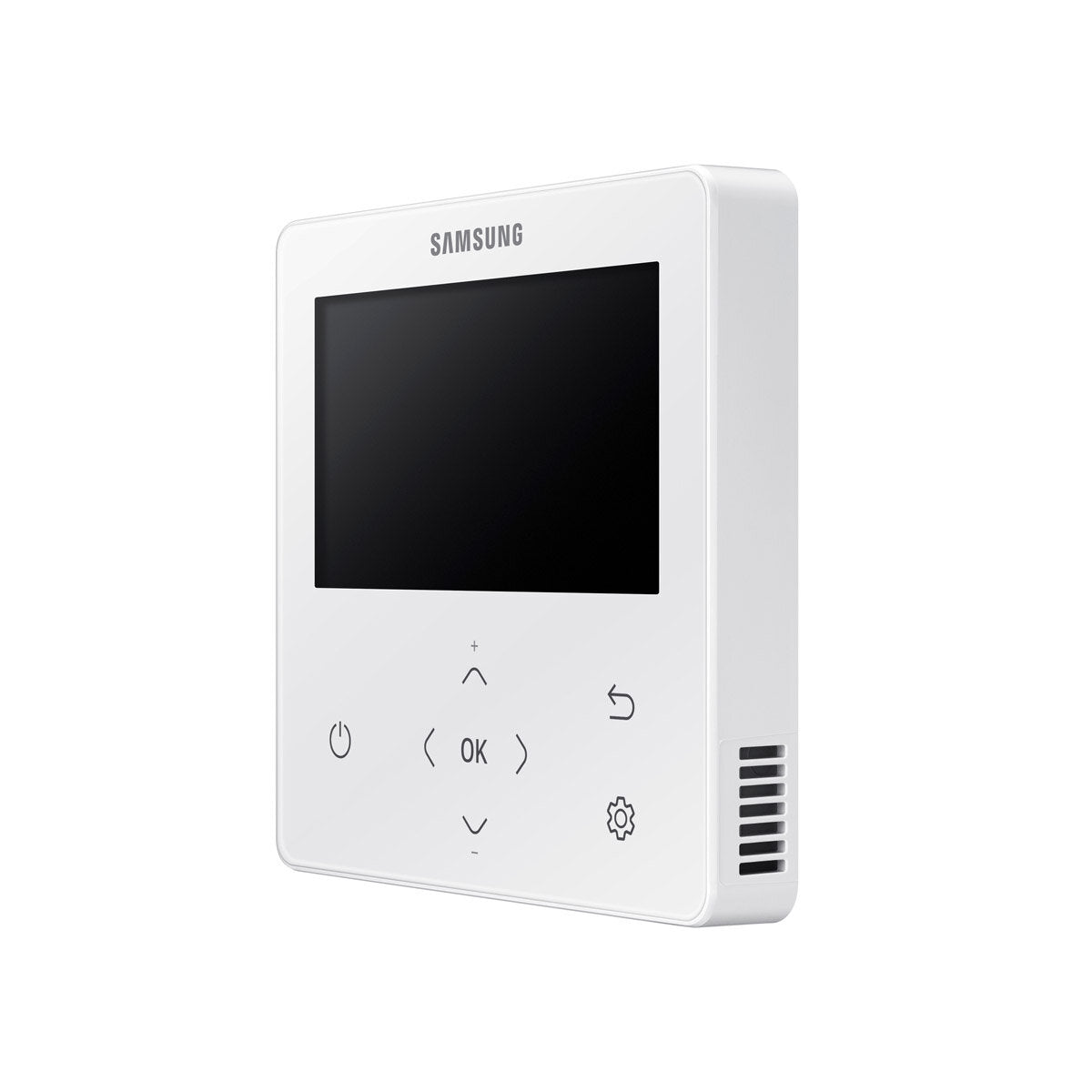

Samsung MWR-WG01KN Advance Wired Remote Control for Samsung Air Conditioners
The Samsung Advance wired control model MWR-WG00KN allows you to customise and programme the air conditioner in order to best manage the environmental comfort of the rooms where it is installed.
Compatible with models from the Samsung MONO, MULTI, CAC, EHS lines.
Redesigned compared to previous models, it has a square shape with rounded edges and is made of white glass with a color display; it will fit elegantly and discreetly into any environment.
It is a wired control and connects to the internal unit using the appropriate cables.
Some settable modes and features:
-
Operating modes: cooling, heating, dehumidification, ventilation;
-
Temperature and fan speed control;
-
Weekly programming and time setting;
-
Advanced features such as silent, night and energy saving modes;
-
Air purification function (Purify);
-
Error handling and reporting codes;
-
Integrated ambient temperature sensor.
-
Audible and visual alarm in case of refrigerant leak.
Further functions can be viewed in the user manual supplied with the product.
WARRANTY
The warranty is the official Samsung one and lasts 2 years.
