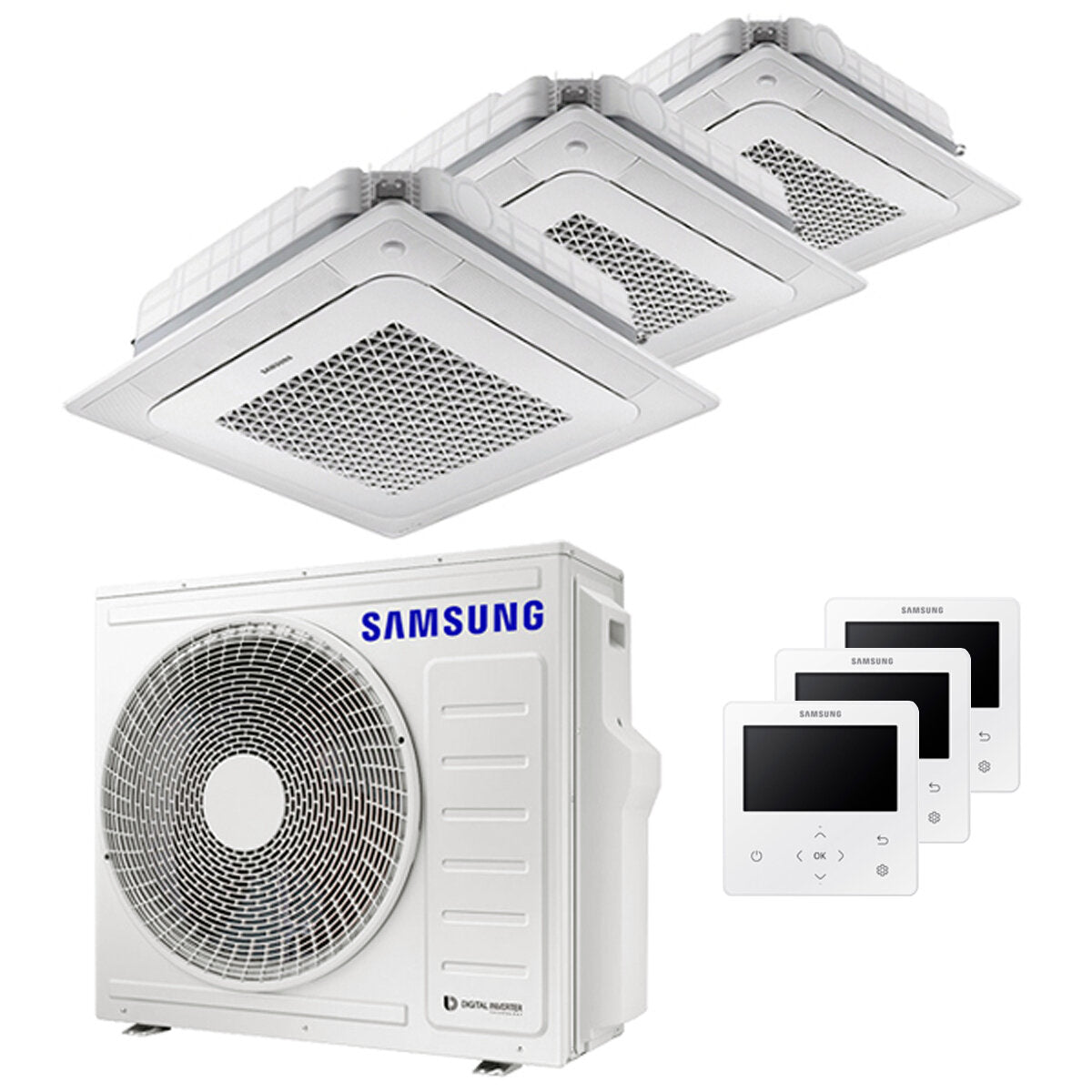

Samsung Air conditioner Windfree 4-way trial split 7000 + 12000 + 12000 BTU inverter A ++ outdoor unit 6,8 kWThe air conditioner kit is equipped with the following indoor units:
- 2 x 12000 BTU - Ideals for rooms from 25 to 40 sqm with an average height of 2.7 m
- 1 x 7000 BTU - Ideal for rooms from 10 to 15 sqm with an average height of 2.7 m
The wide range of Samsung WindFree air conditioners also includes the Mini WindFree 4-Way Cassette internal units.
The WindFree system represents the revolution and the future of air conditioning. With WindFree, Samsung has created, first in the world, the system that air-conditions environments without the user perceiving direct air flow. The WindFree system diffuses air like no other because the internal unit has a micro-perforated front panel from which the air-conditioned air diffuses into the environment in a natural and absolutely imperceptible way through the 9000 holes of this model. The WindFree internal units have a refined design that makes them particularly attractive, real design objects ; the multiple additional functions allow you to radically transform the climate of the environments offering a unique pleasure.
With its intelligent technology , the WindFree system helps reduce the consumption of external units, which are already very low. The operation of the internal unit takes place in two phases: when switched on, it allows the temperature to be reached quickly thanks to the Fast Cooling Mode which uses the classic air diffusion fin; subsequently, when the set temperature is reached, the fin closes automatically and the temperature is kept constant in the room through the diffusion of air conditioning through the micro-holes. The comfort is unparalleled because it eliminates the classic headaches and back pains due to direct diffusion of air conditioning and gives only the pleasure of air conditioning ; the system is particularly useful for all environments such as offices, where a fixed position is occupied for a long time, or in bedrooms or, again, where there are elderly people and children.
WindFree, air conditioning... free from the wind!

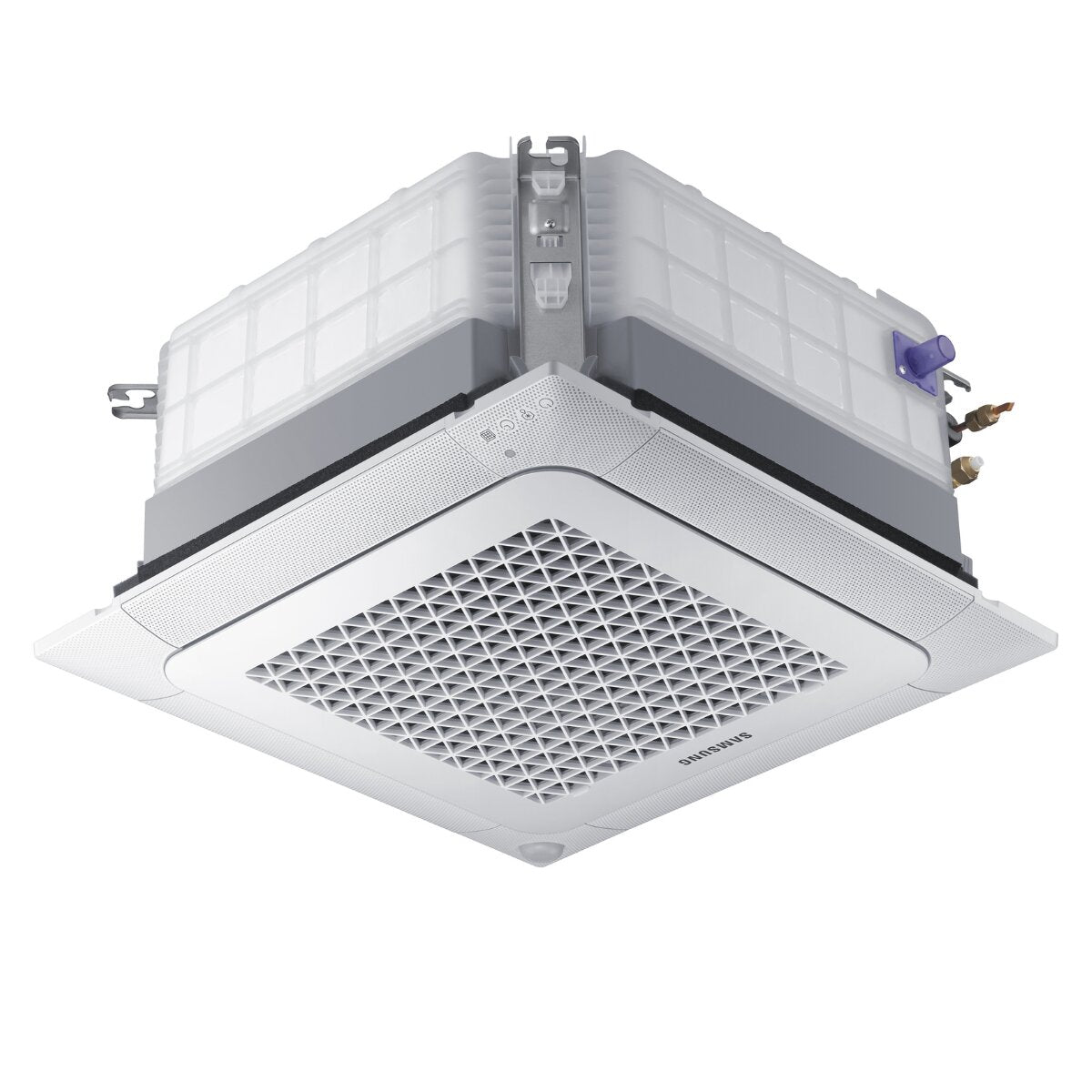

The internal unit of the Samsung Cassette 4 Way Mini WindFree air conditioner is mounted on the ceiling, generally recessed into a false ceiling. Air conditioners with a split cassette offer the great advantage of not taking up space on the walls for the installation of the internal unit, furthermore the possibility of positioning the units in central points of the rooms allows for better diffusion of the air conditioned.
The 4-Way Cassette Mini WindFree internal units are used together with the Inverter external units to create combinations of single and multi-split air conditioners from the Samsung residential (RAC) or commercial (CAC) range.
DESIGN

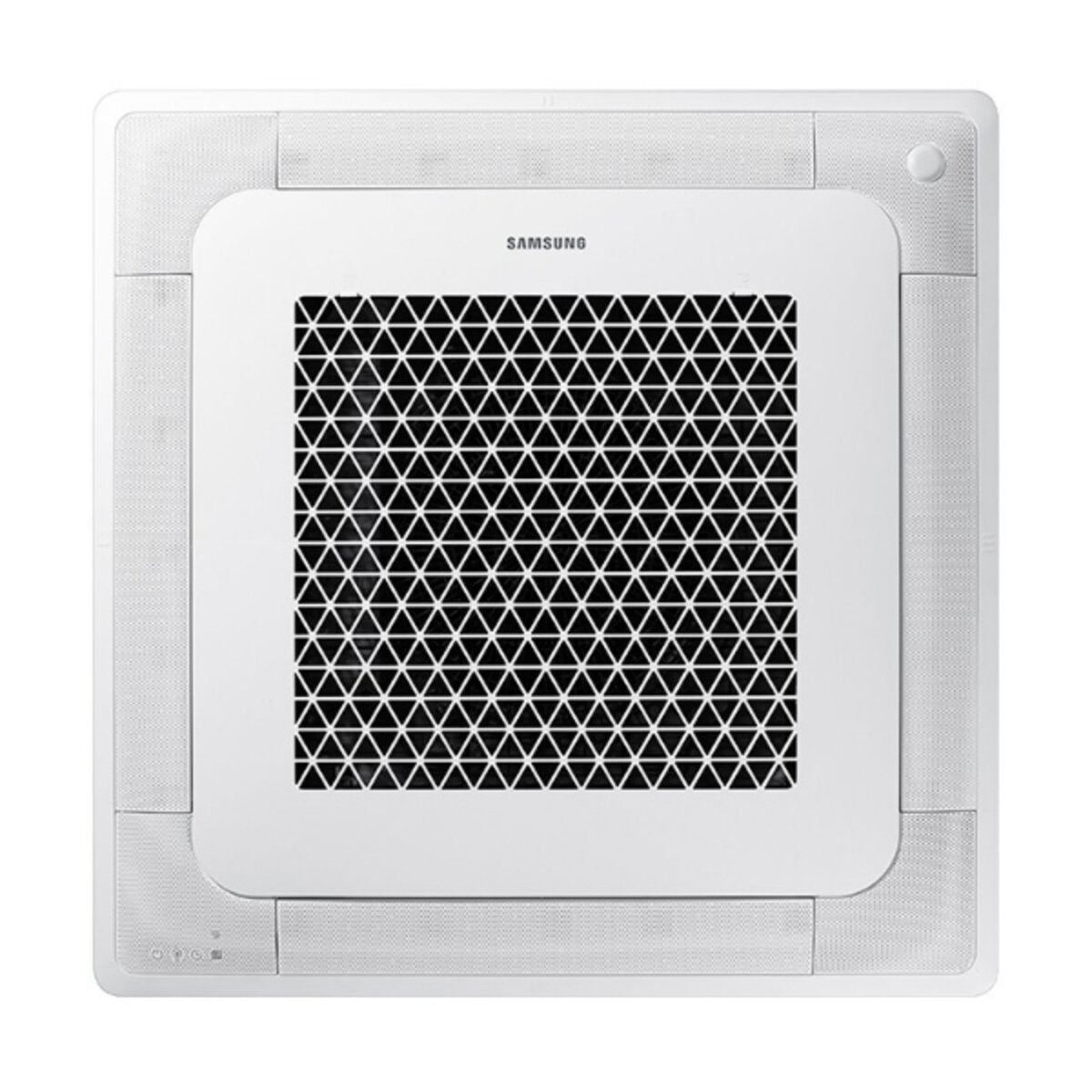

The Samsung 4-Way Mini WindFree Cassette air conditioner has a particularly beautiful design, very elegant and modern at the same time with its rounded corners and triangular mesh panel . It adapts to all types of furnishings and in any environment in which it is installed, integrating into any architecture; particularly suitable for commercial activities, offices and hotels, it also integrates perfectly into homes. This type of internal unit has small dimensions and uses the classic 60x60 cm standard of false ceiling tiles in order to facilitate installation work, the depth is very limited; the cassette is supplied already complete with the suction panel and the wired control .
BREATHE CLEAN AIR
The included dust filter blocks the entry of the most common harmful agents and allows the air conditioner to always return clean air. The filter, which helps fight allergies, is easily removed for cleaning. The air conditioning diffusion fins have a special shape that prevents the accumulation of dust; they are also easily removable for cleaning operations.
PERFECT CLIMATE AND RELAXATION
The 4-Way Mini WindFree Cassette indoor unit offers a perfect climate and unparalleled comfort. Thanks to the air flow from above via the 4 66 mm deep fins that can also be adjusted individually (between 32 and 75°), the air diffusion is always optimal and, thanks to the WindFree system, it offers even greater comfort; the fins are also equipped with automatic oscillation. This indoor unit is already equipped with the condensation drain pump integrated into the chassis; on the side of the cassette there is also the predisposition for the creation of the external air inlet for the renewal of the air in the room and the predisposition for connecting a secondary channel to the cassette in order to air condition an adjacent room.
The “Silent” function further reduces the already minimal noise levels produced during operation. Thanks to the Self-diagnosis mode, any malfunction is immediately reported.
The Samsung Mini WindFree 4-Way Cassette air conditioner, in the 9000 and 12000 BTU sizes, is also equipped with a High Ceiling function for high ceilings which allows you to increase the air flow and obtain total comfort even in the presence of ceilings up to 3 m high.
The Samsung Cassette 4 Way Mini WindFree internal units adopt the “NASA” communication protocol, faster and more efficient than the traditional RS485, which allows the air conditioner to be managed remotely via App by purchasing the appropriate optional Wi-Fi kit. Climamarket offers, as standard, the advanced wired control (code MWR-WG00KN) for local management; the control has compact dimensions and its use is simple and intuitive.
ACCESSORIES SUPPLIED AS STANDARD WITH EACH INTERNAL UNIT
- Square ceiling panel (code PC4SUFMAN)
- Advanced wired control (code MWR-WG00KN).
WARRANTY
The warranty is the official Samsung one and lasts 24 months.
THE INDOOR UNIT
12,000 BTU – Ideal for rooms from 25 to 40 m2 with an average height of 2.7 m
The wide range of Samsung WindFree air conditioners also includes the 4-way Mini WindFree Cassette indoor units.
The WindFree system represents the revolution and the future of air conditioning. With WindFree, Samsung has created, first in the world, the system that air-conditions environments by preventing the user from perceiving the direct air flow. The WindFree system diffuses the air like no other because the internal unit has a micro-perforated front panel from which the conditioned air diffuses into the environment in a natural and absolutely imperceptible way through the 9000 holes of this model. The WindFree internal units all have a refined design that makes them particularly captivating, real design objects ; the many additional functions make it possible to radically transform the climate of the rooms, offering a unique pleasure.
With its intelligent technology , the WindFree system contributes to reducing the consumption of outdoor units which are already very low. The operation of the indoor unit takes place in two phases: when switched on, it allows the temperature to be reached quickly thanks to the Fast Cooling Mode which uses the classic air diffusion fin; subsequently, when the set temperature is reached, the flap closes automatically and the temperature is kept constant in the room through the diffusion of the conditioning through the micro-holes. The comfort is incomparable because it eliminates the classic head and back pains due to a direct diffusion of the conditioning and gives only the pleasure of the conditioning ; the system is also particularly useful for all environments such as offices, where a fixed position is occupied for a long time, or in bedrooms or, again, where the elderly and children are present.
WindFree, conditioning ... free from the wind!
The internal unit of the Samsung Cassette 4 Vie Mini WindFree air conditioner is mounted on the ceiling, generally recessed in a false ceiling. Cassette split air conditioners offer the great advantage of not taking up space on the walls for the installation of the indoor unit, furthermore the possibility of positioning the units in central points of the rooms allows for better diffusion of the conditioned air.
With the Mini WindFree 4-Way Cassette, Samsung also extends its innovative WindFree project, one of a kind, to cassettes.
The 12000 BTU indoor unit presented here is used together with the inverter outdoor units to create multi-split air conditioner combinations. It is not compatible with 4kW dual split outdoor units (AJ040TXJ2KG/EU).
DESIGN
The Samsung 4-Way Mini WindFree Cassette has a particularly beautiful design, very elegant and modern at the same time with its rounded corners and triangular mesh panel . It adapts to all types of furnishings and in any environment in which it is installed, integrating into any architecture; particularly suitable for commercial activities, offices and hotels, it also integrates perfectly into homes. This type of indoor unit has small dimensions and uses the classic 60x60 cm standard of false ceiling tiles in order to facilitate installation works, the depth is very reduced; the box is supplied already complete with the suction panel and the wired control .
BREATHE CLEAN AIR
The antibacterial filter removes the most common harmful agents , allowing the air conditioner to always return clean air. The filter, which helps fight allergies, is easily removed for cleaning. The air conditioning diffusion fins have a particular shape which prevents the accumulation of dust.
PERFECT CLIMATE AND RELAX
The 4-way Mini WindFree Cassette indoor unit offers a perfect climate and unparalleled comfort. Thanks to the air delivery from above on the four sides, which can also be individually adjusted between 32 and 75°, the diffusion of the air is always optimal and with the WindFree system it offers even greater comfort; however, the flaps are also equipped with automatic oscillation. This indoor unit is already equipped with a condensate drain pump built into the chassis; on the side of the box there is also the predisposition for the creation of the external air inlet which serves to renew the air in the environment and the predisposition for connecting a secondary duct to the cistern in order to air-condition an adjacent room.
The "Silent" function sets the silent mode, further reducing the already minimal noise levels produced during operation. Thanks to the self-diagnosis mode, any malfunction is immediately signalled.
These air conditioners are really very quiet : only 24 dB(A) of noise, little more than a rustle of leaves!
The Samsung 4-Way Mini WindFree Cassette indoor units of the T series adopt the faster and more efficient "NASA" communication protocol than the traditional RS485. They can be managed using the Advance wired control supplied (code MWR-WG00KN); the control has compact dimensions, its use is simple and intuitive.
DIMENSIONS
Length: mm 575 – Width: mm 575 – Height: mm 250
Weight: 11.5 kg.
ACCESSORIES SUPPLIED AS STANDARD
- Square false ceiling panel (code PC4SUFMAN)
- Advance wired control (code MWR-WG00KN).
WARRANTY
The warranty is the official Samsung one and has a duration of 24 months.
THE INDOOR UNIT
7,000 BTU – Ideal for rooms 10 to 15 m2 with an average height of 2.7m
The wide range of Samsung WindFree air conditioners also includes the 4-way Mini WindFree Cassette indoor units.
The WindFree system represents the revolution and the future of air conditioning. With WindFree, Samsung has created, first in the world, the system that air-conditions environments by preventing the user from perceiving the direct air flow. The WindFree system diffuses the air like no other because the internal unit has a micro-perforated front panel from which the conditioned air diffuses into the environment in a natural and absolutely imperceptible way through the 9000 holes of this model. The WindFree internal units all have a refined design that makes them particularly captivating, real design objects ; the many additional functions make it possible to radically transform the climate of the rooms, offering a unique pleasure.
With its intelligent technology , the WindFree system contributes to reducing the consumption of outdoor units which are already very low. The operation of the indoor unit takes place in two phases: when switched on, it allows the temperature to be reached quickly thanks to the Fast Cooling Mode which uses the classic air diffusion fin; subsequently, when the set temperature is reached, the flap closes automatically and the temperature is kept constant in the room through the diffusion of the conditioning through the micro-holes. The comfort is incomparable because it eliminates the classic head and back pains due to a direct diffusion of the conditioning and gives only the pleasure of the conditioning ; the system is also particularly useful for all environments such as offices, where a fixed position is occupied for a long time, or in bedrooms or, again, where the elderly and children are present.
WindFree, conditioning ... free from the wind!
The internal unit of the Samsung Cassette 4 Vie Mini WindFree air conditioner is mounted on the ceiling, generally recessed in a false ceiling. Cassette split air conditioners offer the great advantage of not taking up space on the walls for the installation of the indoor unit, furthermore the possibility of positioning the units in central points of the rooms allows for better diffusion of the conditioned air.
With the Mini WindFree 4-Way Cassette, Samsung also extends its innovative WindFree project, one of a kind, to cassettes.
The 7000 BTU indoor unit presented here is used together with inverter outdoor units to create multi-split air conditioner combinations. It is not compatible with 4kW dual split outdoor units (AJ040TXJ2KG/EU).
DESIGN
The Samsung 4-Way Mini WindFree Cassette has a particularly beautiful design, very elegant and modern at the same time with its rounded corners and triangular mesh panel . It adapts to all types of furnishings and in any environment in which it is installed, integrating into any architecture; particularly suitable for commercial activities, offices and hotels, it also integrates perfectly into homes. This type of indoor unit has small dimensions and uses the classic 60x60 cm standard of false ceiling tiles in order to facilitate installation works, the depth is very reduced; the box is supplied already complete with the suction panel and the wired control .
BREATHE CLEAN AIR
The antibacterial filter removes the most common harmful agents , allowing the air conditioner to always return clean air. The filter, which helps fight allergies, is easily removed for cleaning. The air conditioning diffusion fins have a particular shape which prevents the accumulation of dust.
PERFECT CLIMATE AND RELAX
The 4-way Mini WindFree Cassette indoor unit offers a perfect climate and unparalleled comfort. Thanks to the air delivery from above on the four sides, which can also be individually adjusted between 32 and 75°, the diffusion of the air is always optimal and with the WindFree system it offers even greater comfort; however, the flaps are also equipped with automatic oscillation. This indoor unit is already equipped with a condensate drain pump built into the chassis; on the side of the box there is also the predisposition for the creation of the external air inlet which serves to renew the air in the environment and the predisposition for connecting a secondary duct to the cistern in order to air-condition an adjacent room.
The "Silent" function sets the silent mode, further reducing the already minimal noise levels produced during operation. Thanks to the self-diagnosis mode, any malfunction is immediately signalled.
These air conditioners are really very quiet : only 24 dB(A) of noise, little more than a rustle of leaves!
The Samsung 4-Way Mini WindFree Cassette indoor units of the T series adopt the faster and more efficient "NASA" communication protocol than the traditional RS485. They can be managed using the Advance wired control supplied (code MWR-WG00KN); the control has compact dimensions, its use is simple and intuitive.
DIMENSIONS
Length: mm 575 – Width: mm 575 – Height: mm 250
Weight: 11.5 kg.
ACCESSORIES SUPPLIED AS STANDARD
- Square false ceiling panel (code PC4SUFMAN)
- Advance wired control (code MWR-WG00KN).
WARRANTY
The warranty is the official Samsung one and has a duration of 24 months.

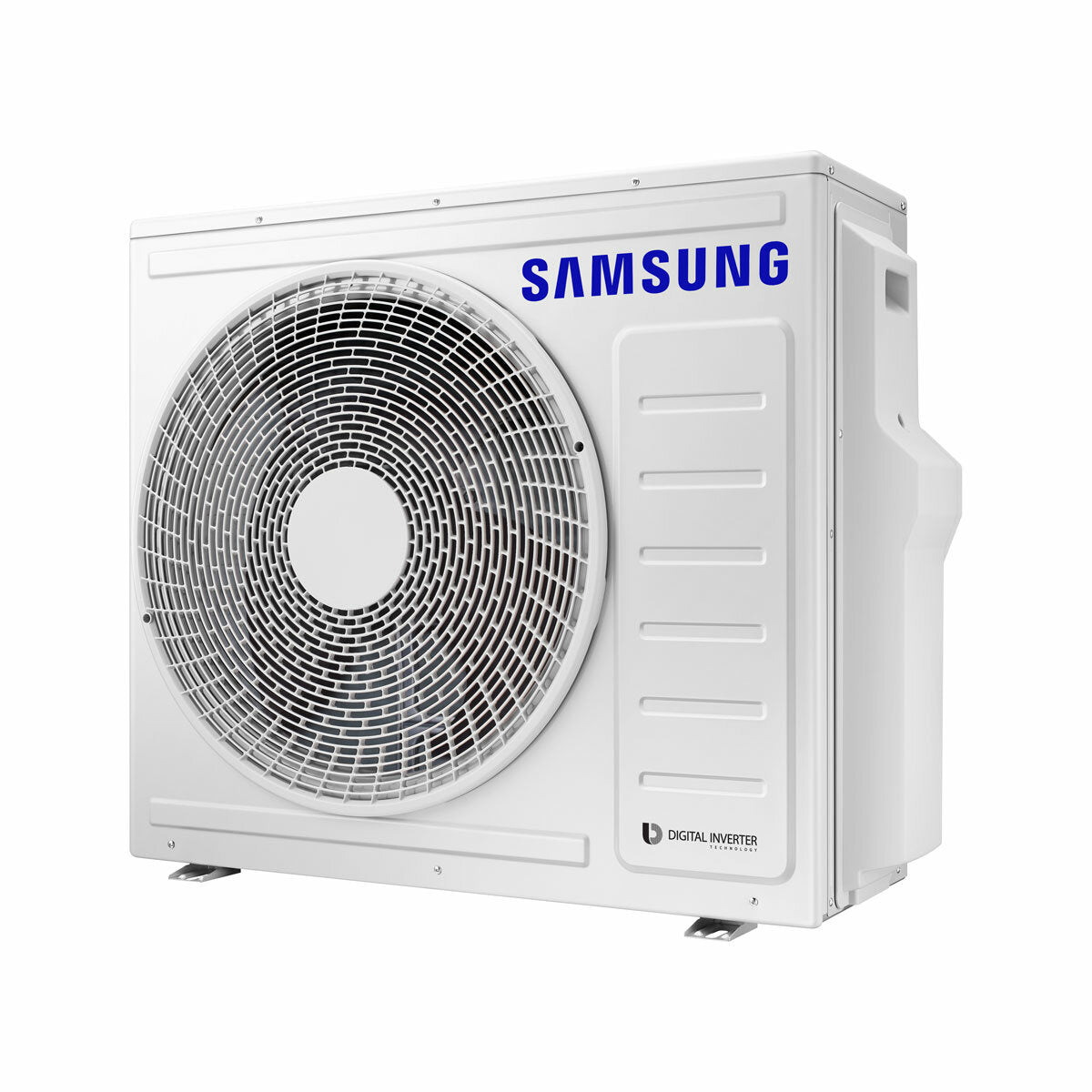

THE OUTDOOR UNIT
In 2020 Samsung updated the range of FJM ( Free Joint Multi ) outdoor units with the T Series : these outdoor units for multi-split air conditioners use R32 gas with low environmental impact, a compressor with Digital Inverter technology and the heat pump , the real beating heart of the air conditioner.
Multisplit air conditioners offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned. The 6.8 kW outdoor unit presented here allows you to connect and power two or three Samsung indoor units of any series, even with different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The Samsung FJM outdoor unit for air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment to be air-conditioned. This model offers high performance and great comfort both when using the air conditioner in cooling and heating mode. Thanks to the Digital Inverter system, the outdoor unit allows high energy savings and particular attention to the environment. It guarantees to always obtain the highest energy classes and minimizes waste . The Digital Inverter compressor allows further savings as well as guaranteed well-being thanks to the maintenance of a constant temperature without sudden changes . The heat pump allows you to use the air conditioner both in summer for cooling and during winter for heating.
The compressor is particularly silent in full respect of one's sleep and that of others and has great efficiency ; the innovative construction technology makes it particularly robust to the full advantage of durability over the years.
The R32 gas with which these outdoor units are loaded has a very low environmental impact and therefore contributes considerably to respect for nature; it also reduces energy consumption to the full advantage of spending on bills. The 6.8 kW outdoor unit has energy efficiency class A++ in cooling and A+ in heating.
Particularly resistant to bad weather and atmospheric agents, it can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Samsung one and has a duration of 24 months.
Samsung MWR-WG01KN Advance Wired Remote Control for Samsung Air Conditioners
The Samsung Advance wired control model MWR-WG00KN allows you to customise and programme the air conditioner in order to best manage the environmental comfort of the rooms where it is installed.
Compatible with models from the Samsung MONO, MULTI, CAC, EHS lines.
Redesigned compared to previous models, it has a square shape with rounded edges and is made of white glass with a color display; it will fit elegantly and discreetly into any environment.
It is a wired control and connects to the internal unit using the appropriate cables.
Some settable modes and features:
-
Operating modes: cooling, heating, dehumidification, ventilation;
-
Temperature and fan speed control;
-
Weekly programming and time setting;
-
Advanced features such as silent, night and energy saving modes;
-
Air purification function (Purify);
-
Error handling and reporting codes;
-
Integrated ambient temperature sensor.
-
Audible and visual alarm in case of refrigerant leak.
Further functions can be viewed in the user manual supplied with the product.
WARRANTY
The warranty is the official Samsung one and lasts 2 years.
