Samsung ducted air conditioner medium prevalence 24000 BTU inverter A++ external unit 6.8 kW commercial

The air conditioner kit is equipped with the following indoor units:

• 1 x 24000 BTU - Ideal for rooms from 80 to 100 sqm with an average height of 2.7 m

The Samsung ducted air conditioner from the commercial range is part of the Samsung series that was the first to adopt the NASA communication protocol for complete management of the air conditioner, even remotely.

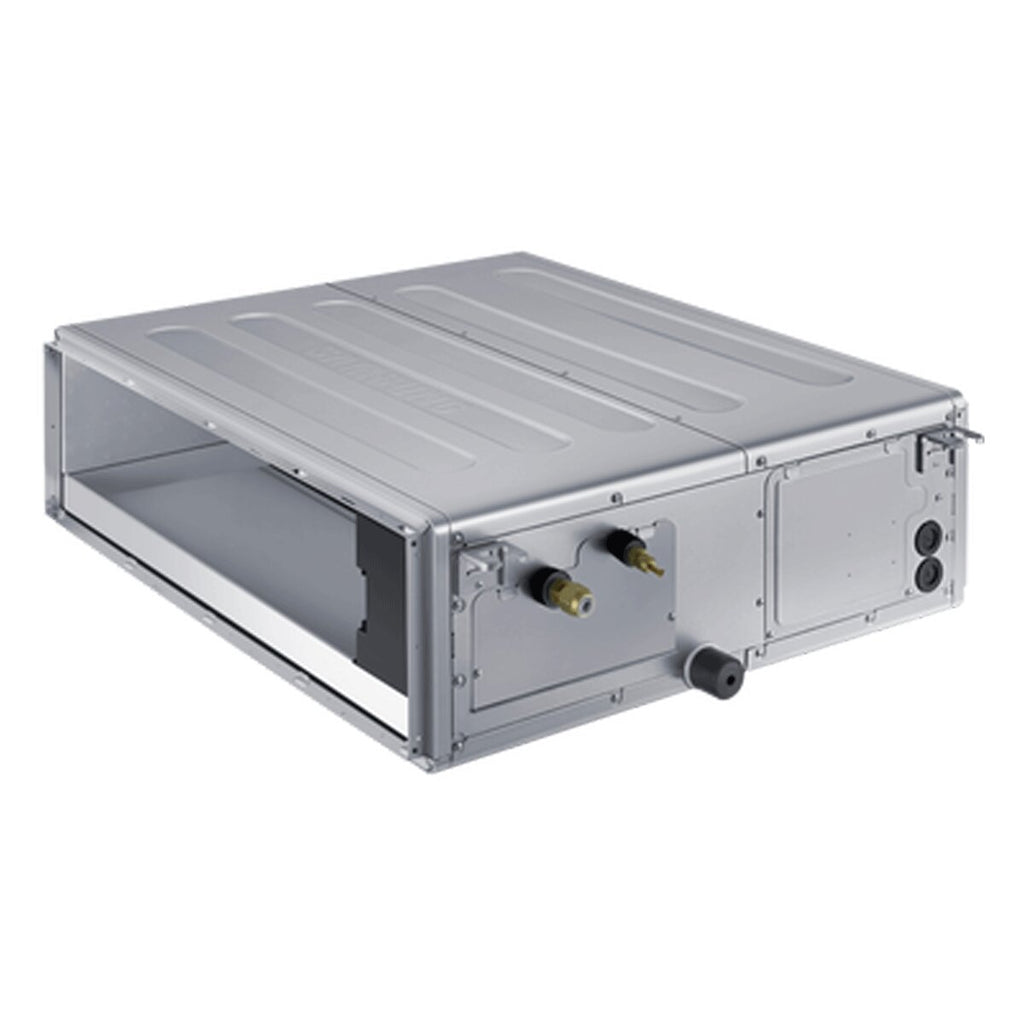

With the Samsung Ducted Inverter Air Conditioner, the internal unit is mounted in a hidden position, generally in a false ceiling, and the air is diffused into the room through a special ventilation opening. The advantages of ducted air conditioners are in particular the possibility of air conditioning rooms without the internal unit being visible, to the advantage of aesthetics and the possibility of using the walls for furnishings. With the installation of a built-in air conditioner, there is well-being but there is no . . . the air conditioner! The Samsung ducted internal units of the CAC commercial range are used together with the external Inverter units to create monosplit or Twin , Triple and Quadri combinations using the special connection joints.

DESIGN

The Samsung Ducted air conditioner allows you to use maximum imagination in the architecture of the environments where it is installed. Its “invisible” presence allows you to air condition the environments easily thanks also to the small size of the internal units ( 250 mm thick up to the 10 kW size ) which allows them to be integrated into the most unexpected places in the environment. It is suitable for installation anywhere, from homes to commercial activities, offices and hotel environments.

GUARANTEED SAVINGS

The internal unit of the Samsung Ducted air conditioner of the CAC range (adjustable head up to 150 Pa) satisfies many air conditioning needs , offering great comfort and excellent performance in both the cooling and heating functions. It is equipped with the Samsung Inverter system with digital control that allows it to reach the best energy efficiency classes . It has very low basic energy consumption ,   which are further reduced thanks to the additional energy saving functions; the unit manages to create superior comfort since the temperature is always kept constant.

The condensate drain pump is available as an optional on these internal units.

BREATHE CLEAN AIR

The high-efficiency filter with which these internal units are equipped always ensures clean air and is easily removable for cleaning.

PERFECT CLIMATE AND RELAXATION

The Samsung Ducted air conditioner quickly reaches and always maintains the set temperature, without sudden changes; it offers optimal comfort because it distributes the air extremely quietly and in a truly imperceptible way thanks also to the hidden position of the built-in split and the Scirocco Inverter fan which provides a greater air flow and better distribution. The Samsung ducted internal units are also equipped with the air delivery temperature control function. They also offer a series of special functions such as Self-diagnosis , the Ventilation Only Program, Automatic Fan Regulation , 24-hour Timer , Weekly Programming via wired control , Automatic Restart in the event of a power failure, the Out of Home Function to set a maintenance temperature when you leave the room, for greater comfort and energy savings.

Thanks to the Silent mode it is then possible to reduce the noise level by up to 7 dB(A) in three different steps for optimal night-time comfort.

The Smart Tuning function, which can be set via wired control, regulates the air flow to reach the set temperature more quickly or achieve greater acoustic comfort by reducing noise.

Compared to traditional ducted units, Samsung ducted indoor units have a 30% reduced volume and weight, which optimizes assembly and maintenance operations; operations made even simpler thanks to accessibility from below, from above and from the side.

Samsung ducted indoor units can also be managed remotely by purchasing the optional kit (code MIM-H04EN) and the Samsung SmartThings App.

WARRANTY

The warranty is the official Samsung one and lasts 24 months.

THE EXTERNAL UNIT

The external unit for air conditioners of the SAMSUNG commercial line, with Inverter technology and Heat Pump is the beating heart of the air conditioner.

The external units for commercial air conditioners are used for the Monosplit combinations of the Samsung CAC range and allow you to connect a single internal unit or, for the Twin, Triple and Quadri combinations,   to connect multiple internal units using the appropriate Connection Joints.

GUARANTEED SAVINGS

The SAMSUNG outdoor unit always provides power proportionate to the real air conditioning needs of the environment in which its single indoor unit or indoor units are located. It offers high performance and great comfort both when using the air conditioner in cooling and heating. Thanks to the Inverter system, the outdoor unit allows for high energy savings and particular attention to the environment, in addition to achieving the highest Energy Classes by reducing waste to a minimum .

The Inverter Twin Rotary BLDC compressor is equipped with two rotors that can rotate in opposite directions, thus reducing the noise and vibration of the system. The Heat Pump allows you to use the air conditioner all year round, both in summer to cool and in winter to heat.

For operation it uses R32 gas which has a very low environmental impact, Samsung always focuses on environmental protection.

The extended temperature limits allow the machine to operate in cooling mode from -15°C to 50°C external and in heating mode from -20°C to 24°C.

The pipe can be installed in 4 different directions making the installation extremely flexible. Particularly resistant to weather and atmospheric agents, it can be fixed both in a suspended position and resting on the floor thanks to the supports that can be purchased separately.

WARRANTY

The warranty is the official Samsung one and lasts 2 years.

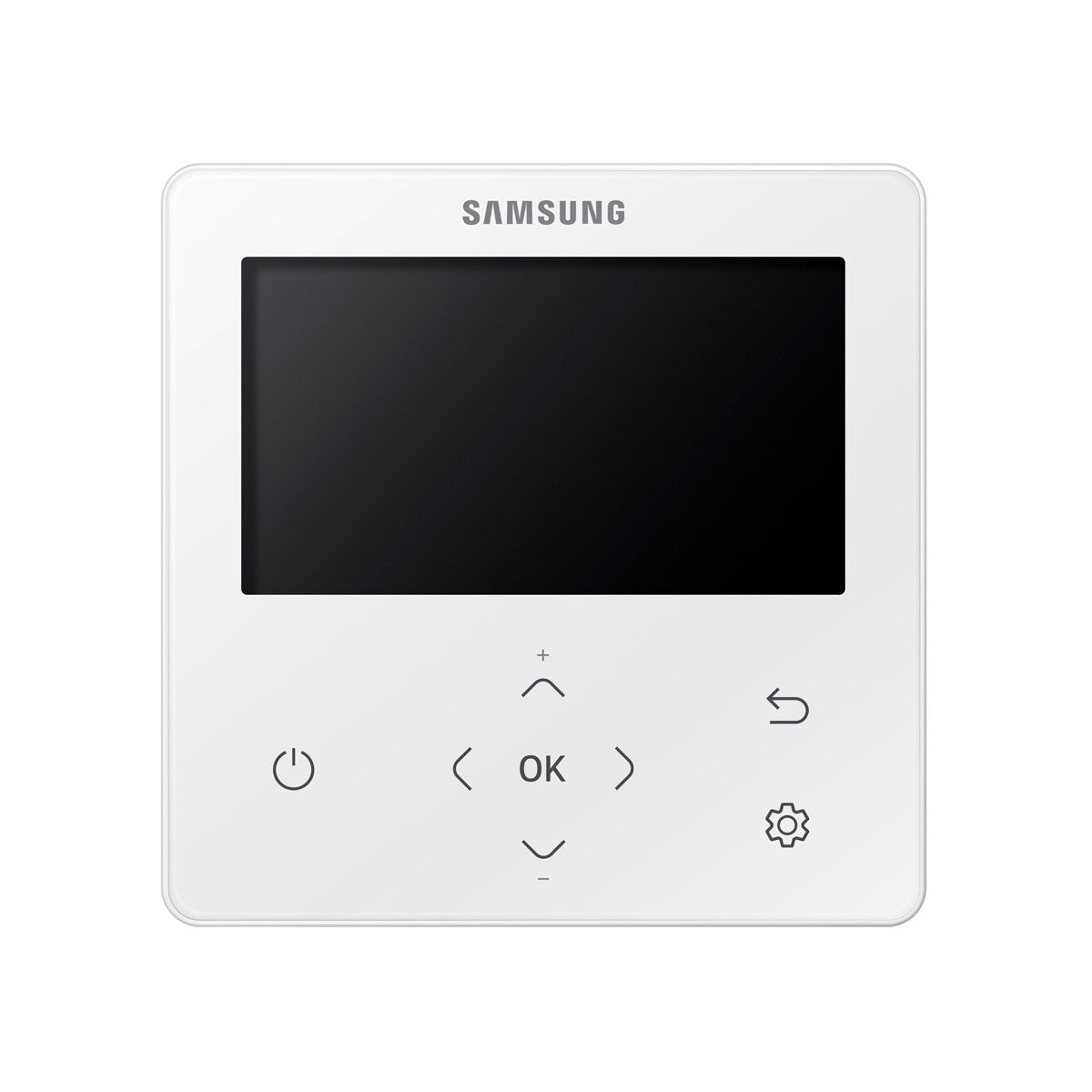

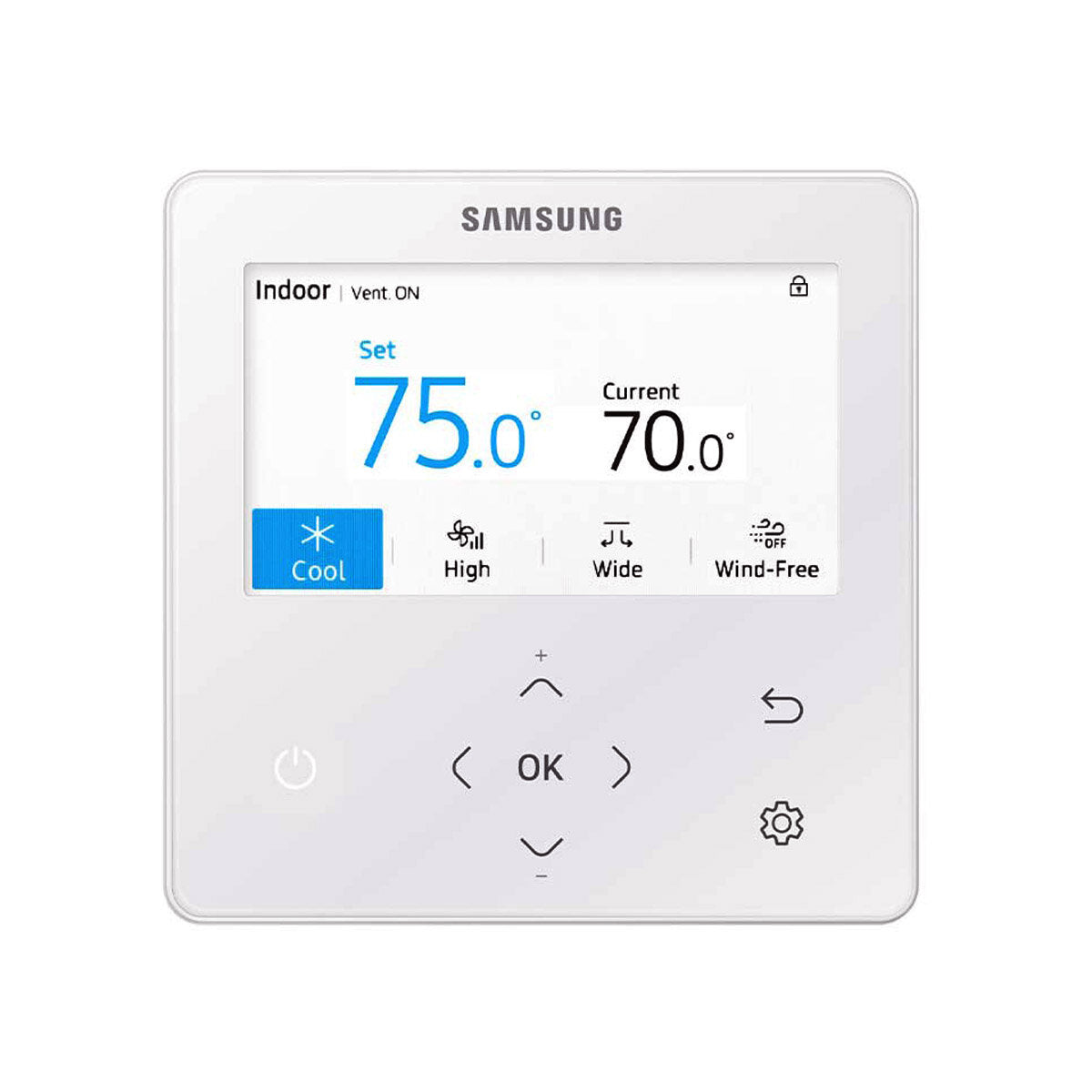

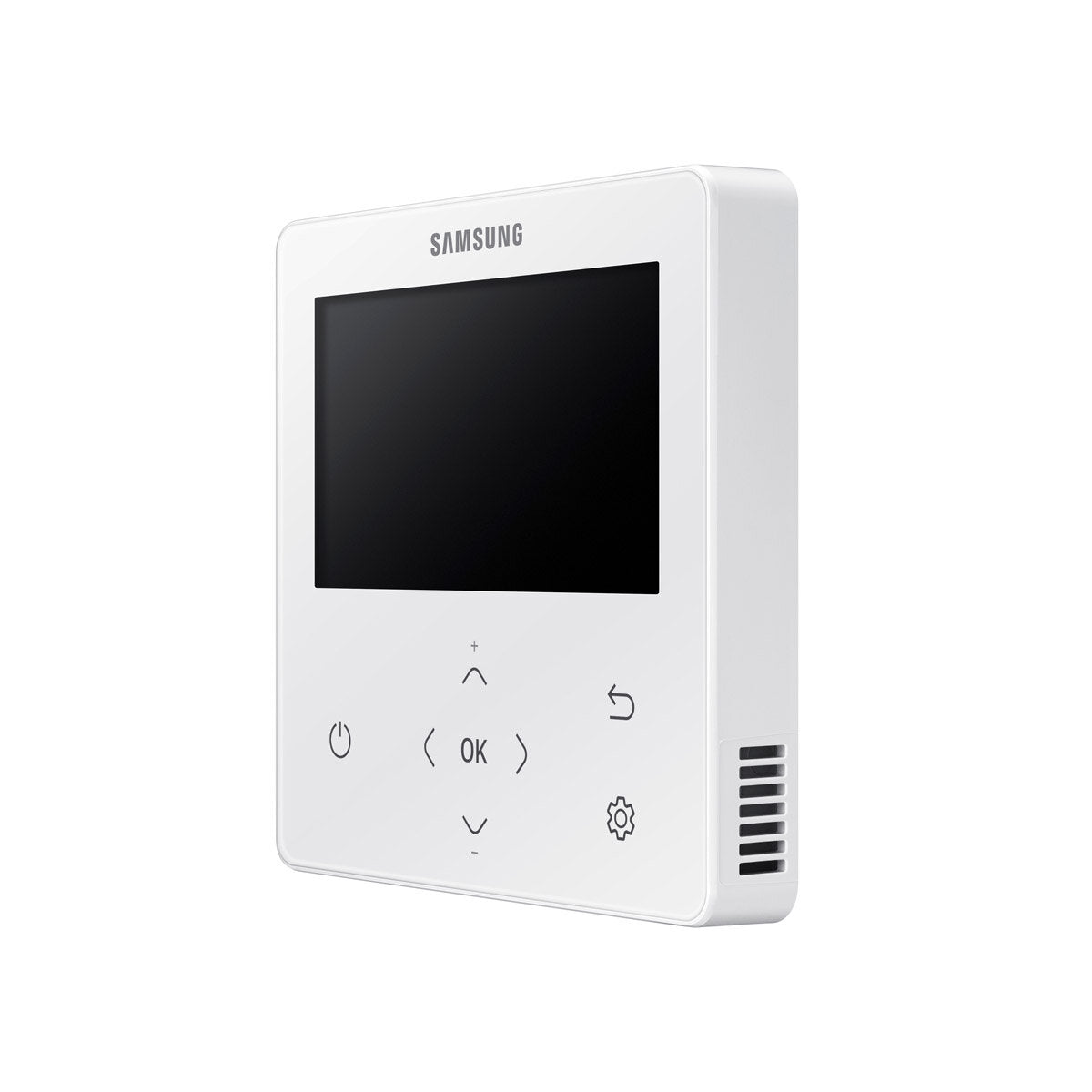

Samsung MWR-WG01KN Advance Wired Remote Control for Samsung Air Conditioners

The Samsung Advance wired control model MWR-WG00KN allows you to customise and programme the air conditioner in order to best manage the environmental comfort of the rooms where it is installed.

Compatible with models from the Samsung MONO, MULTI, CAC, EHS lines.

Redesigned compared to previous models, it has a square shape with rounded edges and is made of white glass with a color display; it will fit elegantly and discreetly into any environment.

It is a wired control and connects to the internal unit using the appropriate cables.

Some settable modes and features:

• Operating modes: cooling, heating, dehumidification, ventilation;

• Temperature and fan speed control;

• Weekly programming and time setting;

• Advanced features such as silent, night and energy saving modes;

• Air purification function (Purify);

• Error handling and reporting codes;

• Integrated ambient temperature sensor.

• Audible and visual alarm in case of refrigerant leak.

Further functions can be viewed in the user manual supplied with the product.

WARRANTY

The warranty is the official Samsung one and lasts 2 years.
