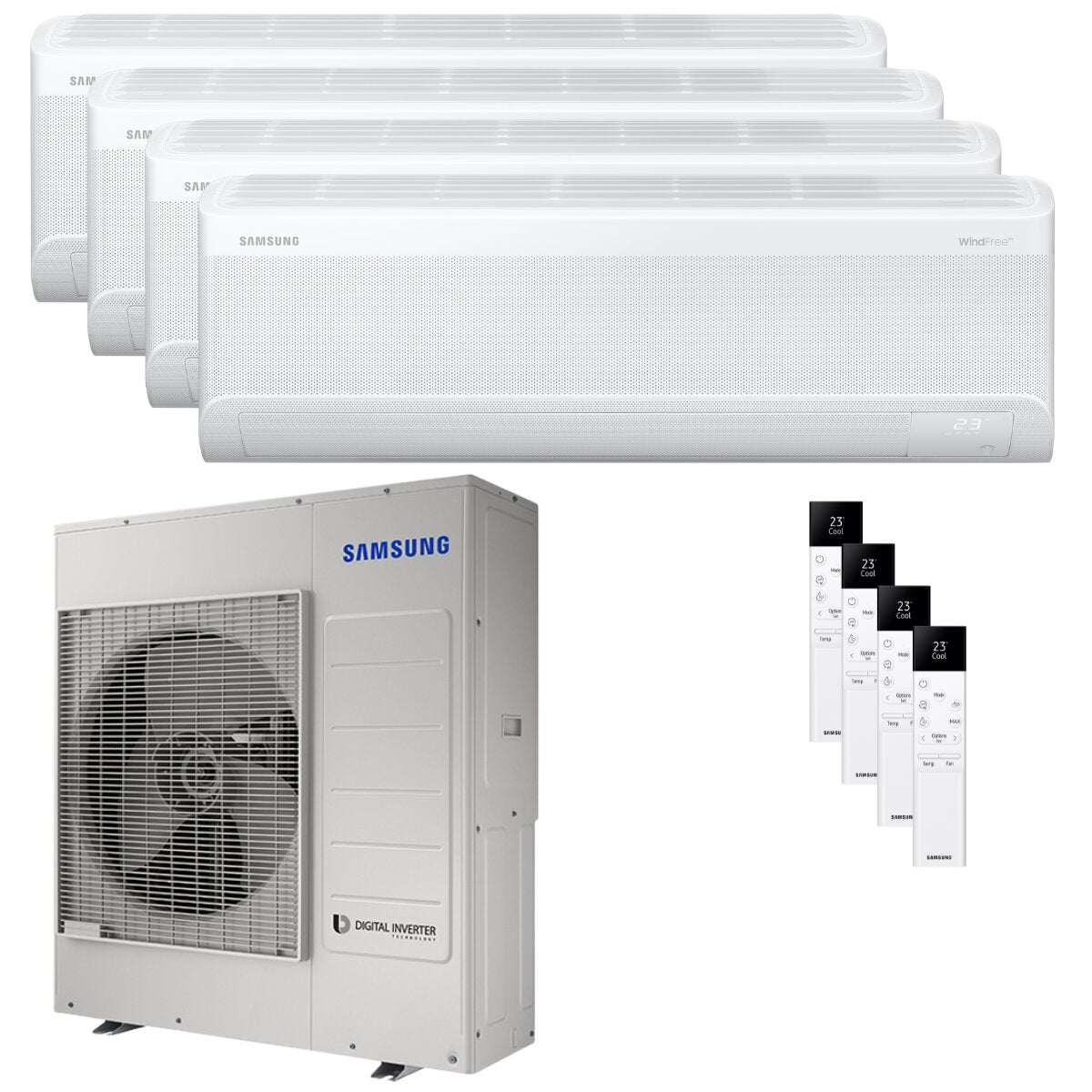

Samsung Windfree Elite S2 Quadri Split Air Conditioner 9000+12000+12000+12000 BTU Inverter A++ Wifi External Unit 10 kW The air conditioner kit is equipped with the following indoor units:
- 1 x 9000 BTU - Ideal for rooms from 15 to 25 sqm with an average height of 2.7 m
- 3 x 12000 BTU - Ideals for rooms from 25 to 40 sqm with an average height of 2.7 m
The Samsung Windfree Elite S2 air conditioner is the new top model in Samsung's WindFree air conditioner range : a technological and design jewel whose features will amaze even the most demanding users!
Samsung's WindFree range of air conditioners is the one that brought the revolutionary “still air” air conditioning and smart interaction with the user to the market thanks to units equipped with motion sensors and Artificial Intelligence that respond to voice commands to activate or deactivate their functions.
The WindFree system represents the revolution and the future of air conditioning. With WindFree, Samsung has created the system that air-conditions environments without the user perceiving direct air flow. In fact, the Windfree Elite S2 air conditioner diffuses air like no other because the internal unit has a micro-perforated front panel from which the air-conditioned air diffuses into the environment in a natural and absolutely imperceptible way through 21,000 micro-holes . WindFree internal units are particularly elegant, true design objects; the multiple additional functions allow you to radically transform the climate of the environments, offering a unique pleasure.
With its intelligent technology, the WindFree system also contributes to reducing consumption of external units. The operation of the internal unit takes place in two phases: when switched on, it allows you to quickly reach the temperature thanks to the Fast Cooling mode that uses the classic air diffusion fin; when the set temperature is reached, the fin closes automatically and the temperature is kept constant in the room through the diffusion of air conditioning through the micro-holes. The comfort is unparalleled because it eliminates the classic headaches and back pains due to direct diffusion of air conditioning and gives only the pleasure of air conditioning ; the system is particularly useful for all environments such as offices, where you occupy a fixed position for a long time or, in bedrooms or even where there are elderly people and children.
Furthermore, they guarantee a fresh and healthy environment with maximum energy savings: up to class A+++ in cooling and A+++ in heating.
Design

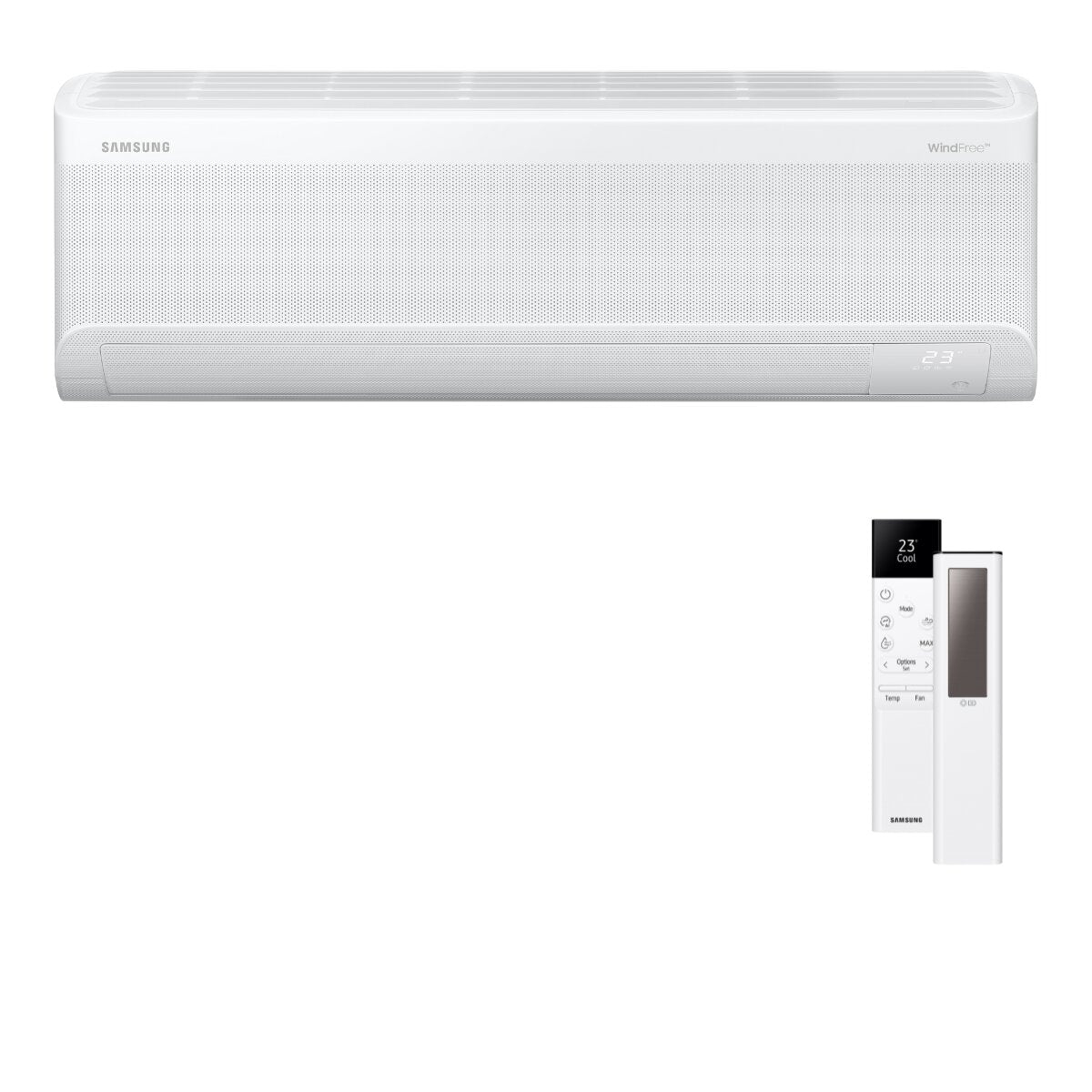

The Samsung WindFree Elite S2 wall-mounted air conditioner features soft, elegant shapes : the edges are rounded, the micro-perforated front panel envelops the unit with refinement and lightness, the large display stands out brightly on the right; its compact size gives it even greater lightness, making installation and maintenance operations easier . The outlet nozzle, more inclined than traditional models, and a larger fan ensure that the air is cooled and released into the room more quickly, more uniformly and more powerfully, to reach every corner of the room.
Breathe clean air
The Samsung WindFree ELITE air conditioner is equipped with the Easy Filter + air filter that retains all the dust present, returning clean air; the filter is very easy to remove for periodic cleaning that is carried out in a practical and fast way. The additional Tri-Care antibacterial filter, with triple action, which removes the most common harmful agents , allows to reduce the presence of viruses , bacteria, allergens and free radicals in the home environment. The latter does not need to be washed; Samsung recommends its replacement every three years. Thanks to the Auto Clean function, the internal unit cleans itself, eliminating mold, bacteria and bad odors with a simple touch on the remote control. New for 2025 is the Freeze Wash function that allows for thorough cleaning of the evaporator.
Perfect climate and relaxation
The functions of the WindFree Elite S2 internal units are of the latest generation for unparalleled comfort! All WindFree internal units are equipped with the 2 Step Cooling function which allows the desired temperature to be reached in a very short time : in the first phase of operation the air cools or heats up rapidly thanks to the larger fan and the open air vent. Once the desired temperature is reached, the vent closes, activating the WindFree system which diffuses the air gradually (at just 0.15 m/s speed!) through the micro holes.
Samsung WindFree Elite S2 air conditioners were conceived as thinking machines thanks to the Artificial Intelligence function that "studying" the user's behavior recognizes it by adapting to his habits; simply by touching the appropriate button on the remote control, the air conditioner will set the most suitable operating parameters in every circumstance. Another great innovation is the integration with the most modern voice recognition systems such as Alexa, Google Assistant and Bixby: it will therefore be possible to start voice control and turn on, turn off or change any setting of the air conditioners simply with your voice.
Furthermore, with the Motion Detection Sensor (MDS), the Samsung WindFree Elite S2 air conditioner is able to activate or deactivate itself by detecting the presence of users in the room and therefore allowing greater energy savings. It is finally possible to customize the operating cycles, control consumption and optimize them with a view to maximum freedom and maximum savings: thanks to the integrated Wi-Fi and using the Samsung SmartThing App it will be possible to manage the WindFree Elite S2 remotely together with all other compatible home devices; all WindFree units use the “NASA” communication protocol , faster and more efficient than the traditional RS485.
Samsung WindFree Elite 2S2 air conditioners are also equipped with numerous functions:
-
AI Auto Cooling : Automatically sets optimal conditions based on your preferences.
-
Extremely quiet : Ultra-quiet operation with levels up to 16 dBA , ideal even at night.
-
Good Sleep Function: The function regulates the room temperature by reproducing the body temperature curve during the night hours, thus ensuring a more comfortable rest.
-
Energy efficiency : thanks to the R32 refrigerant gas and the AI Energy Mode , it optimises consumption by reducing the energy used by up to 30%.
-
Automatic horizontal/vertical adjustment: Just press the appropriate button and the special fins distribute the air flow evenly and quickly in the desired direction.
-
AI Twin Rotary : Twin Rotary compressors are equipped with two rotors capable of rotating in two opposite directions, thus reducing the noise and vibration of the system.
Furthermore, with the dehumidification function, your relaxation will be perfect, fighting the heat of the hottest months.
The new SolarCell Remote does not require disposable batteries because it recharges by exposing it to direct light, whether solar or artificial. Thanks to the integrated solar panel and its particular technology, the waste of 10 batteries over the life cycle of the product is avoided, but it can also be recharged via USB if necessary.
The remote control has a slim and lightweight design that combined with the OLED display and intuitive buttons make it very easy to use.
Accessories supplied as standard with each single indoor unit.
- SolarCell Remote Control
- Built-in Wi-Fi card.
WARRANTY
The warranty is the official Samsung one and lasts 2 years.

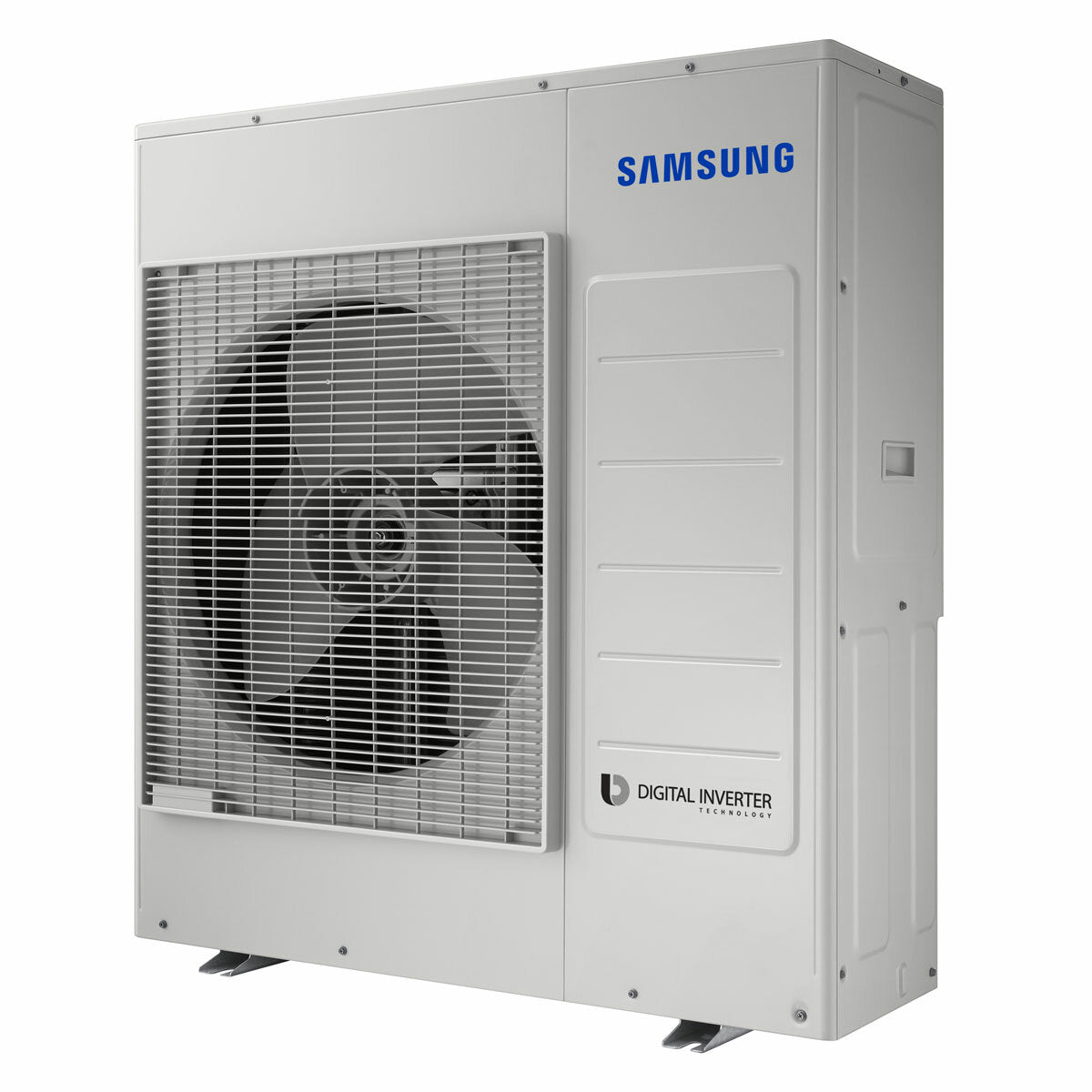

THE OUTDOOR UNIT
In 2020 Samsung updated the range of FJM ( Free Joint Multi ) outdoor units with the T Series : these outdoor units for multi-split air conditioners use R32 gas with low environmental impact, a compressor with Digital Inverter technology and the heat pump , the real beating heart of the air conditioner.
Multisplit air conditioners offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned. The 10 kW outdoor unit presented here allows you to connect and power up to five Samsung indoor units of any Series, even of different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The Samsung FJM outdoor unit for air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment to be air-conditioned. This model offers high performance and great comfort both when using the air conditioner in cooling and heating mode. Thanks to the Digital Inverter system, the outdoor unit allows high energy savings and particular attention to the environment. It guarantees to always obtain the highest energy classes and minimizes waste . The Digital Inverter compressor allows further savings as well as guaranteed well-being thanks to the maintenance of a constant temperature without sudden changes . The heat pump allows you to use the air conditioner both in summer for cooling and during winter for heating.
The compressor is particularly silent in full respect of one's sleep and that of others and has great efficiency ; the innovative construction technology makes it particularly robust to the full advantage of durability over the years.
The R32 gas with which these outdoor units are loaded has a very low environmental impact and therefore contributes considerably to respect for nature; it also reduces energy consumption to the full advantage of spending on bills. The 10 kW outdoor unit has energy efficiency class A++ in cooling and A+ in heating.
Particularly resistant to bad weather and atmospheric agents, it can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Samsung one and has a duration of 24 months.
