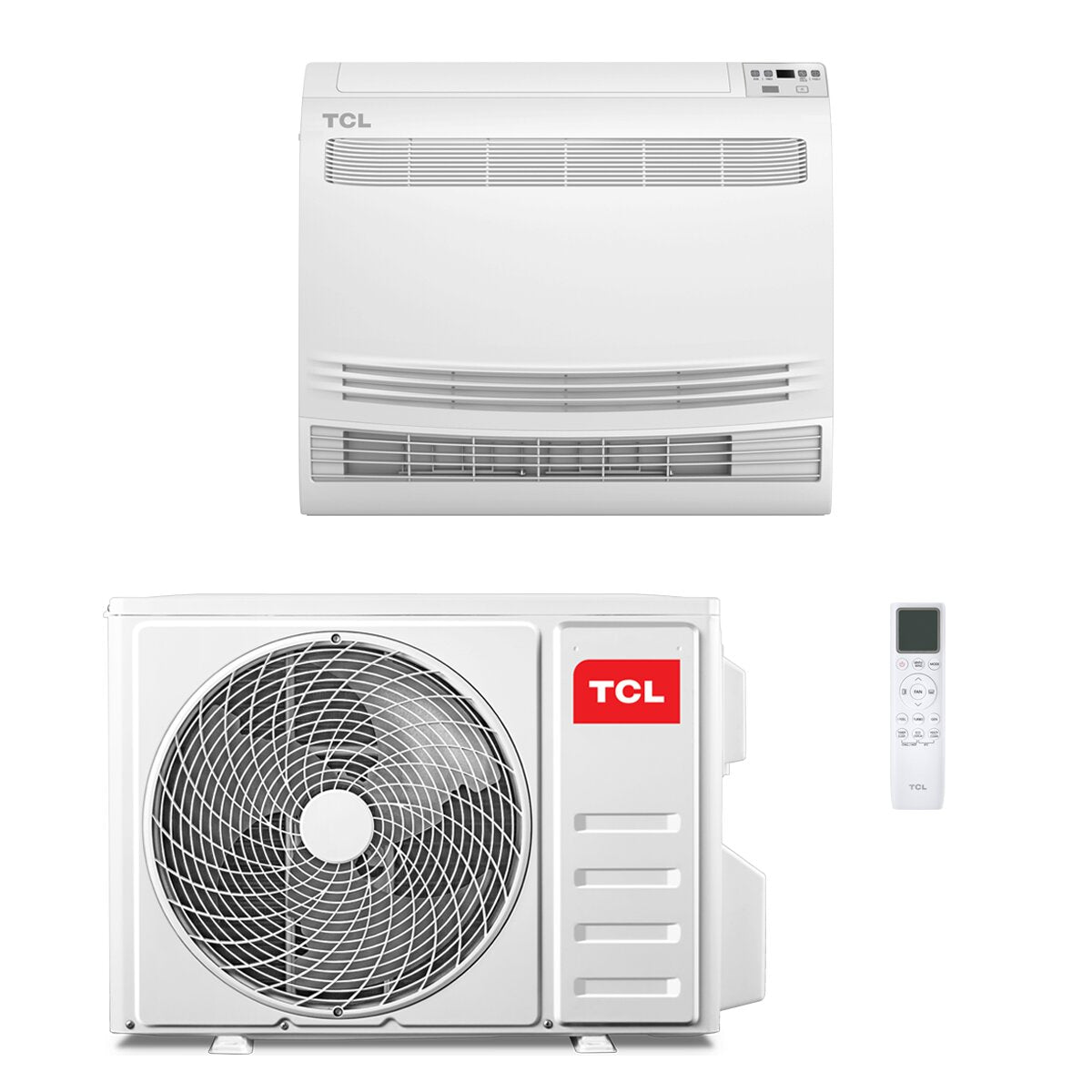

TCL Console Z Series 18,000 BTU R32 Inverter WiFi A++/A+ Air ConditionerThe air conditioner kit is equipped with the following indoor units:
- 1 x 18000 BTU - Ideal for rooms from 50 to 60 sqm with an average height of 2.7 m
The TCL Console Z Series air conditioner is the ideal solution for those looking for an efficient, elegant and technologically advanced air conditioning system. Designed to integrate harmoniously into any environment, it offers high performance in both cooling and heating up to energy class A++/A+, ensuring optimal comfort all year round.

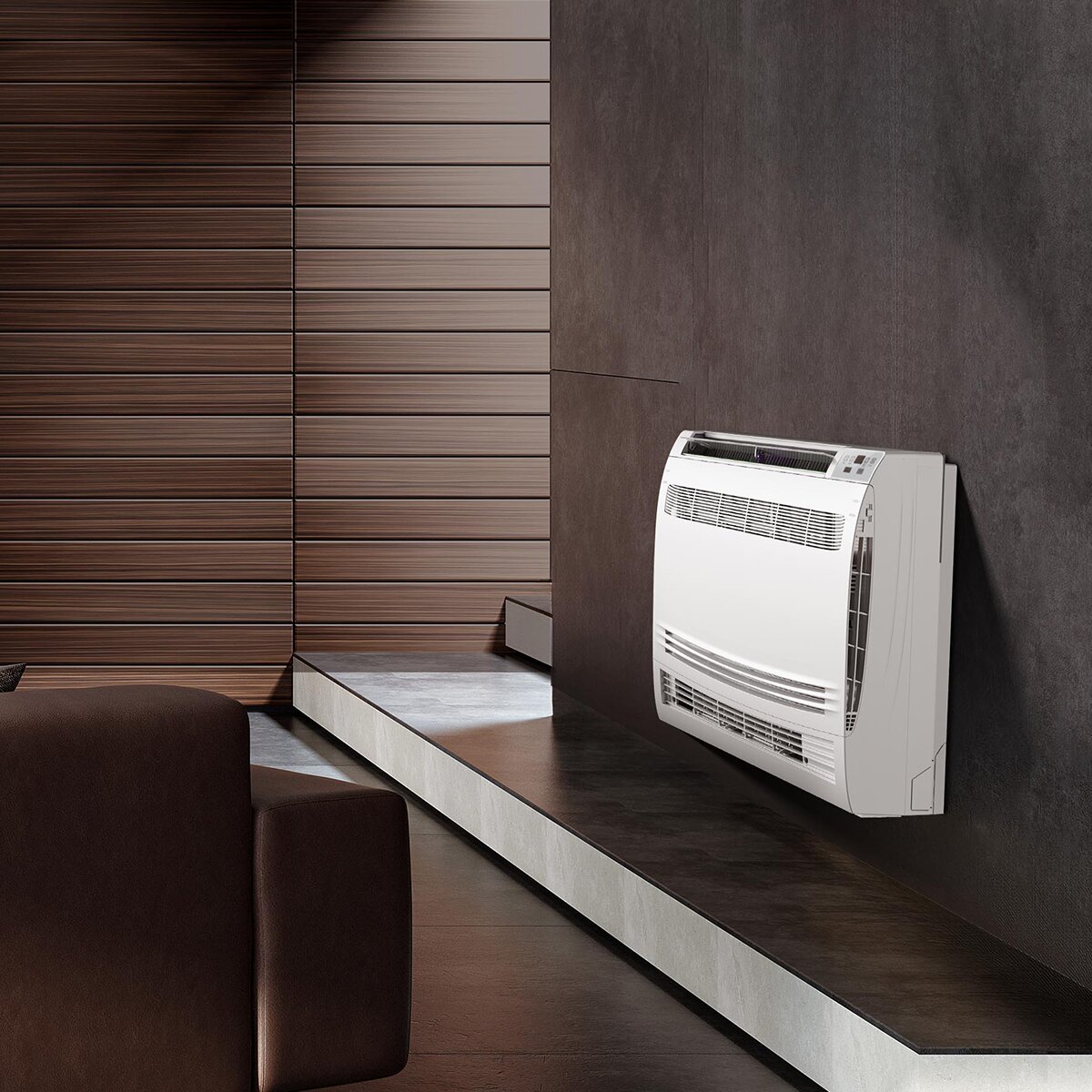

The internal unit of the TCL Z Series console air conditioner represents one of the focal points for commercial and residential air conditioning. It is mounted low on the wall and is a valid alternative to the installation of standard radiators or fan coils, presenting the advantage of directing the air flow at human height. It can also be easily installed under a window and is particularly suitable for attic apartments where it is always difficult to find adequate space to install split units high on the walls.
These internal units are used in combination with the external Inverter units, to create the monosplit and multisplit air conditioner combinations of the range.
DESIGN AND AIR QUALITY

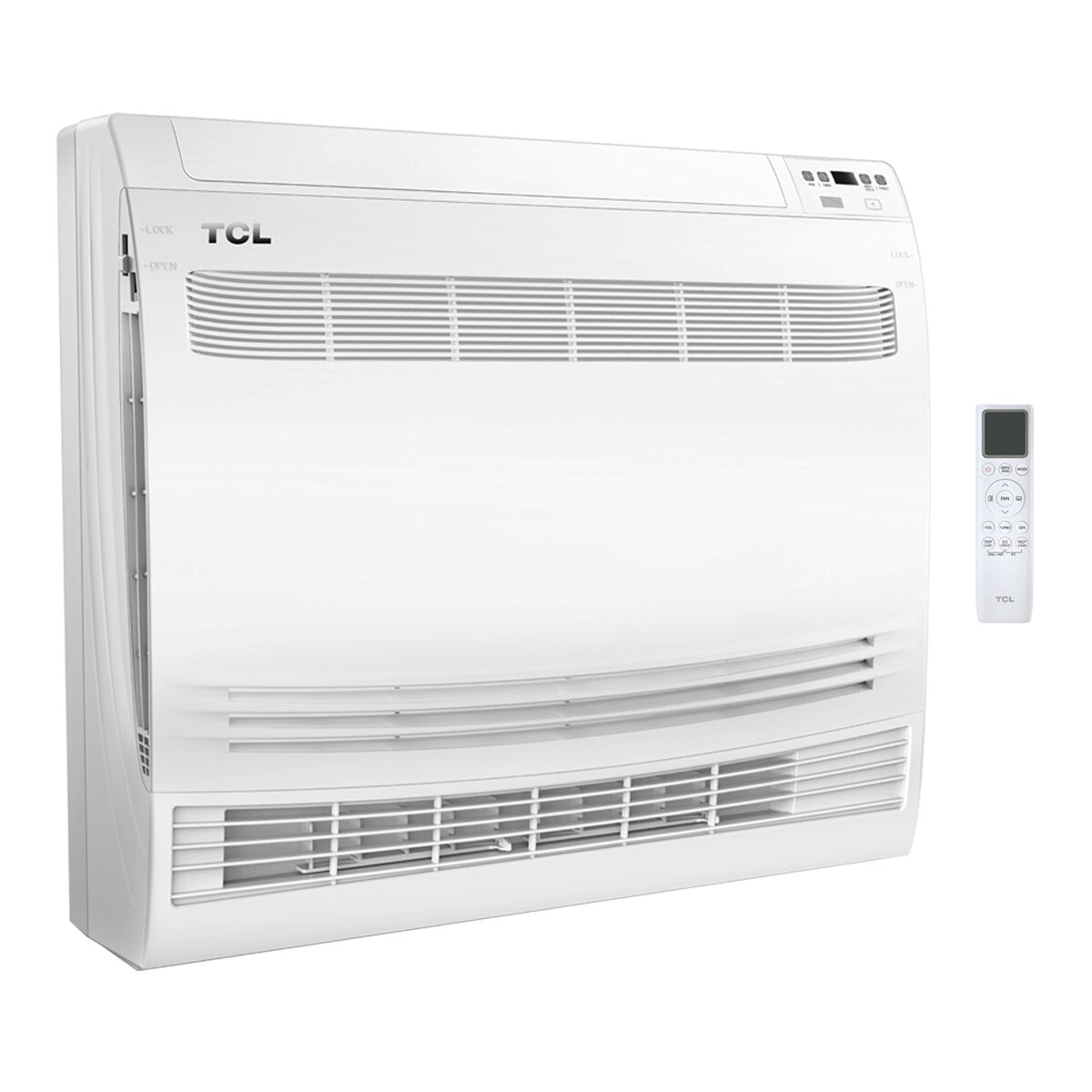

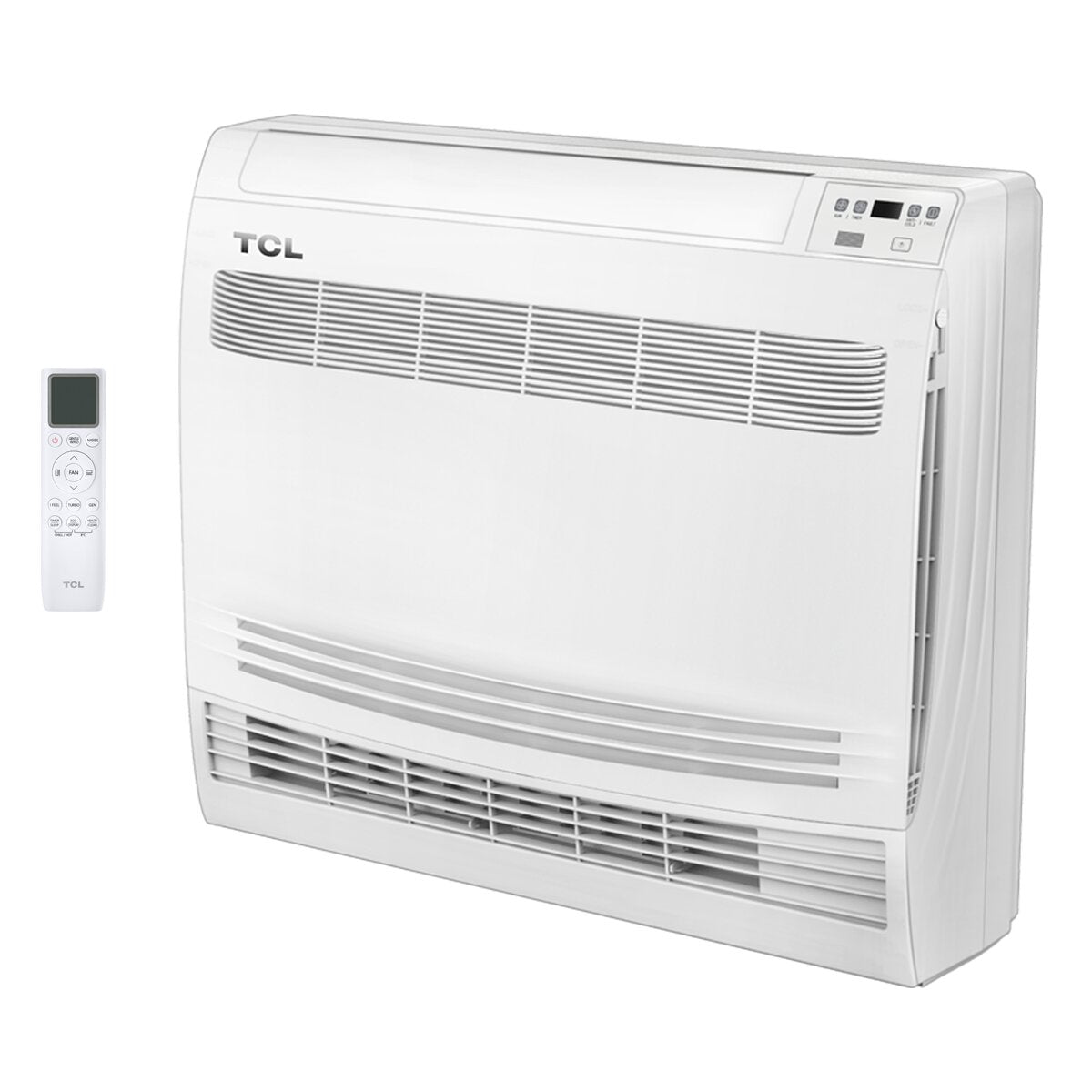

The TCL Console presents itself as a true design object: slim, modern and harmonious , designed to integrate naturally into the most refined spaces of the home.

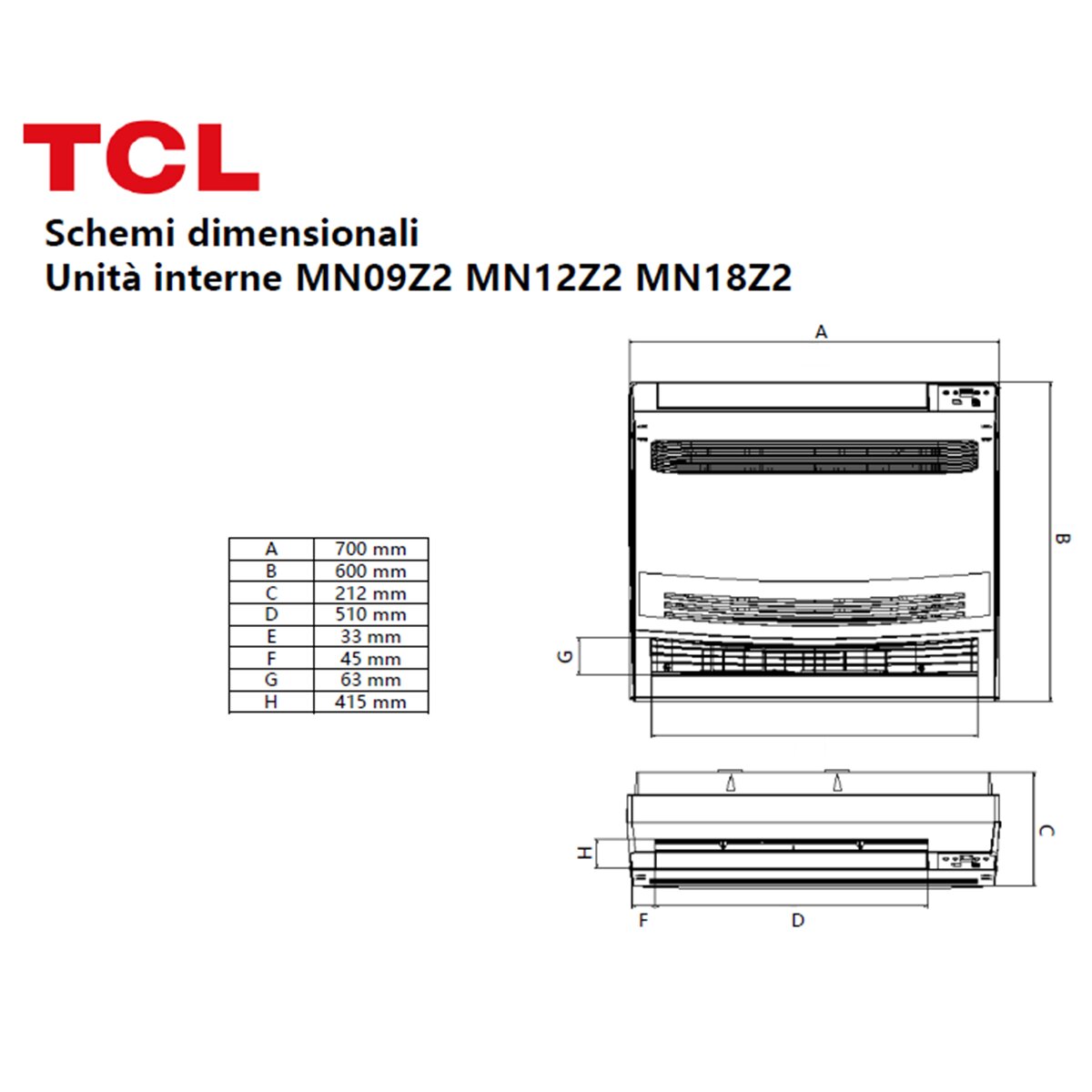

With a thickness of only 21.5 cm , this unit stands out for its slender and compact shape, perfect for installation under a window or along a free wall. The rounded profile and slightly rounded edges give it a sober but sophisticated elegance, similar to that of a minimalist Scandinavian design piece of furniture. The smooth and uniform matt white front panel is interrupted only by a thin alphanumeric LED display, discreet but readable even in soft-light environments , which delicately returns essential information such as the set temperature or any warnings.
The treated air is expelled from the upper and lower vents with the possibility of regulating the direction of the air on the horizontal axis (manual adjustment), for a personalized management of the air flows. During cooling the air is expelled from the upper vent, in heating mode instead the flow is diffused from the lower vent to avoid stratification and make the room temperature more uniform.
The air conditioner is equipped with an accessible air filter , designed to retain dust and impurities present in the environment. The body of the internal unit is designed to allow easy and quick access to all components, making maintenance operations, such as cleaning or replacing the filter, easy and fast.
TECHNOLOGY, EFFICIENCY AND SAVINGS GUARANTEED
The TCL Console Z Series air conditioner combines advanced technology, intelligent functionality and flexible design, positioning itself as one of the most complete and reliable solutions for residential and light-commercial air conditioning. It uses the environmentally friendly R32 refrigerant , which offers high energy efficiency and a reduced environmental impact.
The technological heart of the system is represented by TCL's proprietary AI Inverter technology , capable of modulating the compressor power in real time. This allows the set temperature to be reached quickly , maintained stable within a precise threshold of ±0.5°C , avoiding temperature changes and a significant energy saving of up to 60% compared to traditional on/off systems. The result is optimal comfort in every season, with a significant reduction in electricity consumption and compressor wear.
Operating modes: cooling, heating, dehumidification, ventilation for the best seasonal comfort. I-Feel: IR control houses a temperature sensor that can be used to detect the room temperature as an alternative to the one installed on the product, for greater comfort and precision in control. Additional functions can be viewed in the user manual provided with the product.
For more complex systems, the system is equipped with a ModBus RTU interface , which allows its integration into Building Management Systems (BMS) . Furthermore, it has an ON/OFF contact useful for interaction with window sensors, access badges or home automation control units, making it perfectly compatible with advanced control logics.
The heat exchangers of the units are treated to offer greater corrosion resistance and longer life.
It is managed via the remote control included as standard , but it is also possible to connect a wired control (optional) . Thanks to the integrated Wi-Fi , it is possible to manage all the functions of the air conditioner via the TCL Home application, available for smartphones and tablets. The system also supports voice commands , offering a modern and intuitive user experience.
ACCESSORIES INCLUDED AS STANDARD
- Remote control
- Built-in WiFi
WARRANTY
The warranty is the official TCL one and lasts 2 years.

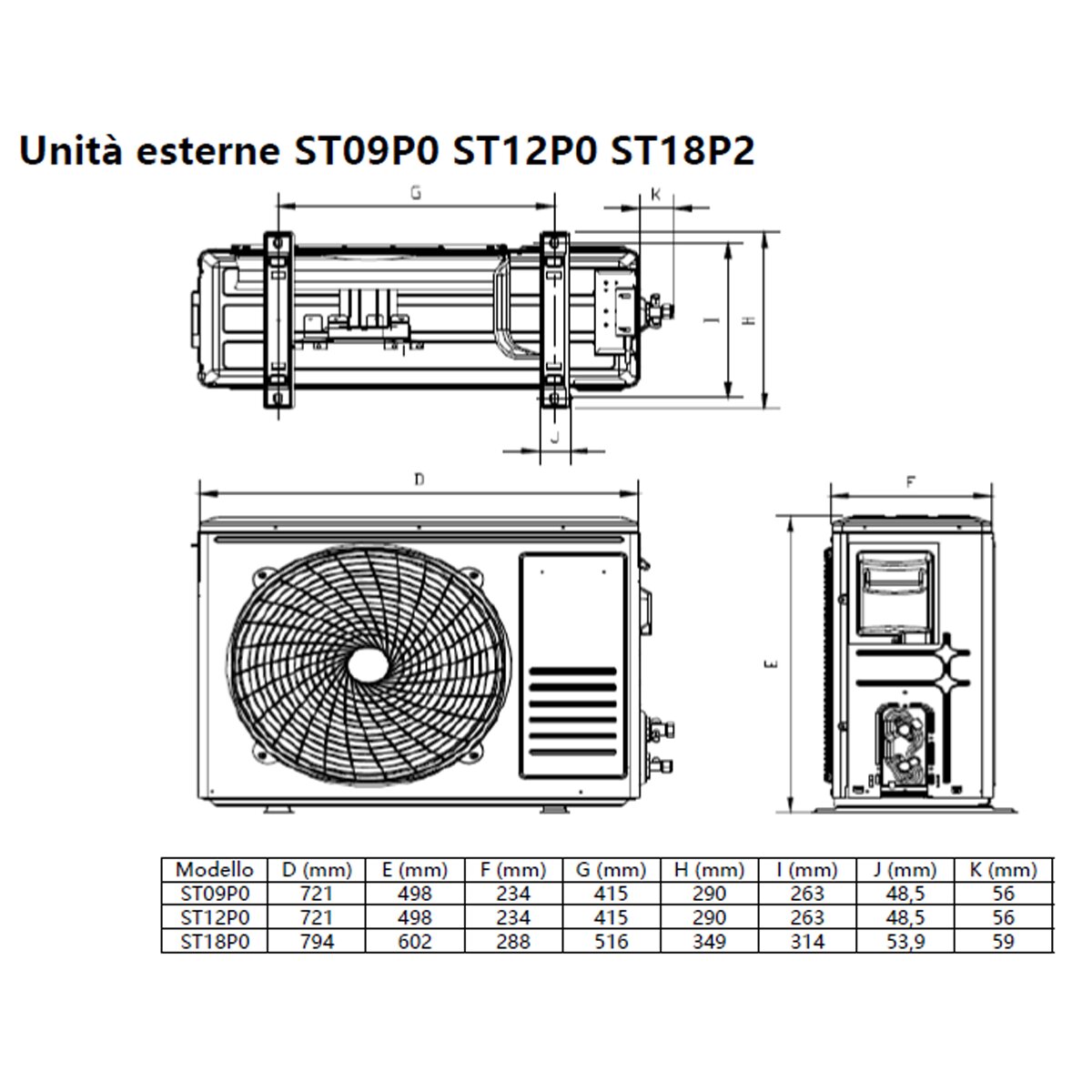

THE EXTERNAL UNIT
The external unit of TCL air conditioners is designed to offer efficiency, silence and a discreet design, easily adapting to different living contexts.
External units for monosplit allow you to connect only one internal unit and specifically the one with the power for which they are designed; in association with the appropriate internal unit, they are generally used to air condition a single room.
EFFICIENCY AND ENERGY SAVING

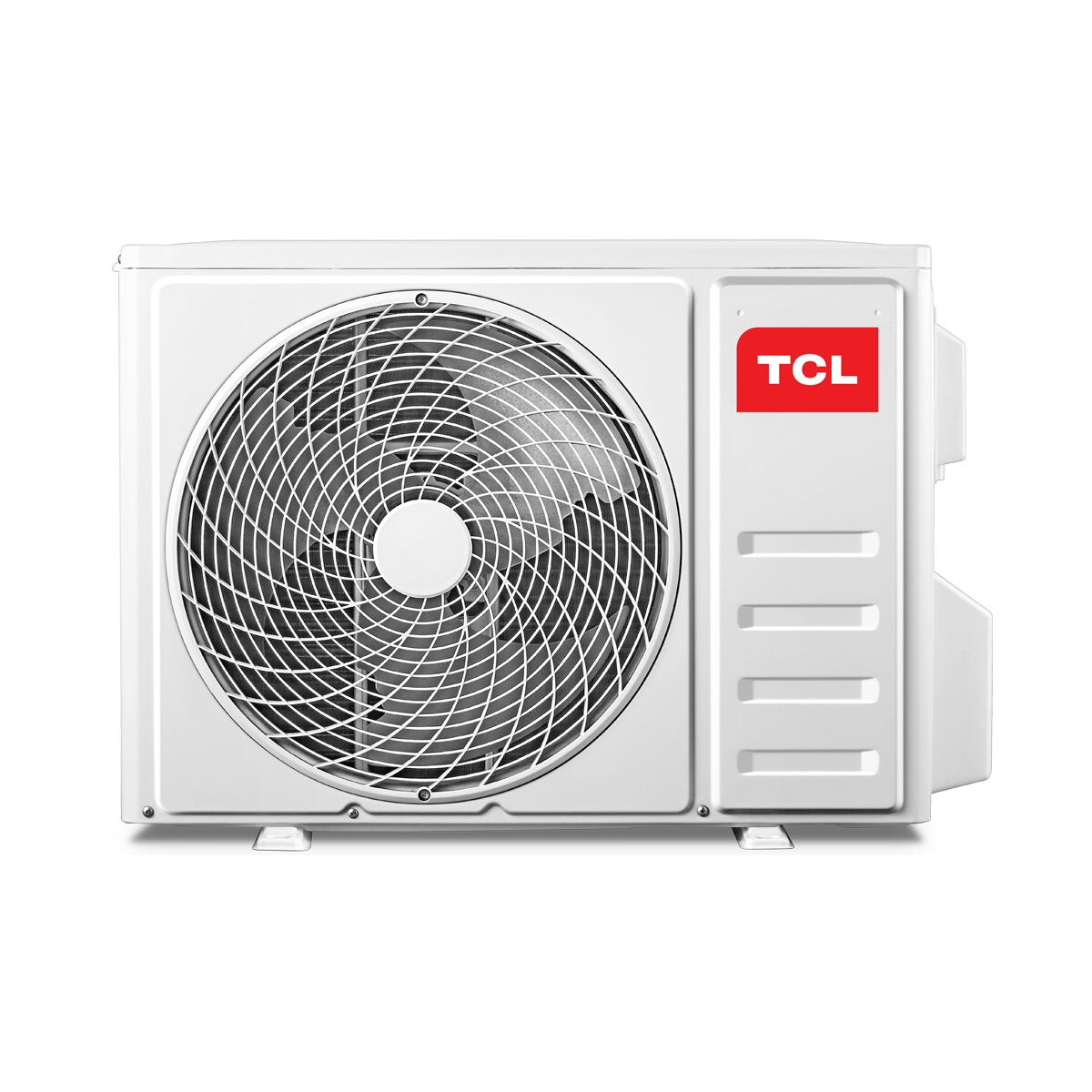

The external unit of the TCL air conditioner has a compact and solid design, designed to integrate discreetly into the external environment, both on walls and on balconies or roofs. The structure is made of white painted metal, resistant to atmospheric agents and designed to last over time, even in adverse weather conditions.
Inside it houses a high-frequency inverter compressor , which guarantees high performance and low consumption, capable of quickly reaching the desired temperature — 18°C in 30 seconds for cooling and 40°C in 60 seconds for heating. The large front fan , protected by a sturdy grille, is optimized to promote a powerful but silent air flow, with a low noise level.
It uses R32 refrigerant gas, which is more efficient and has a lower environmental impact than traditional refrigerants. Access to internal components is simple and functional, facilitating routine maintenance operations.
Overall, this outdoor unit combines efficiency, quietness and robustness , making it ideal for residential use without sacrificing performance or aesthetics.
WARRANTY
The warranty is the official TCL Italia one and lasts 2 years with a 5-year extension on the compressor by registering the product on the site within 30 days of purchase. To learn more click here.
