Tecnogas Y-shaped copper branch - for refrigeration piping circuits of VRV and VRF air conditioning systems

Tecnogas Y-shaped copper branch - for refrigeration piping circuits of VRV and VRF air conditioning systems

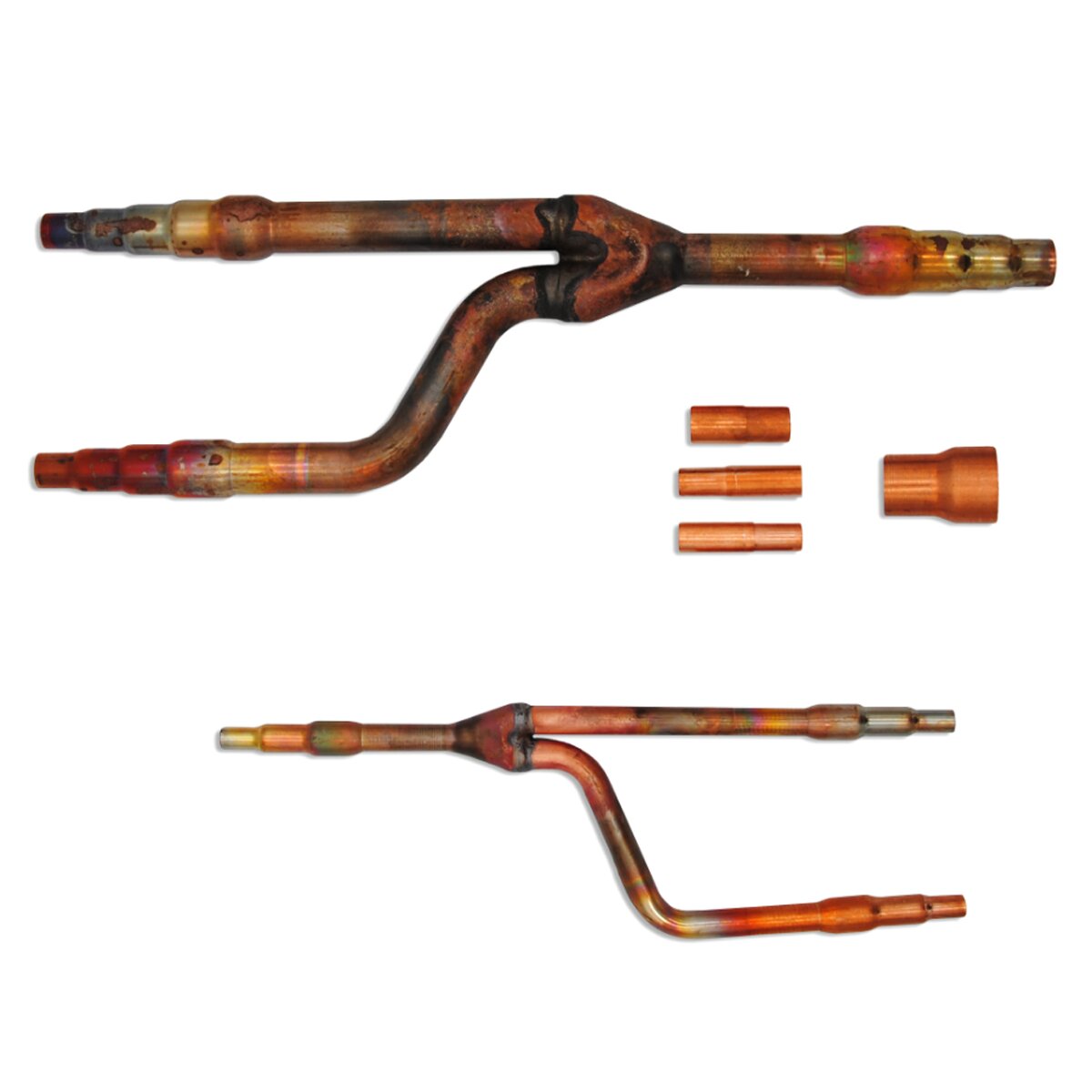

The Tecnogas Y copper branch is designed for the creation of refrigerant piping circuits in VRV and VRF air conditioning systems (multisplit with variable refrigerant flow). This component facilitates the efficient distribution of refrigerant within the system.

Main technical features:

• Available sizes of attachments:
  • 1/4 (6.35mm)
  • 3/8 (9.52mm)
  • 1/2 (12.70mm)
  • 5/8 (15.88mm)
  • 3/4 (19.05mm)
  • 7/8 (22.40mm)
  • 1 (25.40mm)
  • 1 1/8 (28.57mm)
• Test pressure:
  • Gas: 160 bar
  • Liquid: 220 bar

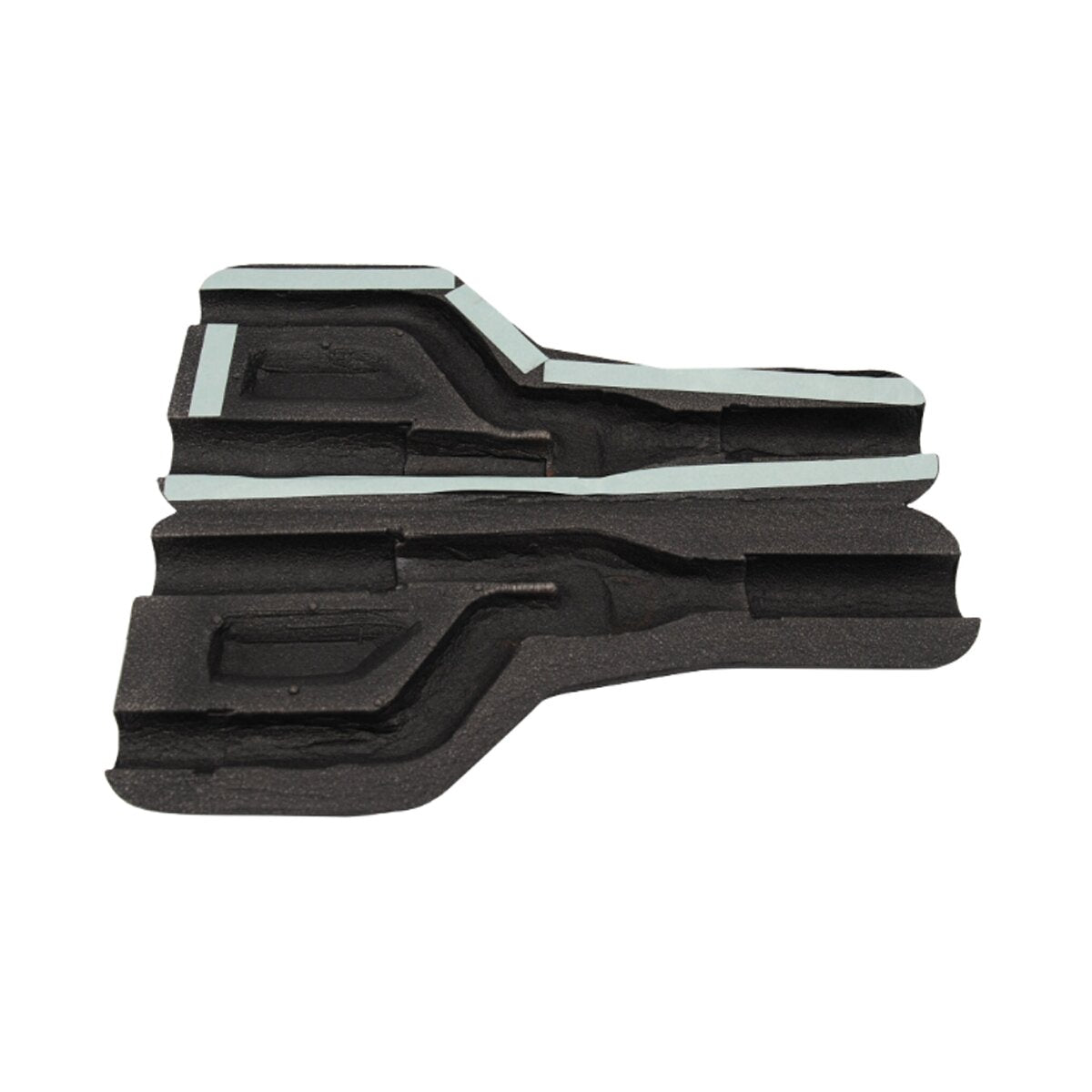

The kit includes a pair of branches (one for gas and one for liquid), four adapters and two insulations, offering a complete solution for installation.

WARRANTY

The warranty is the official Tecnogas one and lasts 2 years.
