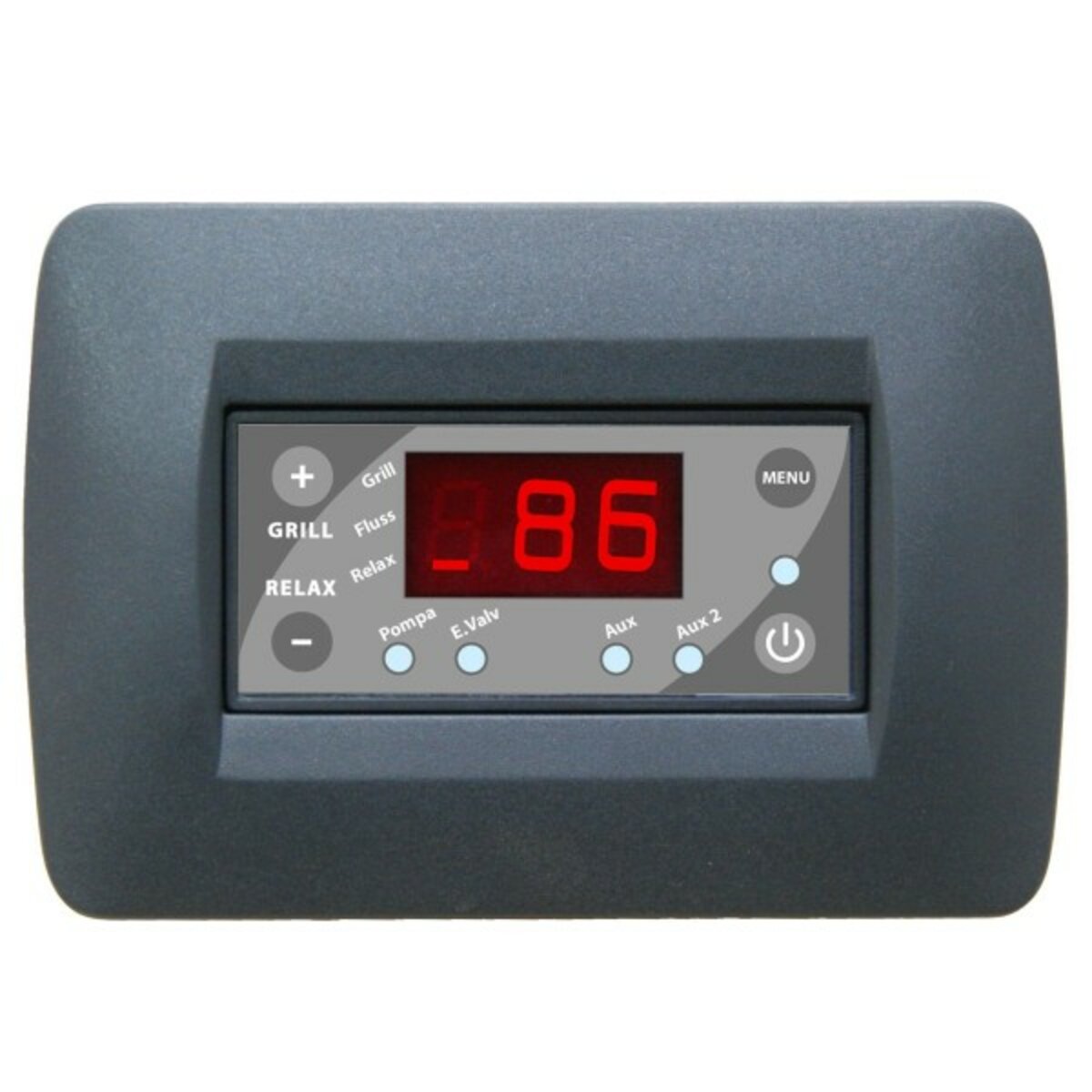

COELTE COELTOP RLX 201RLX FIREPLACE CONTROL UNIT

The COELTE Coeltop RLX is one of the most popular hydro fireplace control units on the market. It is a fundamental accessory to be installed in support of hydro fireplaces and can be associated with any brand and model. It allows you to control all its functions easily and in complete safety. It is already set up for the management of systems integrated with the solar thermal system and has a wide range of connection methods and many accessory functions. The control unit has a particularly pleasant design line, can be fully integrated into the wall using its 3 DIN module flush-mounting box (503 insert box supplied) and is complete with a dark gray frame plate.

GUARANTEED SAVINGS AND HIGH COMFORT

The Coeltop RLX control unit has simple to use commands but offers a wide range of uses and many programming and control functions. Thanks to the two inputs and the four relay outputs, it can be used for application on many types of systems. A backlit display constantly provides information on the water temperature, active functions and programming procedures. The MENU key allows access to all the configuration programs thanks to which it will be possible to act on the values of the safety and emergency thermostats, modify the hysteresis of the thermostats, modify the antifreeze values, adjust the values of the water thermostat hot and cold water, establish the days of the anti-lock cycle and the duration in seconds, enable/disable the beep when pressing the keys, it will also be possible to set all the operating values of the pumps, the external and internal coils, the exchangers, the forced circulation solar system, fan coils, a puffer if present in the system. The Relax button allows you to exclude the heating function in order to favor the availability of domestic hot water; thanks to the Standby Function it is possible to temporarily suspend the operation of the control unit and switch off the LEDs; the Circulator Anti-blocking Function is useful for protecting the circulator from any accidental blockages and the Circulator Test Function allows you to test its correct functioning. The control unit also provides visual and acoustic signals should alarm situations occur. The panel is equipped with other keys for adjusting the operating temperatures and for navigating the menus as well as a series of LED lights dedicated to the operation of the pump, the solenoid valve and the two connectable auxiliary devices. Furthermore, the control unit immediately communicates the activation of the GRILL Function for the management of any rotisserie present in the closed fireplace, the flow switch and the Relax Function.

EASY INSTALLATION AND GREAT MODULARITY

Thanks to the 3 DIN module flush-mounting box (503 insert box supplied), the COELTE Coeltop RLX control unit for fireplaces can be easily installed on the wall. The electrical connections are easy to make thanks to the terminal blocks that remain hidden in the recess; the control unit is also equipped as standard with the Water Temperature Probe and the housing Well .

It will therefore be possible to create and manage the following types of systems:

• System with internal sanitary water coil and anti-condensation circuit,
• System with external sanitary water exchanger with anti-condensation circuit and heating closing solenoid valve,
• System with internal sanitary water coil and optional enabling of the grill function,
• System with external sanitary water exchanger and optional enabling of the grill function,
• System with external sanitary water boiler and optional enabling of the grill function,
• Solar collector management system with forced circulation,
• System with fan coil radiators,
• Thermostatic fan coil regulator,
• Heating management system with drawing from puffer,
• Double system system working with 2 thermostats per probe,
• Simple system 1 pump + solenoid valve + Aux thermostat (or grill) with automatic closed circuit filling system.

TECHNICAL FEATURES

- Water probe inlet, range 30-99°C cod.941 art.SDT

- Normally open input for flow switch

- 220 volt relay output for circulator 1

- Normally open and normally closed 220 volt relay output for solenoid valve

- AUX auxiliary clean contact relay output

- 220 volt relay output for circulator 2 or rotisserie

- Housing in 3 din module recessed box.

DIMENSIONS

Built-in: Length mm. 105 – Height mm. 73 – Depth mm. 50

Frame: Length mm. 120 – Height mm. 83 – Depth mm. 70
