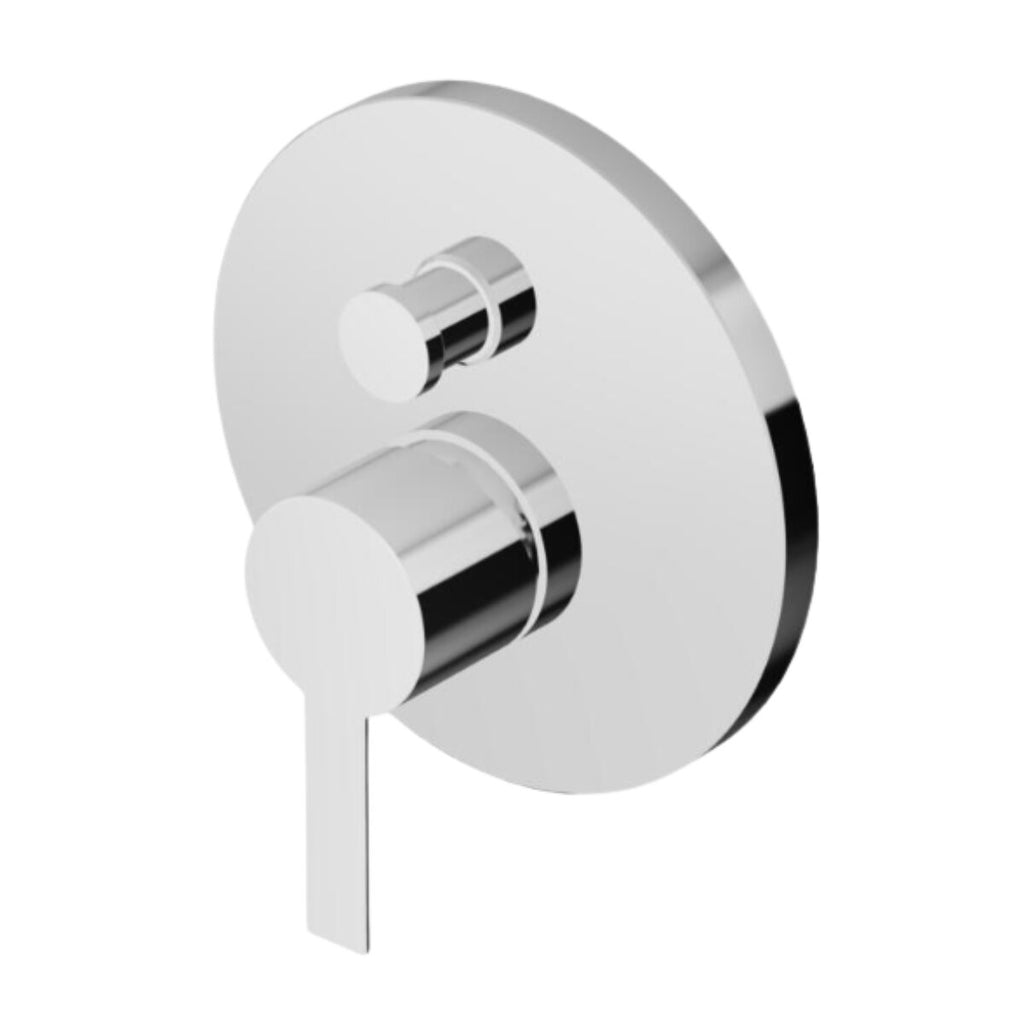

Zucchetti GILL ZGL127 Built-in Bath/Shower Mixer – Chrome Finish
The Zucchetti GILL ZGL127 built-in single-lever bath/shower mixer in chrome is an elegant and modern solution for designer bathrooms, where aesthetics and functionality blend seamlessly. Part of the GILL collection – Zucchetti LAB line , it stands out for its essential lines and built-in installation, which ensures a clean look and maximum space optimization.
Minimal design for flush-mounted installation
The mixer features a circular plate with a diameter of approximately 140 mm (visible in the technical drawing on page 2), which integrates the control and diverter. The clean lines and slim lever create a contemporary and elegant aesthetic, while the polished chrome finish enhances the brightness and adds a premium touch to the bathroom.
The built-in installation allows you to completely hide the technical body, leaving only the functional elements visible, for a neat and refined aesthetic result.
Ergonomic single-lever control
The single-control system allows for precise and seamless adjustment of temperature and flow rate. The slim, well-proportioned lever ensures ease of use and instant control, even with just one hand.
Integrated diverter for double outlet
The mixer is equipped with an integrated diverter , which allows you to easily select between:
-
primary outlet (e.g. shower head or bath spout)
-
secondary outlet (e.g. shower)
The diverter control, positioned on the plate, allows for quick and intuitive switching between the two functions, improving the daily user experience.
High performance and double delivery
As highlighted in the graph on page 4:
-
Primary output: up to approximately 34 l/min at 5 bar
-
Secondary output: up to approximately 30 l/min at 5 bar
This guarantees high performance for both bathtub filling and shower use, with a plentiful and constant flow.
Built-in part (to be purchased separately)
The built-in part R99684 (to be purchased separately) , a fundamental element for wall installation, which allows:
- perfect integration into the wall
- connection to plumbing system
- management of the two water outlets
The installation depth is adjustable (approximately 34–54 mm as per technical drawing), ensuring flexibility during assembly.
Cartridge and reliability
The mixer is equipped with a Ø35 mm ceramic disc cartridge , designed to guarantee precision in regulation, resistance to wear and long life, even in case of intensive use (visible in the exploded view on page 3).
Professional installation
Designed for flush-mounted installation, the GILL ZGL127 is ideal for:
- new bathroom systems
- complete renovations
- designer environments where a clean aesthetic is desired
Requires wall preparation for housing the built-in part and dedicated hydraulic connections.
Technical features
- Type: built-in single-lever bath/shower mixer
- Finish: chrome
- Installation: built-in with technical part not included (R99684)
- Diverter: integrated for double outlet
- Outputs: primary and secondary (G1/2”)
- Connections: standard G1/2” and G3/4” (as per technical drawing page 2)
- Plate: diameter approx. 140 mm
- Weight: 0.72 kg
NB: FOR FURTHER SPECIFICATIONS WE RECOMMEND VIEWING THE TECHNICAL DATA SHEET ATTACHED.
WARRANTY
The warranty is the official Zucchetti one and lasts 2 years.
