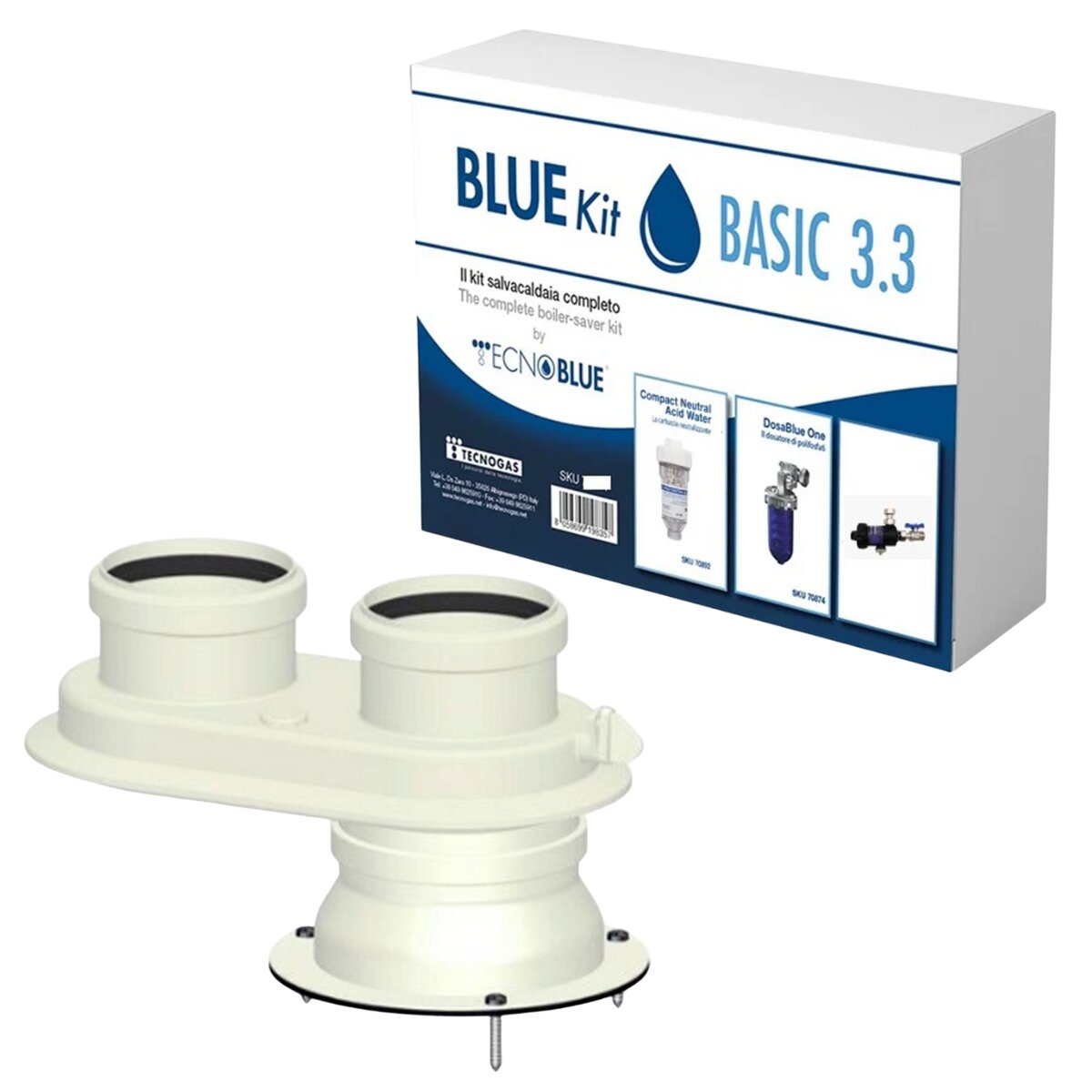

Boiler installation kit with split flue for Bosch condensing boilers, mud separator, polyphosphate dispenser and neutralizing cartridge
This boiler kit includes:
n.1 Split flue pipe for Bosch condensing boilers Ø 80/80 in polypropylene
n.1 Blue Kit Basic 3.3 by Tecnogas including mud separator, polyphosphate dispenser and neutralizing cartridge.
SPLIT FLUE EXHAUST KIT FOR BOSCH CONDENSING BOILERS Ø 80/80 IN PP - SEPARATE INTAKE AND EXHAUST SYSTEM - SPLITTER FOR JUNKERS BOSCH CONDENSING BOILERS
Split kit for separating the flue gas exhaust from the air intake. Compatible with Bosch condensing boilers.
The kit consists of:
- Pc. 1 - splitter
- 1 pc. - Pack of EPDM screws and gaskets
- Pc. 1 - Assembly instructions.
WARRANTY
The guarantee is the official Stabile one and lasts 2 years.

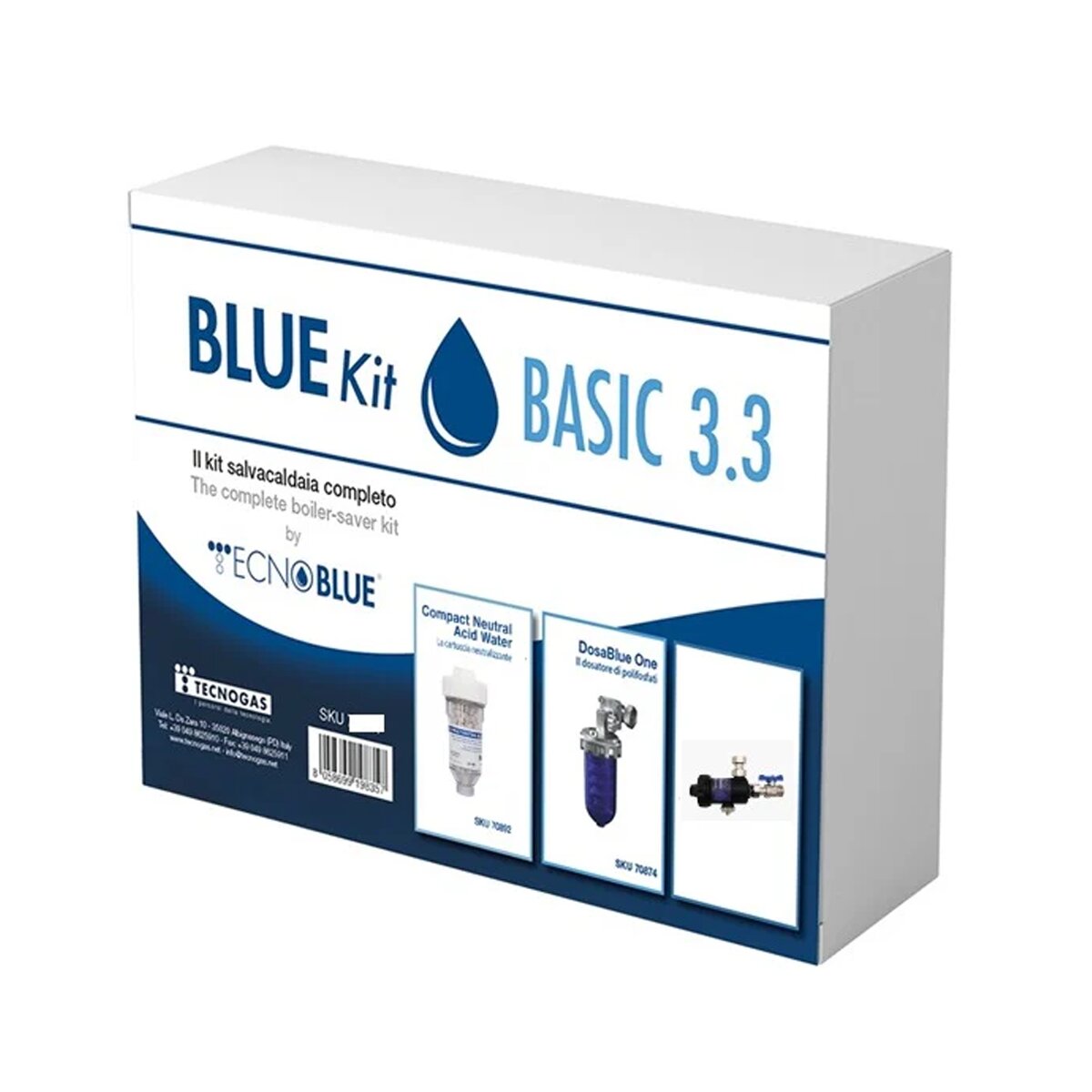

TECNOGAS BLUE KIT BASIC 3.3 BOILER KIT - complete with dirt separator
The Tecnogas BLUE KIT BASIC 3.3 is a complete kit designed to protect and maintain boiler efficiency, addressing problems such as ferromagnetic residues, sludge, acid condensation, and limescale. This kit includes three main components:

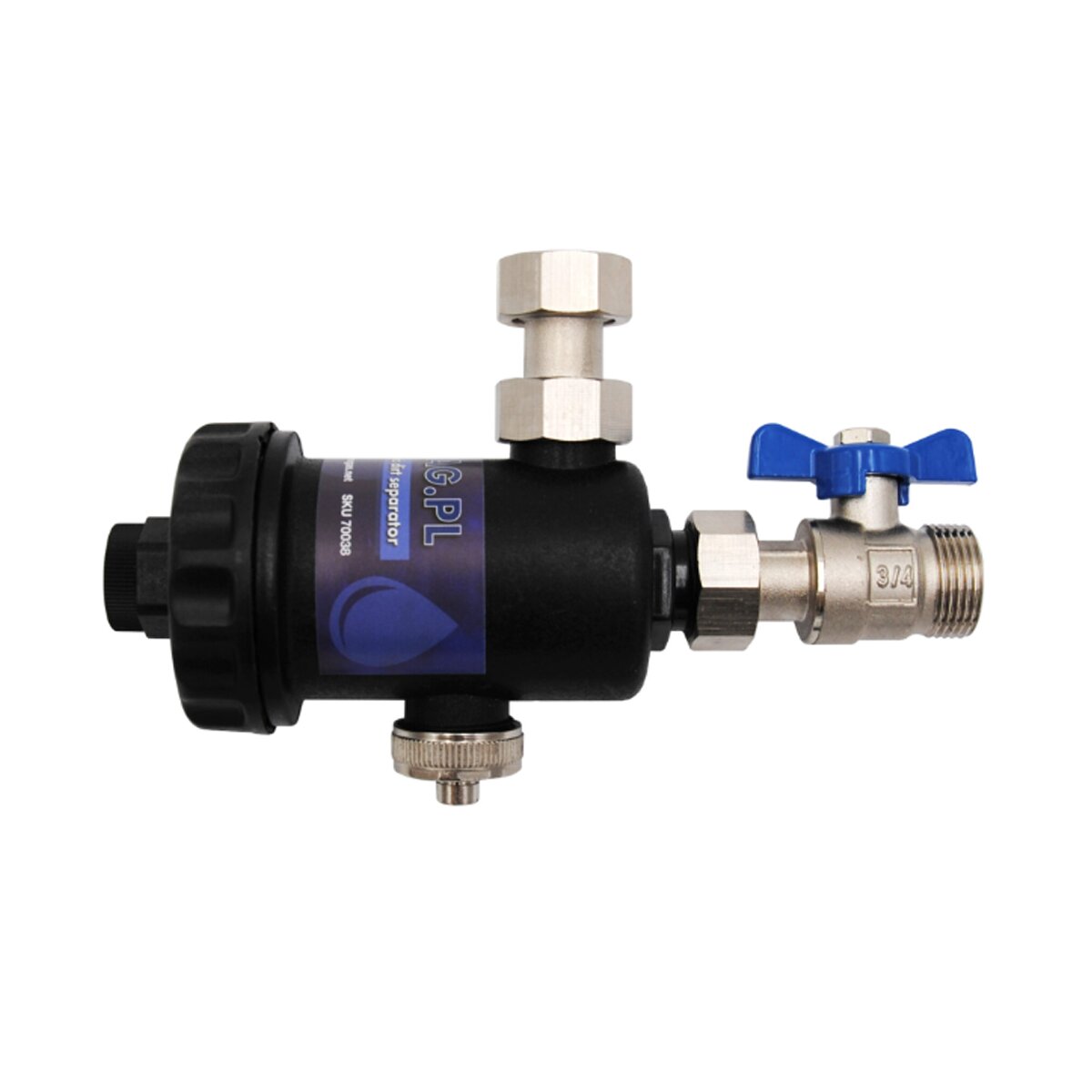

PlasticMAG.PL magnetic dirt remover :
-
Function : Eliminates impurities present in the heating system, such as ferrous and sludge particles, protecting the boiler from possible damage and maintaining the efficiency of the system.
-
Technical features :
- Chemical compatibility: water/water glycol
- Maximum inlet pressure: 3 bar
- Working temperature: 0 ÷ 90°C
- Threaded connections: G 3/4 M/F UNI-EN ISO 228
- Flow rate (Kv) at ΔP 1 bar: 5.4 m³/h
- Magnetic field strength: 9000 Gauss
- Materials:
- Body: polypropylene +30% fiberglass
- Fittings and caps: nickel-plated brass CW 617N UNI EN 12165
- Diffuser element: polypropylene +30% fiberglass
- Magnet: 9000 Gauss neodymium
-
Dimensions : 92x62x110x195 mm (AxBxCxD)
-
Installation : Designed for installation on the heating system return pipe. Its compact size allows for installation even in small spaces. A bypass system is recommended for easier maintenance.

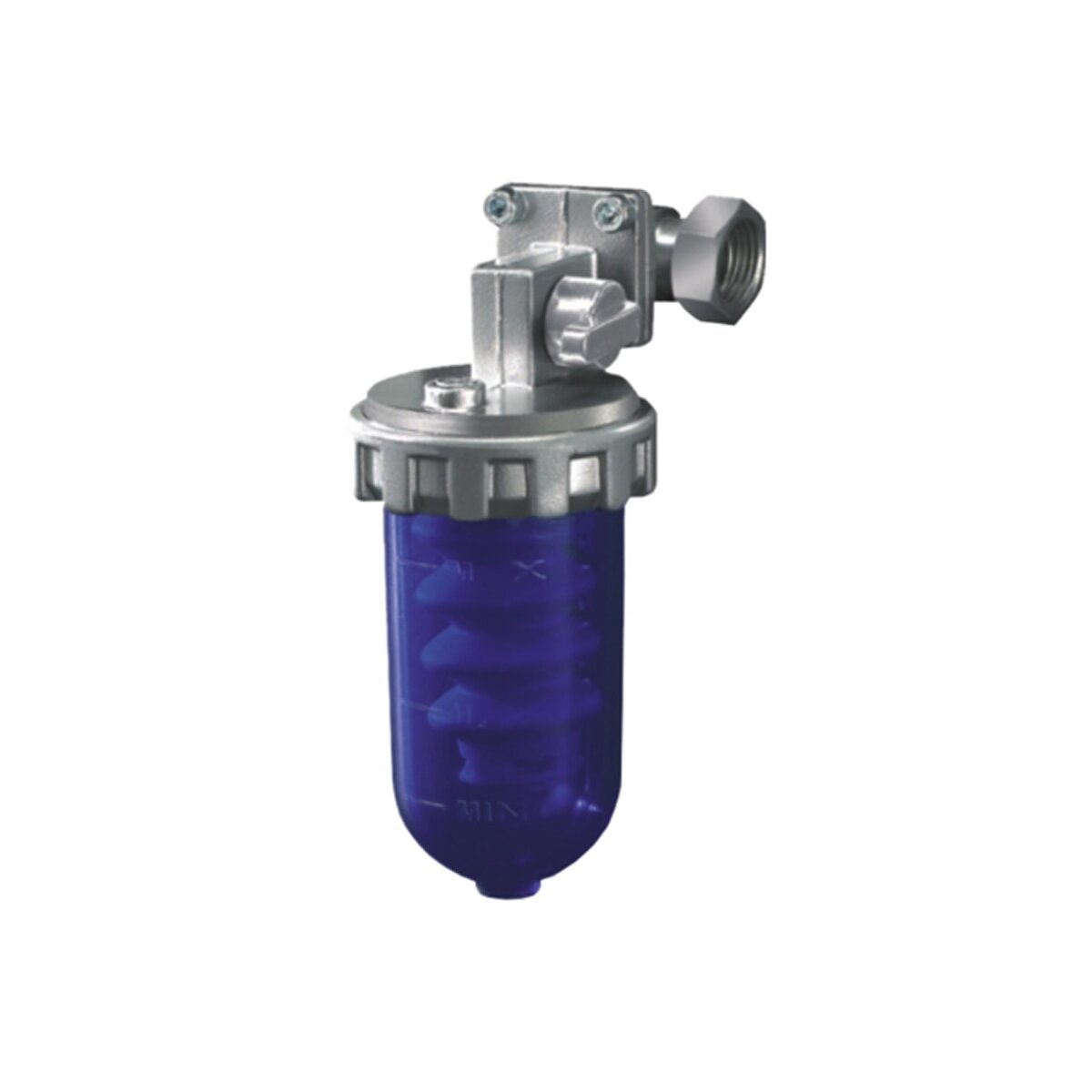

DosaBlue ONE polyphosphate dispenser :
-
Function : Prevents the formation of limescale inside the boiler, protecting the heating elements and prolonging the life of the system.
-
Technical features :
- Connections: IN/OUT 1/2 movable at 90° with integrated by-pass
- Maximum flow rate: 1.5 m³/h
- Maximum pressure: 3.5 bar
- Operating temperature: 0°C - 45°C
- Charging range: 12 - 15 m³
- Pressure drop: 0.2 bar
- Pot material: SAN (Styrene Acrylonitrile)
-
Installation : Thanks to the movable fittings and integrated by-pass, installation is simple even with compact boilers.

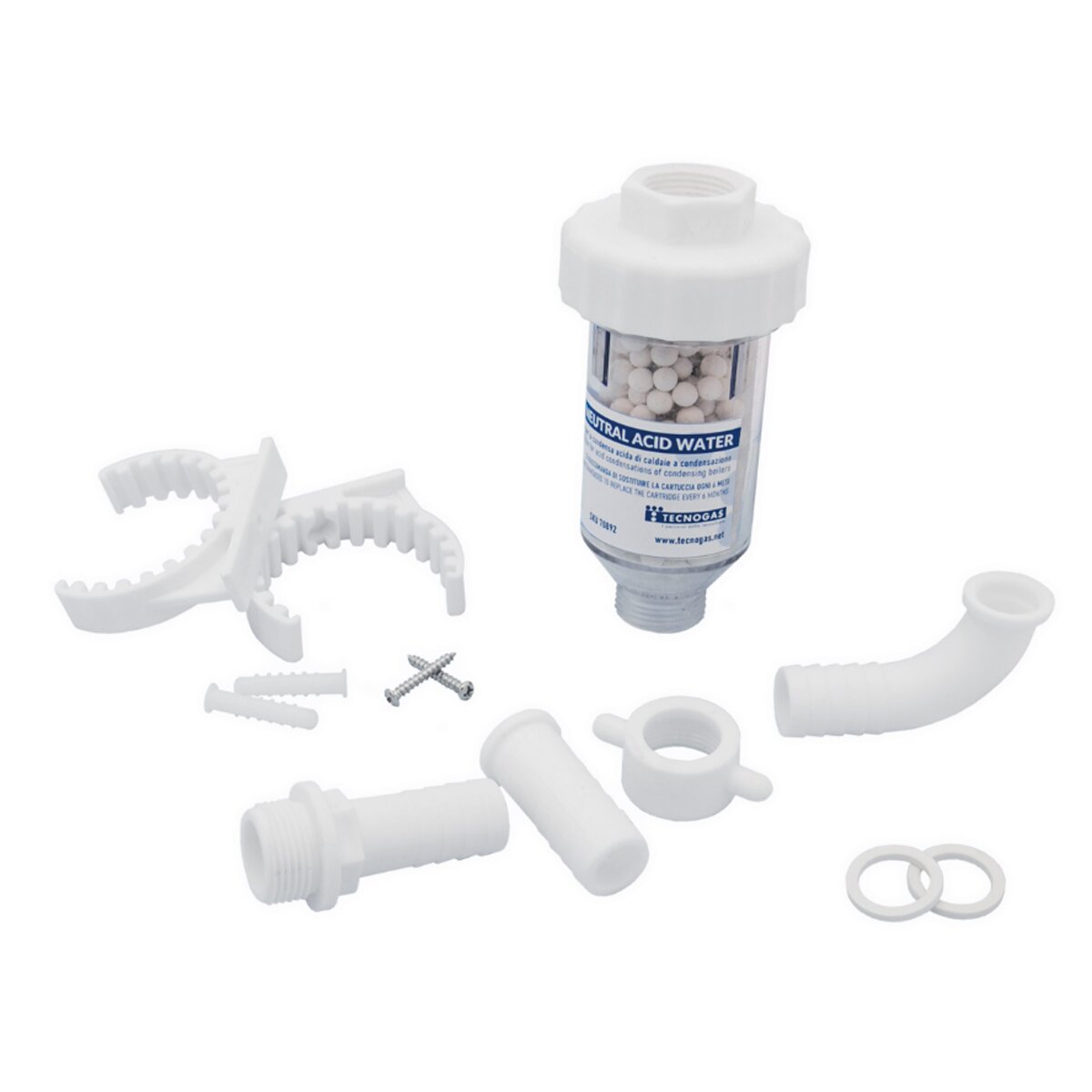

Compact Neutral Acid Water Neutralizing Cartridge :
-
Function : Neutralizes the acid condensate produced by condensing boilers, preventing corrosion of materials and pollution of waste water.
-
Technical features :
- Maximum operating pressure: 0.5 bar
- Maximum operating temperature: 45°C
- Flow rate: 3 l/h
- Materials:
- Body: PP (Polypropylene)
- Hose holder: PP
- Fixing system: PP
- Neutralizing charge: calcium carbonate (CaCO₃)
- Hydraulic seals: NBR
-
Attacks : 3/4
-
Dimensions: length 238 mm
-
Installation : Suitable for boilers up to 35 kW, it can be installed in three different configurations: horizontal, vertical with a straight hose connection, or vertical with a 90° hose connection. The transparent container allows for easy monitoring of the neutralizing charge status.
Installing the Blue Kit Basic 3.3 helps maintain the boiler's energy efficiency, reduce maintenance costs, and ensure greater longevity for your heating system.
WARRANTY
The warranty is the official Tecnogas one and lasts 2 years.
