BOSCH CR100 advanced modulating chronothermostat weekly BUS EMS 2

BOSCH CR100 advanced modulating chronothermostat weekly BUS EMS 2

The BOSCH CR100 modulating chronothermostat is an advanced chronothermostat which allows remote control of compatible boilers via BUS EMS 2 communication protocol. Combined with the latest generation condensing boilers, it allows you to reach Energy Class A+ and access the Ecobonus 65% tax deductions as the chronothermostat is in Class V according to the ErP Regulation. The BOSCH CR100 modulating chronothermostat can be used to regulate a mixed or direct heating circuit, a circuit for a boiler for the production of domestic hot water via a heat generator and for the production of domestic hot water via a solar circuit.

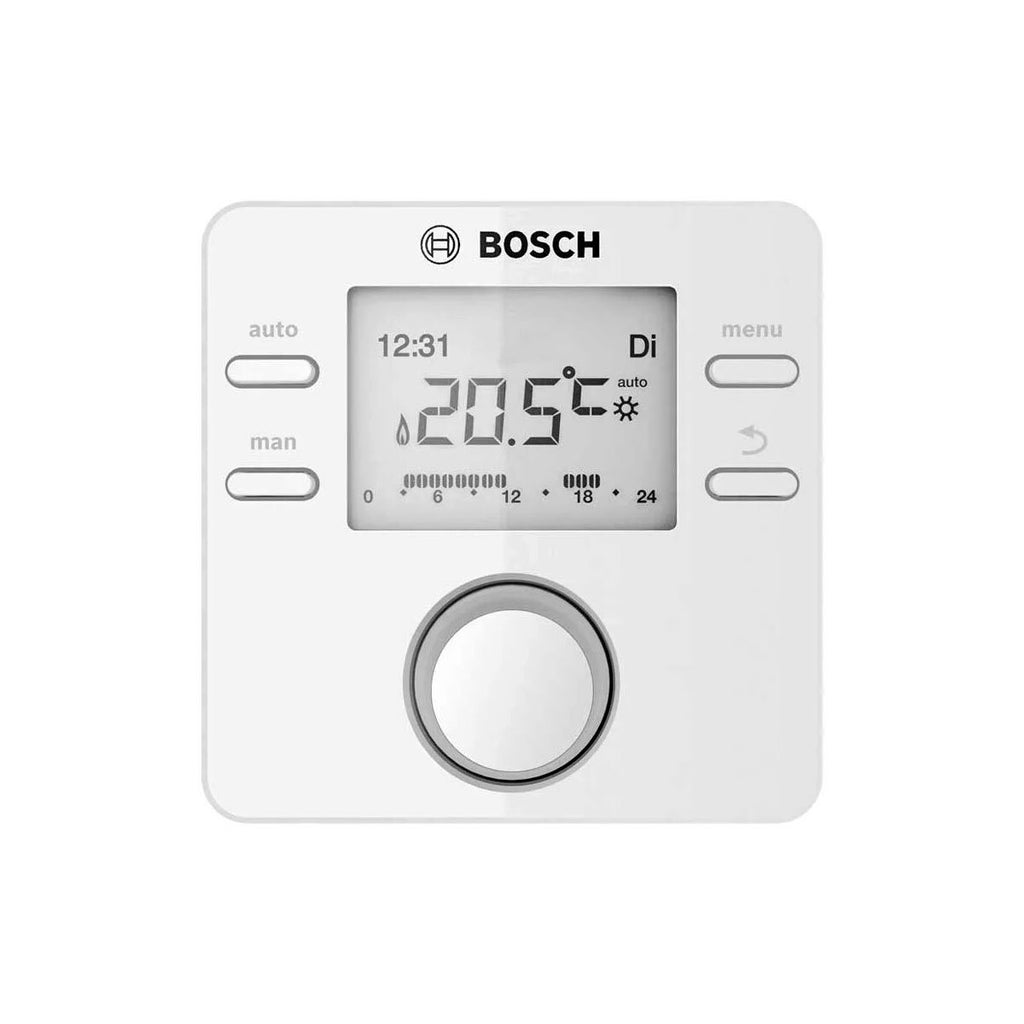

It is weekly programmable and aesthetically looks like a small object with a modern and essential design: square and compact, the front panel has a beautiful glossy white glass with rounded corners; it is equipped with 4 function keys , a backlit LCD display in the center and a practical turn and press knob to navigate through the menus and make the desired choices respectively. The installation is done on the wall.

TECHNICAL FEATURES

• Rated voltage 10 - 24V DC
• Rated current 6mA
• EMS 2 BUS interface (2-wire BUS)
• Setting range 5 - 30 °C
• Permissible ambient temperature 0 - 50 °C
• Autonomy 4 hours
• Protection class III
• Degree of protection IP20
• 6 daily switching points
• Holiday program and automatic summer/winter switching
• Integrated sensor to ensure the desired room temperature and manage the individual direct or mixed heating zone, DHW production and the solar circuit for DHW production
• Automatically adapts consumption to the real needs of the building, thanks to continuous modulation, displays energy consumption, maintenance intervals and error codes
• It can be used as a remote control of the boiler or of the CW400 regulation, or as a zone control combined with the MZ100 module. Can be combined with the T1 RF wireless external probe
• Configuration and automatic identification of all modules connected to the EMS BUS (compatible with MM100, MZ100 and MS100)
• Communicates with the boiler/system via EMS BUS, can be combined with boilers equipped with Bosch Heatronic 3® or 4®
• Advanced thermoregulation that can be combined with a class A condensing boiler.

DIMENSIONS

Width: 95mm - Height: 95mm - Depth: 33mm

Weight: 0.15kg.

WARRANTY

The warranty is the official BOSCH one and has a duration of 2 years .
