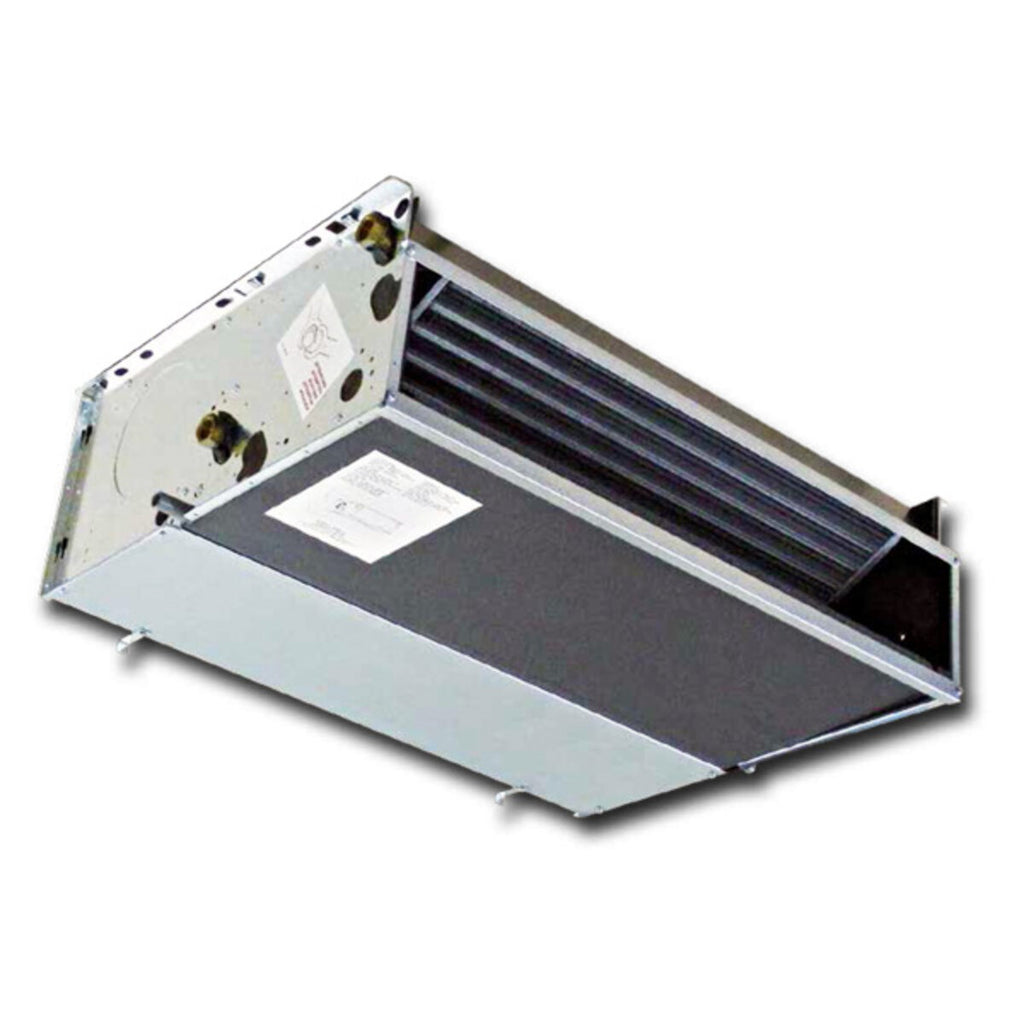

Built-in fan coil Sabiana carisma crc 93 iv - io kW 9.06 - 6.74

Heating function: ideal for rooms of about 85 square meters with a calculated average height of 2.7 m

Cooling function: ideal for rooms of about 63 square meters with a calculated average height of 2.7 m

Heating output kW 9.06 - Cooling output kW 6.74

The recessed Carisma CRC , vertical ( IV ) or horizontal ( IO ), is the classic Sabiana fan coil capable of satisfying multiple technical and design needs.

Here proposed in the version with 3-row heat exchange coil , it is available in 9 different sizes (from 105 to 1500 mc / h). This machine is installed in a hidden position , generally a false ceiling or a wall niche, and the air diffuses into the room through a special ventilation opening. It follows the possibility of air conditioning the rooms without the unit being visible , to the advantage of aesthetics and the possibility of using the walls for our furnishings. Therefore, with the installation of a built-in fan coil, there is well-being but there is no… the fan coil.

GREAT MODULARITY OF INSTALLATION AND USE

The Carisma CRC in the IV-IO version is ideal for installation in any environment, both residential and commercial or hotel : the possibility of embedding the machine both in a vertical position , for example in a wall niche, and horizontally , perhaps hidden by a false ceiling, gives it considerable versatility , allowing designers to design environments that are freer from technical encumbrances.

The load- bearing structure of the Carisma CRC is made of 1 mm thick galvanized sheet metal ; the filter is in washable and easily removable polypropylene ; the engine is mounted on elastic anti- vibration supports; the particularly silent fan unit is directly keyed onto the motor shaft; the heat exchange coil is made of copper and aluminum and is reversible (the side of the connections can be reversed) so it offers a greater degree of freedom in the installation. The power supply is 230V. The L-shaped condensate drain pan is fixed to the structure and isolated by a 3 mm thick mat.

Built in Italy in the Sabiana factories, it enjoys the highest manufacturing standards in terms of quality and reliability .

GUARANTEED SAVINGS AND HIGH COMFORT

It has particularly low electrical absorption so it guarantees excellent energy efficiency ; offers high standards of comfort as it is extremely quiet in operation.


DIMENSIONS

Length: 1160 mm - Height: 511 mm - Depth: 248 mm

Weight: 27.3 kg

ACCESSORIES*

- "WM-T" 3 speed command. wall-mounted - electronic thermostat and outdoor / inv. manual, cod. 9066630

- "CB" 3 speed command, cod. 9066300 (can be installed on the machine in case of vertical wall installation)

- "CB-T" 3 speed command. - electronic thermostat and ext./inv. switch manual, cod. 9066301 (can be installed on the machine in case of vertical wall installation)

- Automatic “CB-AUT” command. speed - electronic thermostat and ext./inv. on board / centralized, cod. 9066318 (can be installed on the machine in case of vertical wall installation)

- Minimum temperature probe, cod. 9053048, to be combined with the WM-T, CB and CB-T controls

- Minimum temperature probe, cod. 3021090, to be combined with the CB-AUT command

- BSV-C additional condensate drain pan, cod. 6060400 for version IV

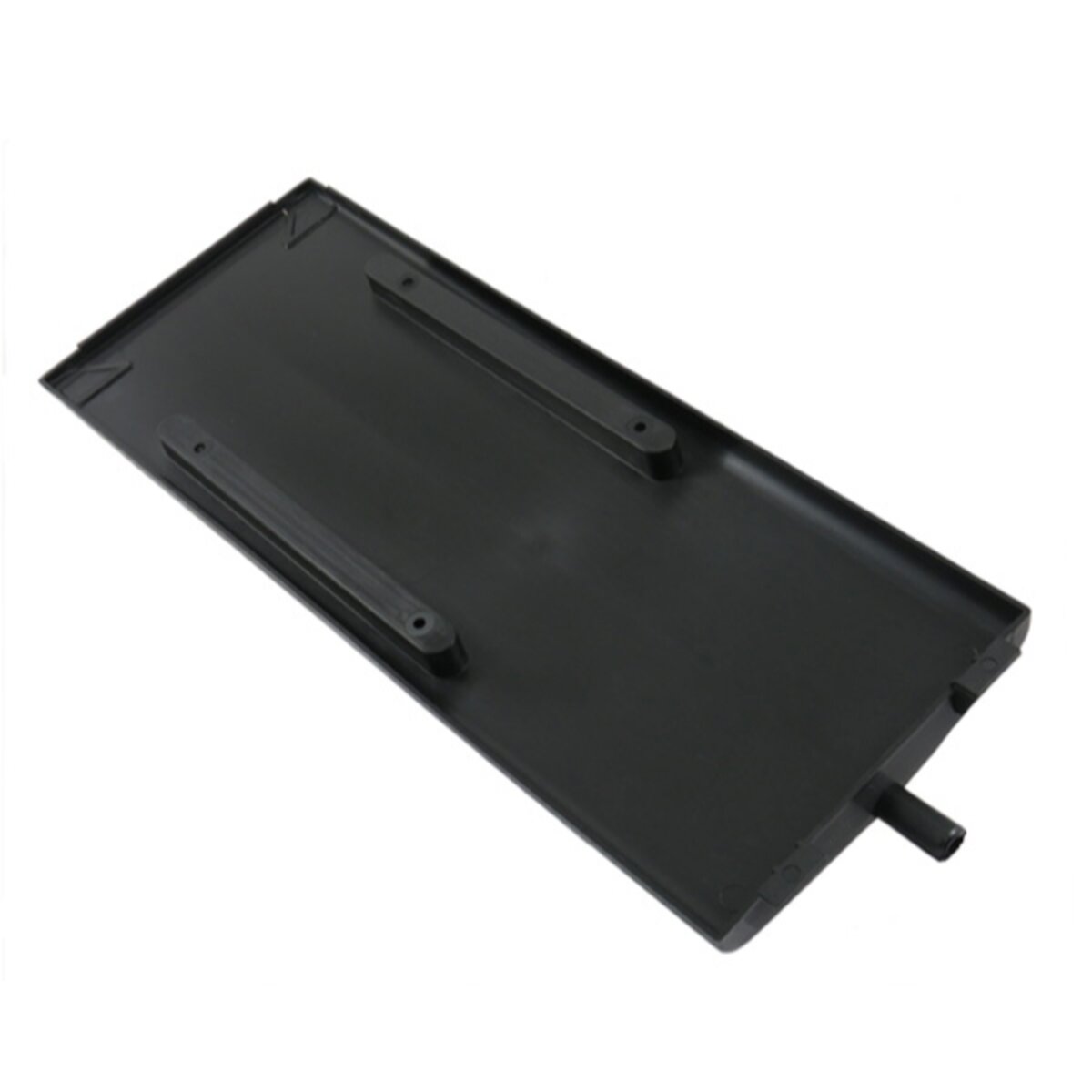

- Additional condensate drain pan BSI-C, cod. 6066039 for   version   I

(*) Items to be purchased separately.

WARRANTY

The guarantee is the Official Sabiana Italia guarantee and has a duration of 24 months.
