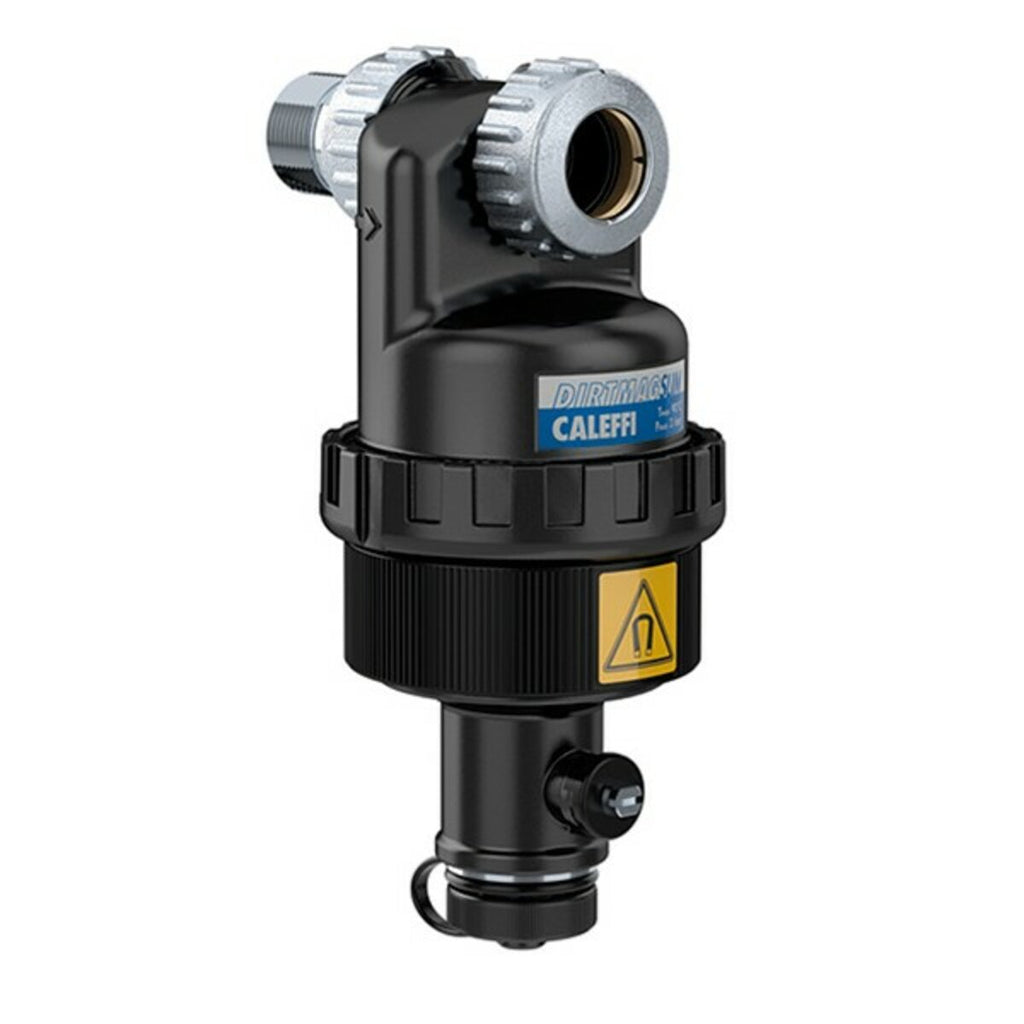

Caleffi dirtmagslim magnetic dirt separator for condensing boilers

Save 31%
CaleffiSKU: 545101 ID: E381FC

Price:
Sale price€89,21 Regular price€129,32
code
545101
id
E381FC
precodice
CAL
short description

DIRTMAG SLIM 3/4" X Ø 18 CALEFFI MAGNETIC DIRT SEPARATOR UNDER BOILER FOR CONDENSING BOILER - 545101

brand
Caleffi
category
Accessories
type
Boiler accessories

Description

CALEFFI MAGNETIC DIRTMAGSLIM DIRTMAGSLIM 3/4 X Ø 18 UNDER BOILER FOR CONDENSING BOILER

Code 545101

The dirt remover it is a device used in heating systems with condensing boilers and performs the important function of protecting the boiler. It is installed on the return of the heating circuit before the water re-enters the boiler and retains the impurities present in the circuit which would otherwise damage the exchanger and the other components of the boiler. In addition to prolonging the life of the boiler, it considerably increases the efficiency of the heating system, improves the efficiency of the whole system, helps keep the valves and radiator holders clean (the use of the dirt separator in association with the valves is recommended thermostatic). The use of the dirt separator therefore makes it possible to obtain considerable savings also on gas consumption because the boiler must always heat clean water. It is recommended to install the dirt separator already in the system activation phase or in any case at the same time as the replacement of an old boiler with a new condensing one.

The CALEFFI Dirtmagslim S erie 5451 dirt separator (model 545101) is designed for installation under wall-mounted boilers on horizontal pipes and has very compact dimensions so it can also be used where there is little space for installation.

The operating principle and the particular attention to design and construction make it the most efficient on the market. Its high performance is guaranteed by the powerful magnets which retain the impurities more effectively than other dirt separators and in a position away from that of the water flow, this also offers the advantage of not having pressure drops and performance alterations over time ; Dirtmagslim is created in such a way that it will never be clogged with residues and in any case the sludge discharge is easy since it does not need to be disassembled and can also be done with the system in use.

Built with top quality materials, it is already equipped with the operating key for carrying out the cleaning operations which are carried out simply by unscrewing the lower part of the body and extracting the internal element to be cleaned. The connections are ¾” M x Ø 18, the fittings are in chromed brass, the drain cock is in brass and has a hose connection, the body and the deflector are made with the specific highly resistant PA66G30 technopolymer, the internal element is built in HDPE and the hydraulic seals are in EPDM. It resists to an operating temperature up to 90°C. and the maximum working pressure is 3 BAR

The installation is easy, the article has very small dimensions.

DIMENSIONS

Length: mm. 112 – Width: mm. 84 – Height: mm. 185 - Fittings: ¾” M x Ø 18

WARRANTY

The guarantee is the Official CALEFFI one and has a duration of 2 years.
