Caleffi insulation for degasser - dirt separator 546 Discaldirt

Save 31%
CaleffiSKU: CBN546002 ID: DB5E63

Price:
Sale price€57,57 Regular price€83,45
code
CBN546002
id
DB5E63
precodice
CAL
short description
Insulation shell in polystyrene for Caleffi deaerator-dirt separator 546 series Discaldirt.
brand
Caleffi
category
Accessories
type
Heat pump accessories
Download technical specifications

Description

Caleffi insulation for degasser - dirt separator 546 Discaldirt

Code: CBN5460002

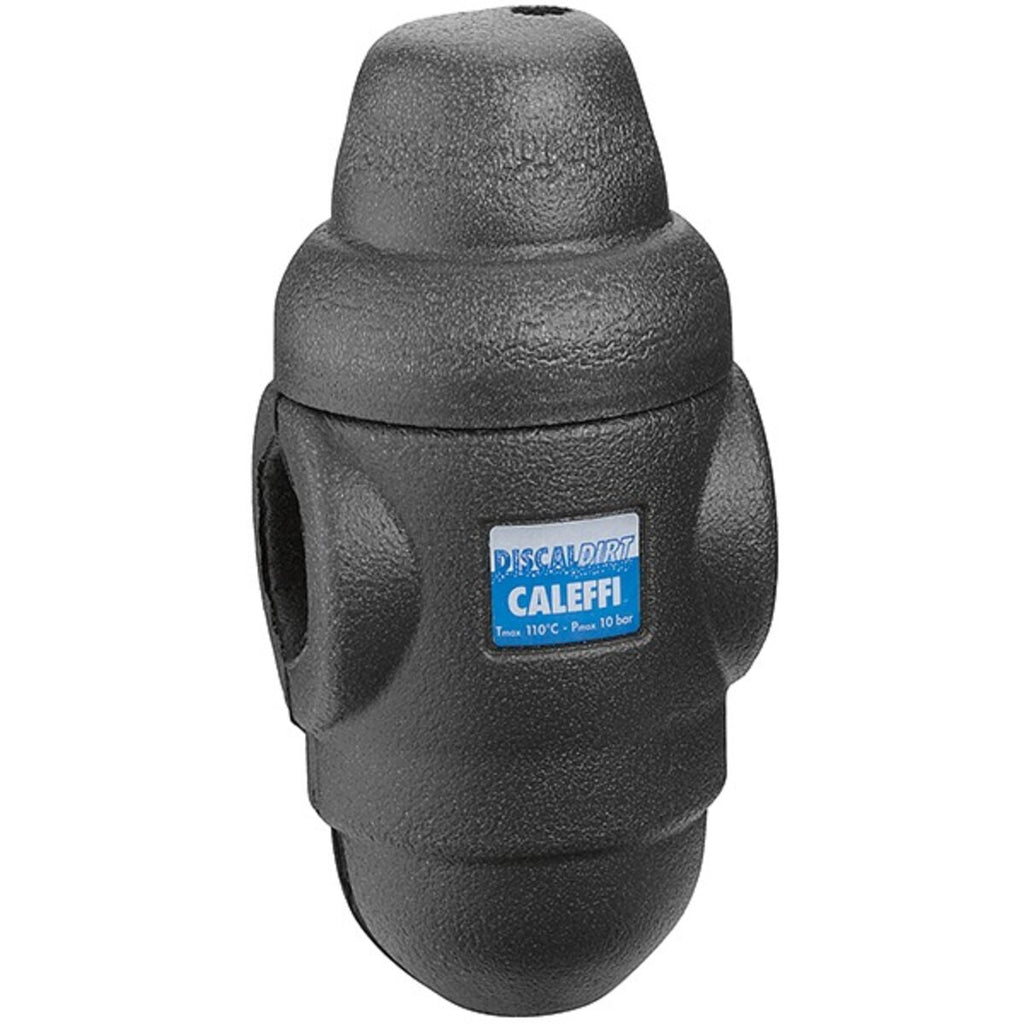

The Caleffi insulation for the 546 Discaldirt deaerators-dirt separators consists of an expanded polystyrene shell , one centimeter thick, which thermally insulates the Discaldirts from both heat and cold. The insulating shell also blocks the passage of water vapor inside the deaerator when operating with chilled water. It therefore also prevents the formation of condensate on the valve body of the deaerator.

The insulation presented here is suitable for Caleffi deaerators-dirt separators with the following codes: 546002, 546005, 546006 (to be purchased separately).

The shell is applied like a shirt to the dirt separator using the stickers inside.

CHARACTERISTICS:

- Material: closed cell expanded PE-X

- Thickness: 10mm

- Density: internal part: 30 kg/m3, external part: 80 kg/m3

- Thermal conductivity (ISO 2581): at 0°C: 0.038 W/(m K), at 40°C: 0.045 W/(m K)

- Coefficient of resistance to vapor (DIN 52615): > 1.300

- Operating temperature: 0÷110°C

- Reaction to fire (DIN 4102): class B2.

WARRANTY

The guarantee is the official Caleffi one and has a duration of 2 years .

labels
wifi
false
code
kit
CBN546002
kit features
brand
Caleffi
category
Accessories
type
Heat pump accessories
Download technical specifications

You may also like

Save 33%
Insulation for Caleffi discalslim deaerators 551 series
Caleffi Insulation for Caleffi discalslim deaerators 551 series
Sale price€12,41 Regular price€18,43
Save 31%

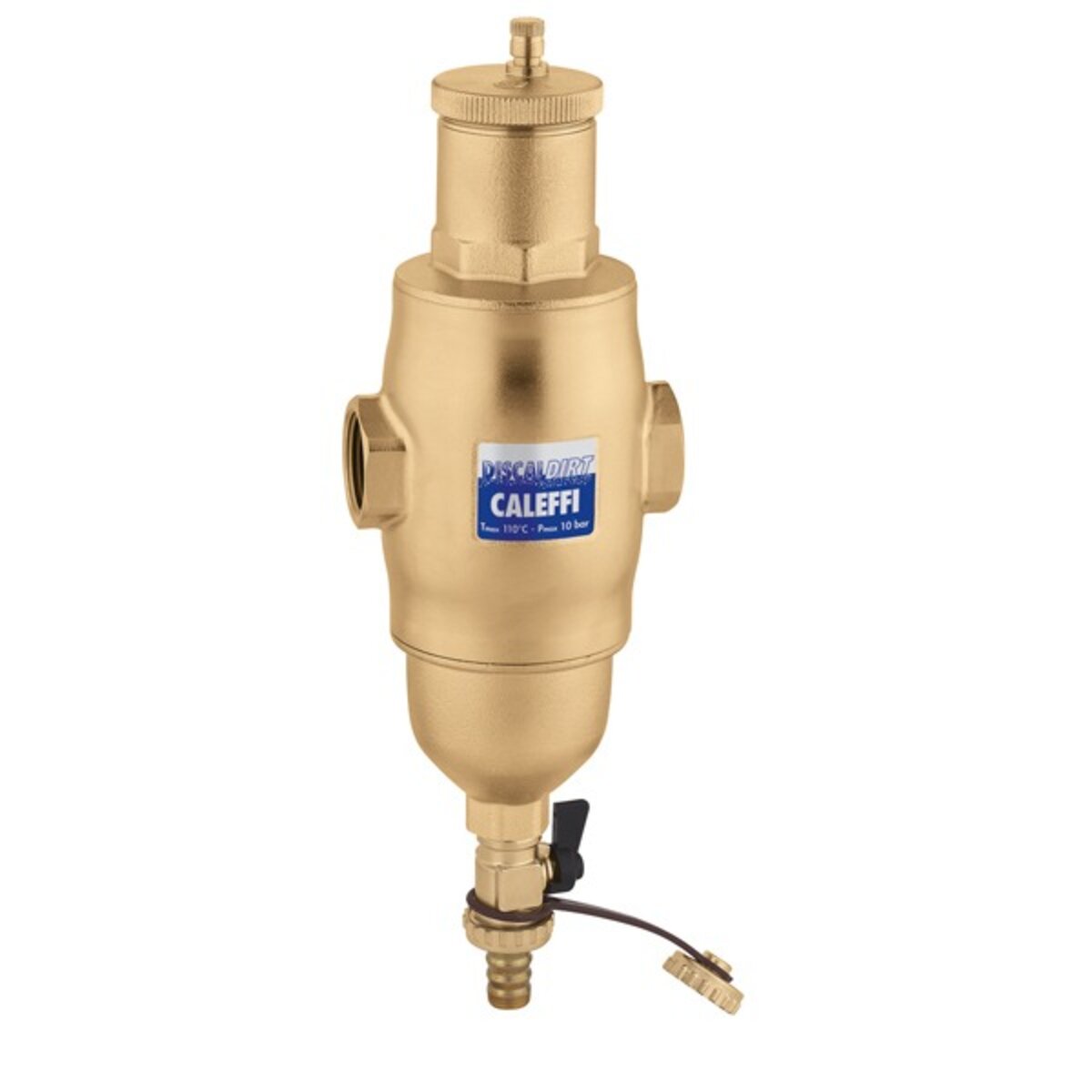

Caleffi 546 Discaldirt 1 F/F deaerator-dirt separator
