THIN PELLET STOVE WITH DUCTABLE AIR FIREPLACES MONTEGRAPPA DUGLIA 9 kW WITH BLACK PAINTED STEEL COVERING, ENERGY CLASS A +.
Nominal heat output of 9 kW
Ideal for heating one or more rooms, up to 100 square meters with an average height of 2.7 m
Since 1976, Caminetti Montegrappa has been offering reliable, efficient products that meet the needs of the most critical, always guaranteeing top-quality quality. Caminetti Montegrappa stoves are designed to guarantee economic and energy savings, ease of use, low emissions and environmental protection. The Duglia Pellet Stove, tall and thin, is a ducted ventilated hot air stove, a cutting-edge model for technological innovation, design, and performance in energy class A +.
DESIGN

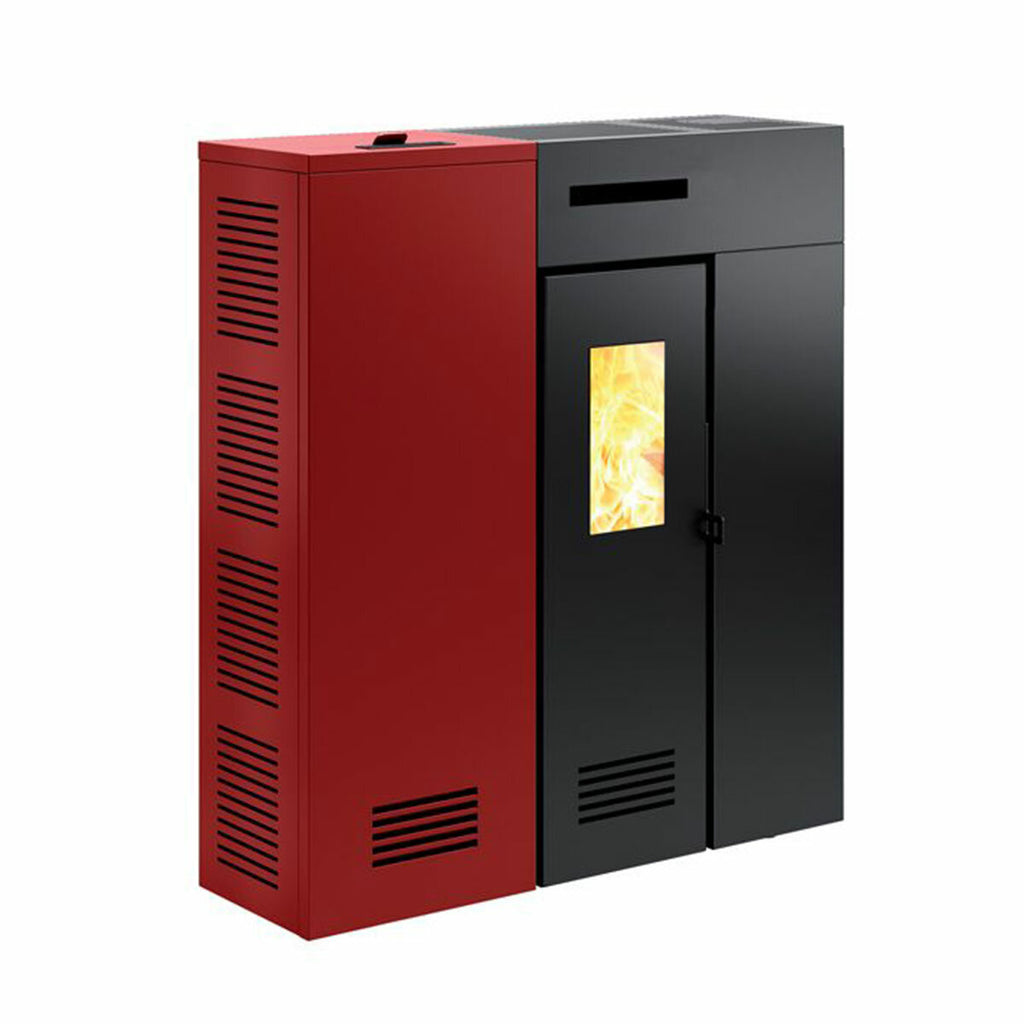

The Duglia pellet stove, in the two-tone red and black variant, gives grit to the environment in which it is installed. The painted steel cladding and the squared lines adapt to a more modern and minimalist type of furniture. The similarity in the shapes to the furniture with doors means that it becomes one with the environment and the furniture. The adjustable and non-slip feet allow for correct leveling, making the stove more stable and safe . From the black front, also square, it is possible to admire and enjoy the flames through the glass, above which the slot for the air outlet faces in the upper part, while the segmented ones in the lower part and on the sides. The upper smoke outlet is designed to reduce the overall space but, thanks to the arrangement, it is possible to opt for a rear smoke outlet where this need arises.
GUARANTEED SAVINGS AND HIGH COMFORT
The Duglia pellet stove by Caminetti Montegrappa is of the air type, that is, it heats the room in which it is installed by means of tangential ventilation. It is also capable of give heat to an additional room by channeling the air for a total of about 100 square meters; all this with great energy efficiency (class A +) , low consumption , high comfort and extreme silence.
The hot air can be channeled laterally or rearward through pipes of ø 80 mm
Caminetti Montegrappa has managed to concentrate various technological innovations within the Duglia that make it a truly excellent purchase in terms of value for money. The cast iron burner contributes to reducing consumption, an excellent heat conductor particularly suitable for stove coatings. To ensure that combustion can always take place with maximum efficiency depending on the type and quality of fuel used, the user can adjust the calibration of the pellet combustion through the programmable thermostat with manual operation, thanks to which it is possible to program the stove. Among the other features we also find the removable ash drawer , the removable hearth backrest and the electronic card set up for the management of external thermostats.
CERTIFICATIONS
The Duglia pellet stove is ECODESIGN 2022 and CLEAN AIR certified. The two certifications were awarded by the autonomous bodies that evaluate them on the basis of European laws, energy efficiency and low emissions. The objective of ECODESIGN 2022 is to improve the environmental performance of the new biomass heat generators, ensuring compliance with the efficiency and emissions requirements set by the European directive 2009/125 / EC. Furthermore, Caminetti Montegrappa stoves are subjected to specific checks to verify their compliance with the emission and performance requirements. This is why buying a CLEAN AIR certified stove means choosing a reliable and efficient product with a view to safeguarding air quality.
TECHNICAL FEATURES
- Certified power: 3.6 - 9 kW
- Global thermal power: 10.3 kW
- CO measured (at 13% oxygen): 0.01%
- Efficiency:> 87%
- Fuel consumption: 0.8 - 2.1 kg / h
- Mass flow rate of the fumes: 3.2 - 6 g / s
- Smoke temperature: 130 - 210 ° C
- Draft (chimney depression): 5 Pa
- Tank capacity: 16 kg
- Autonomy: 20 - 7 h
- Smoke outlet pipe: diameter 80 mm
- Air inlet for combustion: 80x40 mm
- Heatable surface with certified power: 103 square meters
DIMENSIONS
Width: 930 mm - Height: 1020 mm - Depth: 280 mm
Weight: 98 kg
WARRANTY
The warranty is the official CAMINETTI MONTEGRAPPA Italia guarantee and has a duration of 24 months.
