Clivet BOX 2 air conditioner 4-way cassette 18.000 BTU light commercial Inverter A++ R32The air conditioner kit is equipped with the following indoor units:
- 1 x 18000 BTU - Ideal for rooms from 50 to 60 sqm with an average height of 2.7 m
The BOX 2 650x650 4-way cassette is the internal unit by Clivet that is mounted directly on the ceiling, generally recessed in a false ceiling. Cassette split air conditioners offer the great advantage of not taking up space on the walls for the installation of the indoor unit, furthermore the possibility of positioning the units in central points of the rooms allows for better diffusion of the conditioned air.
Clivet internal cassette units have refined lines that make them particularly pleasing to the eye as real design objects. The BOX 2 650x650 4-way cassette has many additional functions that allow you to radically transform the climate in the rooms, offering unique pleasure. The comfort is incomparable because it eliminates the classic head and back pains due to a direct diffusion of the conditioning and gives only the pleasure of the conditioning; the system is also particularly useful for all environments such as offices where a fixed workstation is occupied for a long time. This indoor unit is used together with inverter outdoor units to create combinations of multi-split and light commercial air conditioners.
DESIGN
The Clivet BOX 2 650x650 4-way cassette has a particularly beautiful design, very elegant and modern at the same time. Due to its pleasant lines, it adapts to all types of furniture and in any environment in which it is installed, integrating into any architecture; it is particularly suitable for commercial activities, offices and hotels but also integrates perfectly into homes. This type of indoor unit has small dimensions and uses the 60x60 cm standard. classic of false ceiling squares in order to facilitate installation works; the depth is also very shallow.
BREATHE CLEAN AIR
The BOX 2 650x650 4-way cassette has internal filters that retain dust and microorganisms present in the air and always introduce clean air into the environment. Furthermore, the air inlet allows the indoor unit to draw clean air from the outside which, passing by the machine, allows the renewal of the latter in the environment.
PERFECT CLIMATE AND RELAX
The BOX 2 650x650 4-way cassette indoor unit offers a perfect climate and unparalleled comfort. Thanks to its many functions and its additional features, the diffusion of the air is always optimal. When switched on, it allows you to quickly reach the temperature thanks to the Turbo function which increases the ventilation capacity. The movement of the air diffusion flaps can be automated using the Auto Swing function but can also be memorized in order to recall their positions each time they are switched on again. With the incredible number of 12 ventilation speeds, the regulation of the air flow in the room can be personalized in order to always offer the greatest comfort; in heating, the Anti Cold Air function delays the start of the fan until the internal coil is not hot enough and the Temperature Compensation helps to always detect the real room temperature even if the sensor that detects it is at a different height than that of the guests of the environment. Furthermore, with the Follow Me function, the temperature can be detected by a sensor placed in the remote control which allows us to adjust the general functions of our air conditioner. The Sleep function for night-time operation reduces noise and sets the balance of the automatic night-time temperature curves. To increase ease of use, if the remote control doesn't work, the air conditioner can also be turned on and off using a button on the indoor unit; in the event of a blackout, the Auto Restart system resets all the settings in use at the time of the power cut; the Timer allows the programming of automatic switching on and off. There are also a series of particularly technical functions such as the Refrigerant Loss Alarm, Self-diagnosis and also the Remote Alarm Port function which communicates any malfunctions. Last but not least, the SPLIT VRF function, which allows the cycle inversion, in which all indoor units work in heating or cooling mode depending on the season, guaranteeing the possibility of acting on the internal temperature control for each individual room and on the fan speed. This indoor unit is already equipped with the condensate drain pump integrated in the chassis. There is also a contact for switching on/off from an external device.
ACCESSORIES INCLUDED
- Panel 650x650
- Infrared remote control.
WARRANTY
The warranty is the official Clivet one and has a duration of 24 months.
THE OUTDOOR UNIT
The MC3-Y outdoor units for Clivet monosplit air conditioners from the Light Commercial range have Inverter and Heat Pump technology and represent the beating heart of the air conditioner. The entire range boasts excellent performance, simplicity and flexibility in installation, a wide operating range in both cooling and heating. The MC3-Y outdoor units work with the innovative R32 gas, a friend of nature and of the consumer because it has a low environmental impact and is more performing and economical than its predecessors.
Monosplit outdoor units allow you to connect a single indoor unit and in association with it are generally used to air-condition a single room.
The outdoor unit presented here has a nominal power of 5.3 kW (in cooling).
SAVINGS GUARANTEED

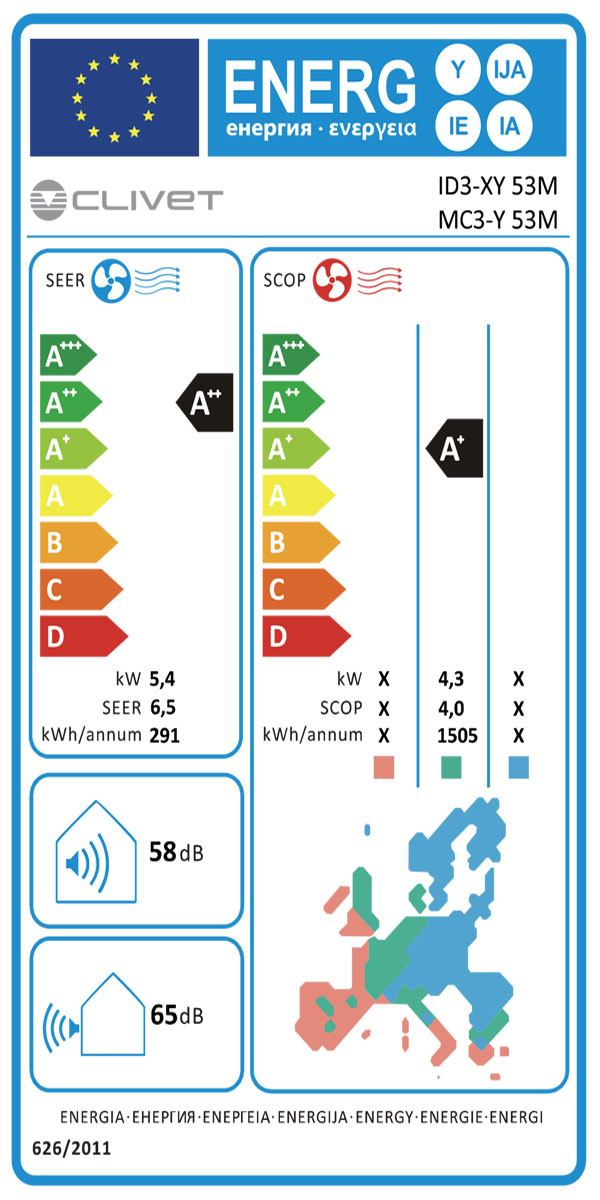

The monosplit outdoor unit for Clivet air conditioners in the Light Commercial range has been designed to always supply the power necessary for the actual air conditioning needs of the environment in which its indoor unit is located. It offers consistently high performance and together with the internal unit contributes to the creation of the great comfort that distinguishes Clivet products. It works excellently both in cooling in summer use of the air conditioner and in heating in winter use. Thanks to its DC Inverter system it allows great energy savings and real attention to the environment. Reaches the best energy classes up to Class A++ for which it has always particularly low electricity consumption. The variable speed compressor adjusts operation to the actual heat load request of the indoor unit, helps to further reduce consumption and keeps the temperature constant without sudden changes; it is also very quiet, allowing you to respect your own sleep and that of the neighbours. The heat pump allows you to use the air conditioner both in summer for cooling and during winter for heating. The fan of this outdoor unit adjusts its operation between 7 speed levels to help save energy; it is equipped with an Emergency function which also allows operation in emergency mode from malfunctions; the Auto Defrost device prevents the formation of ice on the evaporator. Thanks to the special precautions adopted, the external unit guarantees the correct functioning of the air conditioner even with very cold external temperatures.
For its operation, the Clivet MC3-Y monosplit air conditioner compressor uses R32 gas which has a very low environmental impact and therefore contributes considerably to respect for the environment and reduces energy consumption to the full advantage of bill spending.
The body is equipped with a particular anti-corrosion coating which protects it in a particular way from bad weather, atmospheric agents and saltiness. This outdoor unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Clivet one and has a duration of 24 months.
