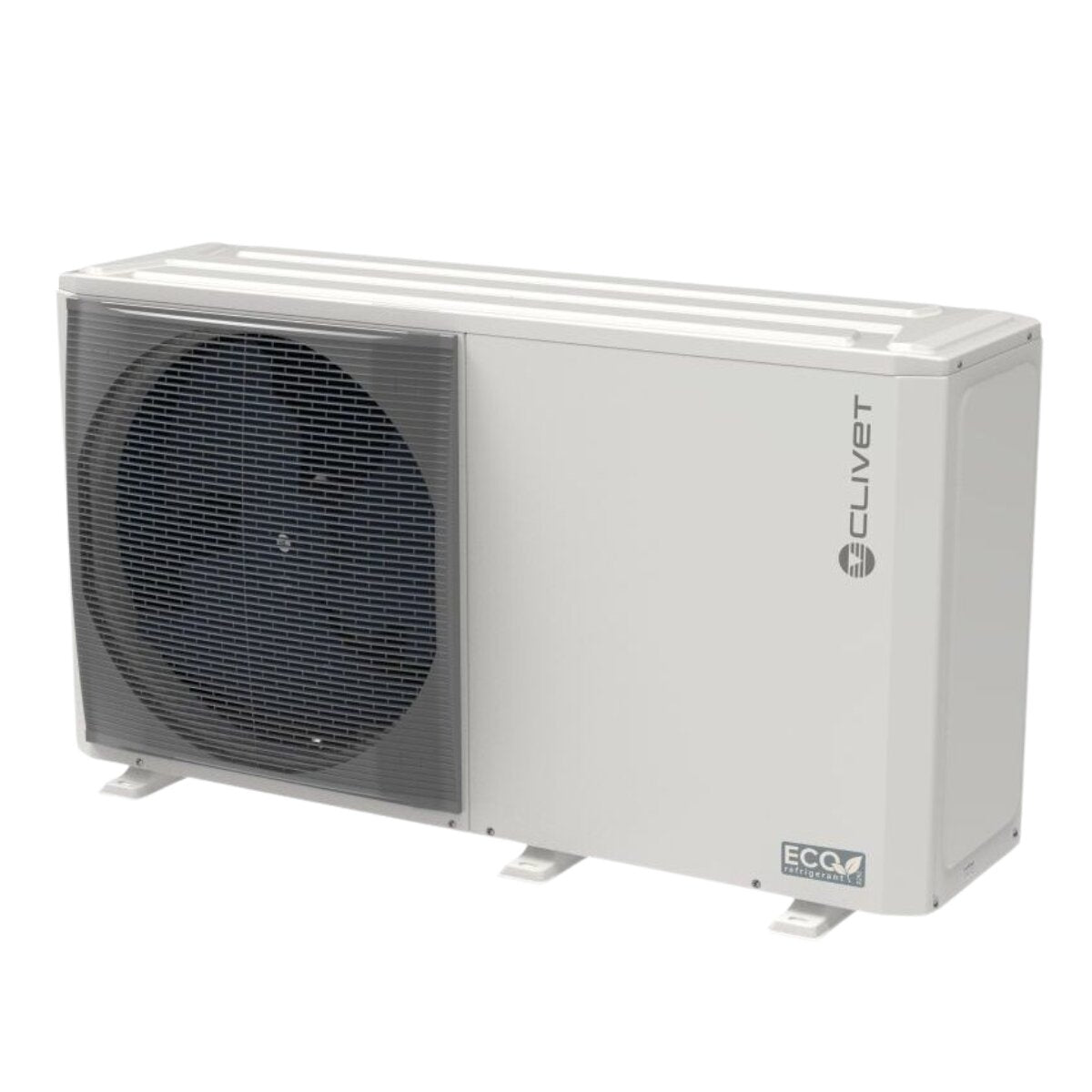

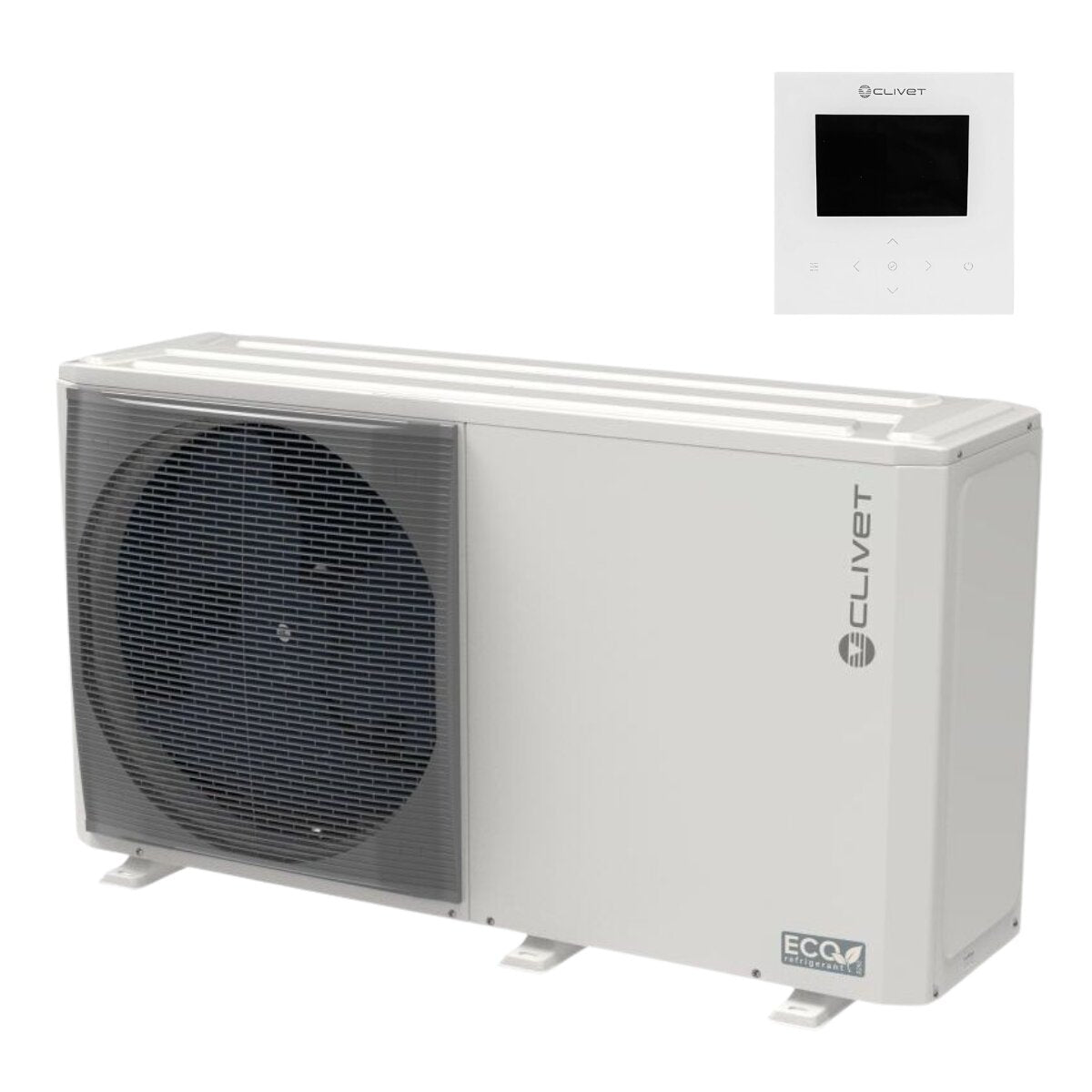

Clivet Edge F 15 kW R290 WiFi A+++ Air-to-Water Heat Pump - SINGLE-PHASE MONOBLOCK

Clivet Edge F WiSAN-PME 1S 8.1 15 kW R290 WiFi A+++ air-to-water heat pump - SINGLE-PHASE MONOBLOC

Ideal for units of approximately 160 m2 with an average height of 2.7 m

The Clivet EDGE F air-to-water heat pump is not simply a heat pump: it is a technological platform designed to transform the way you produce heat, cooling and domestic hot water in your home.

We're talking about a new-generation monoblock air-to-water heat pump, designed to offer high performance, maximum energy efficiency, and total sustainability , thanks to the use of the natural refrigerant R290. An ideal solution for those who want to permanently abandon the traditional boiler and switch to an advanced all-electric system.

EDGE F is designed to cover all the thermal needs of the home :

• winter heating even with extreme outside temperatures
• efficient summer cooling
• continuous production of domestic hot water

All with a single compact external unit, without the need for complex internal modules.

Its real strength? Its ability to reach flow temperatures of up to 75°C , maintaining high performance even with outside air temperatures as low as -25°C. This means it can also work perfectly with traditional radiators, making it ideal for renovations and boiler replacements.

The technological heart: how it really works

Inside the EDGE F you'll find a combination of components designed to work in perfect synergy:

• Inverter compressor → modulates power based on actual needs, reducing consumption and on/off cycles
• High efficiency exchangers → transfer heat between air and water with minimal dispersion
• Integrated circulation pump → manages the flow of water in the system
• 4-way valve → allows the cycle to be reversed (heating/cooling)
• Sealed inverter panel and components → guarantee reliability and durability over time

In practice, each component is optimised to work with R290 refrigerant, making the most of its performance.

The real competitive advantage: R290 gas

If there is one element that really distinguishes EDGE F from most heat pumps on the market, it is the R290 refrigerant (natural propane) .

Why is it so important?

• Almost zero environmental impact (GWP ≈ 3)
• Compliant with future European regulations (F-Gas)
• Greater thermodynamic efficiency → produces more heat while consuming less energy
• It allows much higher temperatures than traditional gases
• Ideal for systems with radiators

Clivet itself sums it up like this: more heat produced with less energy.

Real-world comparison with other heat pumps

• Pumps with R32 or R410A :
  • they work better at low temperatures
  • have more stringent limits on future regulations
  • they hardly reach 70–75°C without loss of efficiency

• The EDGE F with R290 :
  • works like a boiler (high temperature)
  • it is already ready for the regulatory future
  • ensures greater efficiency even in critical conditions

In other words: it is the most advanced technology available today for residential use.

Smart system: total control, consumption under control

One of the most advanced aspects of the EDGE F is its integration into the Clivet Smart Living system, which transforms the heat pump into an intelligent device.

• Clivet Eye (App): allows you to control the temperature remotely, monitor energy consumption in real time, and optimize operation to reduce costs.
• Control via Modbus (home automation, BMS, supervisors) and the CONTROL4 NRG system. This is the brain of the system: it coordinates the heat pump, storage tanks, and the system, automatically optimizing performance, ensuring constant comfort and reducing consumption.
• Smart Grid Ready and Photovoltaic: the EDGE F is ready to work with photovoltaic systems and smart electricity grids.
• Silence, comfort and integration: silent mode to further reduce noise; integration with solar thermal systems, compatibility with storage tanks and DHW boilers.
• Possibility of cascade installation of up to 6 units.

DIMENSIONS

Width 1385 mm_ Height 865 mm_ Depth 423 mm

Weight 135 kg.

WARRANTY

The warranty is the official Clivet one and lasts 24 months from the date of initial start-up of the machine.
