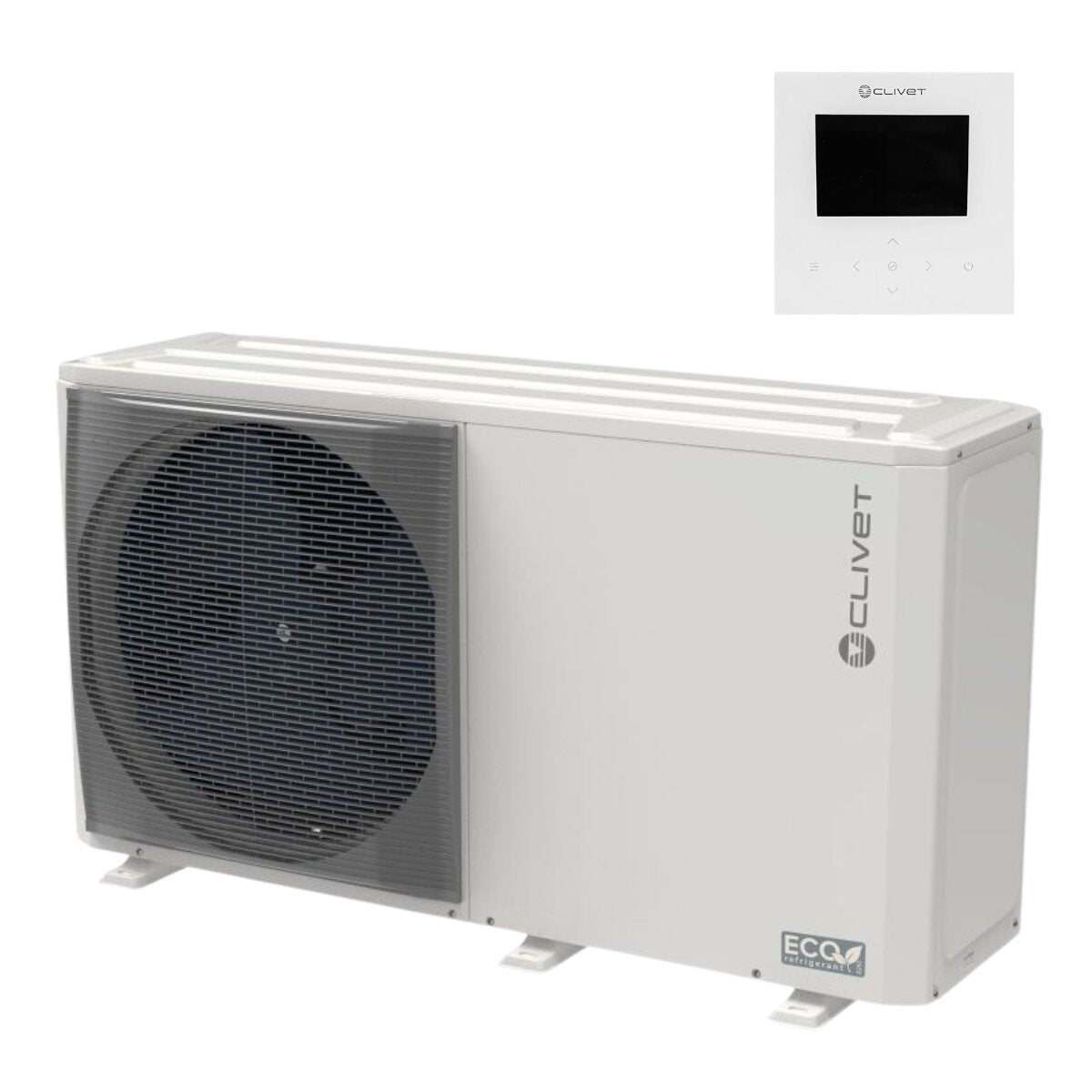

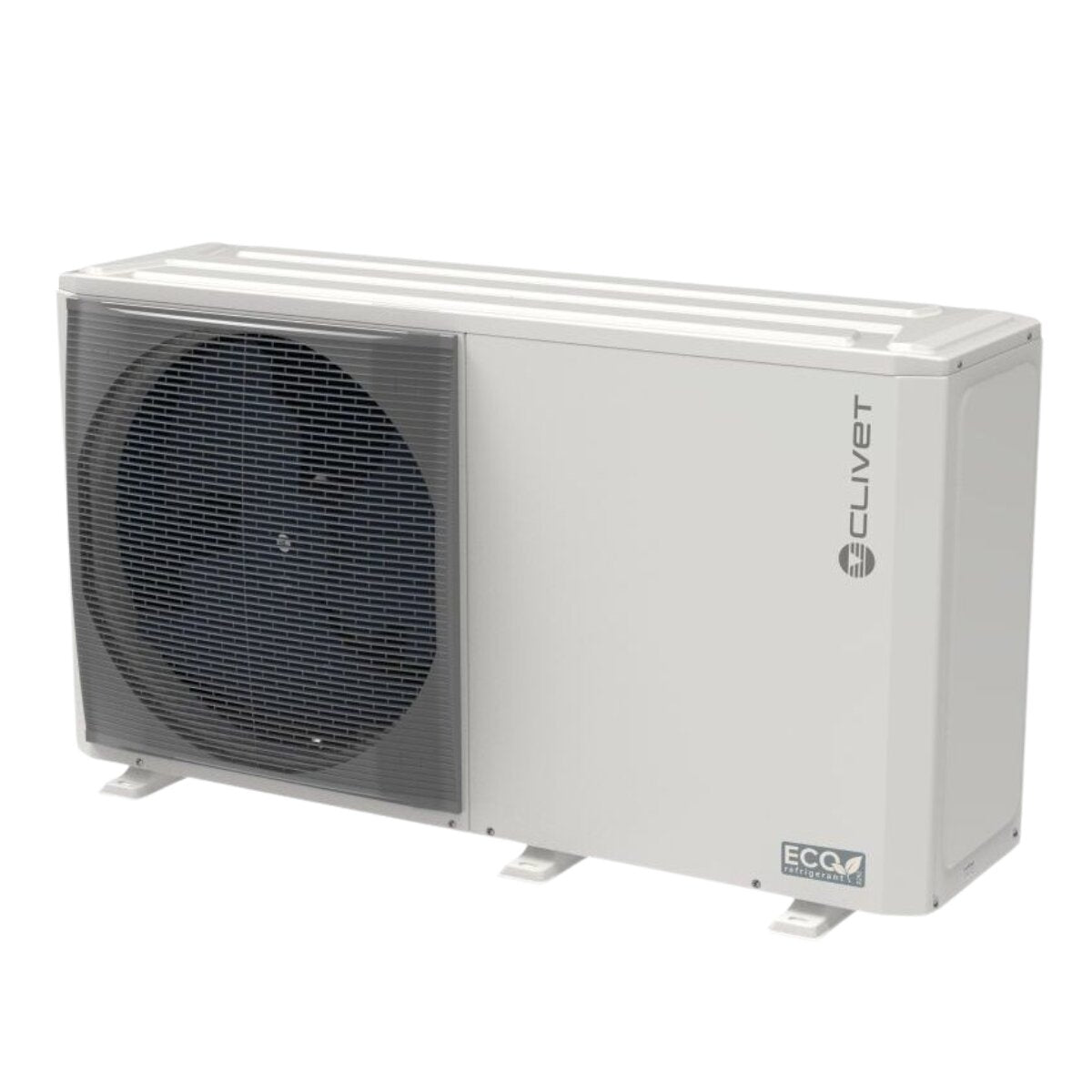

Clivet Edge F 6.4 kW R290 WiFi A+++ air-to-water heat pump - SINGLE-PHASE MONOBLOCK

Roll over image to zoom in Click on image to zoom

Clivet Edge F 6.4 kW R290 WiFi A+++ air-to-water heat pump - SINGLE-PHASE MONOBLOCK

Name: Clivet Edge F 6.4 kW R290 WiFi A+++ air-to-water heat pump - SINGLE-PHASE MONOBLOCK
Brand: Clivet
SKU: 38672368_91742386
Price: 5140.2 EUR
Availability: OutOfStock

Save 31%

ClivetSKU: 38672368_91742386

Price:

€5.140,20 €7.454,20

Quantity:

Share this product

Code: 38672368_91742386
ID code: AF3DBB
Pre-code: CLV
Short description: The Clivet EDGE F WiSAN-PME 1S 3.1 is a monoblock air-to-water heat pump designed to provide heating, cooling, and domestic hot water production in a single, highly efficient solution. Thanks to the natural refrigerant R290 , it ensures high performance and minimal environmental impact, as well as reaching delivery temperatures of up to 75°C , also ideal for systems with radiators. It operates efficiently even with outside temperatures as low as -25°C, making it perfect for any climate. The system integrates smart control via App, Modbus, and CONTROL4 NRG, allowing for advanced and optimized consumption management. Compatible with photovoltaic systems and Smart Grids, it maximizes energy self-consumption. The possibility of cascading installation of up to 6 units makes it suitable for even more complex systems.
Category: Heat pump
Type: Monobloc
Series: Edge F
Benefits
Width x Height x Depth (mm): 1295X718X381
Weight (kg): 90
Suitable for rooms up to (sqm): 60
Inverter: Yes
Installation type: Outdoor
Refrigerant gas: R290
WiFi: Yes
kW: 6.4
Power supply: Single-phase
Energy efficiency class (heating): A+++
Minimum sound power – dB(A): 51
Maximum sound power – dB(A): 56
Minimum sound pressure – dB(A): 40
Maximum sound pressure – dB(A): 44
Requirement: Domestic hot waterHeating
Performance: High temperature

Download technical specifications

Clivet Edge F WiSAN-PME 1S 3.1 6.4 kW R290 WiFi A+++ air-to-water heat pump - SINGLE-PHASE MONOBLOC

Ideal for units of approximately 60 m2 with an average height of 2.7 m

The Clivet EDGE F air-to-water heat pump is not simply a heat pump: it is a technological platform designed to transform the way you produce heat, cooling and domestic hot water in your home.

We're talking about a new-generation monoblock air-to-water heat pump, designed to offer high performance, maximum energy efficiency, and total sustainability , thanks to the use of the natural refrigerant R290. An ideal solution for those who want to permanently abandon the traditional boiler and switch to an advanced all-electric system.

EDGE F is designed to cover all the thermal needs of the home :

winter heating even with extreme outside temperatures
efficient summer cooling
continuous production of domestic hot water

All with a single compact external unit, without the need for complex internal modules.

Its real strength? Its ability to reach flow temperatures of up to 75°C , maintaining high performance even with outside air temperatures as low as -25°C. This means it can also work perfectly with traditional radiators, making it ideal for renovations and boiler replacements.

The technological heart: how it really works

Inside the EDGE F you'll find a combination of components designed to work in perfect synergy:

Inverter compressor → modulates power based on actual needs, reducing consumption and on/off cycles
High efficiency exchangers → transfer heat between air and water with minimal dispersion
Integrated circulation pump → manages the flow of water in the system
4-way valve → allows the cycle to be reversed (heating/cooling)
Sealed inverter panel and components → guarantee reliability and durability over time

In practice, each component is optimised to work with R290 refrigerant, making the most of its performance.

The real competitive advantage: R290 gas

If there is one element that really distinguishes EDGE F from most heat pumps on the market, it is the R290 refrigerant (natural propane) .

Why is it so important?

Almost zero environmental impact (GWP ≈ 3)
Compliant with future European regulations (F-Gas)
Greater thermodynamic efficiency → produces more heat while consuming less energy
It allows much higher temperatures than traditional gases
Ideal for systems with radiators

Clivet itself sums it up like this: more heat produced with less energy.

Real-world comparison with other heat pumps

Pumps with R32 or R410A :
- they work better at low temperatures
- have more stringent limits on future regulations
- they hardly reach 70–75°C without loss of efficiency

The EDGE F with R290 :
- works like a boiler (high temperature)
- it is already ready for the regulatory future
- ensures greater efficiency even in critical conditions

In other words: it is the most advanced technology available today for residential use.

Smart system: total control, consumption under control

One of the most advanced aspects of the EDGE F is its integration into the Clivet Smart Living system, which transforms the heat pump into an intelligent device.

Clivet Eye (App): allows you to control the temperature remotely, monitor energy consumption in real time, and optimize operation to reduce costs.

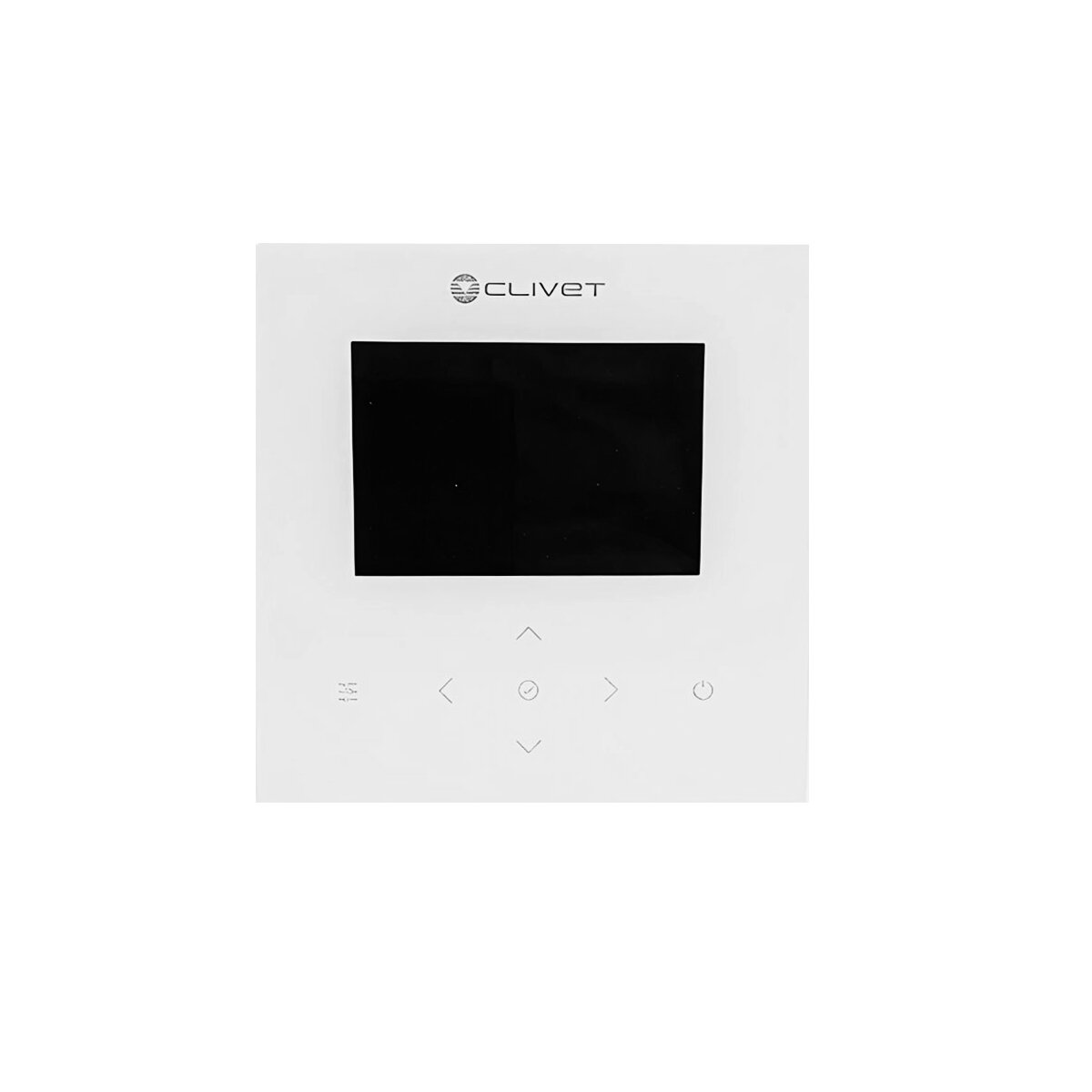

Control via Modbus (home automation, BMS, supervisors) and the CONTROL4 NRG system. This is the brain of the system: it coordinates the heat pump, storage tanks, and the system, automatically optimizing performance, ensuring constant comfort and reducing consumption.
Smart Grid Ready and Photovoltaic: the EDGE F is ready to work with photovoltaic systems and smart electricity grids.
Silence, comfort and integration: silent mode to further reduce noise; integration with solar thermal systems, compatibility with storage tanks and DHW boilers.
Possibility of cascade installation of up to 6 units.
