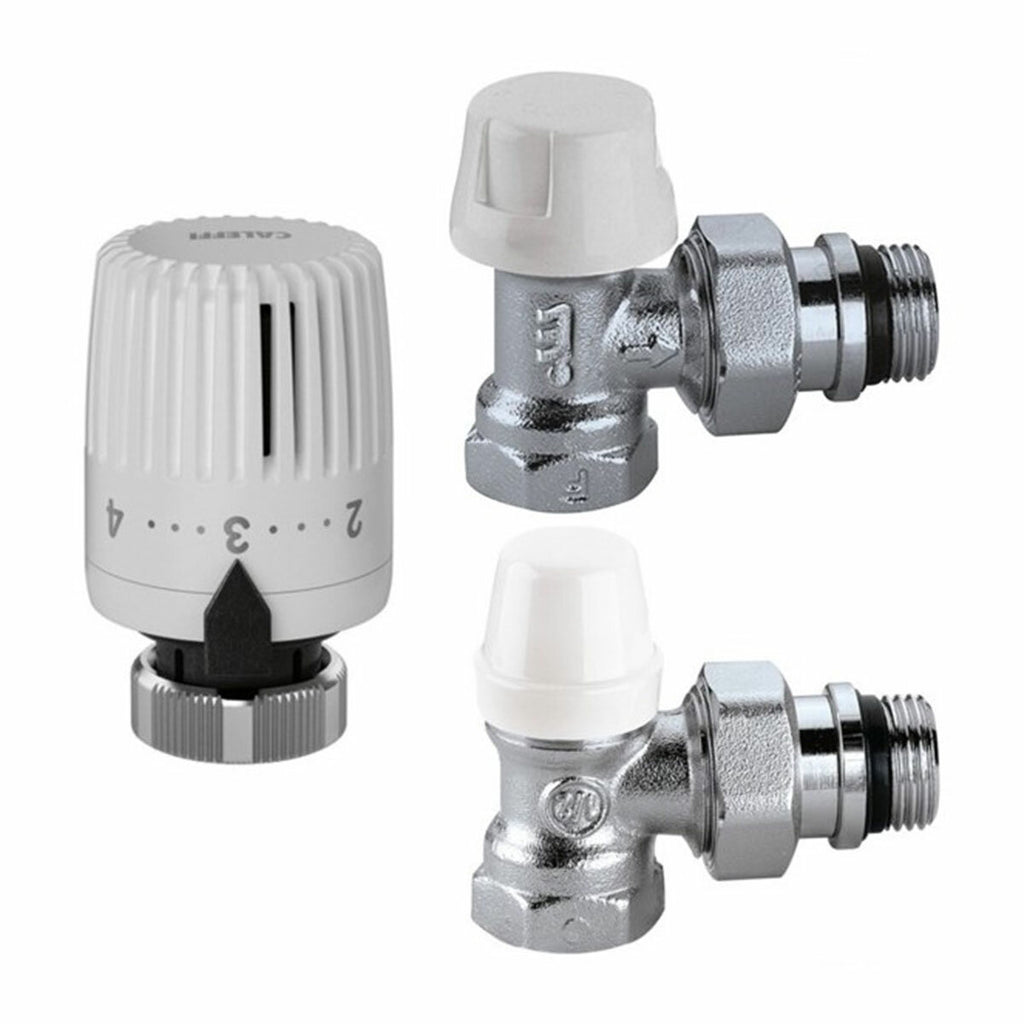

THERMOSTATIC KIT FOR RADIATOR REQUALIFICATION FOR IRON PIPE 1/2
composed of:
199 Series Thermostatic Control for thermostatic and thermostatizable valves on heating radiators.
Code 199000
The 199 Series Thermostatic Control with built-in sensor is used in combination with Caleffi radiator valves.
Its pleasant design with clean lines allows it to integrate perfectly to complete any model of heating radiator and in any environment.
It is mounted on the radiator water delivery management valve and replaces the water inlet adjustment knob; it is equipped with a liquid sensitive element of particular sensitivity which makes it extremely precise and reliable.
It is used for valves of series 338, 339, 401, 402, 425, 426, 421, 422, 455, 456, 220, 221, 222, 223, 224, 225, 226 and 227.
GUARANTEED SAVINGS AND HIGH COMFORT
The 199 Series Thermostatic Control transforms the water flow adjustment knob of the radiator into a real object for controlling the room temperature . It is equipped with a graduated scale which indicates the ZERO position, antifreeze intervention position, intermediate adjustment positions with partial settings, each of which corresponds to a temperature ranging from 7°C to 28°C. It will therefore always be possible to easily set the desired temperature in the room where the radiator is installed. Contrary to the classic radiator valves which simply allow you to adjust the water inlet flow, the Thermostatic Valve allows you to choose the desired temperature in the room so that, by continuously detecting the room temperature, it automatically adjusts the flow of water circulating in the radiator and keeps the temperature constant . The advantages can be found in the considerable comfort it offers as by mounting them on all the radiators it is possible to set the same temperature in all the rooms and no longer feel temperature differences between one room and another or it is possible to deliberately set different temperatures in the rooms and keep them that way. The energy saving that involves the use of the Thermostatic Control is also immediate which, by automatically regulating the flow of water in the radiator , avoids useless waste of energy due to the usual bad adjustments of the manual valves. The control is complete with a temperature limitation device and a set temperature blocking device .
It can be used with ambient temperatures with a maximum limit of 50°C, carrier fluid temperature range from 5 to 100°C and max operating pressure: 10 bar.
The body is in white RAL 9010 ABS, the control stem is in stainless steel, with double EPDM O-Ring seal to facilitate installation even with the system running.
It comes complete with an adapter for perfect compatibility with the valves.
The installation is quick and can be done by anyone also because it does not require additional elements such as gaskets or hydraulic hemp; the dimensions are very small.
DIMENSIONS
Length: mm. 80 - Diameter: mm. 48 - Fitting: 30 p. 1.5
Angle valve with thermostatic option CALEFFI 220 Series with 1/2 x 1/2 iron pipe connections for radiators
Code 220402
The CALEFFI 220 Series angle valve with thermostatic option is mounted on heating radiators and has the function of managing the inlet flow of the system carrier liquid.
It has a pleasant and discreet design that integrates well with all radiator models and in any environment.
It can be integrated easily and at any time with the Caleffi Thermostatic Controls for precise temperature regulation and concrete energy savings.
GUARANTEED SAVINGS AND HIGH COMFORT
The CALEFFI 220 Series angle valve with thermostatic option expresses the particular care that Caleffi dedicates to both the design and construction of the articles.
The square shape allows it to be installed in all cases where the pipes are positioned on the same fixing wall as the radiator, the dimensions of the valve body allow it to be installed on all radiator models.
The valve body is made of EN 12165 CW617N brass in a chrome plated colour, the obturator control stem is made of stainless steel for particular efficiency and durability over time, the hydraulic seals already incorporated are made of EPDM, the coupling union to the radiator attachment is complete with a rubber ring that allows it to be fixed without using additional gaskets or hydraulic hemp, the shaped control knob for a better grip and the cap are in white RAL 9010 ABS.
It can be used with ambient temperatures with a maximum limit of 50°C, carrier fluid temperature range from 5 to 100°C and max operating pressure: 10 bar.
Installation is quick and requires additional elements such as gaskets or hydraulic hemp; the dimensions are very small.
DIMENSIONS
Length including thread: mm. 58 - Width: mm. 34 - Connections: 1/2” for iron pipe, 1/2” radiator
CALEFFI angle lockshield 431 Series with 1/2 x 1/2 iron pipe connections for radiators
Code 431402
The CALEFFI 431 Series angle lockshield is mounted on heating radiators and has the function of managing the outflow of the system carrier liquid and achieving perfect balance of the radiator in the heating system.
It has a pleasant and discreet design that integrates well with all radiator models and in any environment.
GUARANTEED SAVINGS AND HIGH COMFORT
The CALEFFI Series 431 angle lockshield expresses the particular care that Caleffi dedicates to both the design and construction of the items.
The square shape allows it to be installed in all cases where the pipes are positioned on the same fixing wall as the radiator, the dimensions of the body allow it to be installed on all radiator models.
The lockshield body is made of EN 12165 CW617N brass in a chrome plated colour, the internal components are made of stainless steel for particular efficiency and durability over time, the hydraulic seals already incorporated are made of EPDM, the coupling union to the radiator connection thread is complete of a rubber ring that allows it to be fixed without using additional gaskets or hydraulic hemp, the cap is in white RAL 9010 ABS.
It can be used with ambient temperatures with a maximum limit of 50°C, carrier fluid temperature range from 5 to 100°C and max operating pressure: 10 bar.
Installation is quick and requires additional elements such as gaskets or hydraulic hemp; the dimensions are very small.
DIMENSIONS
Length including thread: mm. 58 - Width: mm. 34 - Connections: 1/2” for iron pipe, 1/2” radiator
WARRANTY
The THERMOSTATIC KIT FOR RADIATOR REQUALIFICATION FOR 3/8 IRON PIPE
benefits from the Official CALEFFI guarantee which has a duration of 2 years.
