Esybox mini3 1.1 HP DAB pressurization group

Inverter pump/DAB pressurisation unit Esybox mini 3

Code 60212597

Nominal power 0.85 kW/1.1 HP - Flow rate range 10 – 80 l/min - Head range 55 - 4 m - Delivery 1”

Inverter autoclave pump for pressurization for residential use, self-priming up to 8 m

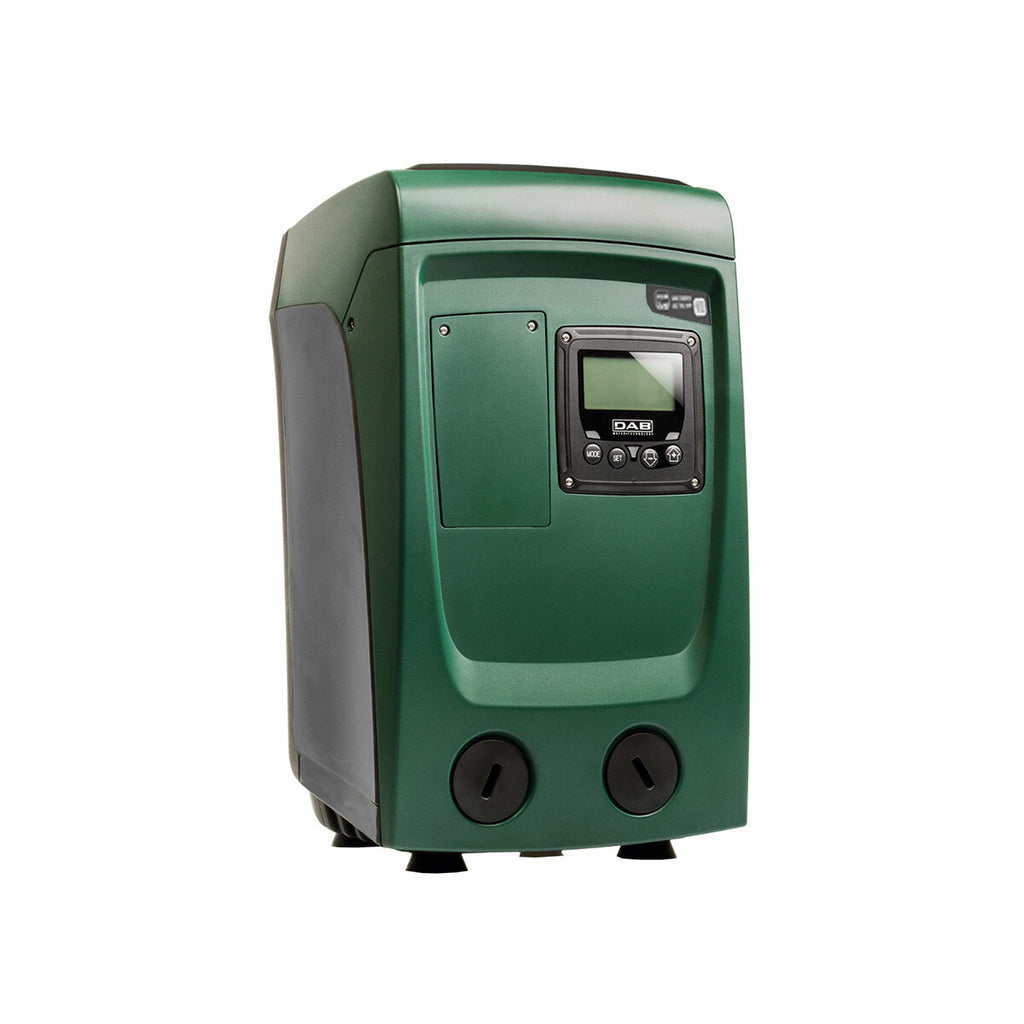

Esybox mini 3 by DAB is not the usual autoclave pump and you can notice it at first glance! It is a modern and compact device that revolutionizes residential water supply. An electronic inverter pressurization system designed by DAB to solve every water pressure problem in residential applications. In fact, thanks to its inverter electronics, the Esybox mini 3 autoclave pump regulates the speed of its motor based on real water needs, allowing you to have constant water pressure over time and, at the same time, a significant saving on your bill. In addition to the inverter, Esybox mini 3 contains in its small casing a self-priming multi-stage pump, a 1 l expansion tank and a practical adjustable display from which to easily set and monitor the operation of the pump. This new version of the Esybox mini 3 autoclave pump is equipped with integrated connectivity for remote management through the DAB App . It can be used in homes, in gardens or for irrigation; it is also used for supply from wells.

A robust and modern green casing, compact dimensions, 4 different installation configurations and extreme silence make this autoclave pump a versatile, comfortable device, easy to install anywhere, even under the kitchen sink.

The Esybox mini 3 autoclave pump is part of DAB's Esyline , a wide range of devices that allows you to respond to the most varied residential water supply needs also thanks to the many accessories adaptable to the various models.

Top quality materials and DAB technology ensure the best performance and durability of the Esybox mini 3 .

APPLICATIONS

The DAB Esybox mini 3 inverter autoclave pump is the ideal device for pressurisation in domestic water systems : its power allows you to comfortably serve an apartment of up to three floors with two bathrooms and 50m2 of garden. It can also be used to irrigate small allotments and gardens, with rainwater collection tanks and, thanks to its self-priming pump, for water supply from wells up to 8 m.

The pumped liquid must be clean water; the expansion tank is certified for drinking water.

GUARANTEED SAVINGS AND HIGH COMFORT

The DAB Esybox mini 3 inverter autoclave pump boasts excellent performance in terms of head and flow rate ; the motor has a power of 0.85 kW (1.1 HP) and, thanks to the three impellers supplied, reaches a flow rate of up to 80 l/min (4.8 m 3 /h) and a head of 55 m.

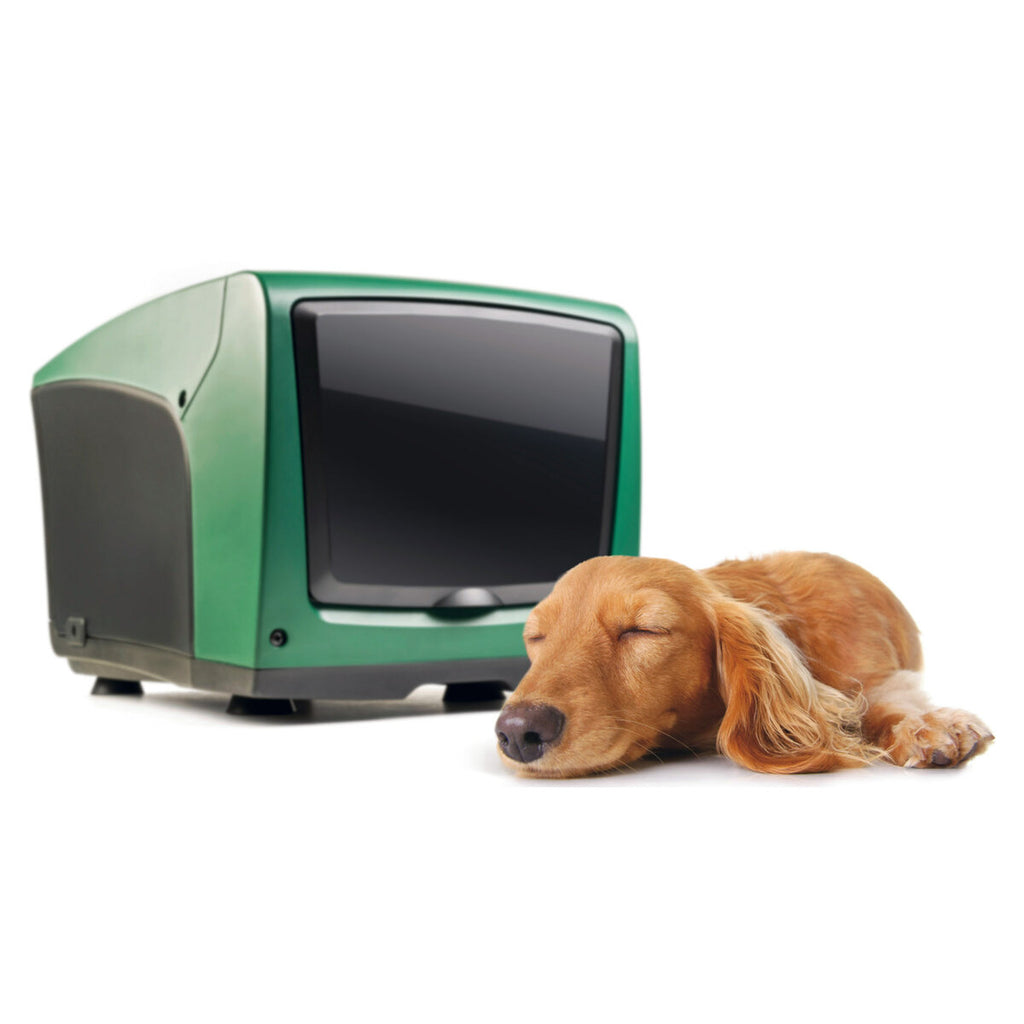

With only 45 dB(A) of acoustic emissions (equal to a conversation between a few people), the encapsulated and water-cooled motor and the anti-vibration feet, it is a truly silent device, suitable for installation anywhere. The operating pressure, which can be set at 5 different levels (between 1 and 5.5 bar), will always be constant thanks to the inverter system: no more water pressure problems when showering or watering the garden!

Savings are guaranteed: the use of inverter technology allows you to adjust the engine speed of the DAB Esybox mini 3 autoclave pump depending on the actual water demand at each withdrawal with a consequent reduction in costs of up to 50% compared to an autoclave traditional.

Furthermore, DAB PUMPS makes its electric pumps with excellent quality materials which allow them to last exceptionally over time.

LARGE MODULARITY OF INSTALLATION AND USE

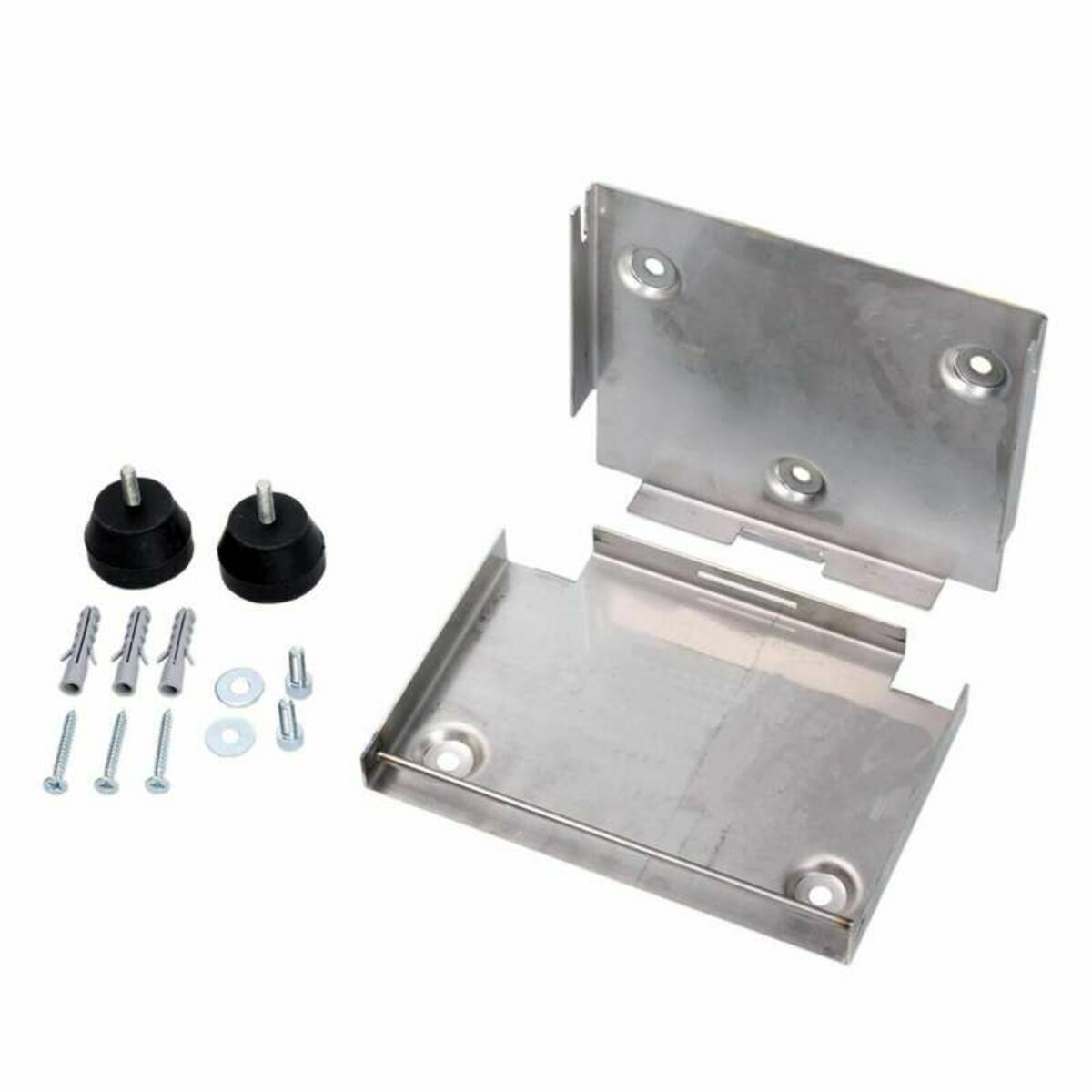

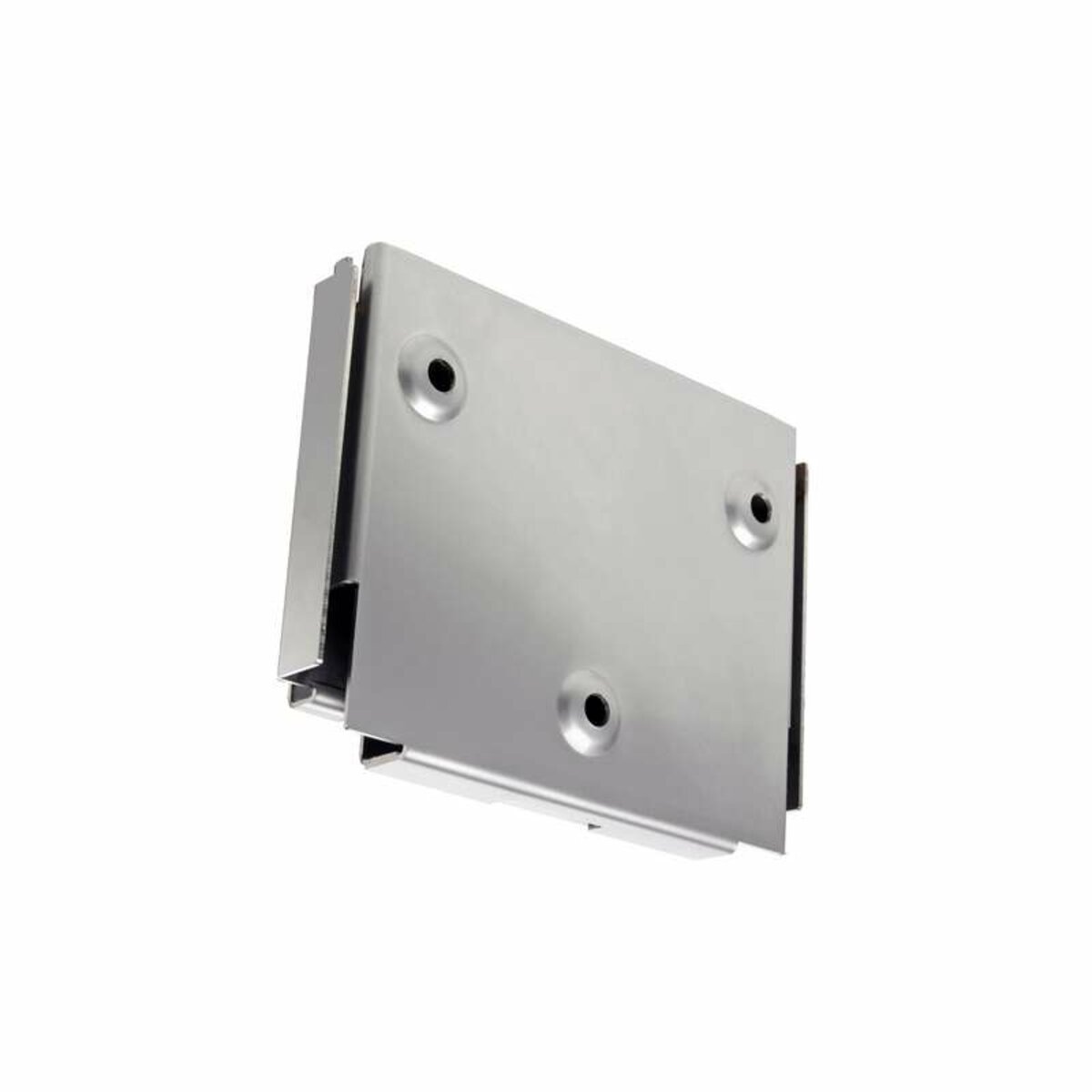

Being part of the DAB Esyline range, the Esybox mini 3 inverter autoclave pump is a truly versatile device when it comes to installation: vertical or horizontal , just add the delivery and suction pipes to put it into operation; It can also be hung or installed outdoors with the appropriate brackets ( esywall ) and/or optional covers ( esycover ) from the range which can be purchased separately.

The truly compact dimensions make this autoclave pump easily installable even in small technical compartments or under the kitchen sink.

The practical and intuitive adjustable LCD display allows you to set all the operating parameters and monitor the appliance. Furthermore, thanks to the on-board wireless connectivity with which it is equipped, the Esybox mini 3 inverter autoclave pump can be managed remotely: by downloading the DAB App, all you need is an internet connection and a smartphone, tablet or PC to interact with the device wherever you are you find.

With this new version of Esybox mini3 it is possible to create pressurization groups from 2 Esybox mini3 pumps to obtain up to double the flow rate or use the two pumps alternately and guarantee continuity of service in the event of a malfunction of one of the two. Thanks to wireless connectivity, the connection of two Esybox min3 will take place easily and without the need for any wiring.

The connections with the gasket caps are both on the front and in the lower part to satisfy the different types of installation. Flow and pressure sensors and a removable non-return valve are installed on the delivery for easy inspection.

DIMENSIONS

Height: 439 mm – Width: 263 mm – Depth: 236 mm – Delivery: 1”

Weight: 14.6 kg.

WARRANTY

The warranty is the official DAB Water Technology one and lasts 24 months.
