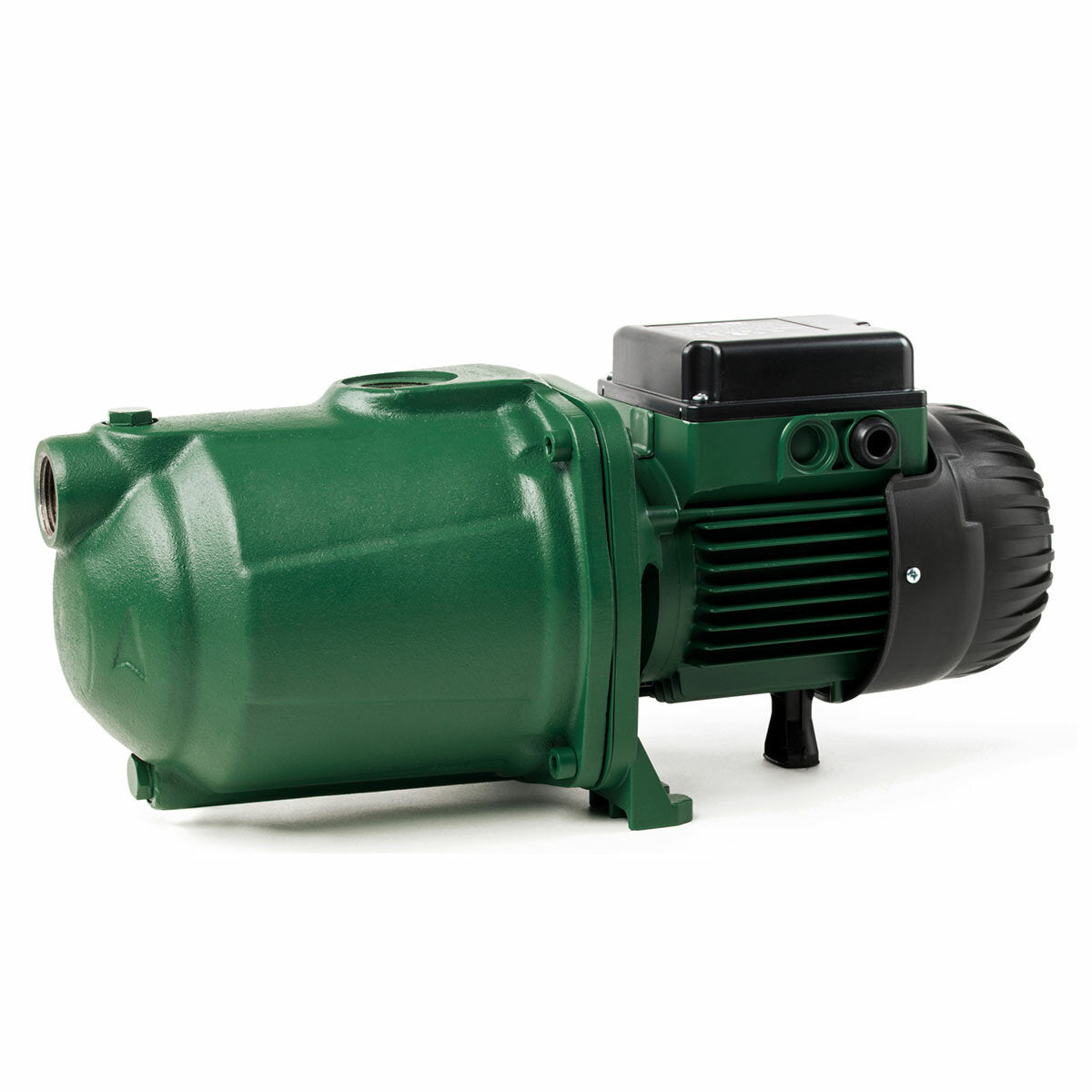

DAB EURO 50/50 M IE2 single-phase centrifugal multistage surface pump 1.36 HP/1 kW
Nominal power 1 kW/1.36 HP - Flow rate range 10 – 80 l/min - Head range 68.5 - 26 m - Delivery 1”
DAB 's EURO multistage centrifugal electric pumps are considered among the quietest in their category ; horizontal, they are ideal for domestic water supply. The model featured here is the 50/50 M , single-phase.
The model presented here is DAB EURO 50/50 M with IE 2 motor as per EU 2019/1781 - EU 2021/341 regulation, with high efficiency and energy saving.
APPLICATIONS
The EURO 50/50 M multistage centrifugal electric pump is suitable for domestic applications such as water supply and pressurization; it is also used for irrigating vegetable gardens and gardens and for moving water in general.
GUARANTEED SAVINGS AND HIGH COMFORT
The EURO 50/50 M multistage centrifugal electric pump delivers top-level performance. It features a die-cast aluminum motor mount, an AISI 304 stainless steel seal cover, a carbon/ceramic mechanical seal, and an AISI 304 steel rotor shaft. The impellers, diffuser bodies, and diffusers are made of technopolymer; the wear rings are made of stainless steel. The motor is asynchronous for continuous duty.
The EURO 50/50 M multistage centrifugal electric pump includes thermo-amperometric protection and permanent capacitor.
The temperature of the liquid used can range from 0 to +35°C for domestic use, and can reach up to +40°C for other applications. The pumped liquid must have characteristics similar to those of clean water: it must be free of solids or abrasives, non-viscous, non-aggressive, non-crystallized, and chemically neutral.
GREAT MODULARITY OF INSTALLATION AND USE
The EURO 50/50 M multistage centrifugal electric pump belongs to the broad category of DAB electric pumps suitable for domestic use. The pump body is made of 200 UNI ISO 185 cast iron. Before starting, check that the pump is properly primed by filling it completely with clean water through the appropriate hole located on the pump body. This operation is essential for the correct operation of the pump and its mechanical seal.
The installation can be fixed or portable with the pump axis in a horizontal position.
DIMENSIONS
Length: 452 mm – Width: 175 mm – Height: 204 mm
Gross weight: 16.2 kg.
WARRANTY
The warranty is the official DAB Water Technology one and lasts 24 months .
