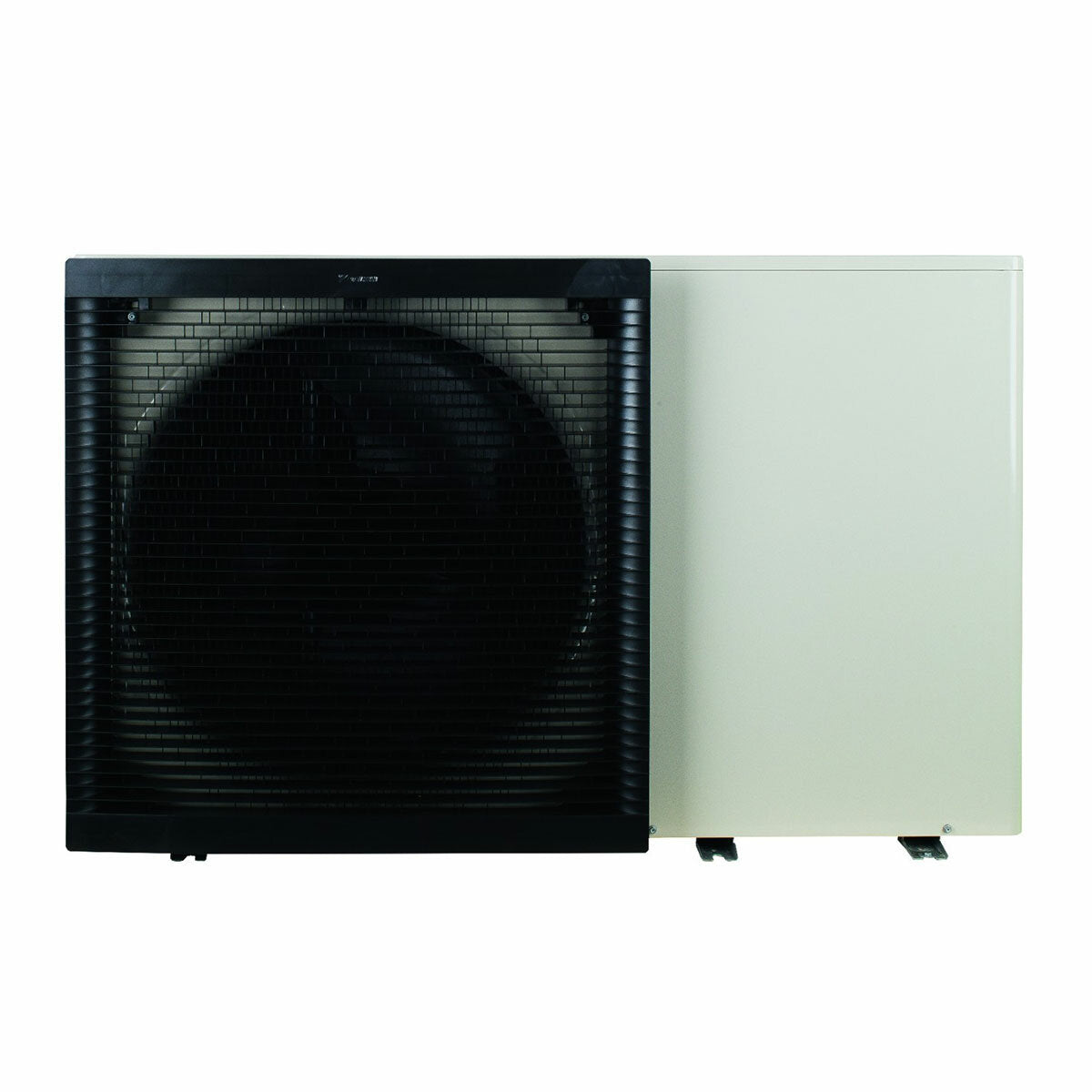

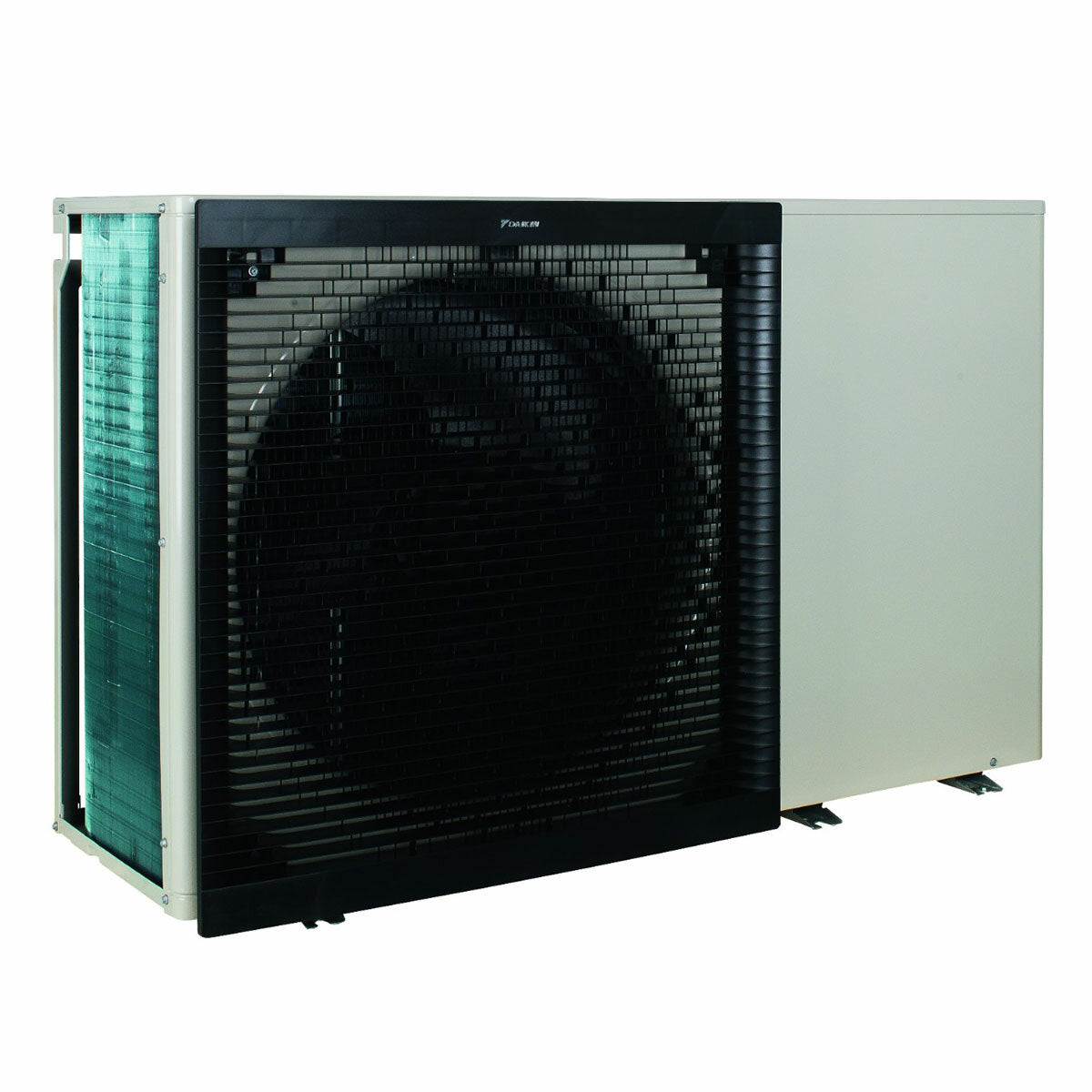

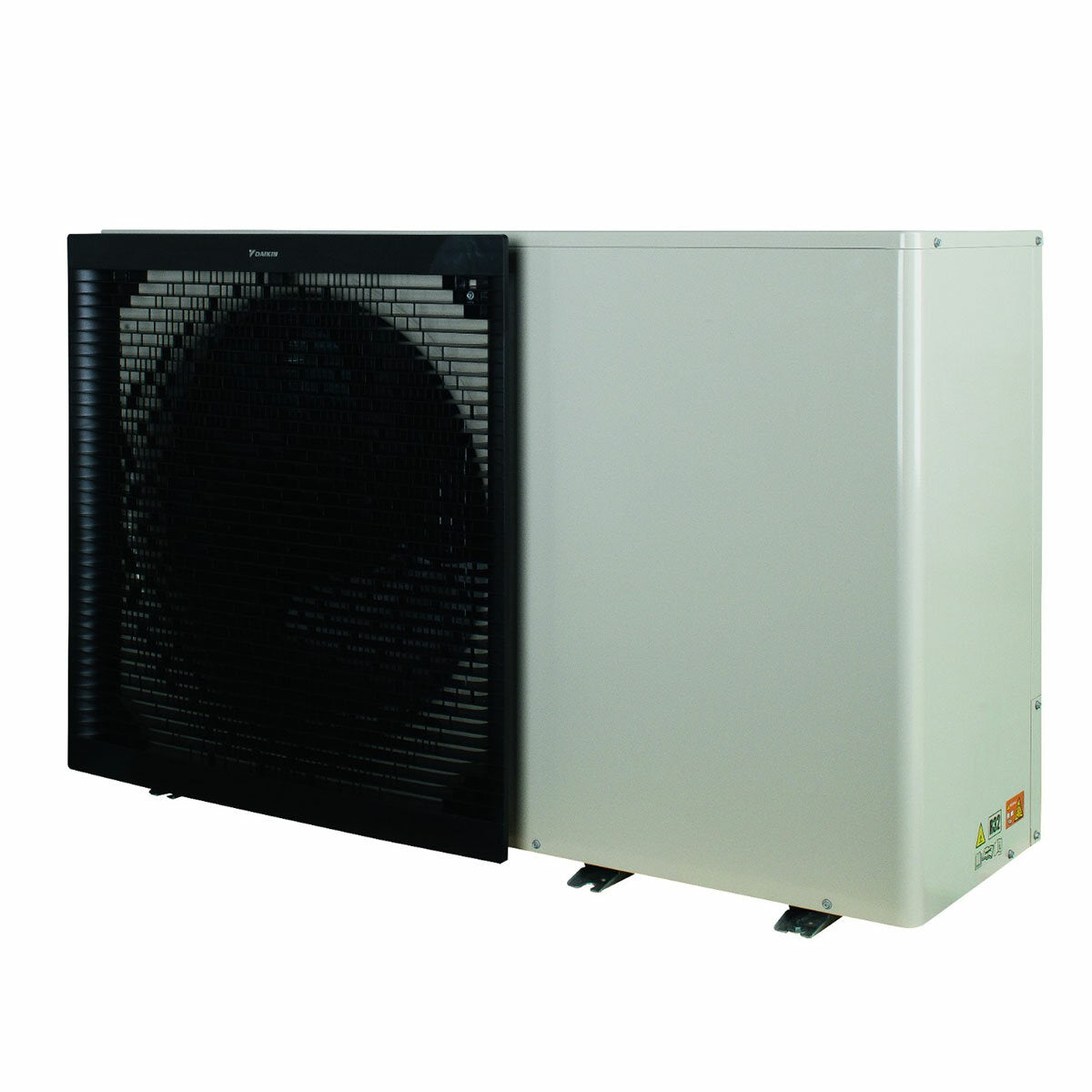

Daikin 14 kW air-to-water heat pump, three-phase power supply, with hydronic module, R32 gas, A++

Daikin EWYA-DW1P: THE COMPACT GENERATION OF DAIKIN HEAT PUMPS

14 kW - Ideal for units of approximately 140 m² with an average height of 2.7 m

Daikin's extensive experience in air conditioning has allowed it to create a one-of-a-kind heat pump that encompasses the full potential of modern technology in a more compact and much less bulky product, thanks to the conversion of the traditional double ventilation to a single one, without neglecting aesthetics and design.

GUARANTEED SAVINGS AND HIGH COMFORT

Daikin EWYA-DW1P heat pumps guarantee excellent energy efficiency , are extremely quiet during operation and meet the most stringent requirements regarding operating temperatures. The units integrate the latest technological innovations: the use of rR-32 gas reduces the environmental impact by 68% compared to R-410A systems and leads to a direct reduction in energy consumption thanks to the high energy efficiency class A++ . Furthermore, they are specifically designed to ensure ease of installation and maintenance.

They are already equipped with an integrated hydraulic kit: expansion vessel, water pressure sensor, plate heat exchanger, electronic boards, standard inverter-driven pump, main flow sensor and switch included which give absolute reliability , reduced energy consumption and minimal vibrations which translate into extremely quiet operation.

They also include swing compressors, featuring a unified cylinder and baffle with fewer moving parts that reduce vibration and friction, ensuring greater reliability and efficiency compared to standard rotary compressors. Inverter- driven compressors adjust the compressor speed to actual demand. This reduces the number of stops and starts, reducing energy consumption (up to 30%) and maintaining more stable temperatures.

GREAT MODULARITY OF INSTALLATION AND USE

The Daikin EWYA-DW1P heat pump systems guarantee high performance in a wide temperature range down to -25°C . They are equipped with an output to connect and integrate the unit with existing heat sources to offer greater savings and optimal comfort in all weather conditions. The units are compact and have a small footprint ; they can be transported even through narrow passages and take up very little space at the installation site, easy to achieve thanks to the plug and play mode and the controller included in the package . Thanks to this device it is possible to upload the start-up parameters via USB, modify the parameters remotely, monitor and view error codes via the high-resolution color display.

The Hydronic Module allows for direct connection to the system; the EWYA-DV1P series heat pumps are not suitable for heating domestic water, even when combined with a storage tank.

Thanks to the cutting-edge MM-2 controller, included in the package, you can upload start-up parameters via USB; modify parameters remotely; and monitor operation via error codes. It also features a high-resolution color display based on the Atherma 3 MM.

TECHNICAL DATA

-Cooling capacity: kW 14

-Heating capacity: kW 16

-SEER: 5.59

-EER: 3.06

-COP: 4.53

-SCOP and Energy Class: 3.37 - A++

DIMENSIONS

Length: 1380 mm - Depth: 460 mm - Height 870 mm.

WARRANTY

The warranty is the Official Daikin one and lasts 24 months.
