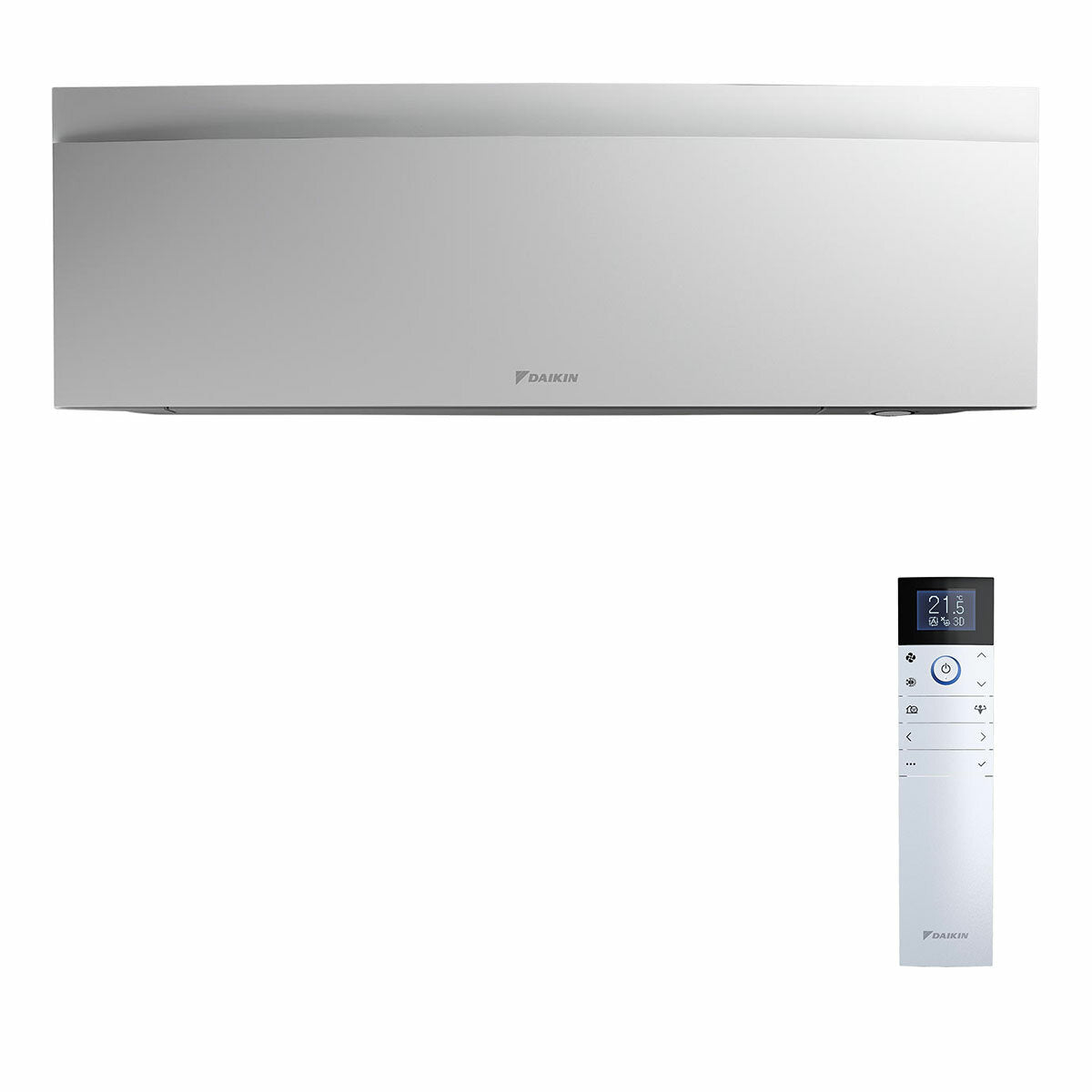

Daikin Multi+ trial split air conditioning system and domestic hot water - Indoor units Emura 3 white 9000+9000+12000 BTU - Tank 120 l

BEST OFFERS -5%
DaikinSKU: 4MWXM52A-2FTXJ25AW-35-EKHWET120BV3 ID: 096859

Price:
Sale price€7.219,86 Regular price€13.871,40
code
4MWXM52A-2FTXJ25AW-35-EKHWET120BV3
id
096859
precodice
DKN
short description

Daikin Multi+ is the system designed by Daikin to cool, heat, dehumidify and produce domestic hot water thanks to the integration of the 120L tank. It can be combined with different series of Daikin air conditioners. Here it is proposed in the trial split version in combination with the white Emura 3 9000+9000+12000 BTU indoor units, ideal for rooms of 25 and 40 m2. Managing the Daikin Multi+ system is really simple thanks to the integrated WiFi and management via APP, Google and Alexa voice commands. Energy class A+++ for cooling, A++ for heating, A for hot water production.

brand
Daikin
category
Air conditioners
type
3 split air conditioner
btu power
9000+9000+12000 btu
series
Multi+
modes
Cold,Hot,Dehumidifier
pipes liquids connect
0.37 - 9.52
fluorinated gases
true
ideal for environment
40 Mq
inverter
true
rated power
5.2
installation mode
Wall
gas refrigerant
R32
use
Residential
wifi
true
power
Single phase
accumulo
120
airfilt
Filtro antibatterico
heat ec
A+++

Description

Daikin Multi+ system for air conditioning and domestic hot water - Perfera Wall indoor units 9000+9000+12000 BTU - 120 l tank



The Daikin Multi+ system presented here is proposed in combination with the indoor units of the Perfera Wall series.

The Kit consists of

  • 1 x 120 l domestic hot water tank
  • 2 x Daikin Perfera Wall 9000 BTU - Ideal for rooms from 15 to 25 m2 with an average height of 2.7 m
  • 1 x Daikin Perfera Wall 12000 BTU - Ideal for rooms from 25 to 40 m2 with an average height of 2.7 m
  • 1 x Outdoor Unit Multi+ 4MWXM52A - 5.2 kW



Daikin Multi+ is the system designed by Daikin to cool, heat and produce domestic hot water in a single solution. As simple as it is revolutionary, Daikin Multi Plus is an efficient multi split air conditioning system which has been combined with a tank for domestic hot water which can thus be produced, for most of the time, by the system's heat pump to the full advantage efficiency and energy and economic savings .

Ideal for replacing old inefficient heating systems and expensive electric water heaters , Daikin Multi+ adapts perfectly to the needs of medium-small families, allowing you to cool and heat up to three rooms and produce domestic hot water in heat pump saving on the bill and improving the comfort of the whole family.

The Daikin Multi+ system consists of an outdoor unit with inverter technology and heat pump , to which a 90 or 120 liter tank can be connected to produce domestic hot water and up to three Daikin splits, also of different series (wall, floor, console , ceiling, etc.). Multi+ therefore also satisfies all style and furnishing needs, being able to combine with the most popular Daikin series in terms of design such as Stylish and Emura, in all their color variations.

Thanks to Daikin Multi+ it will be possible to obtain energy savings from the first use and invest in a greener future for the Planet. Being an all-in-one system, Multi Plus offers a unique solution to the main needs of a modern home and, at the same time, it is an affordable, easy to install and space-saving investment. The advantage of choosing a Daikin Multi Plus will be not only an air-conditioned home with hot water always ready without spending a fortune, but also the peace of mind of relying on a Brand that has always been synonymous with excellent quality, all-round comfort and latest generation technology at your fingertips thanks to the management via App.

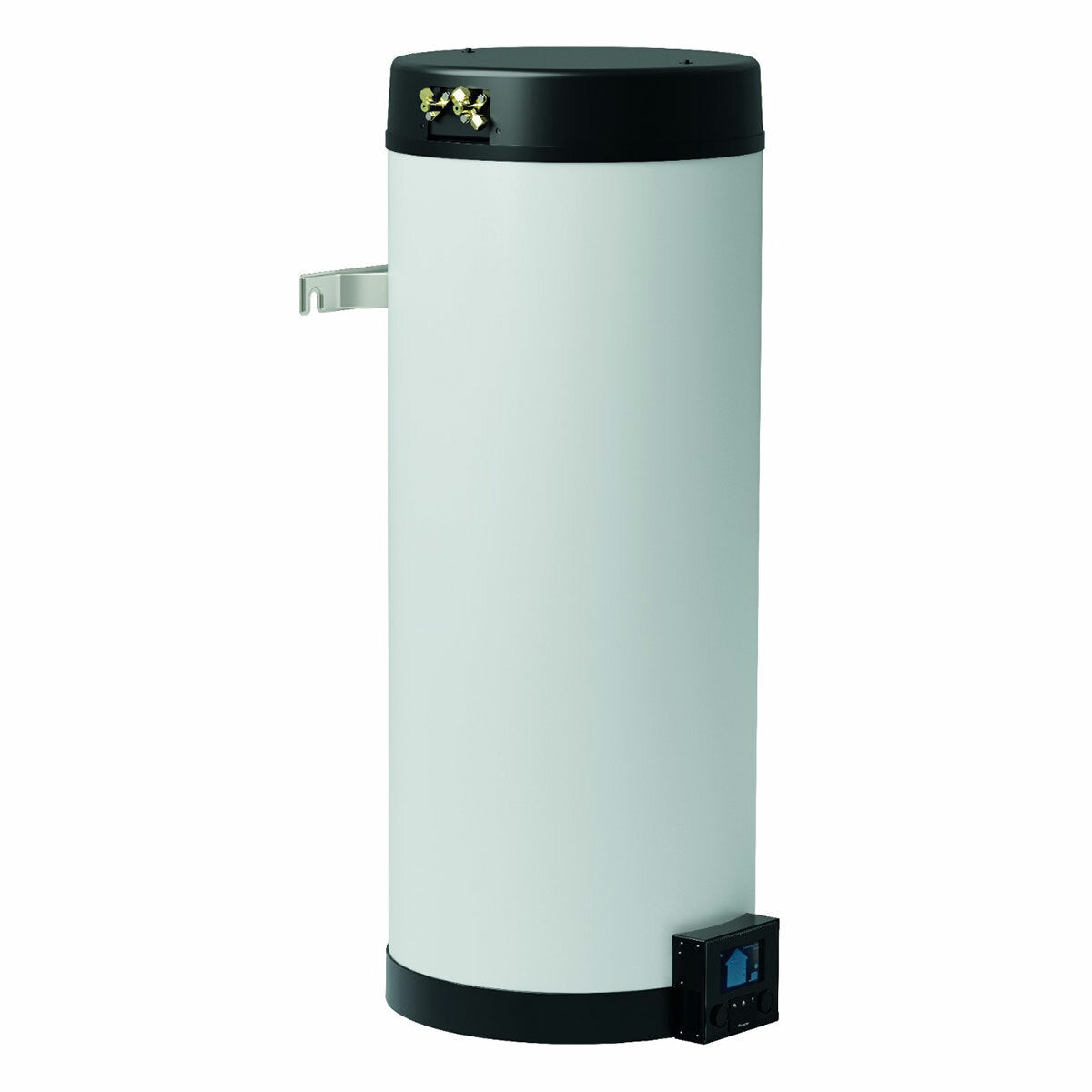

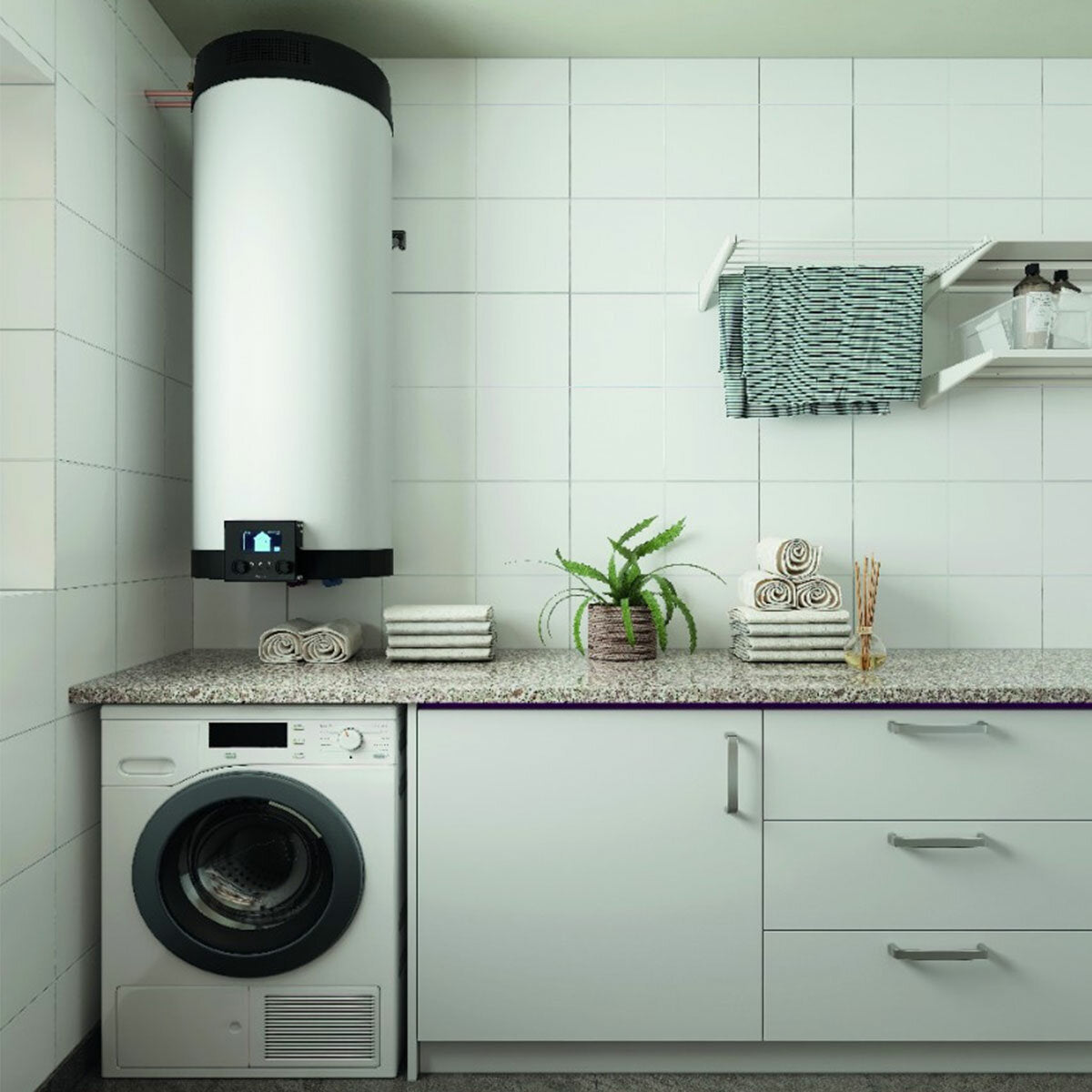

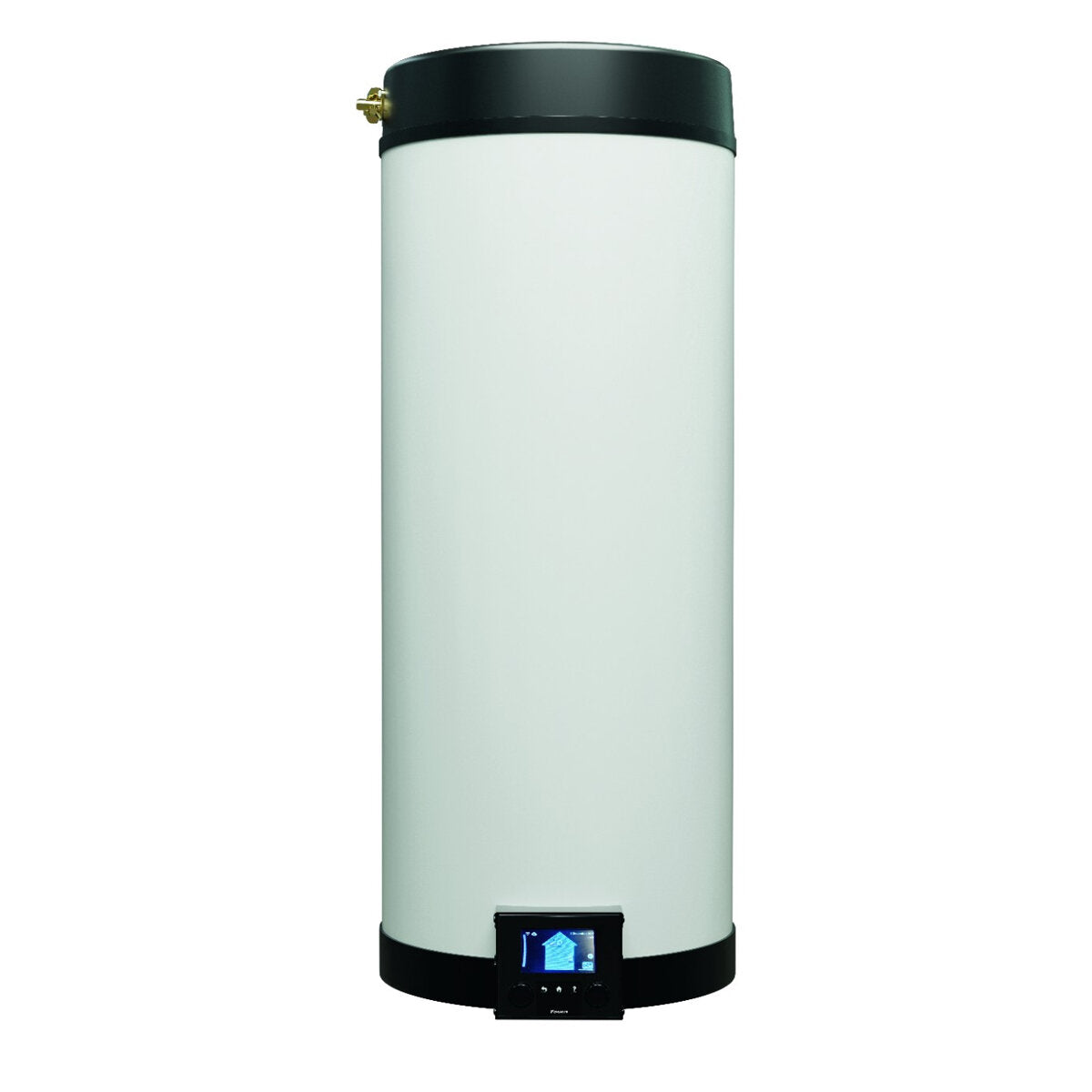

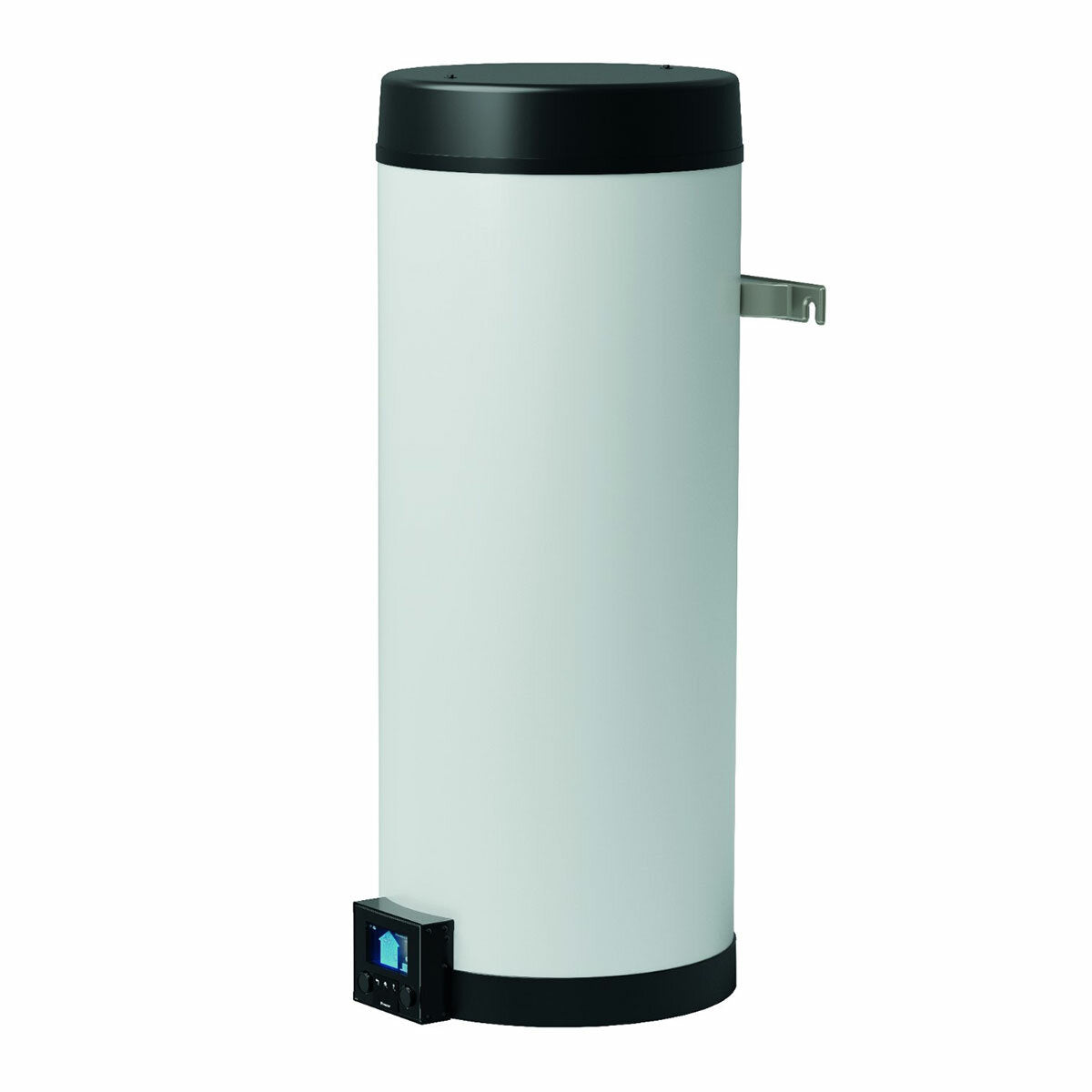

120 L TANK

The domestic hot water tank, together with the outdoor unit, is the main component of the Daikin Multi+ . They make it possible to produce domestic hot water with Class A energy efficiency.

Steel structure and hot-galvanized sheet metal coating with anti-corrosion treatment guarantee maximum life for this boiler. Available in 90 or 120 liter sizes , the tank is ideal for the domestic hot water needs of a family of 2/3 people . The tank has an intuitive interface that allows you to make all the settings for the configuration and daily use of the system. The full-text display and simplified preset modes make it easy to use even for inexperienced users. By adding the optional WLAN card to the interface, it will also be possible to manage and monitor the tank even remotely via the Daikin Onecta App, the same one that allows you to manage compatible air conditioners from your smartphone or tablet, wherever you are. Onecta is also compatible with Amazon Alexa and Google Assistant.

With Multi+ the production of domestic hot water can take place in 3 different ways which exploit the combined action of the heat pump and, possibly, of the additional resistance:

  • Efficient Mode : best mode to optimize consumption
  • Quick Mode : the water temperature is reached 30% faster than in the Efficient mode
  • Powerful Mode : the water temperature is reached 50% faster than in the Efficient mode by activating the integrated electric resistance (more expensive mode in terms of consumption).

T he domestic hot water tank and the Daikin Multi + outdoor unit fit together perfectly : the outdoor unit in fact supplies most of the energy used to heat the water inside the tank (the additional electrical resistance activates during DHW requests greater than those programmed).

· For daily water heating , it is best to program the unit to start early in the morning or when everyone is away. Since domestic hot water is heated according to the set schedule, the outdoor unit can switch to cooling mode as soon as an air conditioner is activated.

· In the event of a greater demand for hot water , simply activate the Powerful function to make the water reach the desired temperature 50% faster than in the Efficient mode. The water will be heated by the electric resistance integrated in the tank and at the same time it will be possible to use the Cooling function for the air conditioners connected to the system.

· In Heating mode , it will be possible to heat both the water and the rooms simultaneously in a convenient way using the heat pump alone.

The tank is simple to install and maintain: overall dimensions and weight are reduced, the power and coolant connections are located on the top, the water connections are easily accessible from the bottom. This also minimizes installation costs.

The 120 l tank can be combined with splits from other Daikin series. Here the system is proposed in combination with the indoor units of the Perfera Wall series.

PERFECT WALL SERIES

The DAIKIN Perfera Wall air conditioners are characterized by a more modern style with decisive lines and no curvatures so as to reduce the perceived depth; the indoor units are composed of straight lines with a clean cut; with their very modern design they adapt to all environments enriching them with style so as to be suitable for installation in homes, commercial activities, offices and even in hotel environments. The small size makes it easy to install thanks to the work of scaling the width of more than 30 mm. The purity of the air is guaranteed by the special filters and by the Flash Streamer system which eliminates viruses, bacteria and allergens thanks to the generation of a high-speed flow of electrons as well as by a wider fin which tends to improve the air flow. The exclusive Wi-Fi technology allows you to manage the main functions of your air conditioner using the new Daikin Residential Controller App that can be installed on a smartphone or PC , even when you are away from home (Wi-Fi network required to connect the unit to the Internet) . Furthermore, thanks to the smart speaker it is possible to connect it to Amazon Alexa and Google Home voice devices. The internal unit's low noise level of only 19 dB(A) at low fan speed helps to obtain excellent and long-lasting relaxation. The remote control is compact and with clear and ergonomic controls; it also offers a comfortable sliding door under which there are the keys to access the more advanced functions.

ACCESSORIES SUPPLIED AS STANDARD WITH EACH INDOOR UNIT

- Remote control

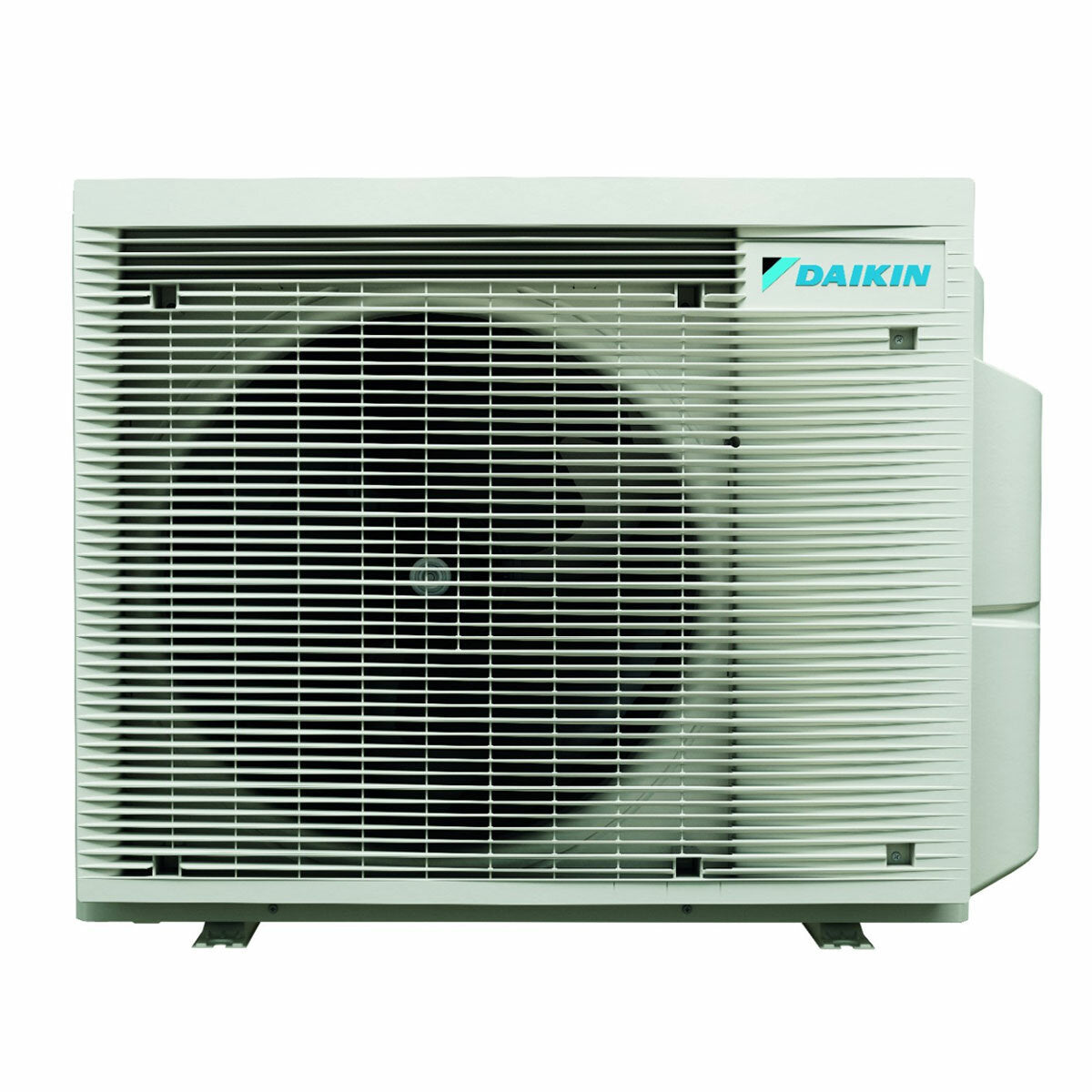

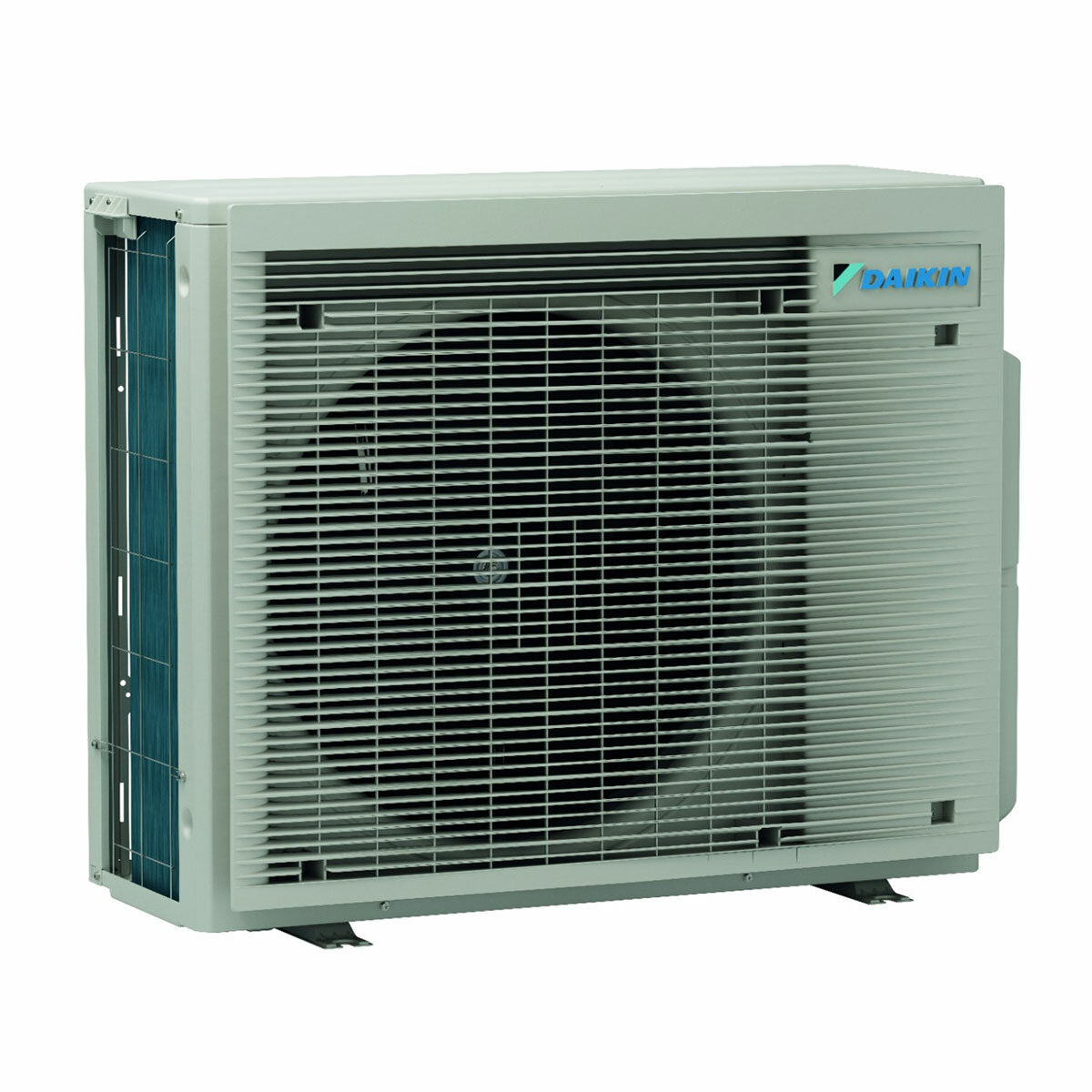

THE OUTDOOR UNIT

The Daikin Multi+ outdoor unit forms the heart of this all–in–one system . Thanks to the Inverter and Heat Pump technology and the use of low environmental impact R32 gas , it is a concentrate of technology, efficiency and consequent reduction in consumption . The Multi+ outdoor unit offers the great advantage of air conditioning up to three rooms using a single outdoor unit; moreover, thanks to the predisposition for the connection of the hot water boiler, it allows a further saving of space and consumption keeping all the internal units independent of each other. With the outdoor unit of the Multi+ system, Daikin redefines market standards in terms of efficiency, silence and consumption control. Equipped with a swing -type hermetic compressor , it ensures maximum efficiency by continuously regulating the power based on real needs. Stops and restarts of the machine are drastically reduced by reducing energy consumption by up to 30% and maintaining more stable temperatures . Thanks to the new fan of the Multi+ outdoor unit, whose blades have been redesigned to reduce noise emissions and consumption, acoustic comfort and further savings are ensured. A new front grille in an ivory color elegantly hides the fan. The Multi+ outdoor unit reaches energy efficiency values of Class A+++ in cooling , A++ in heating and A for domestic hot water.



Direct expansion piping connections

Gas connection pipes: 3/8 - 1/2 - 5/8

Liquid connection pipes: 1/4

Domestic hot water piping connections

Gas connection pipes: 3/8

Liquid connection pipes: 1/4



WARRANTY

The warranty is the official Daikin one and has a duration of 24 months.

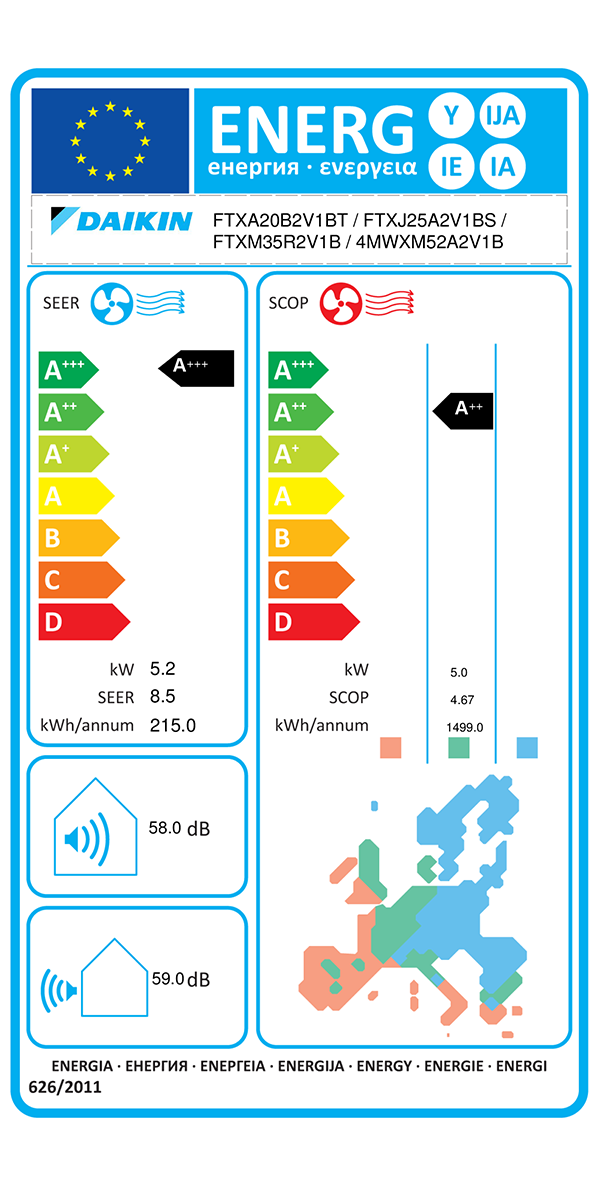

labels
energy cooling
A+++
energy heating
A++
wifi
true
code
kit
4MWXM52A-2FTXJ25AW-35-EKHWET120BV3
internal units
FTXJ25AW, FTXJ35AW, EKHWET120BV3
external units
4MWXM52A
kit features
brand
Daikin
category
Air conditioners
type
3 split air conditioner
btu power
9000+9000+12000 btu
series
Multi+
modes
Cold,Hot,Dehumidifier
pipes liquids connect
0.37 - 9.52
fluorinated gases
true
ideal for environment
40 Mq
inverter
true
rated power
5.2
installation mode
Wall
gas refrigerant
R32
use
Residential
wifi
true
power
Single phase
accumulo
120
airfilt
Filtro antibatterico
heat ec
A+++
cooling
nominal capacity
5200(2400~7200) W
nominal absortion
1040(500~2160) W
nominal current
4.72(2.26~4.72) A
eer cop
5
seer scop
8.5
qce
215
energy rating cold
A+++
capacity a w
1530W
capacity b w
1530W
capacity c w
2140W
heating
nominal capacity
6800(1900~8100) W
nominal absortion
1350(410~2090) W
nominal current
6.12(1.86~9.47) A
eer cop
5.04
seer scop
4.67
qce
1496
energy rating hot
A++
capacity a w
2000W
capacity b w
2000W
capacity c w
2800W
Internal unit FTXJ25AW
brand
Daikin
category
Indoor unit
type
btu power
9000 btu
series
Emura 3
modes
Cold,Hot,Dehumidifier
pipes liquids connect
0.25 - 6.35
pipes gas connect
0.37 - 9.52
width height depth
900X305X212
fluorinated gases
true
ideal for environment
25 Mq
inverter
true
installation mode
Wall
gas refrigerant
R32
use
Residential
wifi
true
airfilt
Filtro antiodoreFiltro antibatterico
heat ec
A+++
Internal unit FTXJ35AW
brand
Daikin
category
Indoor unit
type
btu power
12000 btu
series
Emura 3
modes
Cold,Hot,Dehumidifier
pipes liquids connect
0.25 - 6.35
pipes gas connect
0.37 - 9.52
width height depth
900X305X212
fluorinated gases
true
ideal for environment
40 Mq
inverter
true
installation mode
Wall
gas refrigerant
R32
use
Residential
wifi
true
airfilt
Filtro antibatterico
heat ec
A+++
Internal unit EKHWET120BV3
brand
Daikin
category
Water heaters
type
Electric
series
Multi+
pipes liquids connect
0.25 - 6.35
pipes gas connect
0.37 - 9.52
width height depth
536X1296X571
installation mode
Wall
power
Single phase
accumulo
120
External unit 4MWXM52A
brand
Daikin
category
Outdoor unit
type
pipes liquids connect
0.25 - 6.35
width height depth
974X734X401
fluorinated gases
true
inverter
true
rated power
5.2
gas refrigerant
R32
use
Residential
