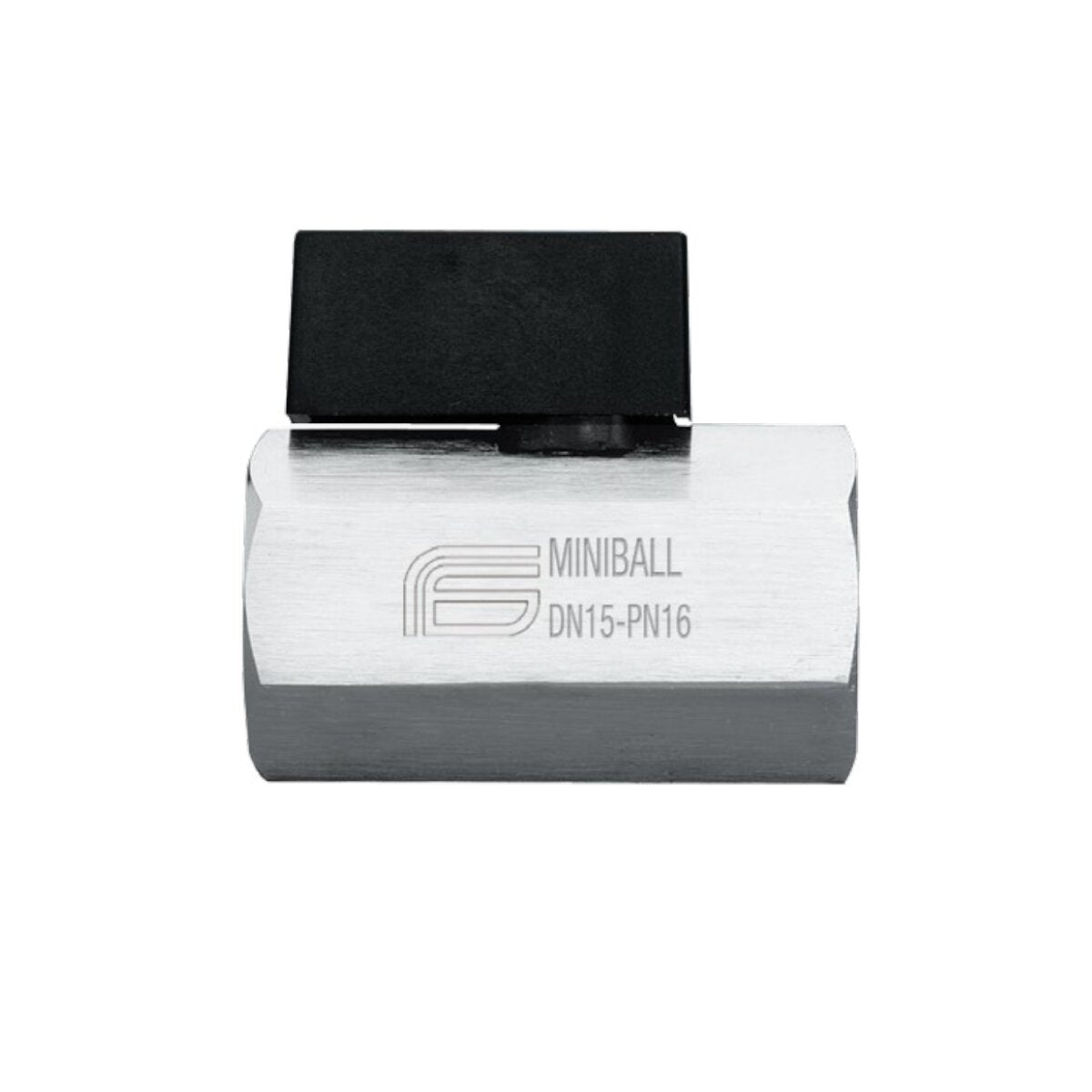

Effebi MINIBALL 1/2 M/F mini ball valve
The Effebi MINIBALL series mini ball valve Art. 1502 with 1/2 male/female connections is a compact shut-off valve designed for ON/OFF flow control in plumbing, heating and compressed air systems.
Thanks to the CW617N brass body, polished chrome-plated ball , and PTFE seals , it guarantees high reliability, long-lasting durability, and wear resistance. Operation is via an ergonomic glass-filled nylon lever with a 90° rotation (quarter turn) for quick opening and closing.
The M/F 1/2 configuration allows direct connection between threaded fittings according to the UNI ISO 228/1 standard, making it ideal for installations in small spaces such as manifolds, boilers, sanitary fixtures, water heaters and water distribution lines.
Main technical features:
Body and stem in CW617N brass
Chromed brass sphere
PTFE seals with NBR O-rings
Maximum pressure: 16 bar
Operating temperature: -10°C / +90°C
Reduced passage
Suitable for shutting off water and compatible fluids in civil and light industrial applications. Not suitable for fine flow regulation.
WARRANTY
The warranty is the official Effegi Italia one and lasts 2 years.
