Elen 22 I50 Towel Warmer Radiator 480x2084 mm Polished Stainless Steel

Cordivari Elen 22 I50 Polished Stainless Steel Towel Warmer

The Elen 22 towel warmer from the Cordivari brand is the radiator that combines elegance and practicality. This radiator was designed to give your bathroom environments that particular touch of class, without sacrificing the efficiency and functionality that have distinguished this brand for almost half a century.

The Cordivari Elen 22 towel radiator has a unique and unmistakable design. Made of polished austenitic stainless steel , highly resistant to corrosion, non-toxic and long-lasting; the quality of the finishes is unmistakable: the style given to the horizontal, thin and rounded radiant bodies combined with the vertical manifolds which are also rounded, offers an aesthetically accurate and elegant result, capable of meeting the tastes of any user and fitting in without difficulty even in more exclusive environments.

Elen 22 by Cordivari stands out for its dual value: firstly, the main function is to provide adequate heating to the installation environment , a function which it performs excellently and quickly; secondly, it is practical and useful by virtue of its ladder shape which allows you to place towels on it so that they are always warm and dry.

Specifically, the Cordivari Elen 22 towel warmer is made up of vertical manifolds in polished stainless steel ø 30 mm and horizontal radiating bodies in polished stainless steel ø 22 mm , it resists a maximum operating pressure of 8 bar and a maximum operating temperature of 110 °C ensuring high thermal efficiency even with low temperature systems and helping to achieve real energy savings .

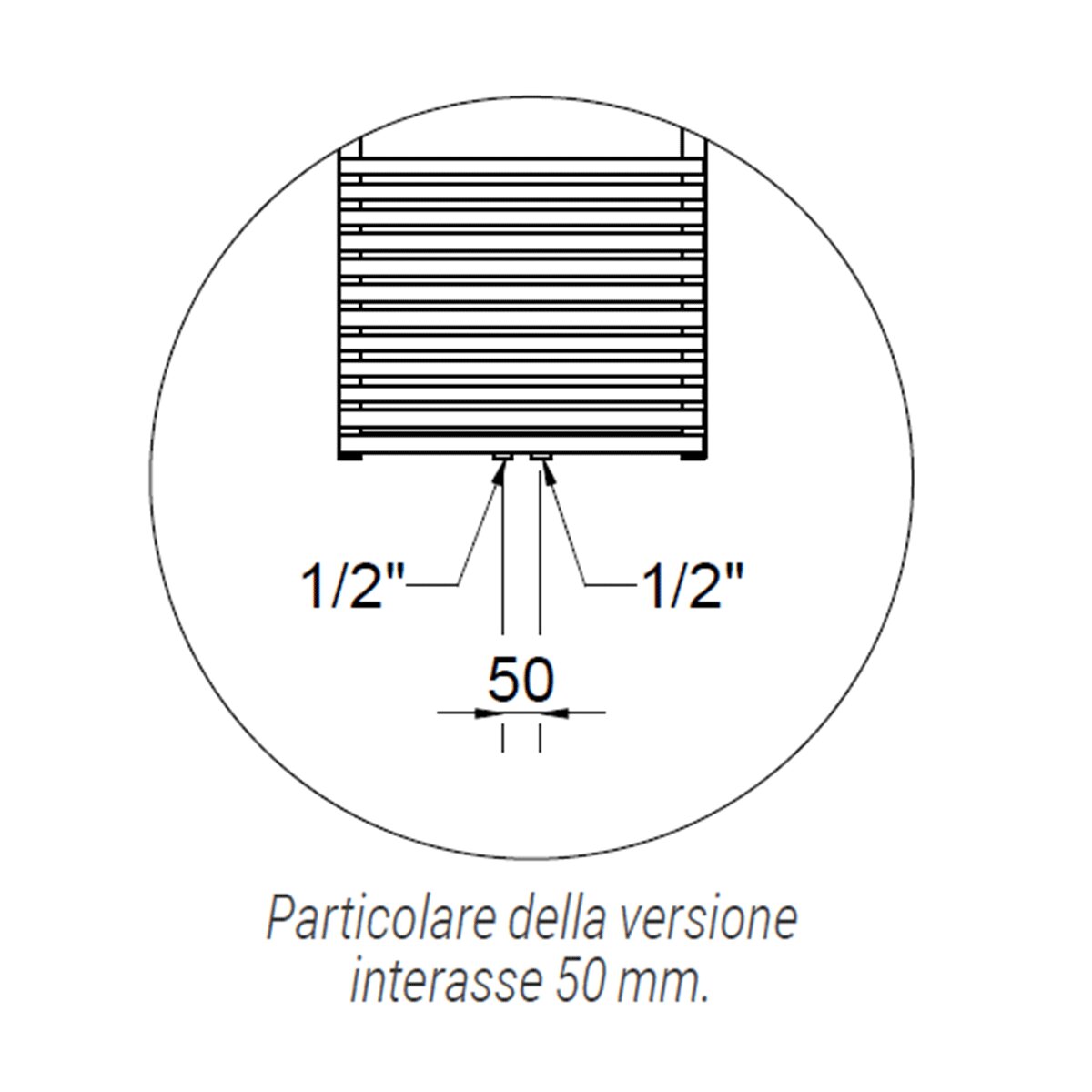

The peculiarity of this version is the 50 mm center distance between the 1/2 G connections, a detail to always take into consideration when you want a designer radiator connected to the water heating system; the connections are positioned centrally in the lower part of the radiator.

It can be installed on the wall with great versatility, with the option of placing it on the bidet, next to the sink, above a bathtub or on a free wall. It is supplied complete with installation kit (compliant with VDI 6036 - class 4) including supports, vent valve, hex wrench, plugs and fixing screws suitable for use on compact or perforated brick walls. Installation must be carried out by authorized and qualified technical personnel according to the assembly instructions supplied with the product.

The arrangement of the tube bundles varies according to the total height of the towel warmer in order to always obtain an excellent relationship between dimensions and performance.

Technical features

- Operation: hot water

- Connections: n° 2 of 1/2” G - 1 of 1/2” G

- Water content: 10.18 litres

- Δt=50°C: 781

- Δt=30°C: 422

- Surface area: 2.08 m²

Dimensions

- Height: 2084 mm

- Width: 480 mm

- Center distance: 50 mm

- Empty weight: 16.2 kg

Warranty

The guarantee is the official Cordivari Italia one and lasts 15 years .
