Fantini Cosmi Intellitherm C32 chronothermostat

Save 46%
Fantini CosmiSKU: C32 ID: E52CFA

Price:
Sale price€57,01 Regular price€105,41
code
C32
id
E52CFA
precodice
FCS
short description

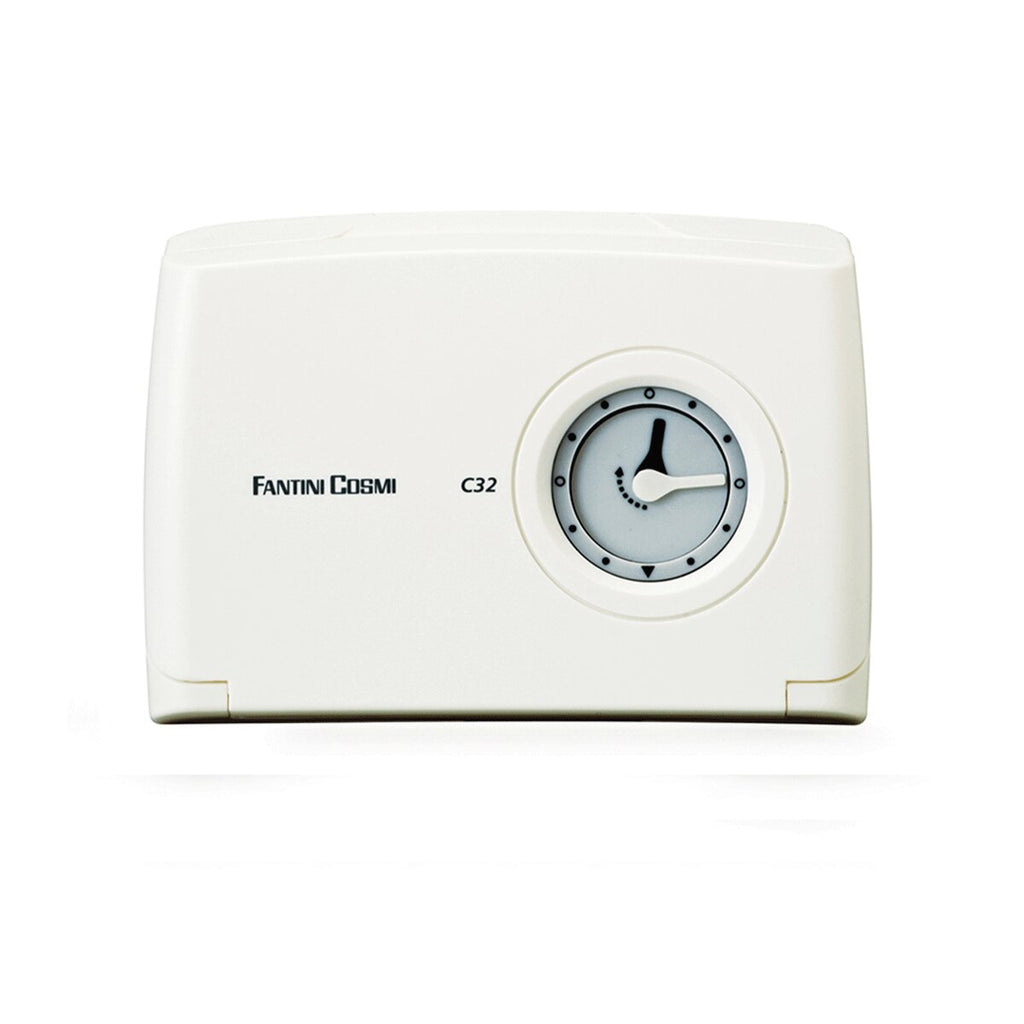

The Intellitherm C32 chronothermostat by Fantini Cosmi is suitable for every boiler and regulates the temperature easily and quickly with daily programming.
brand
Fantini Cosmi
category
Accessories
type
Boiler accessories
width height depth
130X95X35
Download technical specifications

Description

FANTINI COSMI INTELLITHERM C32 CHRONOTHERMOSTAT

Electronic chronothermostat with daily programming for the control of heating and air conditioning systems with mechanical clock.

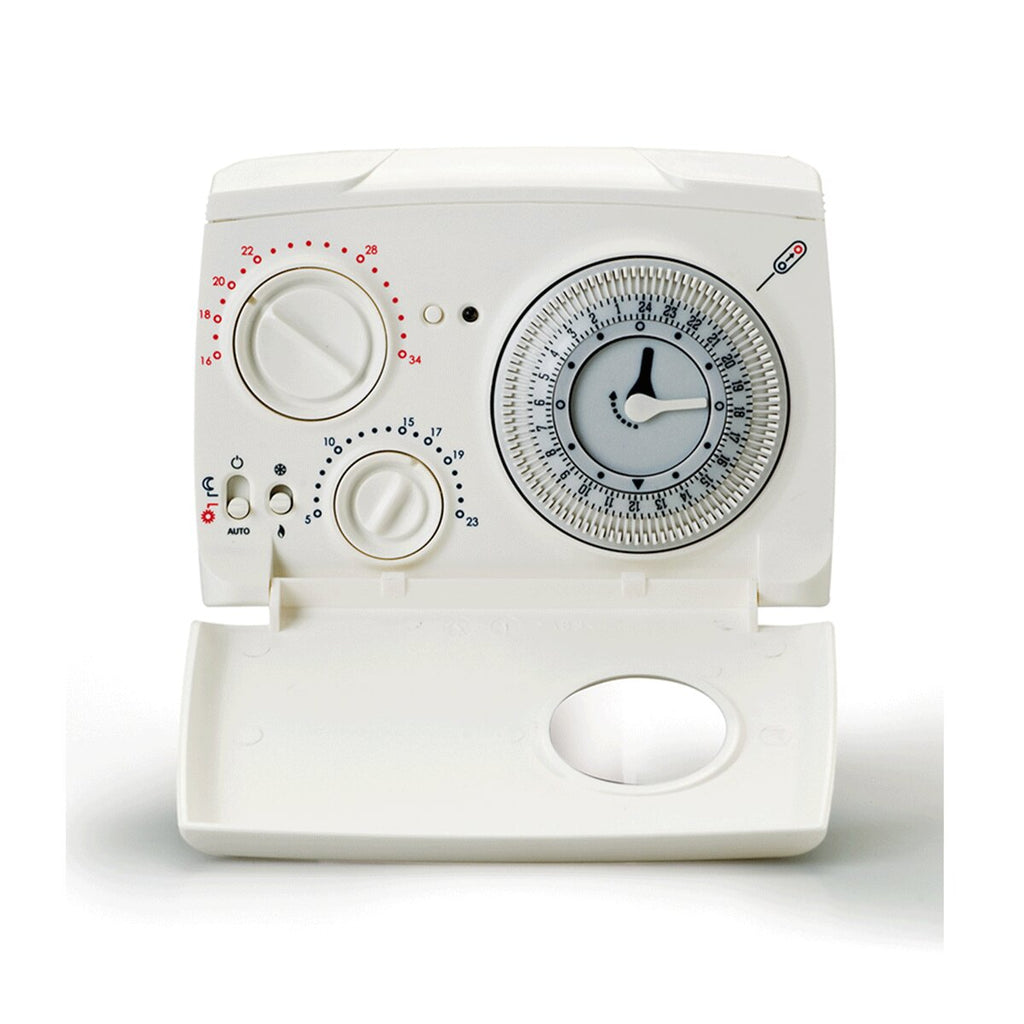

The C32 Fantini Casmi Intellitherm chronothermostat is equipped with two knobs for regulating the COMFORT and ECONOMY temperatures, a cursor for choosing the operating mode (AUTO, COMFORT, ECONOMY or OFF), a cursor for choosing the type of operation (SUMMER or WINTER), a mechanical watch with riders for setting the time.

General characteristics:

  • Front cover for battery extraction
  • Electrical protection degree: IP 20
  • Pollution degree: 2
  • LED test button to check the battery charge status. By pressing the button the chronothermostat starts the TEST phase, if the batteries have sufficient charge, the LED remains lit for a few seconds and then turns off; if the batteries need to be replaced, the LED starts flashing quickly.

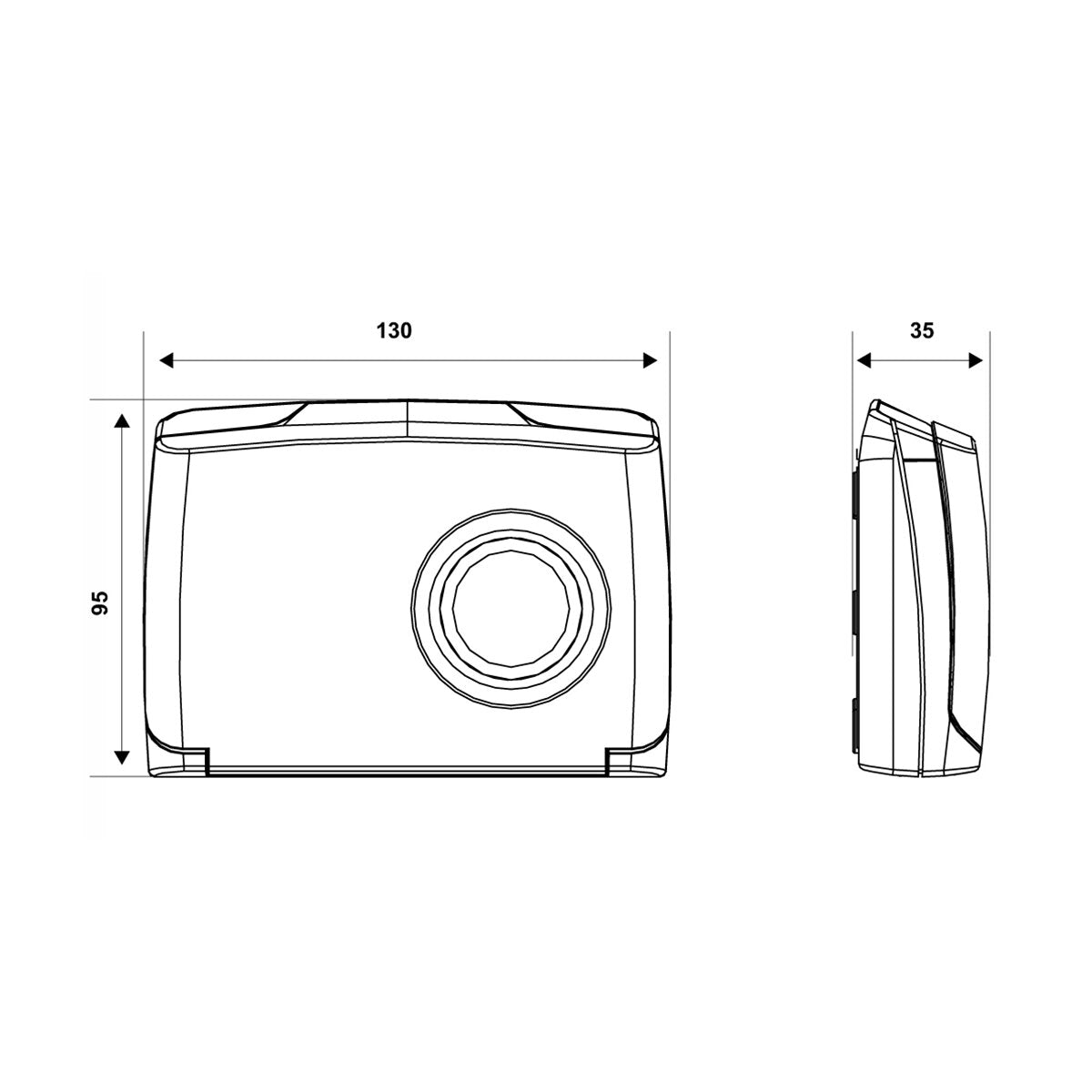

  • Dimensions (WxHxD): 130 x 95 x 35 mm.



Electrical characteristics:
  • Contact rating: 5 A 250V approx.
  • Microdisconnection: 1BU
  • Voltage-free switching contact
  • Powered by 2 AA 1.5 V alkaline batteries, long life without connection to the power line
  • Double insulation
  • Pulse voltage: 4000V



WARRANTY

The guarantee is the official Fantini Cosmi one and lasts 2 years.

labels
wifi
false
code
kit
C32
kit features
brand
Fantini Cosmi
category
Accessories
type
Boiler accessories
width height depth
130X95X35
Download technical specifications
