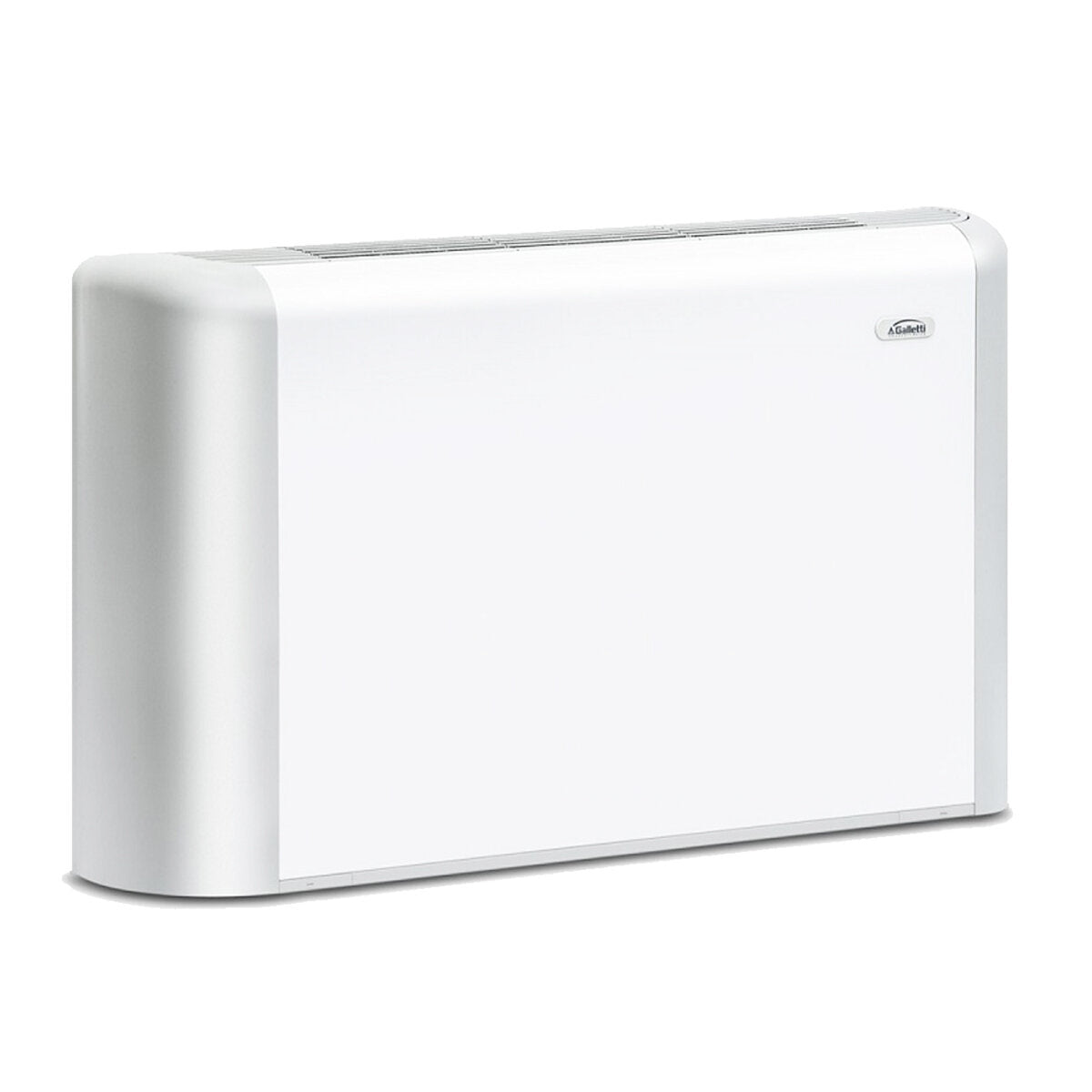

Galletti ESTRO FL 01 fan coil unit - 1.55/1.15 kW

Galletti ESTRO FL 01 fan coil unit - 1.55/1.15 kW

Heating output 1.55 kW - Cooling output 1.15 kW

Ideal heating output for rooms up to 16 m2 with an average height of 2.7 m

Ideal cooling performance for rooms up to 12 m2 with an average height of 2.7 m

The Galletti ESTRO FL fan coil unit is designed for floor-standing installation and combines refined design , quality materials , and maximum operational efficiency . The rounded shapes integrate perfectly into any environment, making this fan coil unit extremely versatile.

Robust and modern structure : high-thickness steel sheet cover cabinet (10/10 mm) with side panels and 180° adjustable ABS outlet grille . The side doors allow quick access to the technical compartments and the control panel (optional) .

Resistant base unit: made of galvanized sheet metal up to 15/10 mm , with insulation in self-extinguishing class 1 thermo-insulating panels , to guarantee optimal safety and thermal insulation.

High-efficiency heat exchanger : copper tubing and aluminum fins , with brass manifolds and air vents . It is installed with hydraulic connections on the left , but can be rotated 180° for greater installation flexibility. The hydraulic connections are reversible during installation.

Silent and reliable electric motor : 3 or 6 speeds , mounted on anti-vibration supports and equipped with thermal protection and permanently inserted capacitor .

Double-inlet centrifugal fans , statically and dynamically balanced , made of antistatic ABS to ensure uniform and quiet airflow. The fans are housed in a high-efficiency ABS casing.

Regenerable honeycomb polypropylene air filter, easily removable and washable , mounted on a galvanized sheet metal frame with protective mesh and quick ¼ turn fixing.

The result is an elegant, solid and functional fan coil unit, ideal for residential or commercial environments that require comfort, efficiency and ease of maintenance .

DIMENSIONS

Width 774 mm_Height 564 mm_Depth 226 mm

Weight 21 kg

WARRANTY

The guarantee is the official Galletti one and lasts 2 years .
